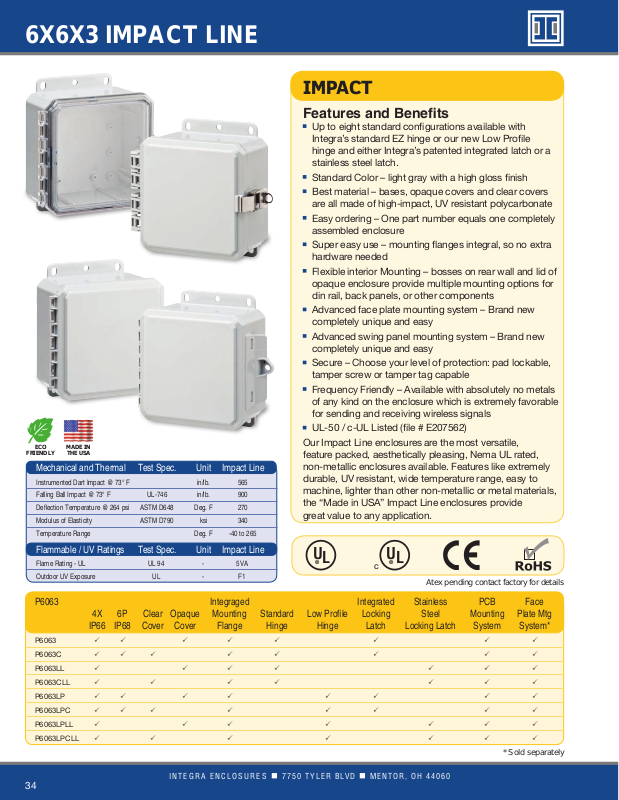

Integra P6063 Catalog Page
6X6X3 IMPACT LINE
IMPACT
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ECO |
|
|
|
|
|
|
MADE IN |
|
|
|
||
FRIENDLY |
THE USA |
|
|
|
||
Mechanical and Thermal |
Test Spec. |
Unit |
Impact Line |
Instrumented Dart Impact @ 73° F |
|
in/lb. |
565 |
|
|
|
|
Falling Ball Impact @ 73° F |
UL-746 |
in/lb. |
900 |
|
|
|
|
Deflection Temperature @ 264 psi |
ASTM D648 |
Deg. F |
270 |
|
|
|
|
Modulus of Elasticity |
ASTM D790 |
ksi |
340 |
|
|
|
|
Temperature Range |
|
Deg. F |
-40 to 265 |
Features and Benefits
Up to eight standard configurations available with Integra’s standard EZ hinge or our new Low Profile hinge and either Integra’s patented integrated latch or a stainless steel latch.
Standard Color – light gray with a high gloss finish
Best material – bases, opaque covers and clear covers are all made of high-impact, UV resistant polycarbonate
Easy ordering – One part number equals one completely assembled enclosure
Super easy use – mounting flanges integral, so no extra hardware needed
Flexible interior Mounting – bosses on rear wall and lid of opaque enclosure provide multiple mounting options for din rail, back panels, or other components
Advanced face plate mounting system – Brand new completely unique and easy
Advanced swing panel mounting system – Brand new completely unique and easy
Secure – Choose your level of protection: pad lockable, tamper screw or tamper tag capable
Frequency Friendly – Available with absolutely no metals of any kind on the enclosure which is extremely favorable for sending and receiving wireless signals
UL-50 / c-UL Listed (file # E207562)
Our Impact Line enclosures are the most versatile, feature packed, aesthetically pleasing, Nema UL rated, non-metallic enclosures available. Features like extremely durable, UV resistant, wide temperature range, easy to
machine, lighter than other non-metallic or metal materials, the “Made in USA” Impact Line enclosures provide
great value to any application.
|
|
Flammable / UV Ratings |
Test Spec. |
Unit |
Impact Line |
U® L |
U® L |
|
|
|
|
|||||
|
|
Flame Rating - UL |
|
|
UL 94 |
|
- |
5VA |
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
c |
|
|
|
|
|
|
Outdoor UV Exposure |
|
UL |
|
- |
F1 |
|
|
|
|
Atex pending contact factory for details |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
P6063 |
|
|
|
|
Integraged |
|
|
|
Integrated |
Stainless |
PCB |
Face |
||
|
|
|
4X |
6P |
Clear |
Opaque |
Mounting |
Standard |
Low Profile |
Locking |
Steel |
Mounting |
Plate Mtg |
|||
|
|
|
IP66 |
IP68 |
Cover |
Cover |
|
Flange |
Hinge |
Hinge |
Latch |
Locking Latch |
System |
System* |
||
|
|
P6063 |
P |
P |
|
P |
|
P |
P |
|
P |
|
P |
P |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063C |
P |
P |
P |
|
|
P |
P |
|
P |
|
P |
P |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063LL |
P |
|
|
P |
|
P |
P |
|
|
P |
P |
P |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063CLL |
P |
|
P |
|
|
P |
P |
|
|
P |
P |
P |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063LP |
P |
P |
|
P |
|
P |
|
|
P |
P |
|
P |
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063LPC |
P |
P |
P |
|
|
P |
|
|
P |
P |
|
P |
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063LPLL |
P |
|
|
P |
|
P |
|
|
P |
|
P |
P |
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P6063LPCLL |
P |
|
P |
|
|
P |
|
|
P |
|
P |
P |
P |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Sold separately |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I N T E G R A E N C L O S U R E S n 7750 TYLER BLVD n MENTOR, OH 44060
34
7.36” / 187mm
4.80” / 122mm 4.00” / 102mm
6.54”
166mm
7.80”
198mm
6.92” / 176mm
4.80” / 122mm 4.00” / 106mm
6.54” B 166mm
5.32”
135mm
6.54” / 166mm
.31”
8mm
3.50”
89mm
6.75”
171mm
.31” / 8mm
B 7.00” 178mm
6.75”
171mm
6X6X3 IMPACT LINE
4.25” / 108mm
2.125”
54mm
|
2.25” |
|
57mm |
4.88” |
|
124mm |
.75” / 19mm |
|
4.25” / 108mm
1.50”
38mm
4.88” / 124mm
.33”
8mm
3.38”
86mm
2.78”
71mm
.32”
8mm
7.72” / 196mm
4.01”
102mm
3.250”
83mm
Register online to download this drawing off the Integra website at www.integraenclosures.com | Your company’s logo or other information on the lid. Consult factory for details.
Accessories for 6x6x3 Impact (For complete accessories, see page 52-54)
Back Panels |
Aluminum Swing Out System |
Aluminum Face Plate System |
|
ABP66-IMP - Aluminum panel |
ASWPK66-IMP Aluminum swing panel |
AFPK66-IMP - Aluminum face plate |
|
SBP66-IMP - Steel panel |
and SOPK-IMP mounting kit |
and SOPK-IMP mounting kit |
|
ASWP66-IMP - Aluminum swing |
|||
PVCBP66-IMP - PVC panel |
AFP66-IMP - Aluminum face |
||
panel only |
panel only |
||
|
SOPK66/86-IMP - 2 Ridget brackets, 1 |
SOPK66/86-IMP - 2 Ridget brackets, 1 |
|
|
pivot bracket & 8 self-tapping screws |
pivot bracket & 8 self-tapping screws |
Air Vents |
Steel Swing Out System |
Steel Face Plate System |
|
VENT 1 - Aluminum louvered |
SSWPK66-IMP Steel swing panel |
SFPK66-IMP - Steel face plate |
|
VENT 2 - Outdoor labyrinth |
and SOPK-IMP mounting kit |
and SOPK-IMP mounting kit |
|
SSWP66-IMP - Steel swing |
SFP66-IMP - Steel face |
||
|
|||
|
panel only |
panel only |
|
|
SOPK66/86-IMP - 2 Ridget brackets, 1 |
SOPK66/86-IMP - 2 Ridget brackets, 1 |
|
|
pivot bracket & 8 self-tapping screws |
pivot bracket & 8 self-tapping screws |
|
Din Rail |
Pole Mounting Kit |
Cord Grips |
|
DIN 6-IMP - 2 rails, 4 screws |
PMKG-26-IMP - 2“ pole |
IP68/NEMA 4X/6P rated |
|
|
PMKG-36-IMP - 3“ pole |
See page 54 for more details. |
|
|
PMKG-46-IMP - 4“ pole |
|
|
|
PMKG-126-IMP - 12“ pole |
|
T F : 8 0 0 . 3 9 8 . 3 1 2 2 n T: 4 4 0 . 2 6 9 . 4 9 6 6 n F : 4 4 0 . 2 6 9 . 4 9 7 7 n w w w . i n t e g r a e n c l o s u r e s . c o m
