Intech Infrared Interactive Whiteboard User Manual
INTECH IWB User Manual
- 1 -
Xiamen Interactive Technology Co. Ltd
INTECH Infrared Interactive Whiteboard
User Manual
INTECH IWB User Manual
- 2 -
Content
Accessories List....................................................................................................................4
1. General Introduction.........................................................................................................6
1.1 What’s infrared interactive whiteboard?................................................................6
1.2 About this User Manual........................................................................................7
2. Preparation for using........................................................................................................7
2.1 How does the IWB work?.....................................................................................7
2.2 Requirements of the PC system...........................................................................7
2.2.1 The minimum system configuration...........................................................7
2.2.2
Requirement of the Operation System.......................................................7
2.2.3
System configuration recommended........................................................7
2.3 How to install the Infrared IWB？.........................................................................7
2.3.1 Installation for the mobile stand...............................................................8
2.3.2 Installation for the wall mounting................................................................9
2.4 How to install the infrared IWB software?...........................................................10
3. Basic using of the infrared interactive whiteboard………………………………….…11
3.1 Basic attributes of the infrared IWB software………………. …………….……11
3.2 Establishing Communication between the Board and Computer…………….....11
3.3 Locating the Infrared Interactive Whiteboard………………………………..….11
3.4 How to write on he board?..................................................................................12
3.5 How to erase the board?....................................................................................12
3.6 How to print on the board?.................................................................................12
3.7 How to capture a snapshot of the board？..........................................................12
4. Starting with the INTECH software tools……………………………………………13
4.1 A General Picture of INTECH software............................................................. 13
4.2
INTECH Software Toolbar.................................................................................13
4.3
Drop-Down Menus........................................................................................... 15
4.4 How to import images from the gallery？...........................................................19
4.5
How to show, hide and move the toolbar...........................................................19
4.6
How to modify and move objects?….................................................................20
4.7 How to move the screen?.............................................................................20
4.8 Backdrops and photo galleries provided by INTECH software..........................20
4.9 How to set for whiteboard ..............................................................................20
4.10 How to create a new file?................................................................................21
4.11 How to save a file?..........................................................................................21
4.12 How to input text?...........................................................................................22
4.13 How to use the screen record? ………………………………………………22
4.14 How to use Screen Capture？.........................................................................24
4.15 How to use Intelligent Pen?…………………………………………….……24
4.16 How to use elastic?…………….……………………………………………24
4.17 How to use the Spotlight tool?………………………………………..………25
4.18 How to use the Screen Cover tool？…………………………………….……26
4.19
How to use the Highlight tool？........................................................................27
4.20
How to use the Screen Arrow tool？………………………………….………27
4.21 How to use Screen Write function？…………………………………….……28
4.22 How to play a video？………………………………………………..………29
INTECH IWB User Manual
- 3 -
4.23 How to change the layers of pictures?.............................................................30
4.24 How to realize the rebroadcast function？…………………………….………30
4.25 Special Tool………………..………………………………………….………31
4.25.1 Random selection……………………………………………….……..31
4.25.2 Calculator………………………………………………………….…..31
4.25.3 Magnifier…………………………………………………….…….…..32
4.25.4

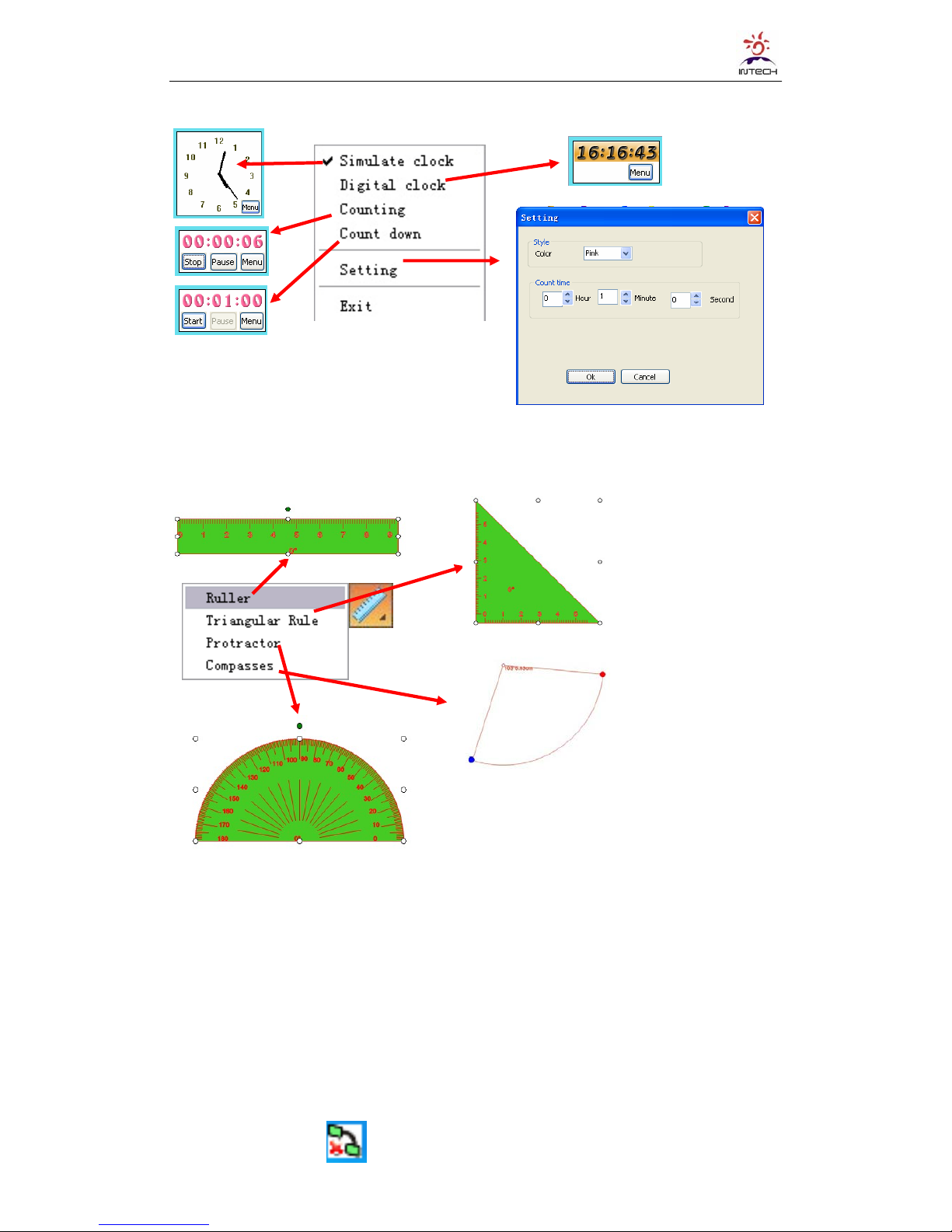

Clock…………………………………….…………………..….……..32
4.26
Measure Tool…………………………………………….……………………33
5. FAQ……………………………………………………………………………………33
6. Technical Parameters………………………………………………………............….35
INTECH IWB User Manual
- 4 -
Welcome to INTECH Interactive World
Warning: In order to unleash the extraordinary potential of your INTECH IWB, please
read this easy-to-understand “user manual ” before using. After reading, please keep it for
reference in the future.
Accessories List:
The following accessories should be included in the box:
— USB cable
— 4 intelligence pens
— pointer
— 4 wall mounting brackets
— user manual
— software CD
— 8
setscrews
— mobile stand with wheels (optional)
— wireless module (optional)
If you find something destroyed or shortage of accessories, please contact with
the local distributor.
This manual is used for all Infrared Interactive Whiteboard products.
All the symbols and notices in this manual as below:
Description: the additional instruction about software.
Attention: the problems always happening when using, and here advising how to avoid
them.
Warning: The process of using the product may cause harm to human or non-standard
use may damage the product itself.
Warning:
—
When using the interactive whiteboard, the user should avoid fire and electric shocks,
also need to avoid prolonged sun exposure
—
After installation of whiteboard, user should ensure it firm.
Warning:
—
When using projector with IWB together, may not look directly at the projector beam.
Important Attention：
INTECH IWB User Manual
- 5 -
—
Please make sure that the whiteboard, projector, computer’s power supply grounding,
to avoid accidental damage to electronic products.
—
Please make sure the whiteboard and computer cable is connected correctly to ensure
the normal power supply.
Attention:
—
If the IWB mounted on the wall, it must be straight with the wall.
—
Do not use sharp or sturdy thing to cut or carve the board surface or frame.
INTECH IWB User Manual
- 6 -
1. General Introduction
Welcome to the interactive world of INTECH!
1.1 What is Infreared Interactive Whiteboard?
Infared Interactive Whiteboard is a comparatively new member of the vairous
IWBs widely installed and applied. It adopts infrared matrix sensing technology,
enabling the touchableness of any operation on the board together with computer
and projector.
The user can write and draw directly on the whiteboard and conduct any
operation of the computer by hand or pen. Further more, you can save, print ,
display and manage all the information in your computer and from the internet with
the IWB directly, which has been a very modern solution for education and is in tune
with the new generation’s digital nature. INTECH’s easy-understanding software
interface ensures the simplicity of use and operation. You will find that learning how
to use INTECH software would be a very happy journey.
INTECH IWB User Manual
- 7 -
1.2 About this user manual
This user manual introduces the usage and functions of INTECH infrared IWBs
and illustrates how to operate on the infrared interactive whiteboard with INTECH
software in details,as well as the installation details of the IWB and INTECH
software.
2. Preparation for work
2.1 How does the IWB work?
It’s quite simple to use INTECH infrared IWB. If you can use computer, it is just
that easy to use INTECH interactive whiteboard. This touchable board connects
your computer with projector, and displays the screen of computer. You can use
your finger, intelligent pens, pointer or any other non-transparent object to control
computer through the IWB. Also you could write on the board with an ink pen
directly, which is available only for the infrared IWB.
It adds fun and inspires your students and audience during lesson or speech
with INTECH infrared IWBs!
2.2 Requirements of the PC system
2.2.1 The minimum system configuration
• PC with 300MHz x 86 processor
• 128M EMS memory
• Display card support 256 colors and above
• 10M applicable hard disk space
• Display resolution：1024×768、1280×800、1280×1024
• An available USB port
• CD-ROM drive
2.2.2 Requirement of the Operation System
• Windows 98, VISTA, 2000, or XP
2.2.3 System configuration recommended：
• PC with 1GHz x86 processor
• 256M EMS memory or above
• Display card support 256 colors and above
• 10G applicable hard disk space
• Projection display resolution: 1280×800
• An available USB port
2.3 How to install the Infrared IWB？
Please follow the ways below to install the infrared IWB.
⑴ Mobile stand mounting. (Optional)
⑵ Wall mounting.
INTECH IWB User Manual
- 8 -
2.3.1 Installation for the mobile stand
It’s quite easy for this installation. Only a wrench needed.
1. Fix the four wheels on the base of stand with the wrench.
2. Plug the two beams into the slots of two vertical poles, and then plug the vertical poles into
slots in the middle of bases. Fix them all with screws and washers.
Then the stand would be like this as below:
3. Fix the four small screws into the screw holes on the back of IWB.
4. Hang the IWB on the finished mobile
stand by the screws fixed.
INTECH IWB User Manual
- 9 -
5. Make it firm with screwdriver.
Then the installation finished.
Description: 1. Turn the position control button of wheels into “Lock”. Make the wheels static,
not shift.
2. Do not fix the screws too tight, to avoid damage on any stand.
2.3.2 Installation for wall mounting. (Photos for reference)
You may need tape measure, wrench and drill for installation.
1. Choose the right place to install the board, which is convenient to connect the
computer..
2. Mark the drill positions on the wall according to the different models of products.
3. Drill 8 fixing holes on the wall according to the mark.
4. Fix the brackets on the wall with 8 setscrews.
5. Hang the board on the brackets
with correct positions.
INTECH IWB User Manual
- 10 -
Then the installation finished.
Description: You could place all the intelligent pens on the right side.
2.4 How to install the infrared IWB software?
Connect the computer and the whiteboard by USB cable, (the following
installation example is the installation under WINDOWS XP, a slight difference
maybe in other operation systems).
Insert the Software CD into your CD-ROM, then please click the Software Setup icon.
Then choose the language you prefer and click “Next” to install the software.
Complete the software’s installation, then click “Finish”.
INTECH IWB User Manual
- 11 -
If the driver installed properly, the USB indicators of the whiteboard will light in red. Then
the IWB would be available after some simple setting. Just click the “InteractiveBoard”
icon on the desktop, which is our application software.
3. Basic using of the infrared interactive whiteboard
3.1 Basic attributes of the infrared IWB software
Hand-Gesture Recognition: Support single finger, multi-touch.
Write: By finger, pen or ink marker.
Touch: At working status, the whiteboard is a touchable interactive board of high
preciseness. The finger or pointer can substitute mouse, and click or drag any objects on the
screen conveniently to achieve various operations.
Annotation: Annotate directly on various files and videos, available file formats such as PPT,
WORD, EXECL, AVI, MEPG, JPEG, and etc.
Energy saving: Consuming less than 0.5W and no need for external power supply.
Individualized setup : Background, paintbrush text inserting, default screen can be set at
individual preference. Various writing interfaces( black or white background) availble.
3.2 Establishing Communication between the Board and
Computer
When you connect the IWB with computer through USB cable or wireless module, the
computer could sense the IWB automatically if you have installed the INTECH software CD
properly.
Then please click the “Server.exe” icon on the desktop. The IWB’s connection
status would be shown in your computer’s taskbar. If the communication is not successfully
established, please recheck the USB cable or the wireless module connection .
3.3 Locating the Infrared Interactive Whiteboard
Please right-click the icon in the taskbar, and choose the “Calibrate” command to
define the position of the IWB before the using the IWB. Then you would see the screen
like below:
Loading...
