insys icom MRX3 LAN, MRX5 LAN Quick Installation Manual

ENGLISH
Quick Installation Guide
MRX LAN
www.insys-icom.com
MRX3 LAN MRX5 LAN
www.insys-icom.com/manual
Te c hnical Data The product is only intended for the use within the permissible technical limits specified in the data sheets. These limits must be observed.
Operating voltage (redundant)
12 V … 24 V DC (±20%)
Real-time clock (RTC) buffer time
typ. 2 days
Power consumption
typ. 2.0 W, max. 3.0 W fully equipped: max. 20 W
Temperature range
-30 °C … 70 °C (75 °C extended)
Level input IN1
HIGH level = 2 ... 24 V LOW level = 0 ... 1 V Contact open condition: HIGH
Maximum permissible humidity
95% non-condensing Current consumption input IN1 at LOW potential
typ. 0.1 mA when connecting to GND
IP rating
Housing IP40
Level input IN2
HIGH level = 10 ... 24 V LOW level = 0 ... 5 V Contact open condition: LOW
Power consumption input IN2 at HIGH potential
max. 3 mA at 24 V DC
Te c hnical Boundaries Max. line length for antennas, power supplies, serial interfaces, inputs and outputs as well as other signals: 30 m Max. line length of USB connection lines: 3 m Cable cross-section: 0.25 … 1.5 (2.5) mm² (depending on terminal size), flexible lines require end sleeves
Su pport If you need further support, please contact your sales partner or INSYS icom support. You can contact our support department via e-mail under support@insys-tec.de.
De fects liability terms A use other than the intended use, an ignorance of the safety instructions and the documentation, the use of insufficiently q ualified personnel as well as unauthorised modifications exclude the liability of the manufacturer for damages resulting from this. The liability of the manufacturer ceases to exist.
In tended Use The product may only be used for the purposes specified in the function overview of the manual. In addition, it may be used for the following purposes:
Usage and mounting in an industrial cabinet. Switching and data transmission functions in machines according to the machine directive 2006/42/EC. Usage as data transmission device, e.g. for a PLC.
The product may not be u sed for the following purposes and used or operated under the following conditions:
Use, control, switching and data transmission in machines or systems in explosive atmospheres. Controlling, switching and data transmission of machines, which may involve risks to life and limb due to their functions or when a
breakdown occurs.
ENGLISH
Quick Installation Guide
MRX LAN
www.insys-icom.com
A
Router connection
1. Connect supply voltage (12 V … 24 V DC (±20%)) to the terminals V+1 and GND
2. Connect router (ETH 1) to the configuration PC via Ethernet cable
3. Connect router (ETH 2) to the network
in which your system is located
4. Connect router (ETH 5) to the network that is used to establish the Internet connection
B
LAN settings of configurations PC (Windows 7)
If a DHCP client is active on the PC, proceed with step C. Otherwise, either enable the
DHCP client or configure a static IP address.
5. Open Network and Sharing Center (e.g. key and search for "sharing")
6. Select LAN connection and Properties
7. Select Internet Protocol Version 4 (TCP/IP) and Properties
Enable DHCP client
8. Obtain an IP address automatically
It is recommended to unplug the
network cable briefly and plug it again upon activation of the DHCP client.
Configure a static IP address
Use the following IP address (example):
IP address: 192 . 168 . 1 . 2 Subnet mask: 255 . 255 . 255 . 0 Standard gateway 192 . 168 . 1 . 1 Preferred DNS server: 192 . 168 . 1 . 1
Please note the previous values before
changing the TCP/IP settings to be able to restore them later.
C
Web interface access
9. Enter IP address of the router in address bar of the browser (default: 192.168.1.1)
If a proxy server is enabled in your browser, this must be disabled or the IP address of
the router must be added as exception.
10. Login with
Name
(default: insys) and
Password
(icom)
11. Open the Inline Help using the button (Display help text) in the header
The links in the Inline Help lead to the Online Help with further information. All modified data will only be stored in the opened profile after clicking the
Save
settings
button and become effective upon clicking the (Activate profile) button.
ENGLISH
Quick Installation Guide
MRX LAN
www.insys-icom.com
D
Integration into a network

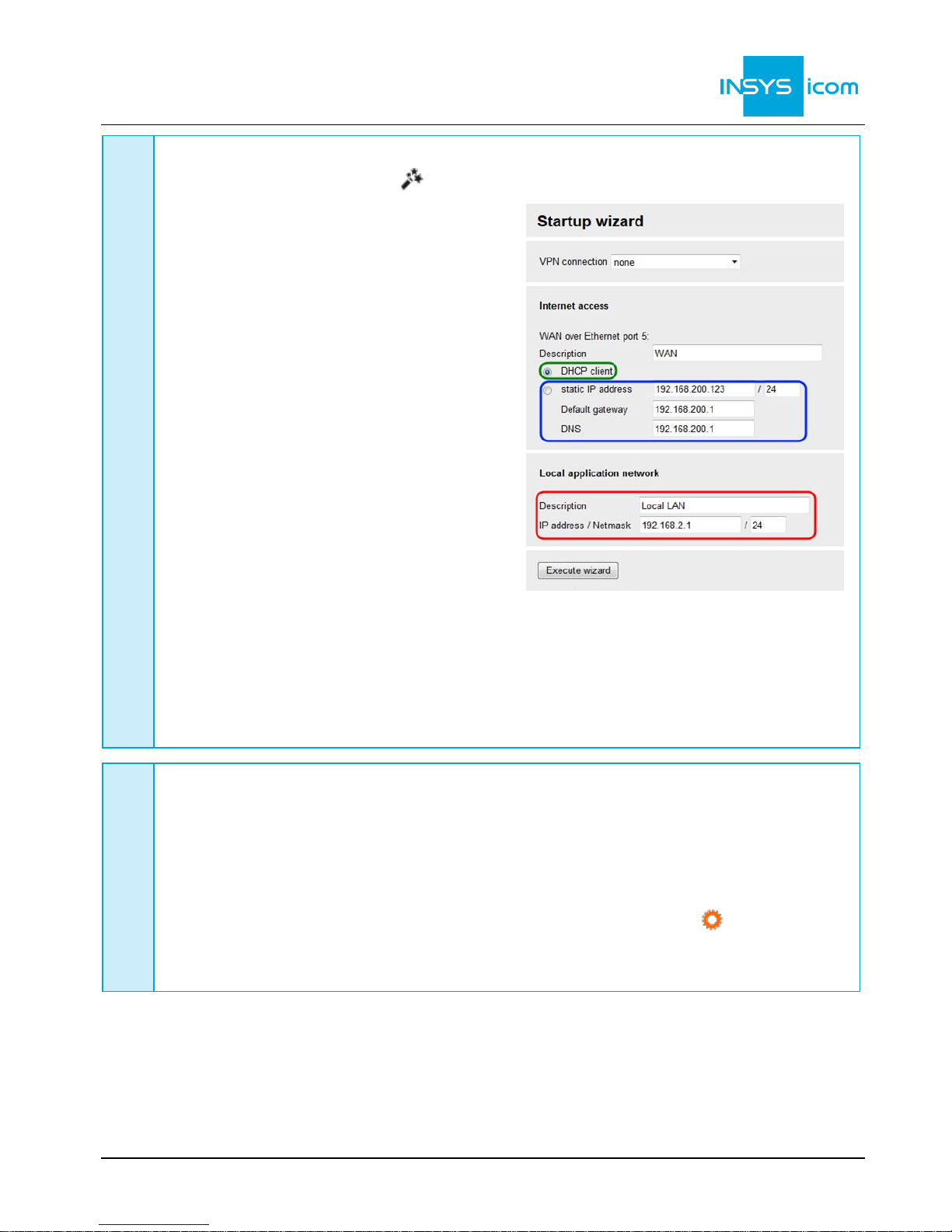

12. In Menu Help > Wizards: Select Startup Wizard
13. Under Internet access
activate DHCP client, if a DHCP server
is active OR
enter static IP address
by entering IP adress and netmask of the existing network as well as default gateway address and DNS server address of the WAN connection
14. Enter IP address of the local
application network
If the router is to be configured for the
icom Connectivity Suite - VPN
(https://connectivity.insys-icom.de), select icom Connectivity Suite – VPN under VPN connection and enter Customer name and Device code (from icom Connectivity Suite – VPN, “My
VPN Hub” tab). Then, the IP address in
the local network will be assigned by the icom Connectivity Suite - VPN.
15. Click on
Execute wizard
The WAN LED is blinking green during connection establishment and is illuminated
green as soon as a connection is established.
If the web interface of the router does not return upon executing the wizard, click on
“Reload” in the browser (or Ctrl+F5).
E
Configuration of access data
User name and password for web interface access of the existing user in the default
settings must be changed to prevent a manipulation of the configuration by unauthorised persons.
16. Menu Administration > Users: Enter or change User name and Password and select User group "Read/Write"
17. Store settings in profile with
Save settings
and activate profile with .
A typo during entering or forgetting the configured access data require a reset to
default settings to be able to access the router again.
All essential configuration steps are completed with this. Further configuration depends on your specific application. Other frequently required settings are available on the following page.
ENGLISH
Quick Installation Guide
MRX LAN
Mat. no. 10017057 – version 25 January 2019 11:11:12 – Subject to technica l changes and correction
www.insys-icom.com
IP address in configuration network
The IP address of the router in the configuration network does only have to be changed,
if the IP address is already used or a different address range is required. Then, the web interface is immediately accessible under the new address.
1. Menu Interfaces > IP net 1: Adjust IP address of the router in configuration network
2. Store settings in profile with
Save settings
and activate profile with .
3. Adjust IP settings of the PC for further configuration accordingly, if these are not obtained automatically (see step B)
4. Menu Services > DHCP Server: Adjust address range to the configuration network, if the DHCP server of the router is used
Using the router as icom Smart Gateway
If the router is to be used as an icom Smart Energy Gateway or icom Smart Machinery
Gateway for example, this is the best time now to install the icom Data Suite required for this. A wizard is available for this in the
Help
menu. Refer to the Quick Installation Guide of the icom Data Suite (https://www.insys-icom.com/manual#deviceapps) or the respective Configuration Guide (https://docs.insys-icom.de/icom_data_suite.html).
Resetting the router
If it is necessary to reset the router during configuration, this is possible without losing
the settings.
1. Menu Administration > Reset:
2. Click on
Reboot device now
Alternatively, press reset key on the device front once for a short time (soft reset)
Resetting the router to default settings
If the router is to be reset to default settings, it can be reset to delivery state.
1. Menu Administration > Reset: check all options
2. Click on
Reset now
Alternatively, press reset key on the device front three times for a short time within
2 seconds
Resetting and initialising the router
If the router is not available any more for any reason, it can be reset and initialised
(settings do not get lost).
1. Press reset key on the device front for at least 3 seconds (hard reset)
The Inline Help opens upon selecting the button ? (Display help text) and provides helpful information regarding each individual parameter directly in the web interface.
The Online Help is opened using the links in the Inline Help or in the Help menu in the web interface and provides further information to the respective topics.
The Configuration Guides are available under https://docs.insys-icom.de and provide helpful information regarding the integration of your product into your application.
