ISDS210A(B) User Guide
InstruStar Electronic Technology
2016-11-10
InstruStar Electronic Technology http://www.instrustar.com/
ISDS210A
ISDS210B
2
contents
1.Introduction……………………………………………………………………1
2.Feature Description…………………………………………………1
3.Software Installation…………………………………………………2
4.Interface………………………………………………………………3
5.Oscilloscope / Spectrum Analyzer/DDS……………………………4
InstruStar Electronic Technology http://www.instrustar.com/
ISDS210A
ISDS210B
3
PC SYSTEM REQUIREMENTS
Windows XP，Win7，Win8，Win10
Pentium or higer processor
USB2.0 High speed port.
512MB RAM
1GB hard disk space
InstruStar Electronic Technology http://www.instrustar.com/
ISDS210A
ISDS210B
1
1.Introduction
ISDS210A/ISDS210B dual-channel digital oscilloscope, with "low-cost,
high-performance" as the design goals. well-designed bandwidth of 40M, 100M
sampling rate, 2 channels, alternating support X-T and X-Y alternating pattern of
two-channel virtual oscilloscope, spectrum analyzer. Meanwhile, ISDS210B has DDS
function. DDS support 5 kinds of waveform output, Sine wave can output up to 20M.
The device communicate with the PC via high speed USB2.0.
2.Feature Description
Digital Oscilloscope
Channels
2
Impedance
1MΩ 25pF
Coupling
AC/DC
Vertical Resolution
8Bit
Gain Range
-16V ~ 16V（probe X1）
-160V ~ 160V（probe X10）
Vertical Accuracy
±3%
Time Base Range
10ns/div-10s/div
Input Protection
Diode，50Vpk
Auto Set
Yes(10Hz to 40MHz)
Trigger Mode
Auto、Normal and Signal
Trigger Type
No, Edge, Pulse
Trigger Level
Yes
Trigger Source
CH1, CH2
Buffer Size
256KB/CH
Bandwidth
40MHz
Max Sample
100MS/s
Vertical mode
CH1, CH2, ADD, SUB, MUL
Display Mode
X, Y-T 和 X-Y
Measurements
Yes
Wave Save
Osc(Private)、Excel and Bmp
Oscilloscope
Spectrum Analyzer
DDS
Sweeper
ISDS210A√√
ISDS210B√√
√
√
InstruStar Electronic Technology http://www.instrustar.com/
ISDS210A
ISDS210B
2
Spectrum Analyzer
Channels
2
Bandwidth
40MHz
Algorithm
FFT(18 windows)、correlation
FFT Points
8-1048576/CHN
FFT Measure
Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
Filter Process
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular,
cosine, hanning, bartlett_hanning, hamming, blackman,
blackman_Harris, tukey, Nuttall, FlatTop, Bohman,
Parzen, Lanczos, kaiser, gaussand dolph_chebyshev,
window method design.
IIR filter support "Butterworth", "Chebyshev I",
"Chebyshev II", "Elliptic" type of filter design
DDS(Only ISDS210B)
Wave
Sine, Square(Duty circle variable),Triangle,Up
Sawtooth,Down Sawtooth
Amplitude
≥9Vp-p(no load)
Impedance
200Ω±10%
Offset
±2.5V
Frequency Range
1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
Frequency Resolution
1Hz
Frequency Steadiness
±1×10
-3
Frequency Precision
±5×10
-3
Triangular Wave Linearity
≥98% (1Hz~10kHz)
Sine Wave Distortion
≤0.8% (1kHz)
Square Wave Rising/Falling Time
≤100ns
Square Wave Duty Circle
1%~99%
SWEEP
Sweep Range
Fs 到 Fe
Sweep Time Range
0.1 ~10 s
Amplitude
0.5Vp-p ~ 10Vp-p
Sweeper(Only ISDS210B)
Sweep Range
1Hz~5MHz
Sweep Type
Gain, Phase
Note: The oscilloscope factory calibration, if you are not satisfied with the
measurements, can manual calibration, the specific reference oscilloscope
instructions.
InstruStar Electronic Technology http://www.instrustar.com/
ISDS210A
ISDS210B
3
3.Software Installation
Please refer to the "Software and Driver Installation.pdf".

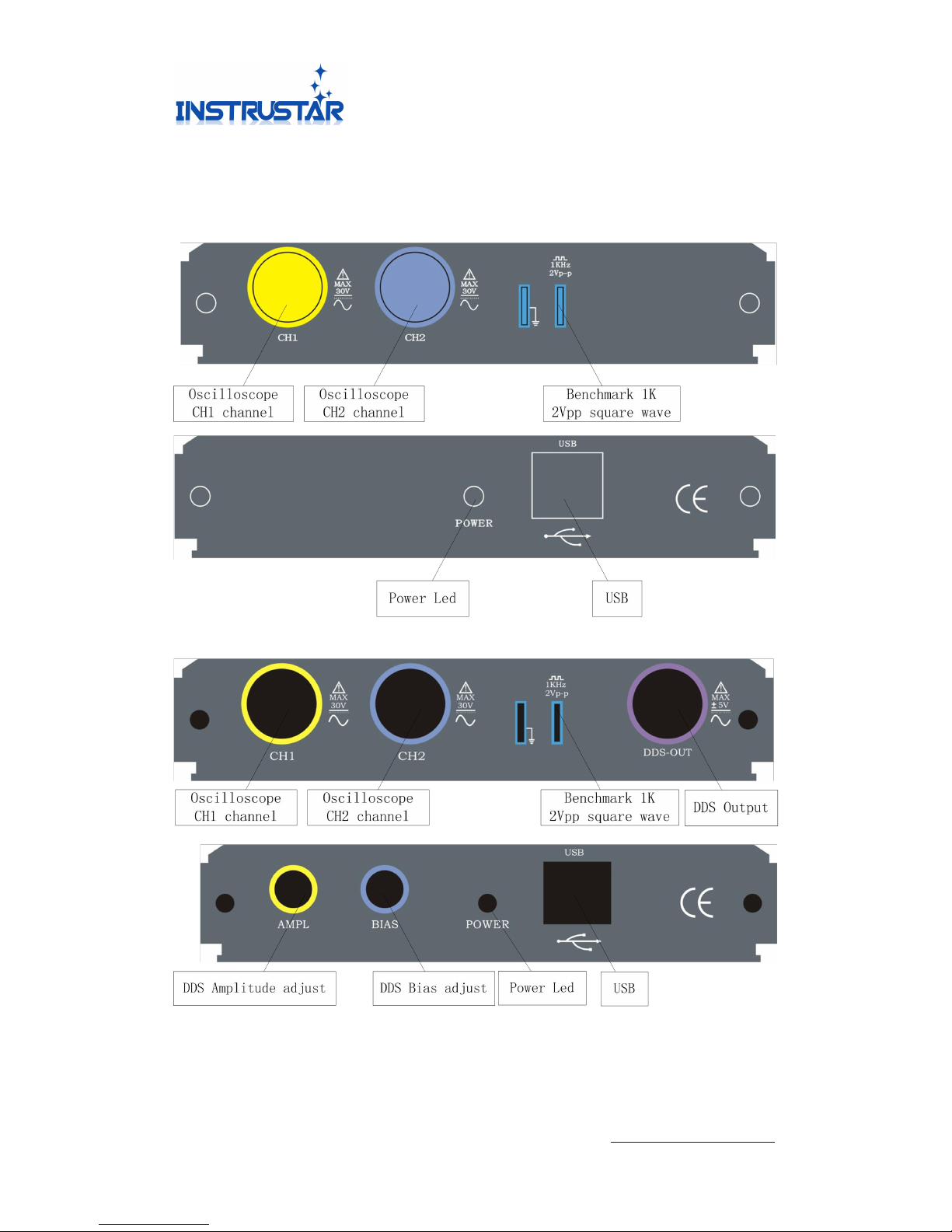

4.Interface
4.1 ISDS210A
4.2 ISDS210B
5.Oscilloscope / Spectrum analyzer /DDS
Please refer to the "Multi VirAnalyzer User Guide.pdf", "Digital storage oscilloscope
(Professional Version).pdf" and "Digital storage oscilloscope (Simplified Version).pdf".
