1.Introduction
ISDS205 dual-channel digital oscilloscope, with "low-cost, high-performance"
as the design goals. well-designed bandwidth of 20M, 48M sampling rate, 2 channels,
alternating support X-T and XY alternating pattern of two-channel virtual
oscilloscope, spectrum analyzer, data recorder.
205C and 205X support logic analyzer. Logic analyzer support our Logic
software and Saleae Logic 2 kinds of software, Saleae Logic supports SPI, IIC, UART,
etc. 17 kinds protocol analysis.
205B and 205X support DDS function. DDS support 5 kinds of waveform output,
Sine wave can output up to 20M.
2.Feature Description
Digital Oscilloscope
Channels
2
Impedance
1MΩ 25pF
Coupling
AC/DC
Vertical Resolution
8Bit
Gain Range
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
Vertical Accuracy
±3%
Time Base Range
10ns/div-100ms/div
Input Protection
Diode，50Vpk
Auto Set
Yes(10Hz to 20MHz)
Trigger Mode
Auto、Normal and Signal
Trigger Type
No、Rising edge、Falling edge、
Rising edge or Falling edge
Trigger Level
Yes
Trigger Source
CH1, CH2
Buffer Size
1MB/CH
Bandwidth
20MHz
Max Sample
48MS/s
Oscilloscope
Spectrum Analyzer
Data Recorder
Logic Analyzer
DDS
ISDS205A√√
√
ISDS205B√√
√
√
ISDS205C√√√√
ISDS205X√√√√
√
InstruStar Electronic Technology http://www.instrustar.com/
ISDS205
2
Vertical Mode
CH1, CH2, ADD, SUB, MUL
Display Mode
X、Y-T 和 X-Y
Measurements
Yes
Wave Save
Osc(Private)、Excel and Bmp
Spectrum Analyzers
Channels
2
Bandwidth
20MHz
Algorithm
FFT(18 windows)、correlation
FFT Points
8-1048576/CHN
FFT Measure
Harmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
Filter Process
FIR filter supports arbitrary range of frequency
sampling method , and Rectangle, bartlett, triangular,
cosine, hanning, bartlett_hanning, hamming, blackman,
blackman_Harris, tukey, Nuttall, FlatTop, Bohman,
Parzen, Lanczos, kaiser, gaussand dolph_chebyshev,
window method design.
IIR filter support "Butterworth", "Chebyshev I",
"Chebyshev II", "Elliptic" type of filter design
Note: The oscilloscope factory calibration, if you are not satisfied with the
measurements, can manual calibration, the specific reference oscilloscope
instructions.
Data Recorder
Channel
2
Impedance
1MΩ 25pF
Coupling
AC/DC
Vertical Resolution
8Bit
Gain Range
-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
Sample
1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
Save File
The maximum 4G, recording time associated with the
sampling rate
Note: The specific speed recorder with computer processing speed, and if use
high sampling rate, the situation may break.
Logic Analyzer(205C/205X)
Channel
16
Sample
8 channel: 250K~24M Hz
InstruStar Electronic Technology http://www.instrustar.com/
ISDS205
3
16 channel: 250K~16M Hz
Sample Points
1M-2GB
Saleae Logic Logic Analyzer (205C/205X)
Channel
8
Sample
25K~24M Hz
Protocol Analyzer
Atmel SWI、BiSS C、SPI、I2C、CAN、UART、
I2S/PCM、DMX-512、JTAG、LIN、Manchester、
1-WIRE、UNI/O、Simple Parallel、MDIO、USB1.1、
PS/2 Keyboard/Mouse
Sample Points
1MB~10TB
3.Software Installation
Please refer to the "Software and Driver Installation.pdf".
4.Interface

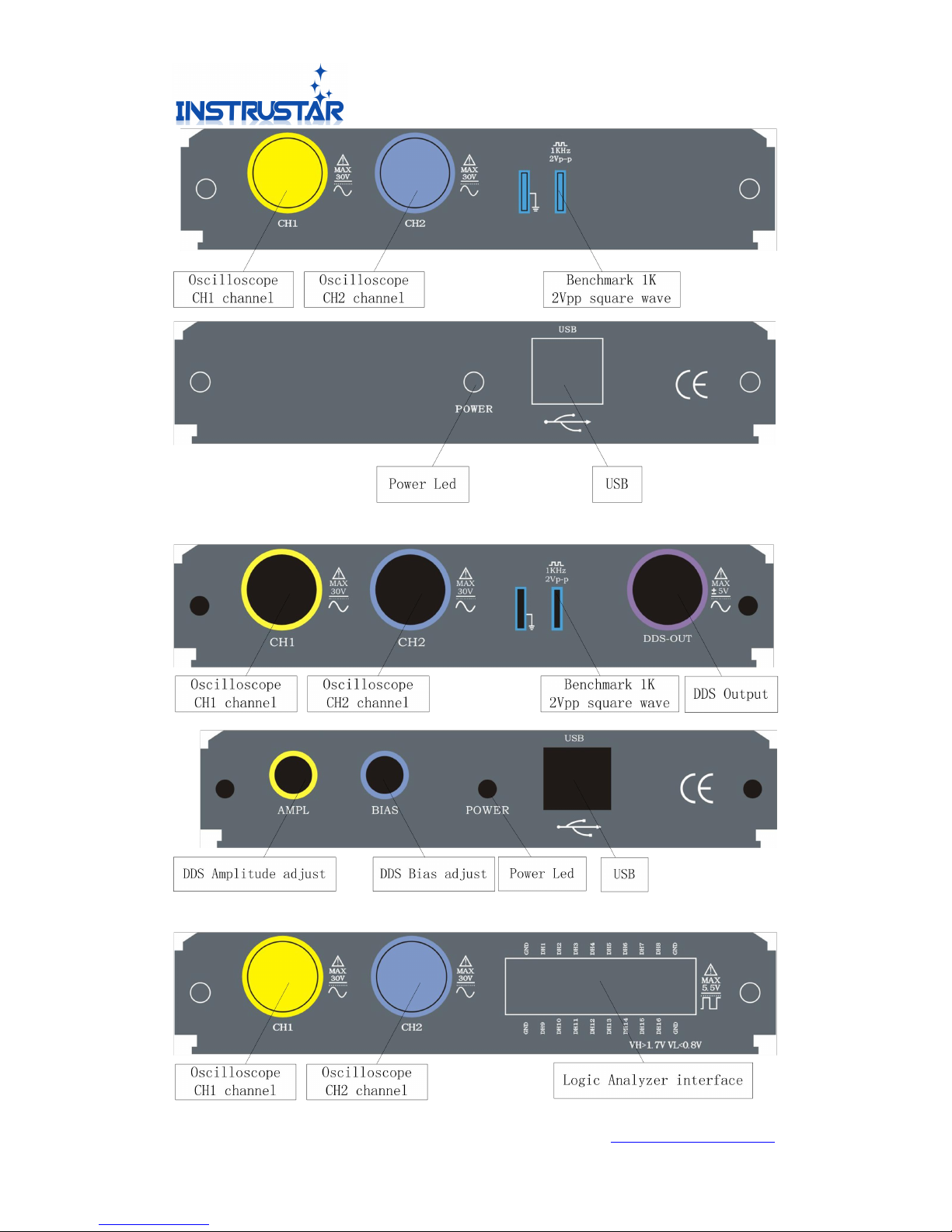

4.1 ISDS205A
DDS(205B/205X)
Wave
Sine, Square(Duty circle variable),Triangle,Up
Sawtooth,Down Sawtooth
Amplitude
≥9Vp-p(no load)
Impedance
200Ω±10%
Offset
±2.5V
Frequency Range
1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
Frequency Resolution
1Hz
Frequency Steadiness
±1×10
-3
Frequency Precision
±5×10
-3
Triangular Wave Linearity
≥98% (1Hz~10kHz)
Sine Wave Distortion
≤0.8% (1kHz)
Square Wave Rising/Falling Time
≤100ns
Square Wave Duty Circle
1%~99%
SWEEP
Sweep Range
Fs 到 Fe
Sweep Time Range
0.1 ~10 s
Amplitude
0.5Vp-p ~ 10Vp-p
InstruStar Electronic Technology http://www.instrustar.com/
ISDS205
4
4.2 ISDS205B
4.3 ISDS205C
InstruStar Electronic Technology http://www.instrustar.com/
ISDS205
5
4.4 ISDS205X
5.Oscilloscope / Spectrum analyzer/DDS
Please refer to the "Multi VirAnalyzer User Guide.pdf", "Digital storage oscilloscope
(Professional Version).pdf" and "Digital storage oscilloscope (Simplified Version).pdf".
6.Data Recorder
Please refer to the "Data Recorder.pdf".
7.Logic Analyzer
After the success of USB devices, data recoder, equipment selection drop-downcombo box
will appear ISDS205C/X(1.0) (N) option, choose a good future, the interface in Figure 7.1.
7.1 Basic control
7.1.1 Channel Control
Start or Stop Capture.
7.1.2 Channel Num
Set the num of the channels to be collected.
7.1.3 Sample Length
Set the length of the data to be collected.
7.1.4 Sample
Figure 7.1 properties
InstruStar Electronic Technology http://www.instrustar.com/
ISDS205
6
Select the speed of data collection.
7.2 Record
Click the lower right corner "data record", the interface
appears in Figure 6.2. Can display the recorded file. Double click
the corresponding file, you can load, view the collected data.
8.Saleae Logic Logic Analyzer
The device to support Saleae Logic software, the development of the hardware above
appropriated Saleae Logic position. Plugged into the USB, the software automatically recognizes
and displays the Connected. Interface shown in Figure 8.1
More information, please view Saleae Logic software instructions, is located in "\Saleae
Logic\Logic Guide.pdf"
