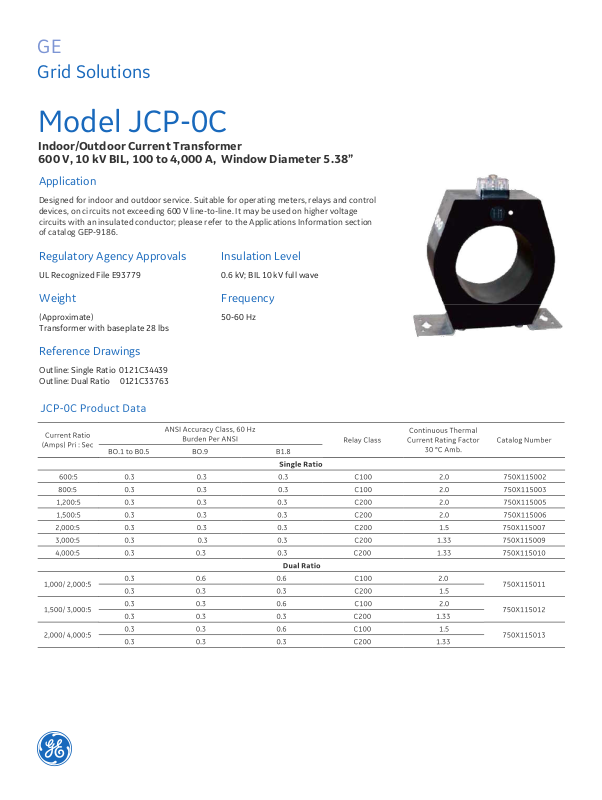

Instrument Transformer, Div of GE JCP-0C Data Sheet

GE

Grid Solutions

Model JCP-0C

Indoor/Outdoor Current Transformer
600 V, 10 kV BIL, 100 to 4,000 A, Window Diameter 5.38”

Application

Designed for indoor and outdoor service. Suitable for operating meters, relays and control
devices, on circuits not exceeding 600 V line-to-line. It may be used on higher voltage
circuits with an insulated conductor; please refer to the Applications Information section
of catalog GEP-9186.

Regulatory Agency Approvals

UL Recognized File E93779

Weight

(Approximate)
Transformer with baseplate 28 lbs

Reference Drawings

Outline: Single Ratio 0121C34439
Outline: Dual Ratio 0121C33763

Insulation Level

0.6 kV; BIL 10 kV full wave

Frequency

50-60 Hz

JCP-0C Dimensions

The nameplate is a laser engraved aluminum. It is attached to the

Conduit Attachment

A secondary conduit box, is available only for single ratio
transformers. It is suitable for outdoor applications. Box and
cover are made of aluminum with a black finish. The cover has a
gasket and four sealable thumb-screws. The part number for the
complete assembly, including cover, thumb-screws and gaskets
is 9689693011.

Primary Conductor

A bus or insulated cable forms the primary winding.

Nameplates

top of the unit and has provision for attaching the user’s
identifying tag. The nominal current rating is marked on both
sides of the unit in large numerals.

Baseplate and Mounting

The transformer can be mounted in any position. The baseplate
is made from stainless steel plate. It is attached to the
transformer with four bolts and has two keyhole slots allowing
installation of the mounting bolts before placing the transformer.

Maintenance

These transformers require no maintenance, other than
occasional cleaning, if installed where air contamination is
severe.

Grid-AIS-L4-ITI_Model_JCP_OC-1399-2017_07-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
