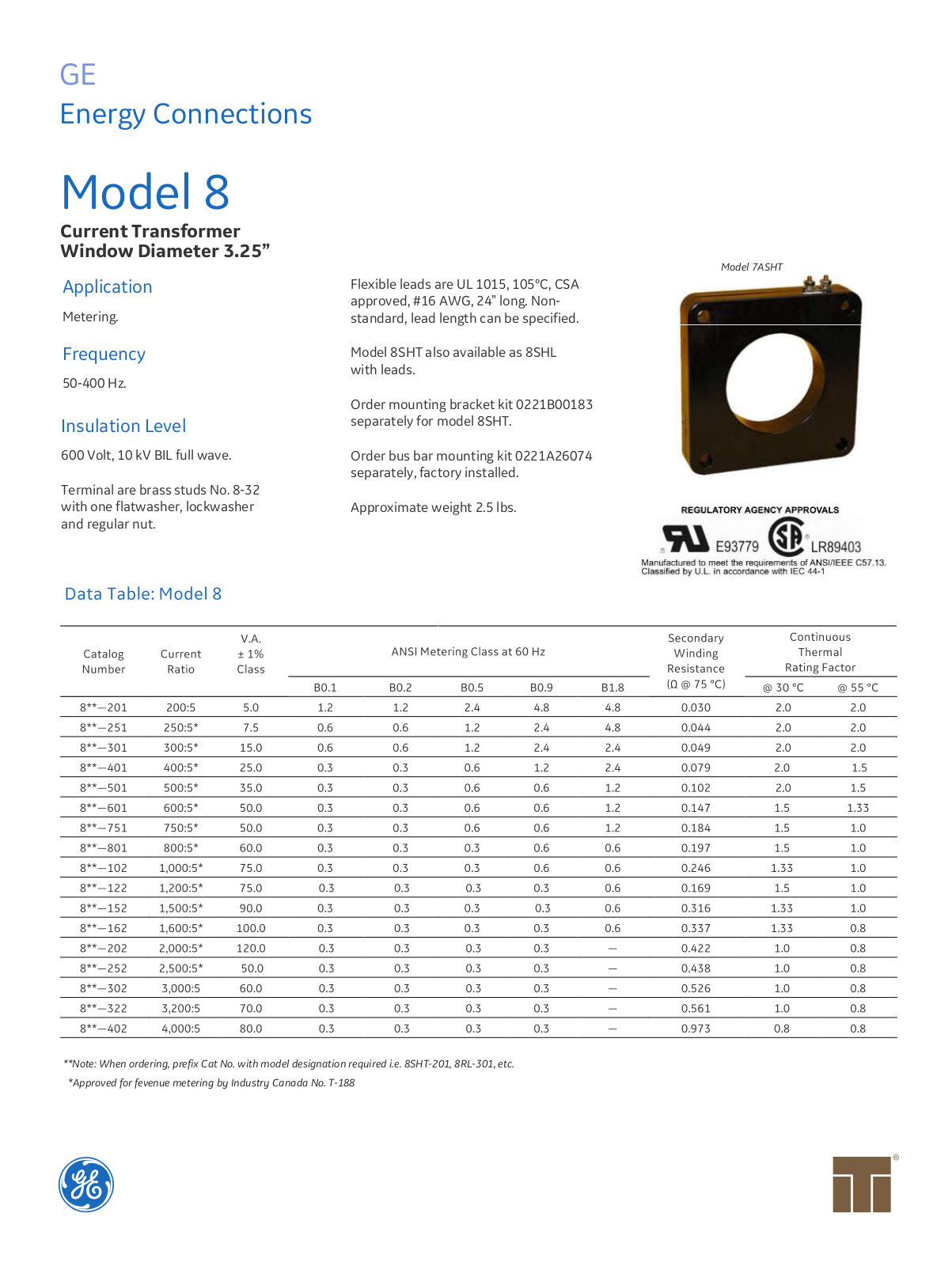

GE
Energy Connections
Model 8
Current Transformer
Window Diameter 3.25”
Application
Metering.
Model 7ASHT
Flexible leads are UL 1015, 105°C, CSA
approved, #16 AWG, 24” long. Nonstandard, lead length can be specified.
Frequency
50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
Terminal are brass studs No. 8-32
with one flatwasher, lockwasher
and regular nut.
Model 8SHT also available as 8SHL
with leads.
Order mounting bracket kit 0221B00183
separately for model 8SHT.
Order bus bar mounting kit 0221A26074
separately, factory installed.
Approximate weight 2.5 lbs.
**Note: When ordering, prefix Cat No. with model designation required i.e. 8SHT-201, 8RL-301, etc.
*Approved for fevenue metering by Industry Canada No. T-188
Page 2

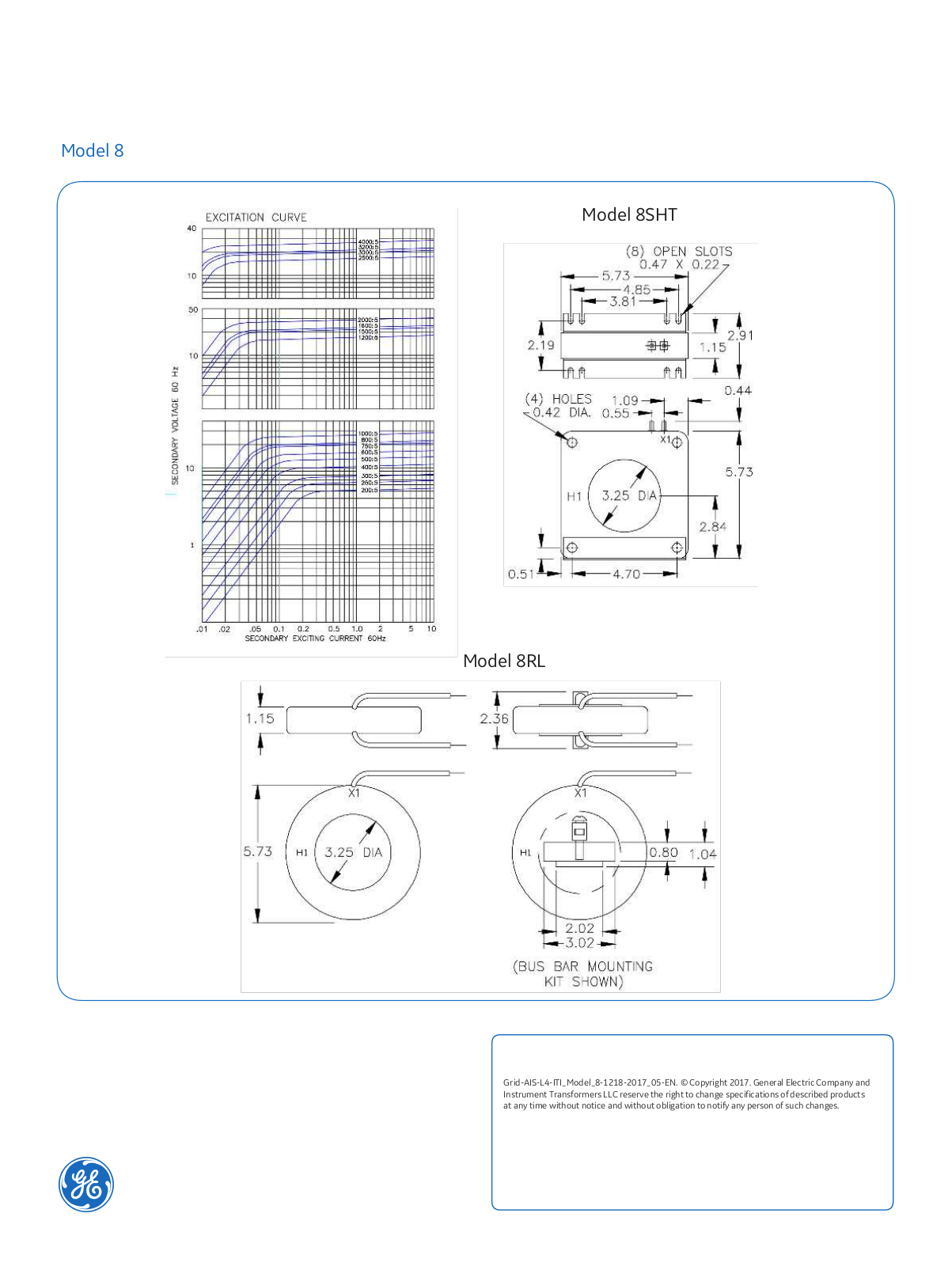

Model 8
Model 8SHT
Model 8RL
