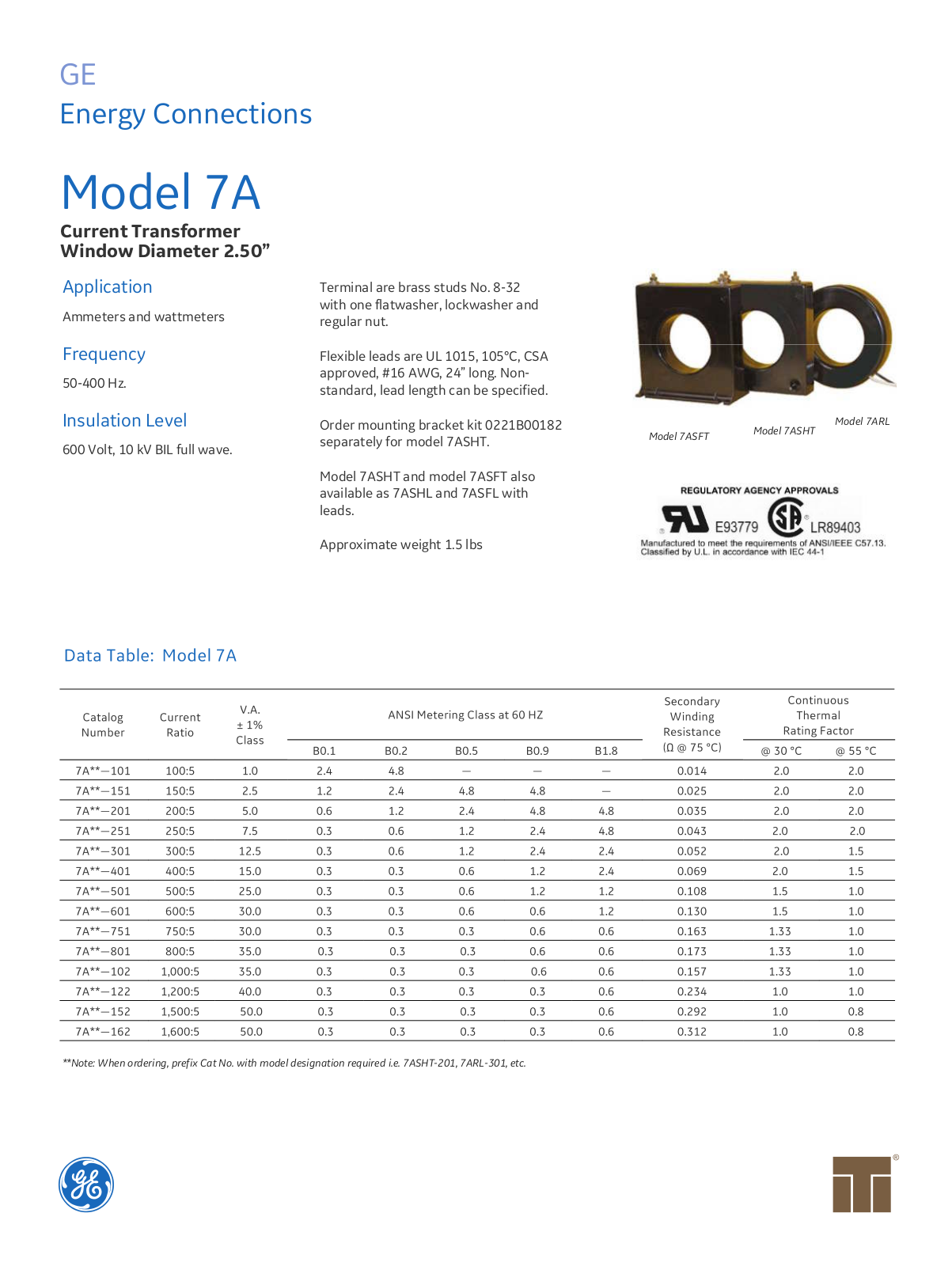

GE
Energy Connections
Model 7A
Current Transformer
Window Diameter 2.50”
Application
Ammeters and wattmeters
Frequency
50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
Terminal are brass studs No. 8-32
with one flatwasher, lockwasher and
regular nut.
Flexible leads are UL 1015, 105°C, CSA
approved, #16 AWG, 24” long. Nonstandard, lead length can be specified.
Order mounting bracket kit 0221B00182
separately for model 7ASHT.
Model 7ASHT and model 7ASFT also
available as 7ASHL and 7ASFL with
leads.
Approximate weight 1.5 lbs
Model 7ASFT
Model 7ASHT
Model 7ARL
**Note: When ordering, prefix Cat No. with model designation required i.e. 7ASHT-201, 7ARL-301, etc.

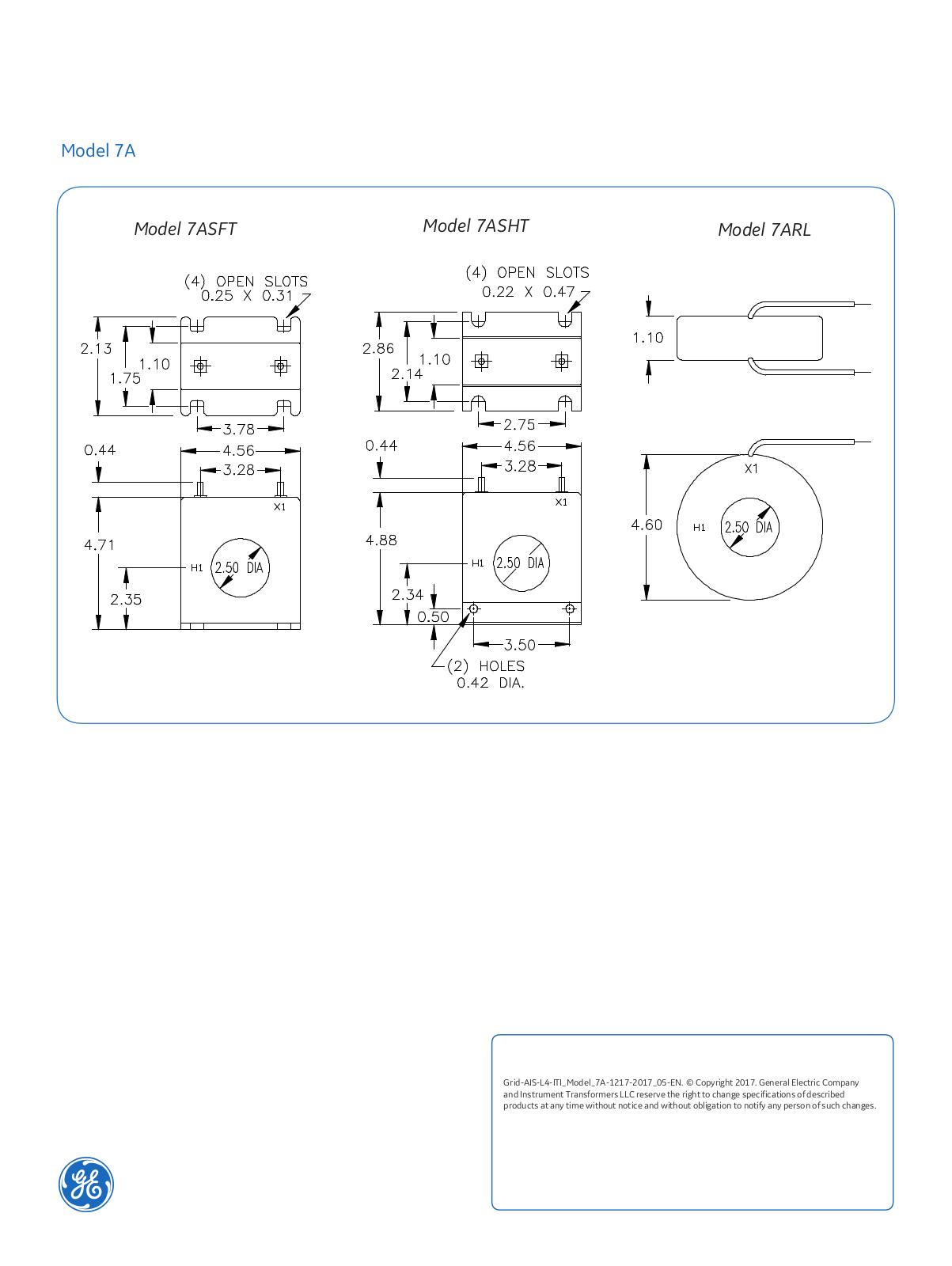

Model 7A
Model 7ASFT
Model 7ASHT
Model 7ARL
Grid-AIS-L4-ITI_Model_7A-1217-2017_05-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
