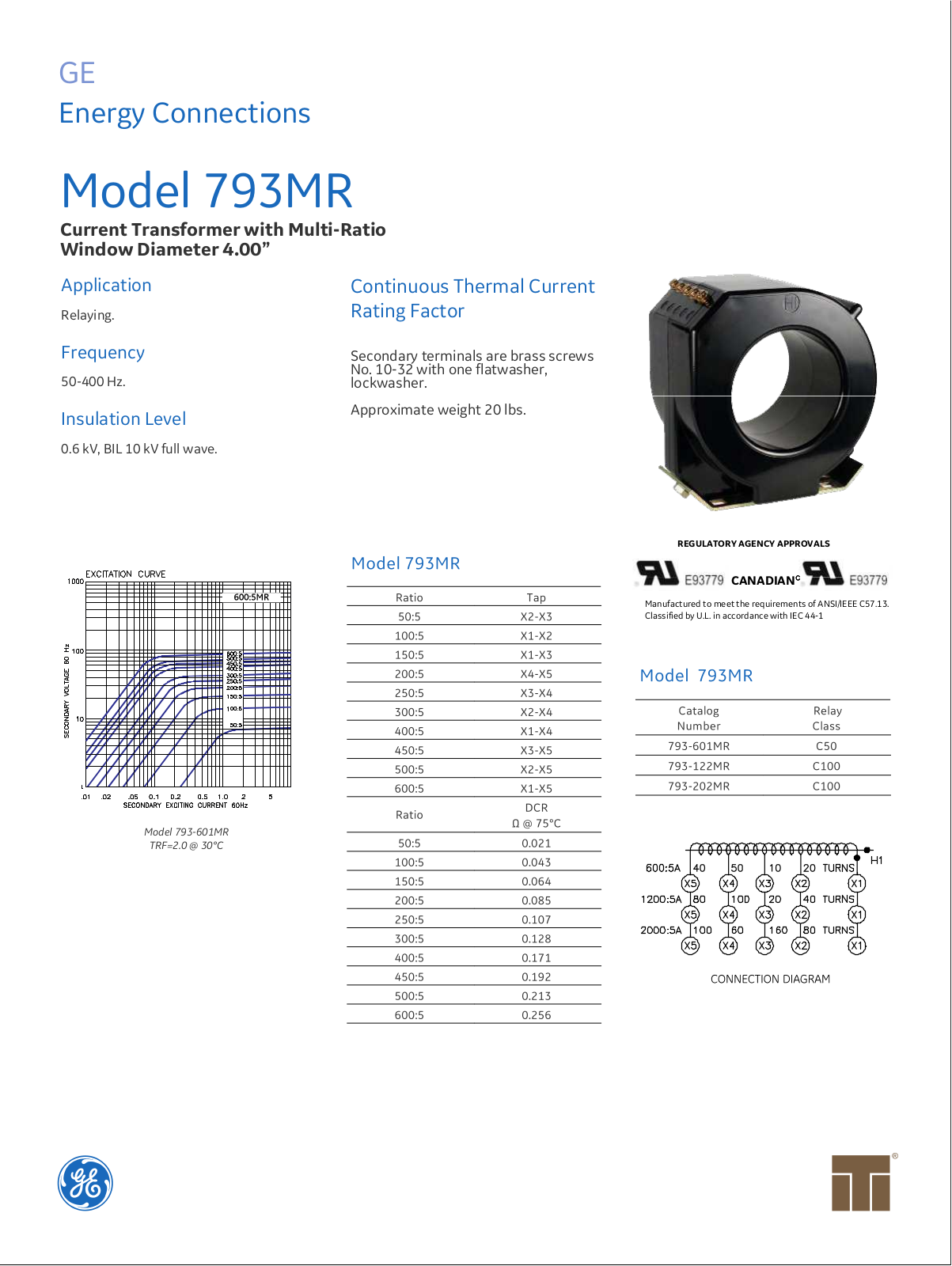

Model 793MR

Current Transformer with Multi-Ratio
Window Diameter 4.00”

Application

Relaying.

Frequency

50-400 Hz.

Insulation Level

0.6 kV, BIL 10 kV full wave.

Continuous Thermal Current
Rating Factor

Secondary terminals are brass screws
No. 10-32 with one flatwasher,
lockwasher.

Approximate weight 20 lbs.

REGULATORY AGENCY APPROVALS

CANADIANC

Manufactured to meet the requirements of ANSI/IEEE C57.13.
Classified by U.L. in accordance with IEC 44-1

C

CC

Model 793-601MR

TRF=2.0 @ 30°C

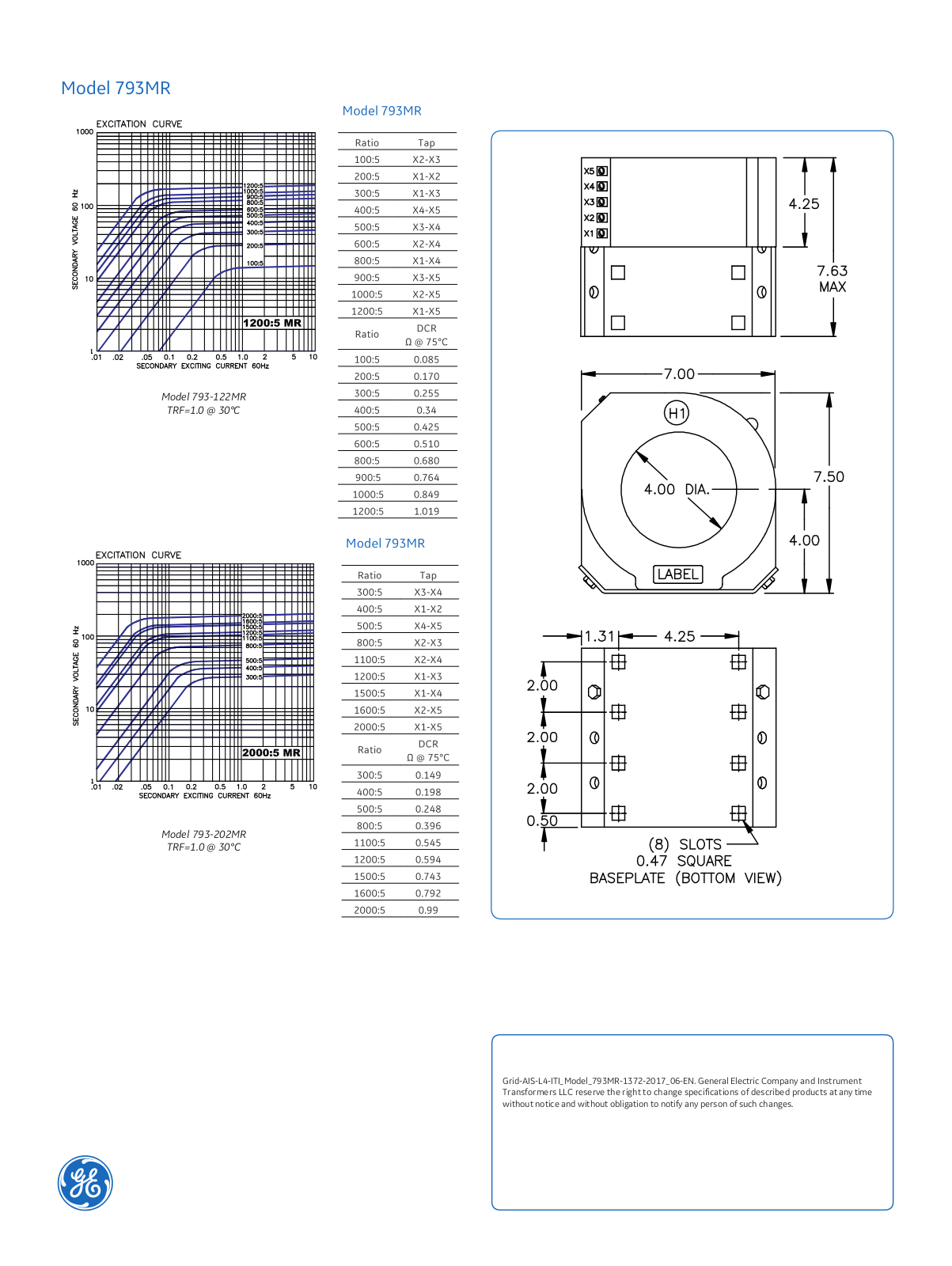

Model 793MR

Model 793-122MR

TRF=1.0 @ 30°C

Model 793-202MR

TRF=1.0 @ 30°C

Grid-AIS-L4-ITI_Model_793MR-1372-2017_06-EN. General Electric Company and Instrument
Transformers LLC reserve the right to change specifications of described products at any time
without notice and without obligation to notify any person of such changes.
