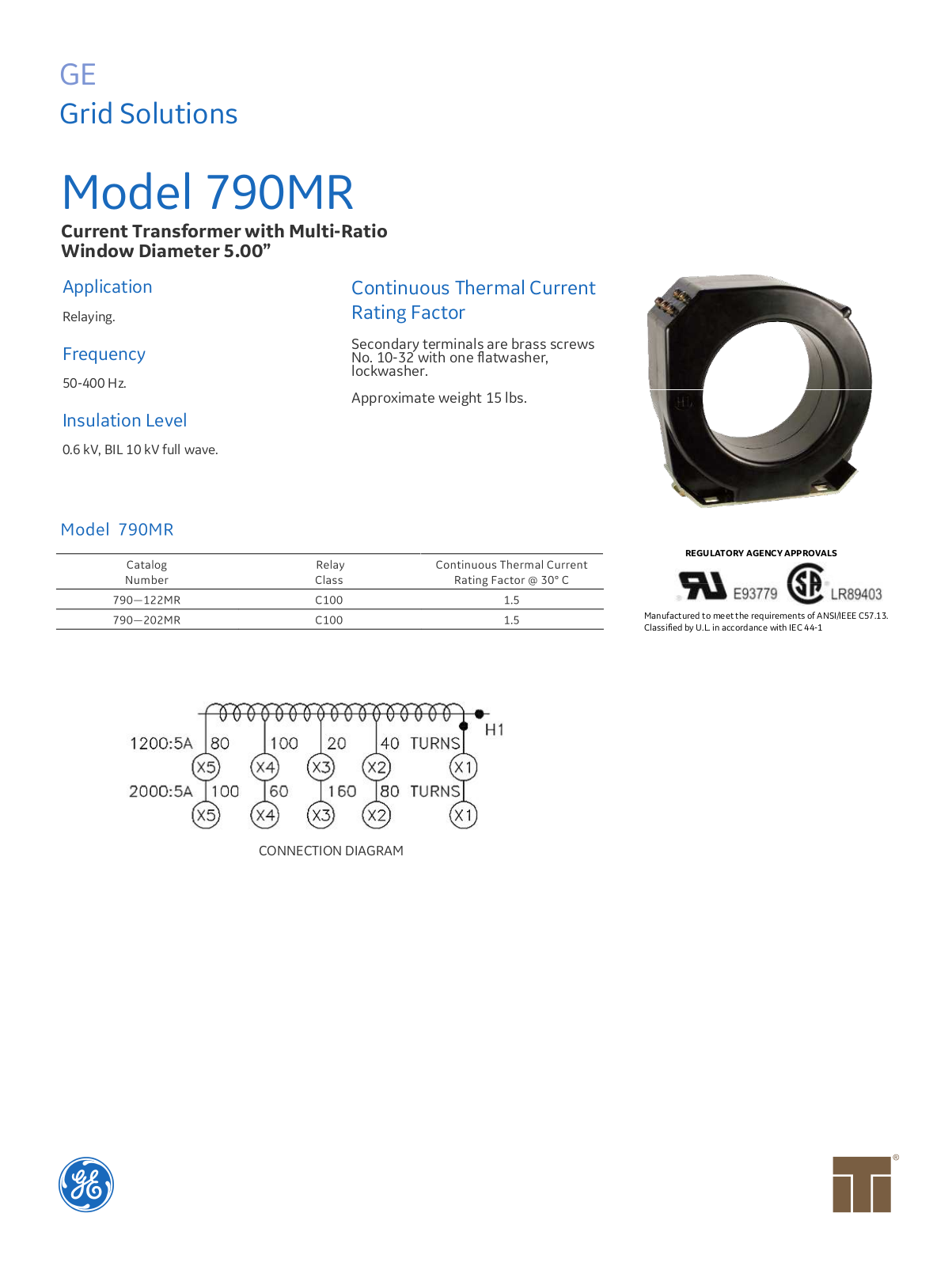

Instrument Transformer, Div of GE 790MR Data Sheet

GE
Grid Solutions
Model 790MR
Current Transformer with Multi-Ratio Window Diameter 5.00”
Application
Relaying.
Frequency
50-400 Hz.
Insulation Level
Continuous Thermal Current Rating Factor
Secondary terminals are brass screws No. 10-32 with one flatwasher, lockwasher.
Approximate weight 15 lbs.
REGULATORY AGENCY APPROVALS
Manufactured to meet the requirements of ANSI/IEEE C57.13. Classified by U.L. in accordance with IEC 44-1
CONNECTION DIAGRAM

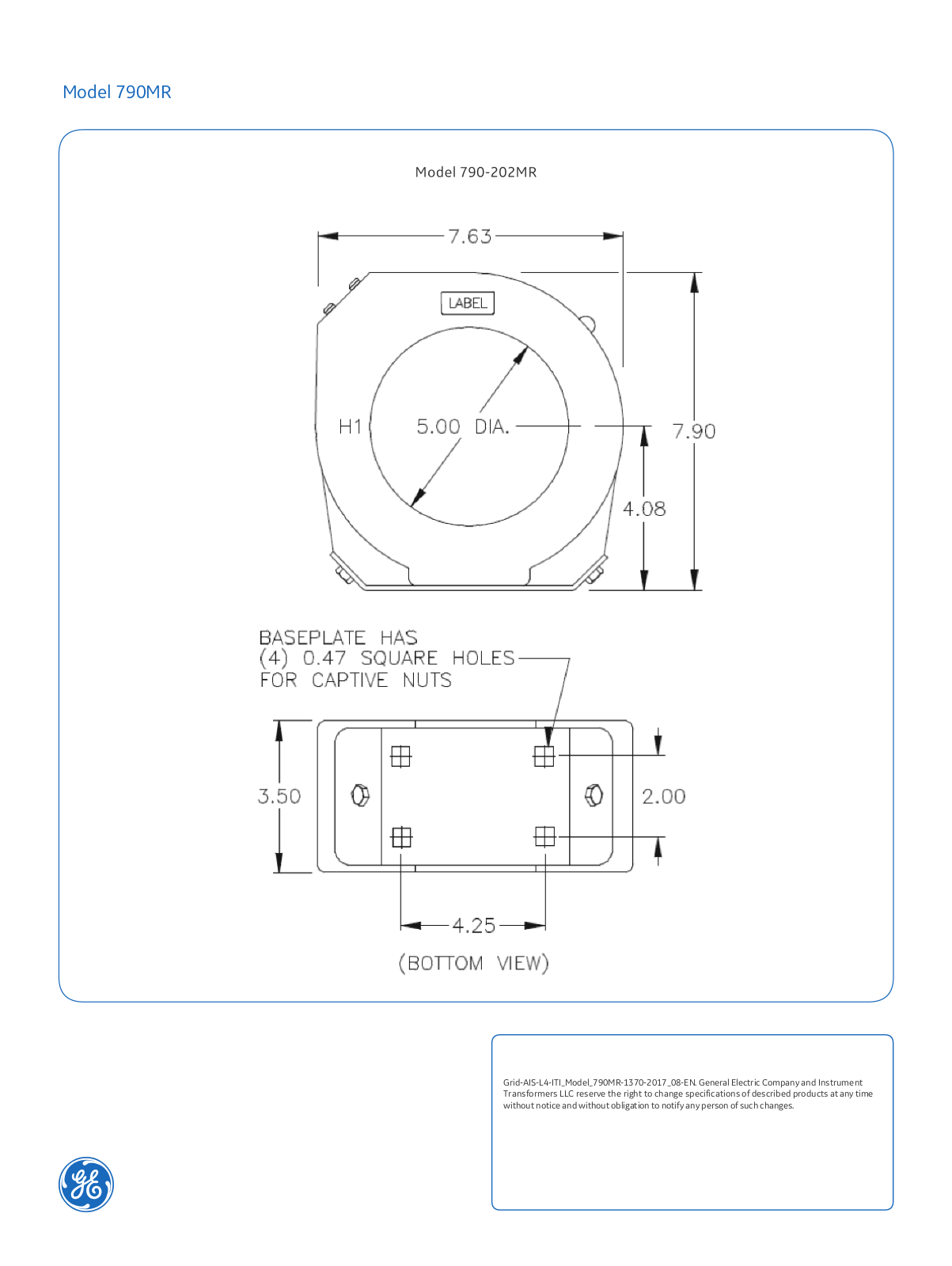

Model 790MR
Grid-AIS-L4-ITI_Model_790MR-1370-2017_08-EN. General Electric Company and Instrument Transformers LLC reserve the right to change specifications of described products at any time without notice and without obligation to notify any person of such changes.
