Instrument Transformer, Div of GE 788MR Data Sheet

GE

Energy Connections

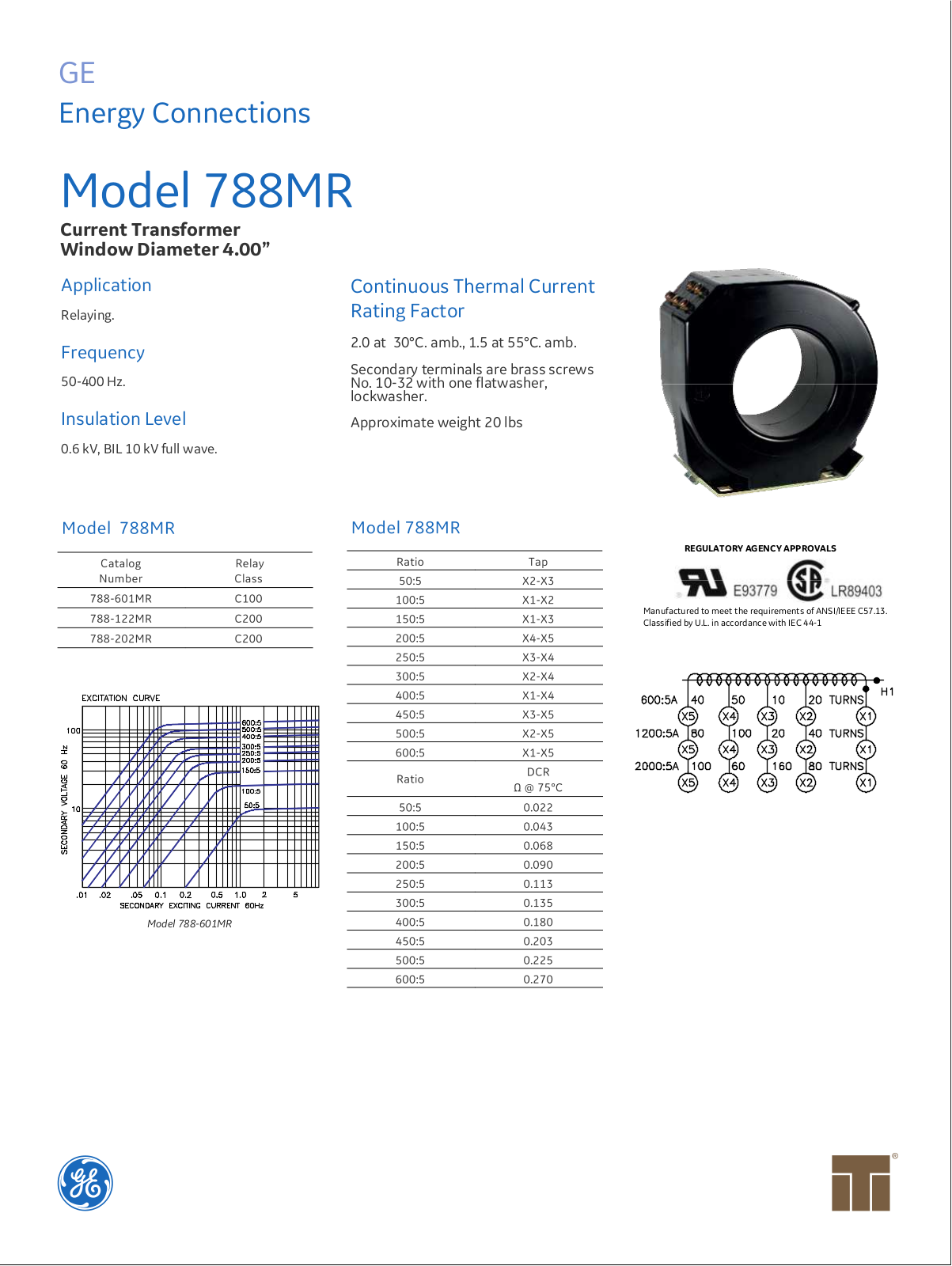

Model 788MR

Current Transformer
Window Diameter 4.00”

Application

Relaying.

Frequency

50-400 Hz.

Insulation Level

0.6 kV, BIL 10 kV full wave.

Continuous Thermal Current
Rating Factor

2.0 at 30°C. amb., 1.5 at 55°C. amb.

Secondary terminals are brass screws
No. 10-32 with one flatwasher,
lockwasher.

Approximate weight 20 lbs

REGULATORY AGENCY APPROVALS

Manufactured to meet the requirements of ANSI/IEEE C57.13.
Classified by U.L. in accordance with IEC 44-1

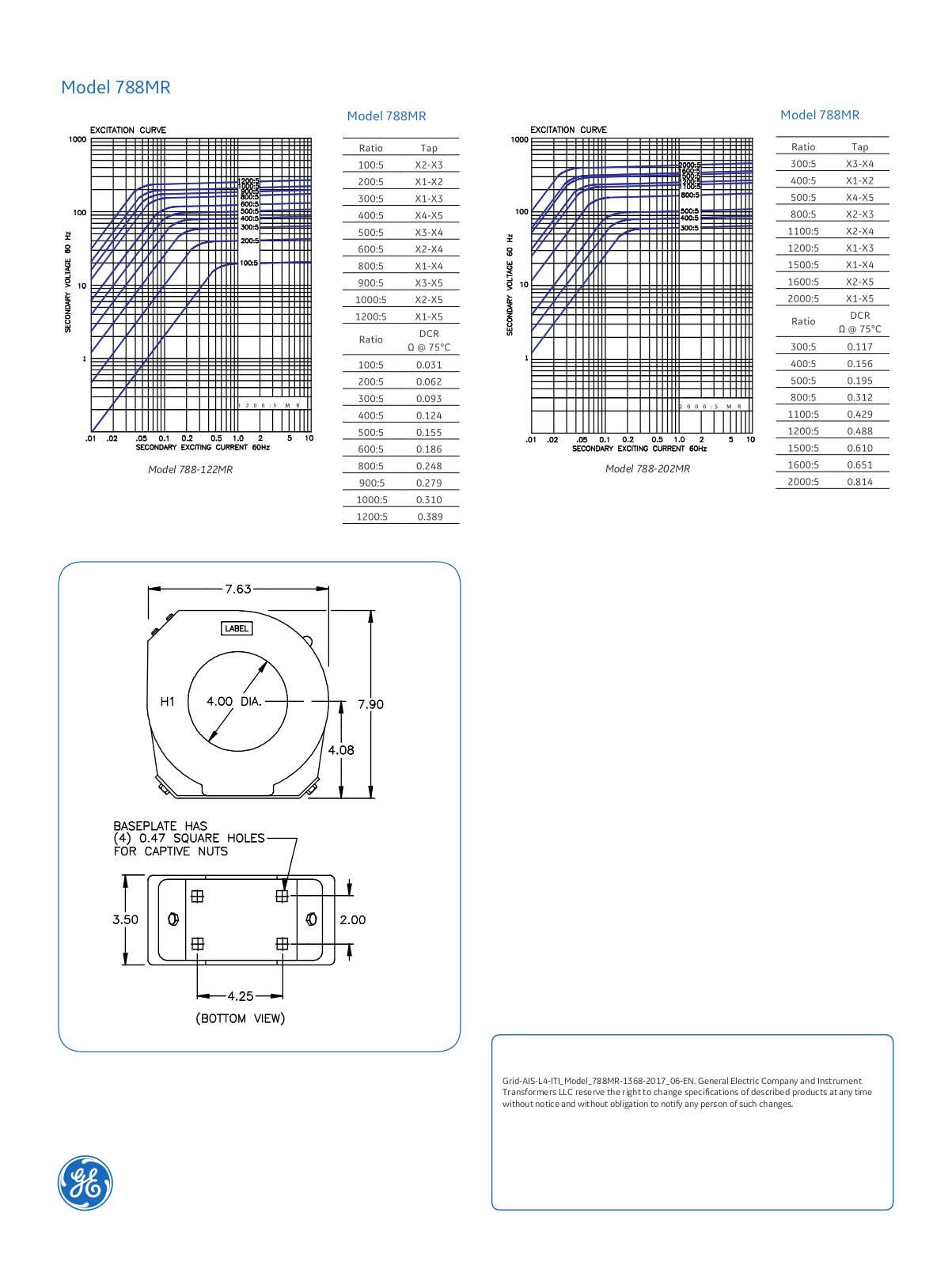

Model 788-601MR

Model 788MR

Model 788-122MR

Model 788-202MR

Grid-AIS-L4-ITI_Model_788MR-1368-2017_06-EN. General Electric Company and Instrument
Transformers LLC reserve the right to change specifications of described products at any time
without notice and without obligation to notify any person of such changes.
