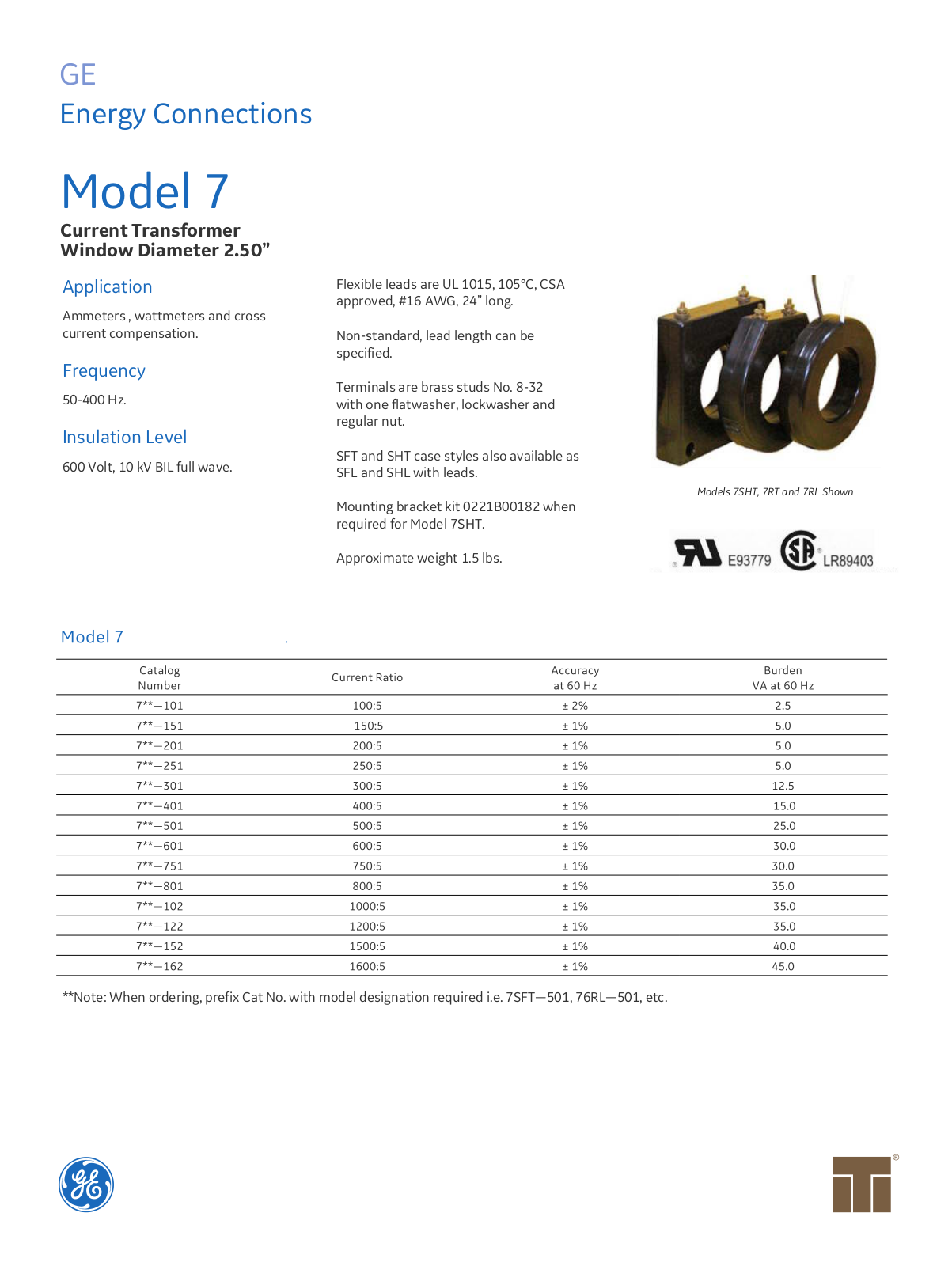

Instrument Transformer, Div of GE 7 Data Sheet

GE

SFT and SHT case styles also available as

Energy Connections

Model 7

Current Transformer
Window Diameter 2.50”

Application

Ammeters , wattmeters and cross
current compensation.

Frequency

50-400 Hz.

Insulation Level

600 Volt, 10 kV BIL full wave.

Flexible leads are UL 1015, 105°C, CSA
approved, #16 AWG, 24” long.

Non-standard, lead length can be
specified.

Terminals are brass studs No. 8-32
with one flatwasher, lockwasher and
regular nut.

SFL and SHL with leads.

Models 7SHT, 7RT and 7RL Shown

Mounting bracket kit 0221B00182 when
required for Model 7SHT.

Approximate weight 1.5 lbs.

**Note: When ordering, prefix Cat No. with model designation required i.e. 7SFT—501, 76RL—501, etc.

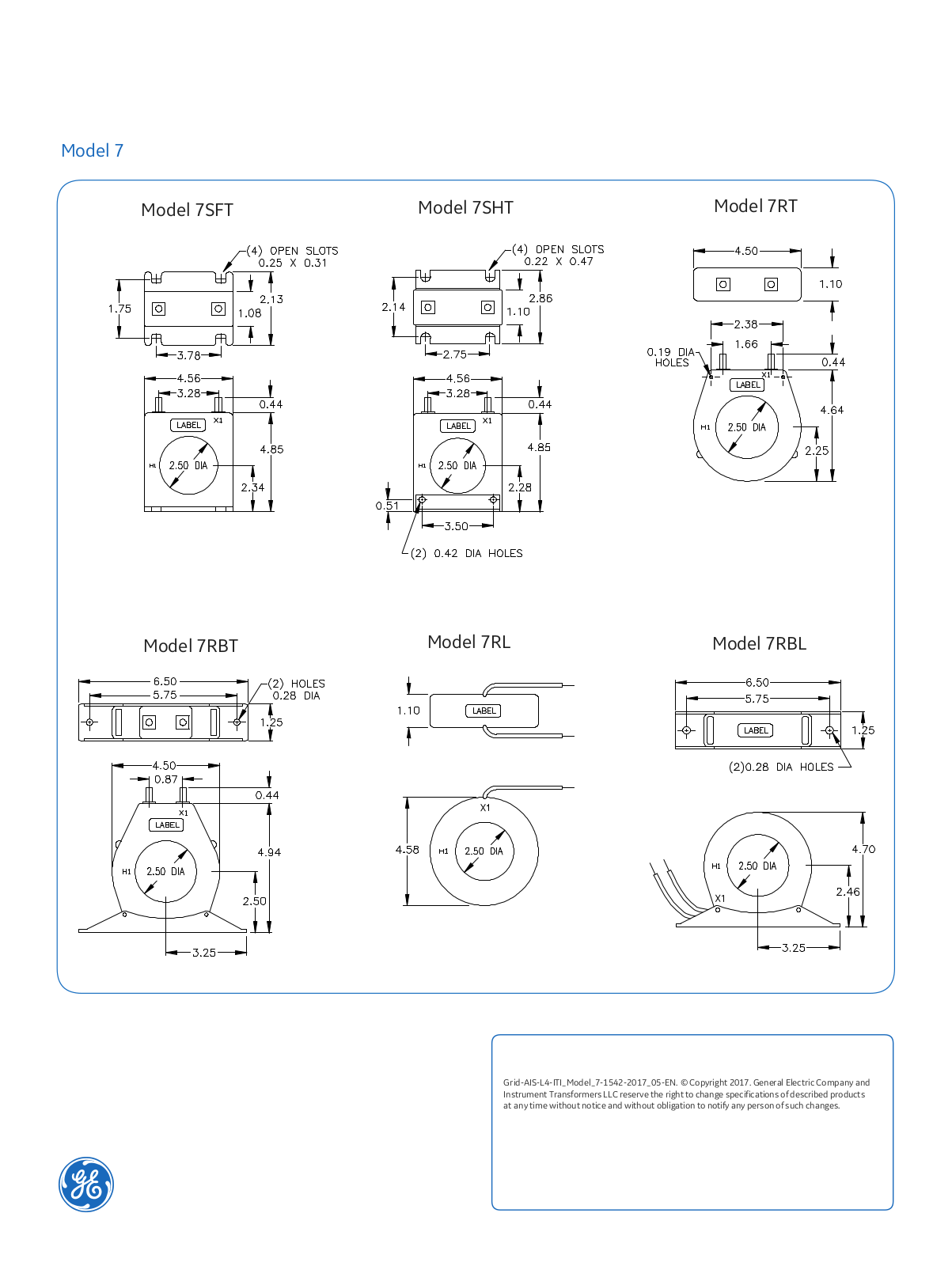

Model 7

Model 7SFT

Model 7RBT

Model 7SHT

Model 7RL

Model 7RT

Model 7RBL

Grid-AIS-L4-ITI_Model_7-1542-2017_05-EN. © Copyright 2017. General Electric Company and
Instrument Transformers LLC reserve the right to change specifications of described products
at any time without notice and without obligation to notify any person of such changes.
