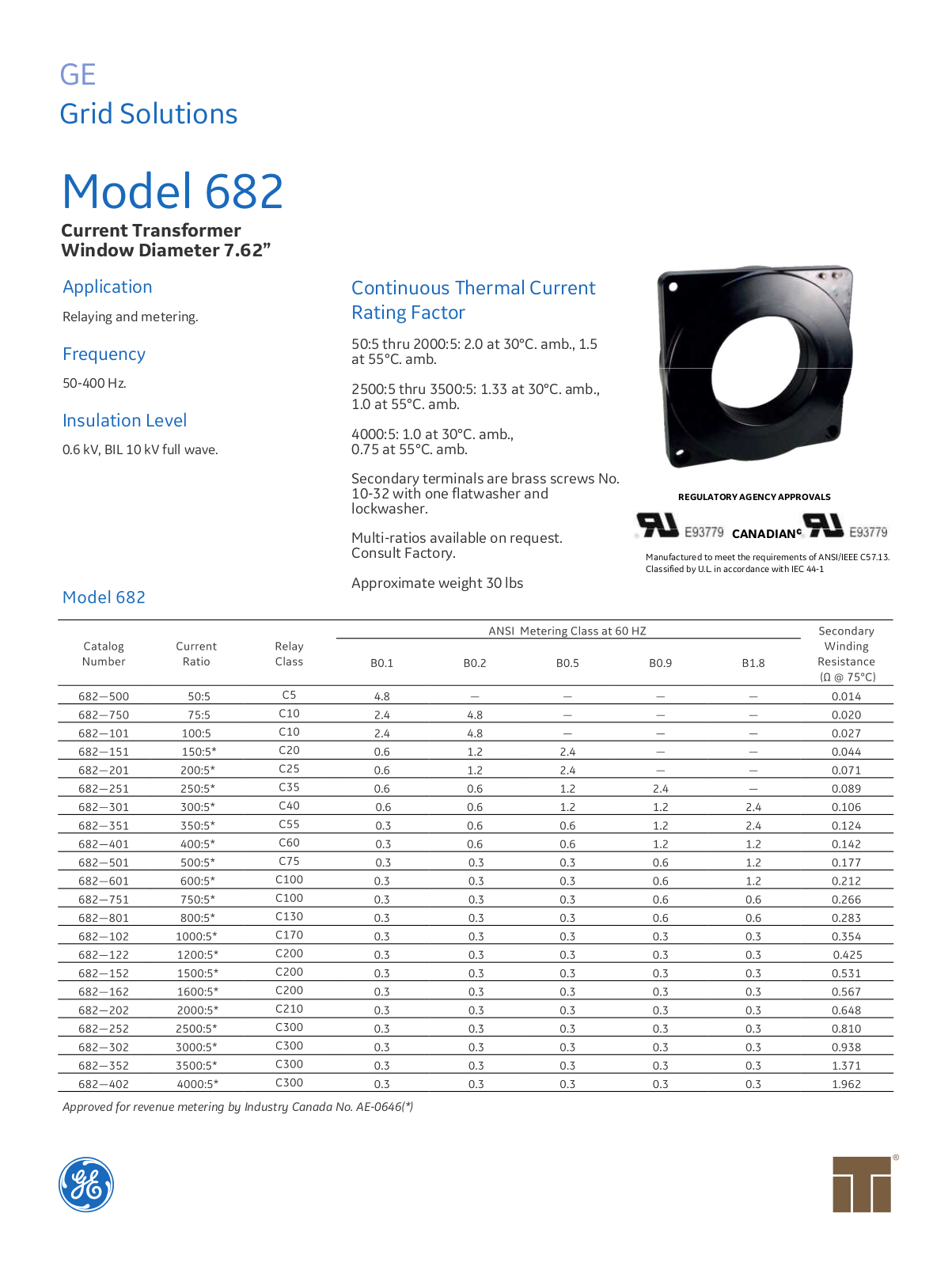

Instrument Transformer, Div of GE 682 Data Sheet

GE

Secondary terminals are brass screws No.

Grid Solutions

Model 682

Current Transformer
Window Diameter 7.62”

Application

Relaying and metering.

Frequency

50-400 Hz.

Insulation Level

0.6 kV, BIL 10 kV full wave.

Continuous Thermal Current
Rating Factor

50:5 thru 2000:5: 2.0 at 30°C. amb., 1.5
at 55°C. amb.

2500:5 thru 3500:5: 1.33 at 30°C. amb.,

1.0 at 55°C. amb.

4000:5: 1.0 at 30°C. amb.,

0.75 at 55°C. amb.

10-32 with one flatwasher and
lockwasher.

Multi-ratios available on request.
Consult Factory.

Approximate weight 30 lbs

REGULATORY AGENCY APPROVALS

CANADIANC

Manufactured to meet the requirements of ANSI/IEEE C57.13.
Classified by U.L. in accordance with IEC 44-1

C

CC

Approved for revenue metering by Industry Canada No. AE-0646(*)

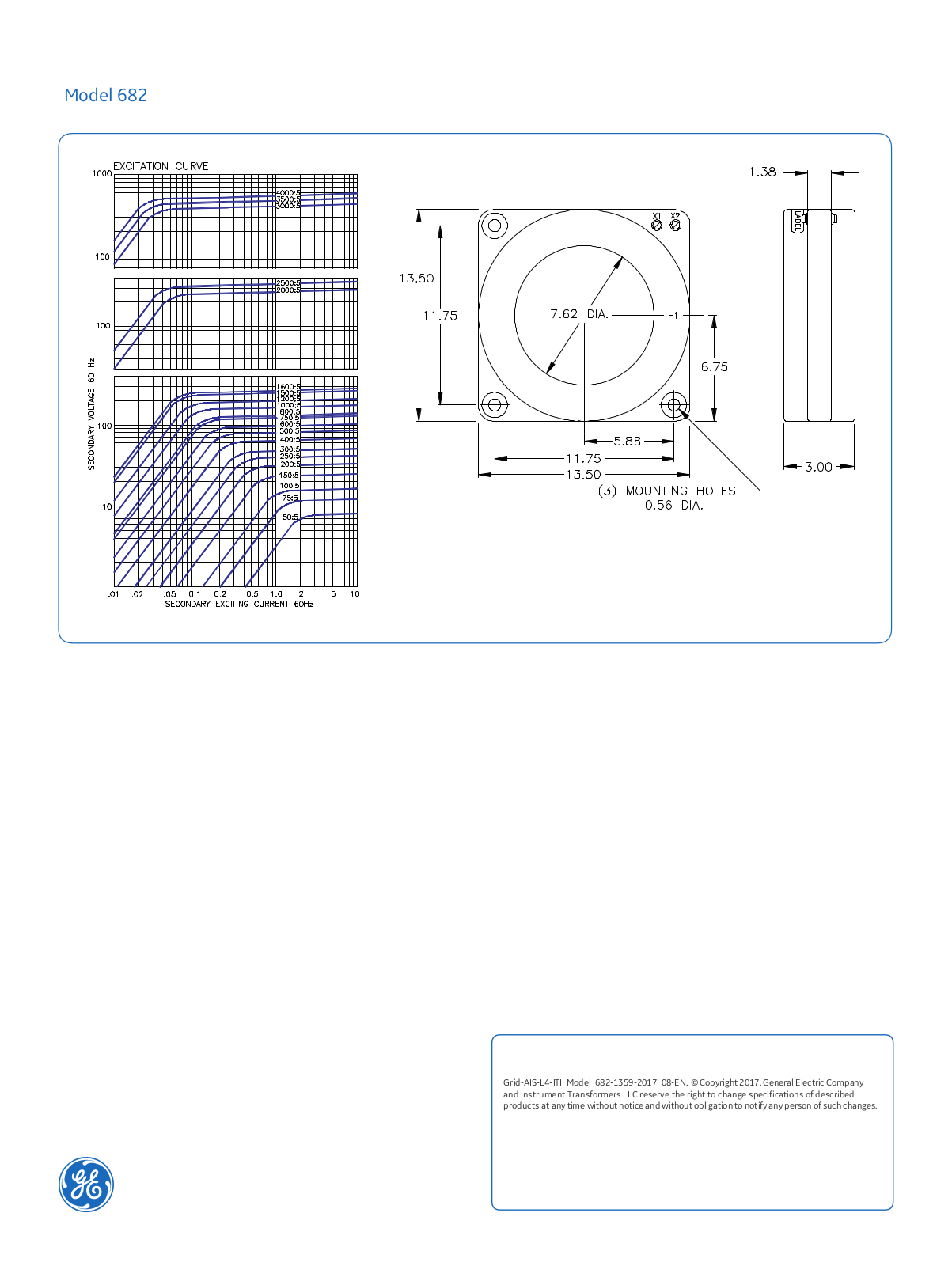

Model 682

Grid-AIS-L4-ITI_Model_682-1359-2017_08-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
