GE
Energy Connections

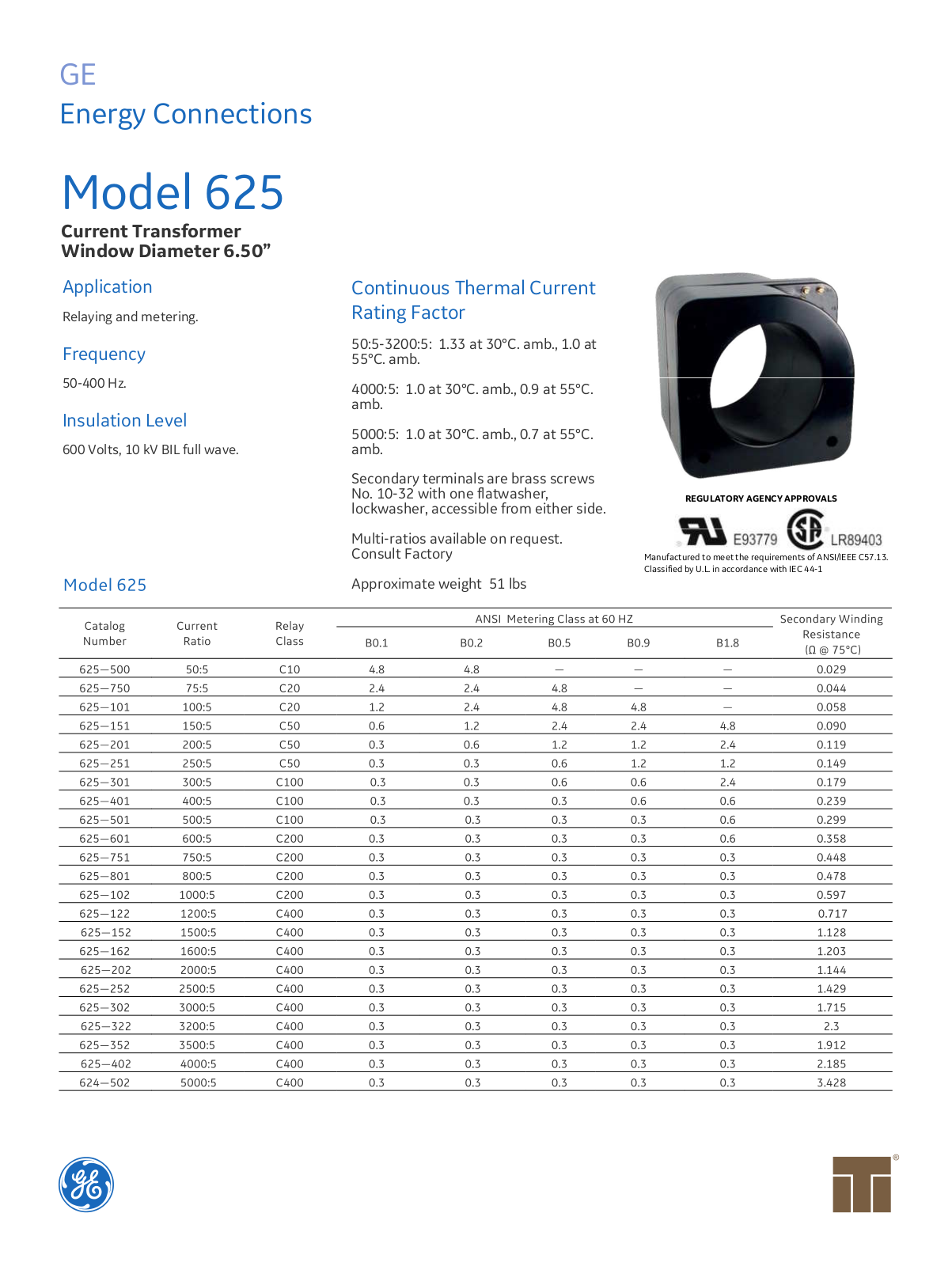

Model 625
Current Transformer
Window Diameter 6.50”
Application
Relaying and metering.
Frequency
50-400 Hz.
Insulation Level
600 Volts, 10 kV BIL full wave.
Continuous Thermal Current
Rating Factor
50:5-3200:5: 1.33 at 30°C. amb., 1.0 at
55°C. amb.
4000:5: 1.0 at 30°C. amb., 0.9 at 55°C.
amb.
5000:5: 1.0 at 30°C. amb., 0.7 at 55°C.
amb.
Secondary terminals are brass screws
No. 10-32 with one flatwasher,
lockwasher, accessible from either side.
Multi-ratios available on request.
Consult Factory
Approximate weight 51 lbs
REGULATORY AGENCY APPROVALS
Manufactured to meet the requirements of ANSI/IEEE C57.13.
Classified by U.L. in accordance with IEC 44-1

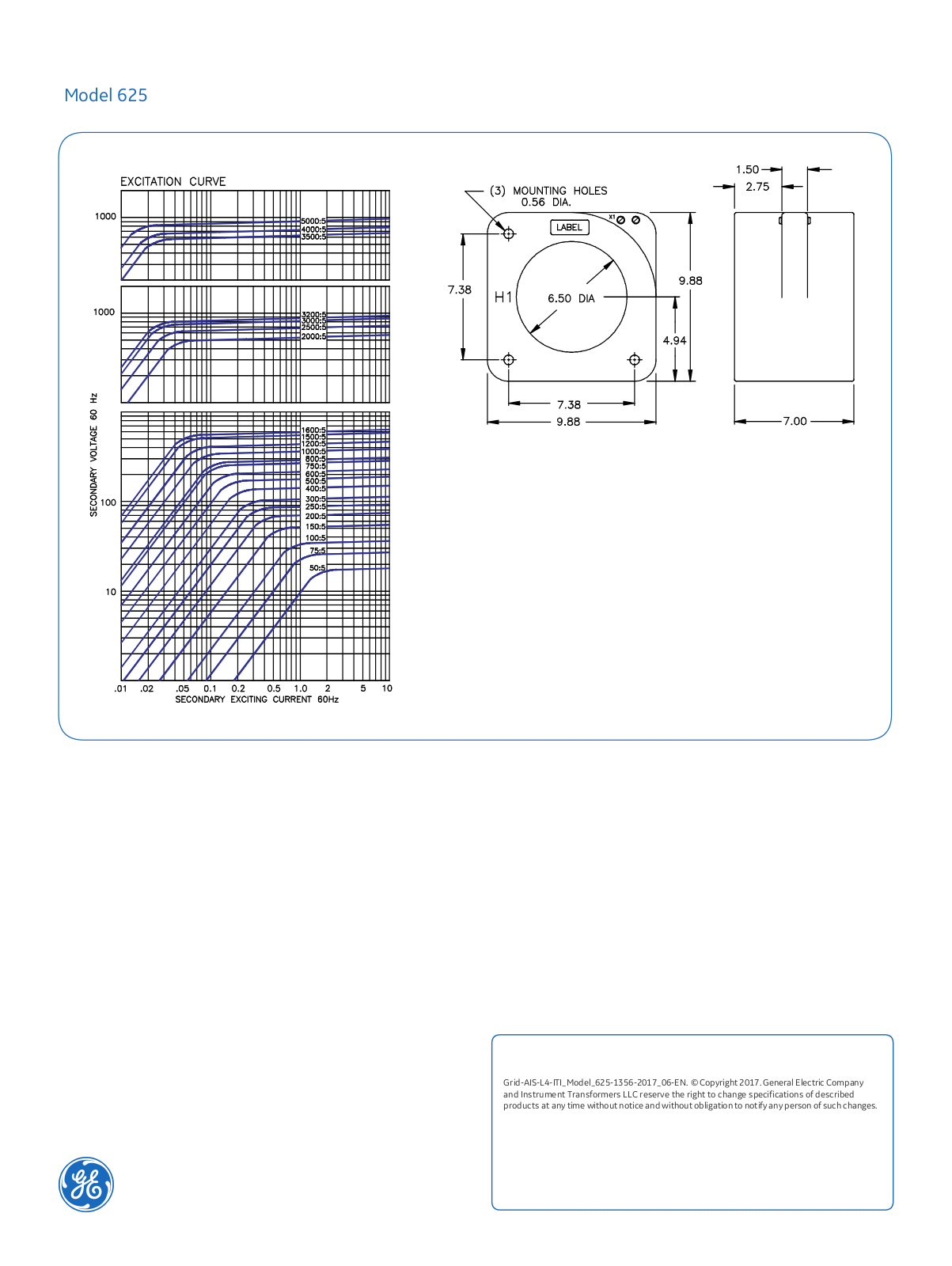

Model 625
Grid-AIS-L4-ITI_Model_625-1356-2017_06-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
