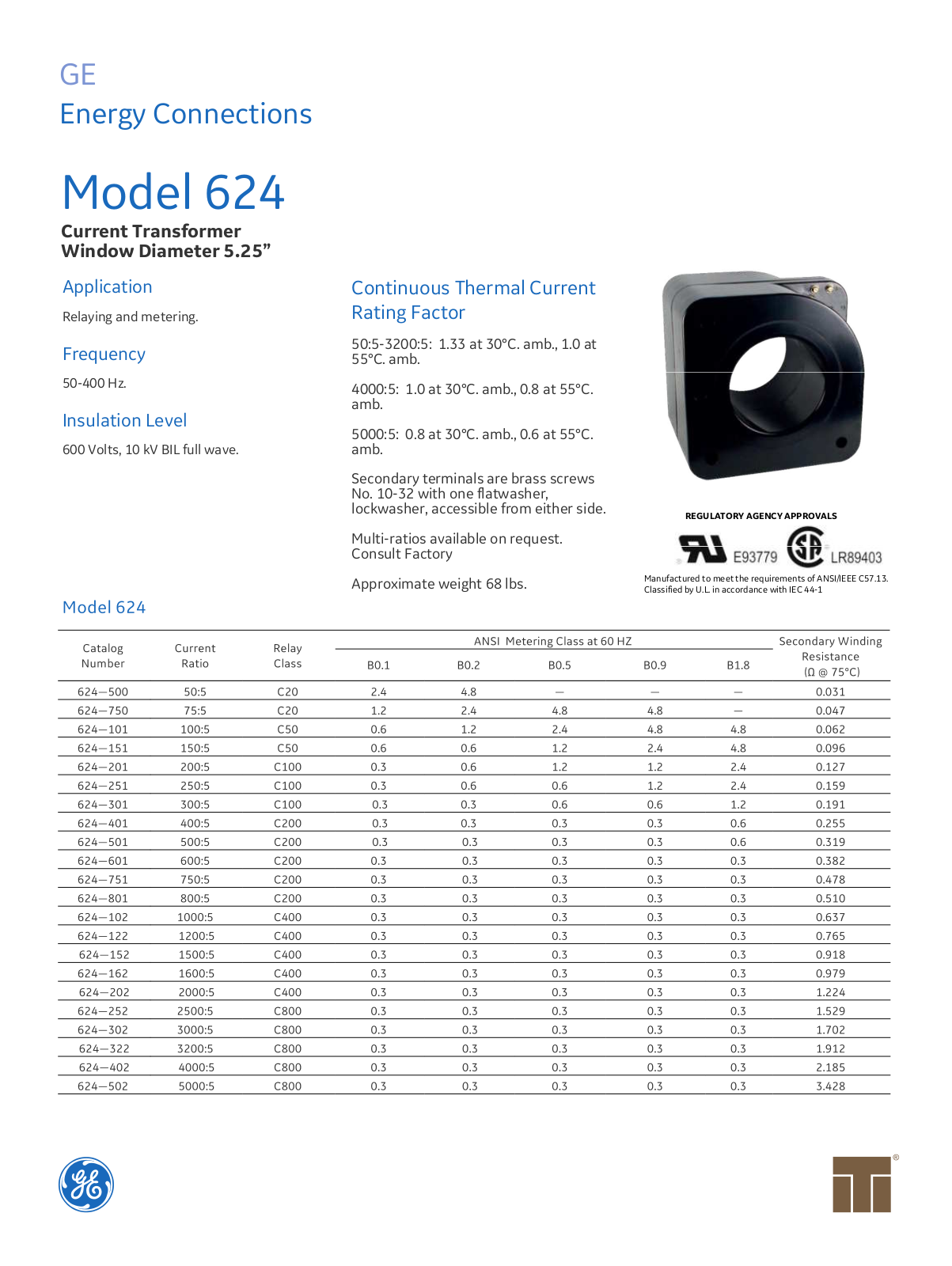

Instrument Transformer, Div of GE 624 Data Sheet

GE

Energy Connections

Model 624

Current Transformer
Window Diameter 5.25”

Application

Relaying and metering.

Frequency

50-400 Hz.

Insulation Level

600 Volts, 10 kV BIL full wave.

Continuous Thermal Current
Rating Factor

50:5-3200:5: 1.33 at 30°C. amb., 1.0 at
55°C. amb.

4000:5: 1.0 at 30°C. amb., 0.8 at 55°C.
amb.

5000:5: 0.8 at 30°C. amb., 0.6 at 55°C.
amb.

Secondary terminals are brass screws
No. 10-32 with one flatwasher,
lockwasher, accessible from either side.

Multi-ratios available on request.
Consult Factory

Approximate weight 68 lbs.

REGULATORY AGENCY APPROVALS

Manufactured to meet the requirements of ANSI/IEEE C57.13.
Classified by U.L. in accordance with IEC 44-1

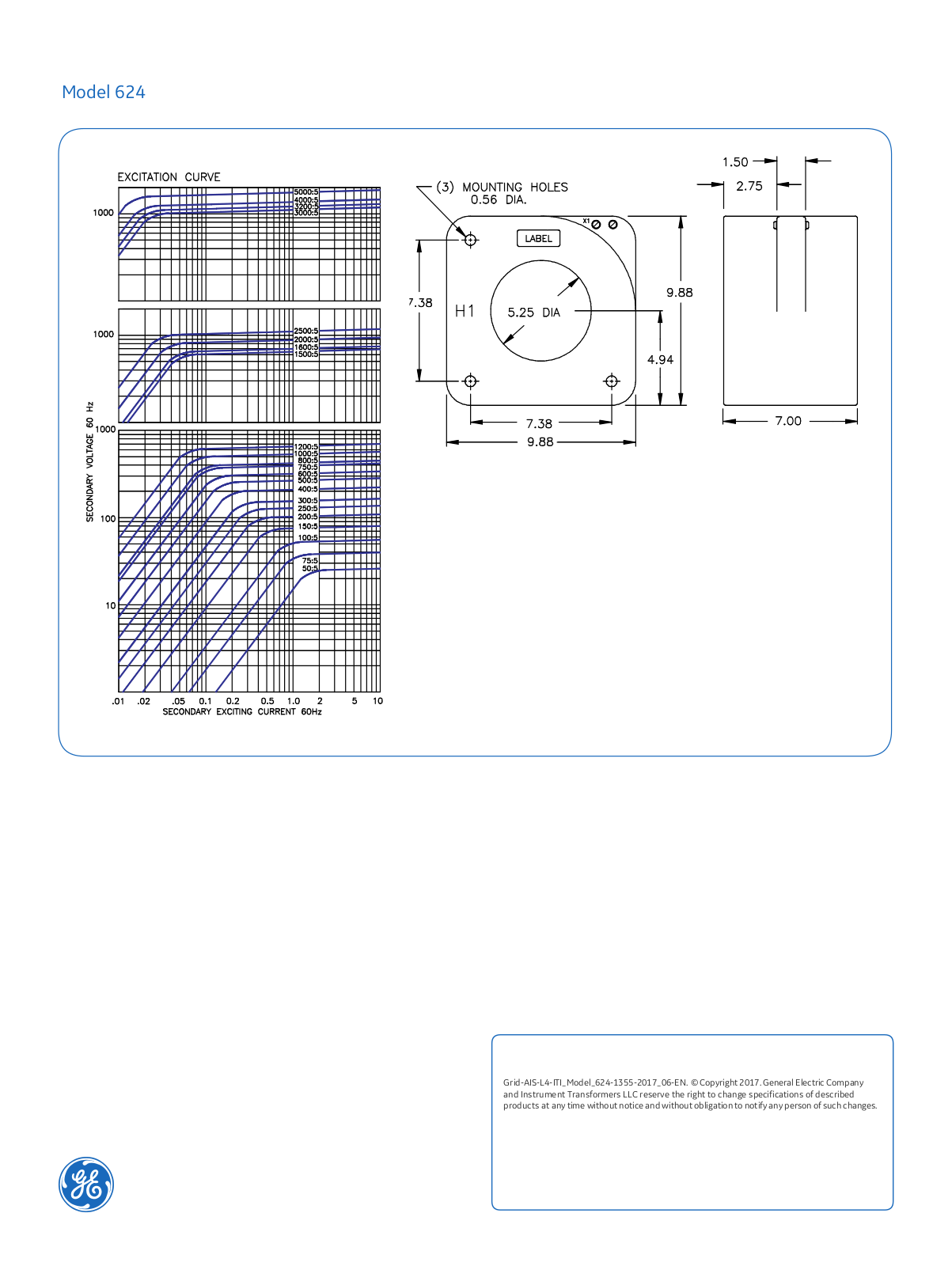

Model 624

Grid-AIS-L4-ITI_Model_624-1355-2017_06-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
