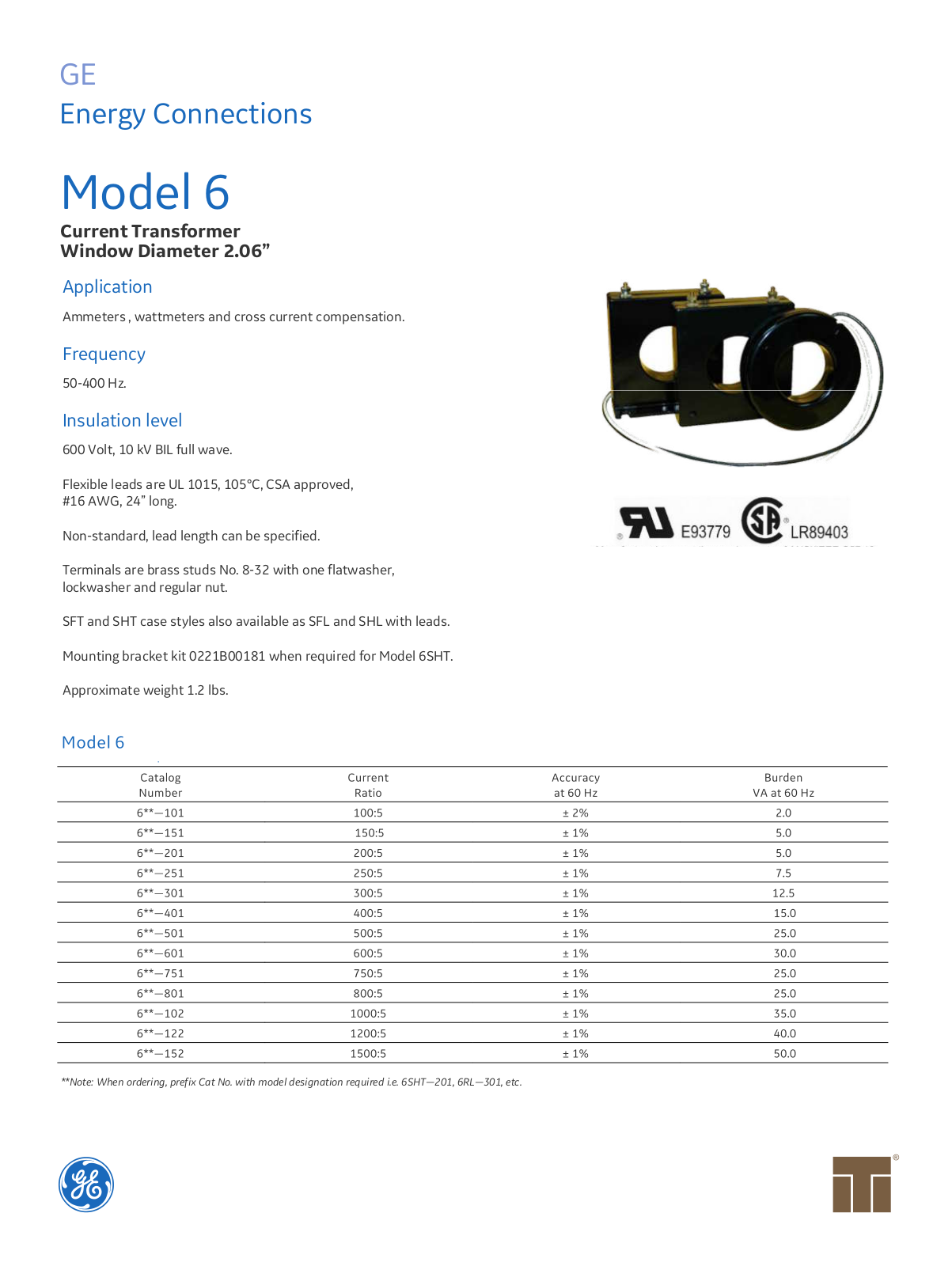

Instrument Transformer, Div of GE 6 Data Sheet

GE

Energy Connections

Model 6

Current Transformer
Window Diameter 2.06”

Application

Ammeters , wattmeters and cross current compensation.

Frequency

50-400 Hz.

Insulation level

600 Volt, 10 kV BIL full wave.

Flexible leads are UL 1015, 105°C, CSA approved,
#16 AWG, 24” long.

Non-standard, lead length can be specified.

Terminals are brass studs No. 8-32 with one flatwasher,
lockwasher and regular nut.

SFT and SHT case styles also available as SFL and SHL with leads.

Mounting bracket kit 0221B00181 when required for Model 6SHT.

Approximate weight 1.2 lbs.

**Note: When ordering, prefix Cat No. with model designation required i.e. 6SHT—201, 6RL—301, etc.

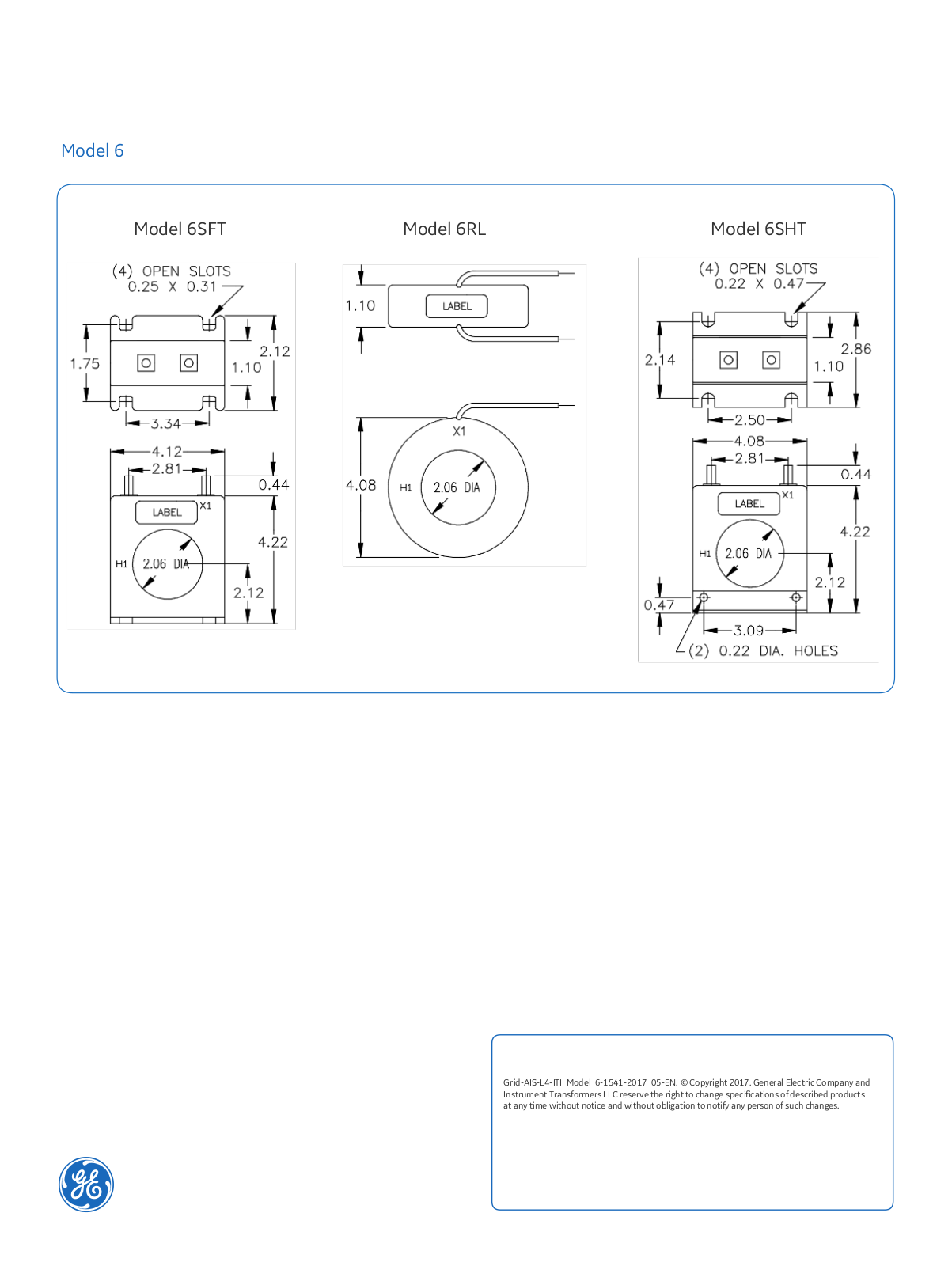

Model 6

Model 6SFT

Model 6SHTModel 6RL

Grid-AIS-L4-ITI_Model_6-1541-2017_05-EN. © Copyright 2017. General Electric Company and
Instrument Transformers LLC reserve the right to change specifications of described products
at any time without notice and without obligation to notify any person of such changes.
