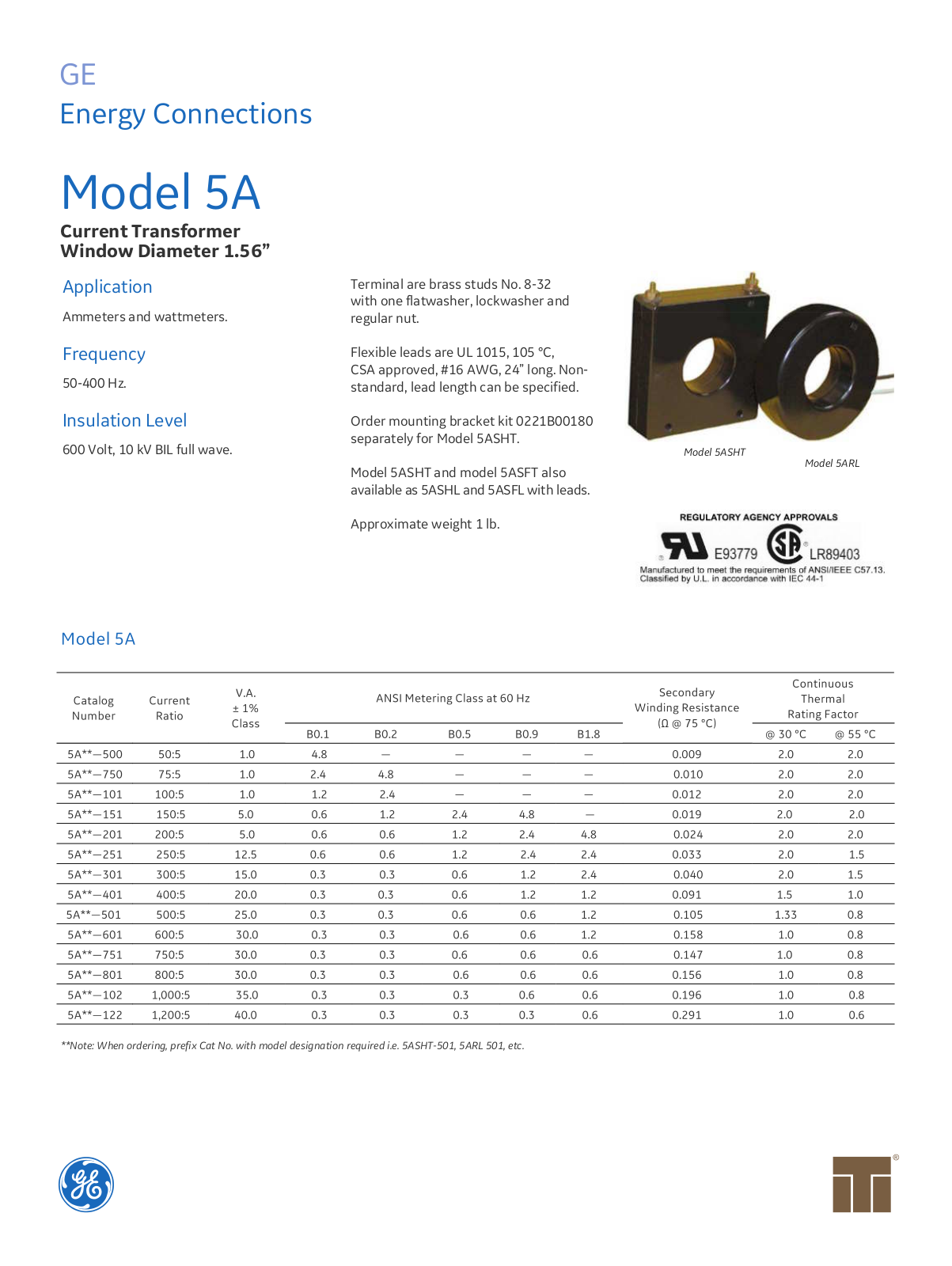

Model 5A
Current Transformer
Window Diameter 1.56”
Application
Ammeters and wattmeters.
Frequency
50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
Terminal are brass studs No. 8-32
with one flatwasher, lockwasher and
regular nut.
Flexible leads are UL 1015, 105 °C,
CSA approved, #16 AWG, 24” long. Nonstandard, lead length can be specified.
Order mounting bracket kit 0221B00180
separately for Model 5ASHT.
Model 5ASHT and model 5ASFT also
available as 5ASHL and 5ASFL with leads.
Approximate weight 1 lb.
Model 5ASHT
Model 5ARL
**Note: When ordering, prefix Cat No. with model designation required i.e. 5ASHT-501, 5ARL 501, etc.

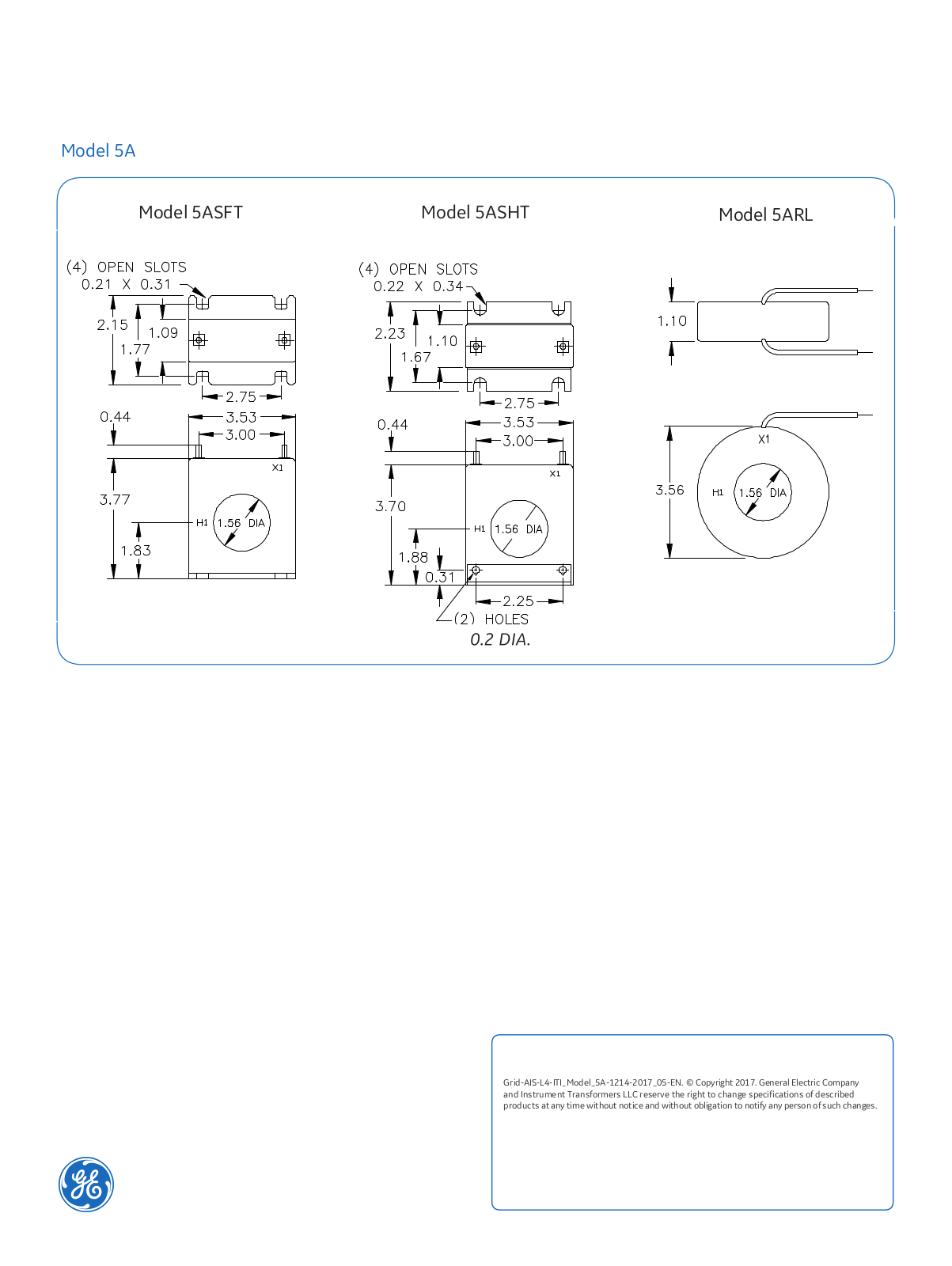

Model 5A
Model 5ASFT
Model 5ASHT
Model 5ARL
Grid-AIS-L4-ITI_Model_5A-1214-2017_05-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
