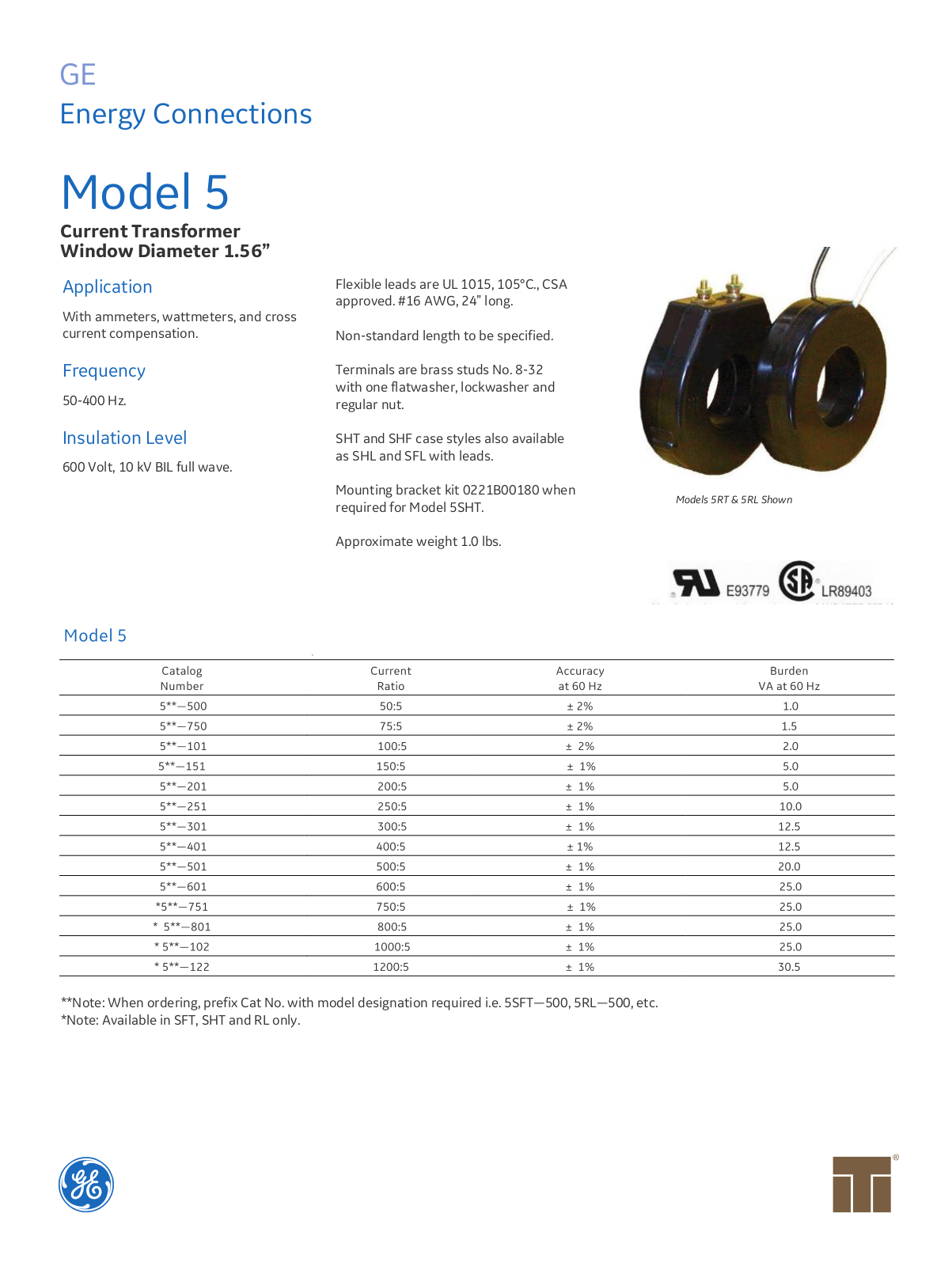

Model 5
Current Transformer
Window Diameter 1.56”
Application
With ammeters, wattmeters, and cross
current compensation.
Frequency
50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
Flexible leads are UL 1015, 105°C., CSA
approved. #16 AWG, 24” long.
Non-standard length to be specified.
Terminals are brass studs No. 8-32
with one flatwasher, lockwasher and
regular nut.
SHT and SHF case styles also available
as SHL and SFL with leads.
Mounting bracket kit 0221B00180 when
required for Model 5SHT.
Approximate weight 1.0 lbs.
Models 5RT & 5RL Shown
**Note: When ordering, prefix Cat No. with model designation required i.e. 5SFT—500, 5RL—500, etc.
*Note: Available in SFT, SHT and RL only.

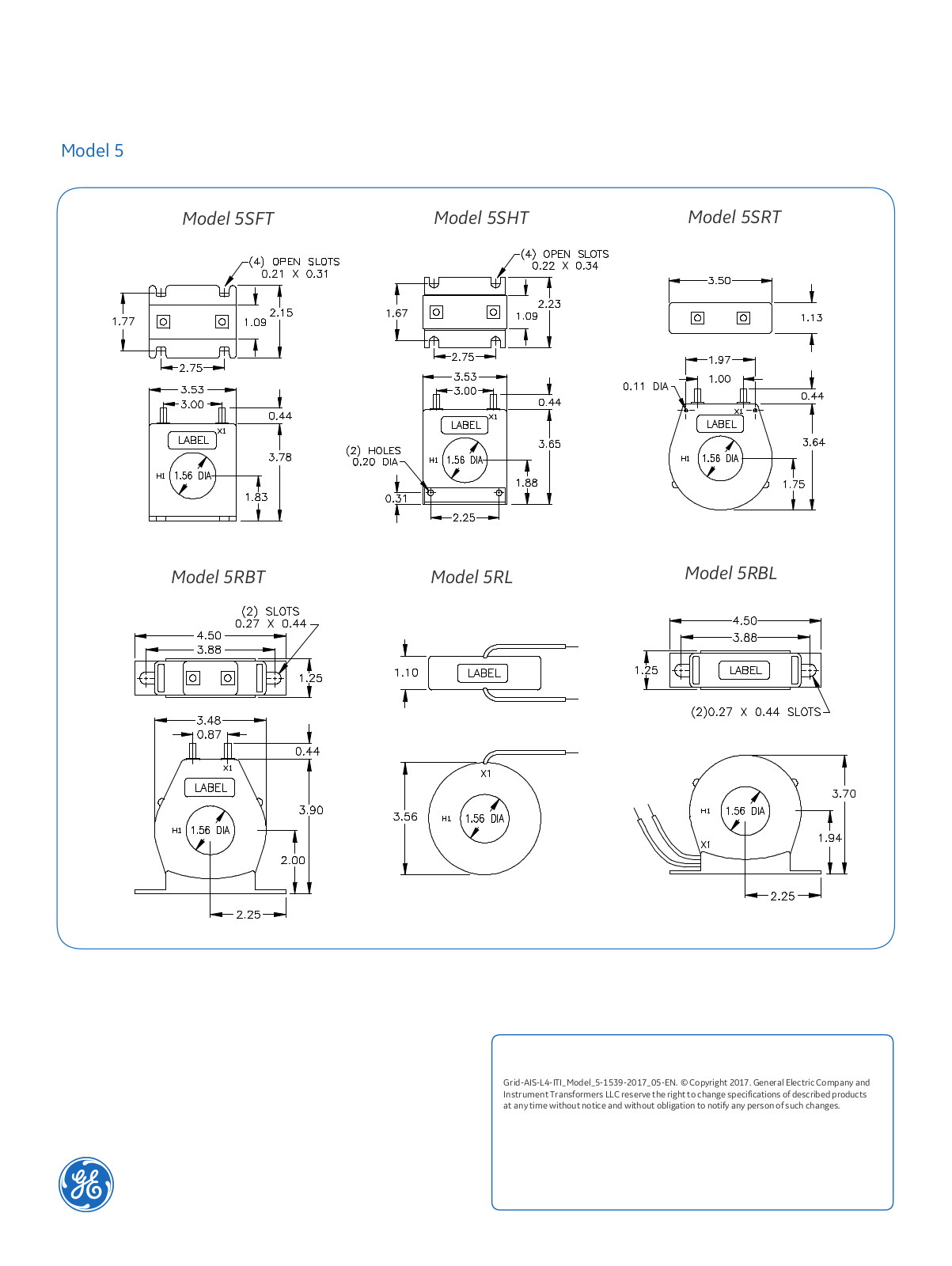

Model 5
Model 5SFT
Model 5RBT
Model 5SHT
Model 5RL
Model 5SRT
Model 5RBL
Grid-AIS-L4-ITI_Model_5-1539-2017_05-EN. © Copyright 2017. General Electric Company and
Instrument Transformers LLC reserve the right to change specifications of described products
at any time without notice and without obligation to notify any person of such changes.
