Instrument Transformer, Div of GE 3P93 Data Sheet

GE
Energy Connections

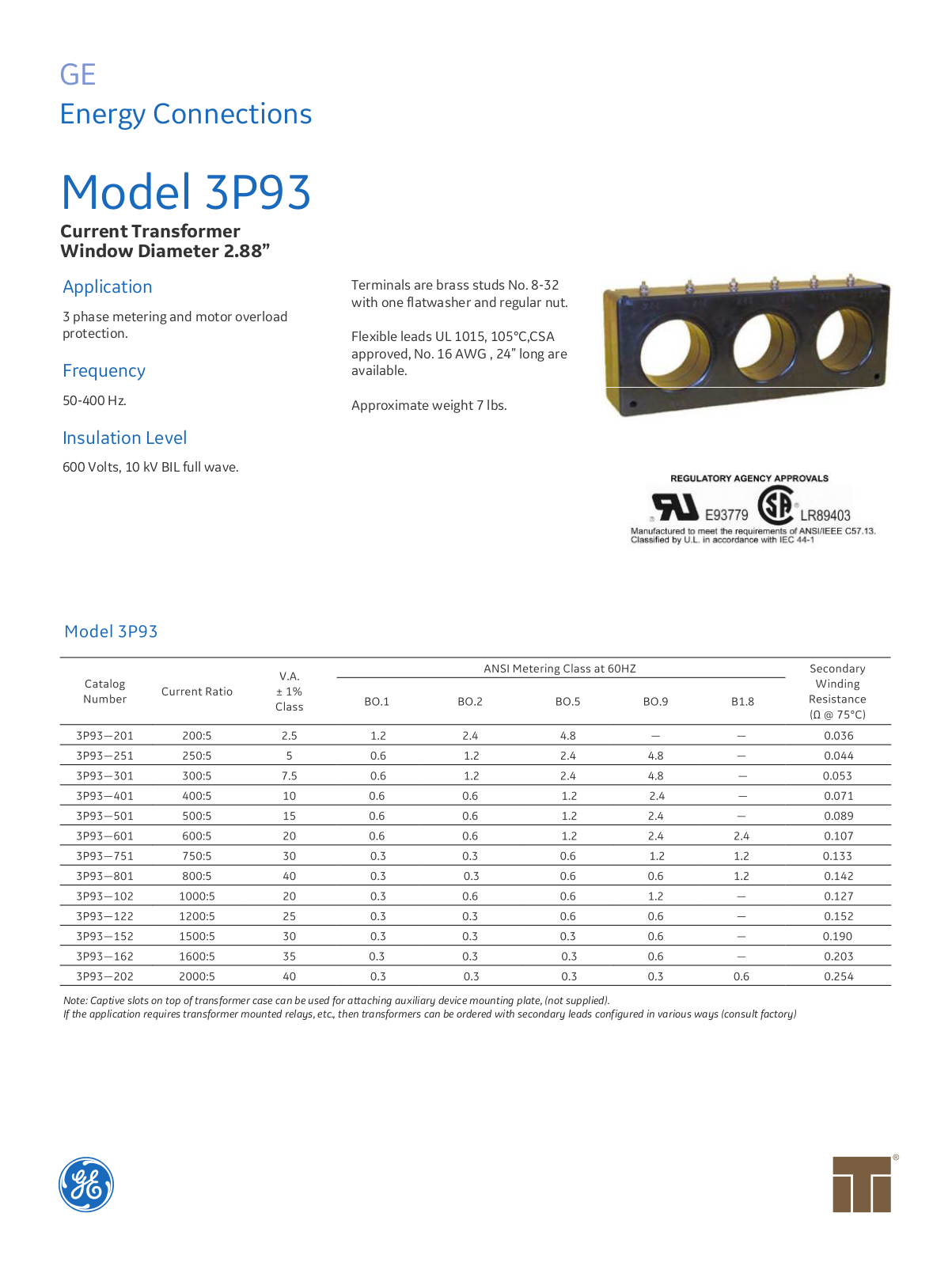

Model 3P93
Current Transformer Window Diameter 2.88”
Application
3 phase metering and motor overload protection.
Frequency
Insulation Level
600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher and regular nut.
Flexible leads UL 1015, 105°C,CSA approved, No. 16 AWG , 24” long are available.
Approximate weight 7 lbs.
Note: Captive slots on top of transformer case can be used for attaching auxiliary device mounting plate, (not supplied). If the application requires transformer mounted relays, etc., then transformers can be ordered with secondary leads configured in various ways (consult factory)

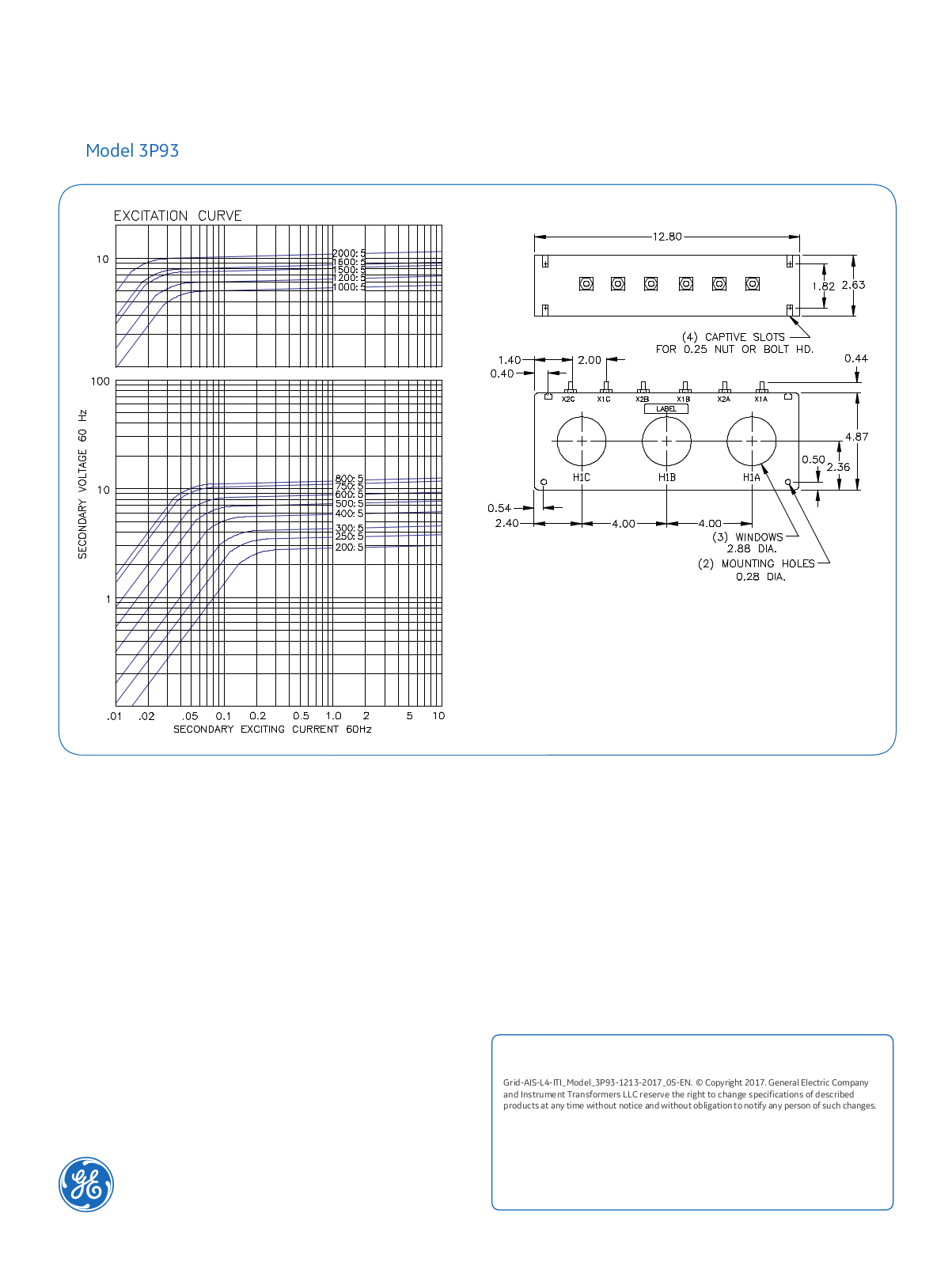

Model 3P93
Grid-AIS-L4-ITI_Model_3P93-1213-2017_05-EN. © Copyright 2017. General Electric Company and Instrument Transformers LLC reserve the right to change specifications of described products at any time without notice and without obligation to notify any person of such changes.
