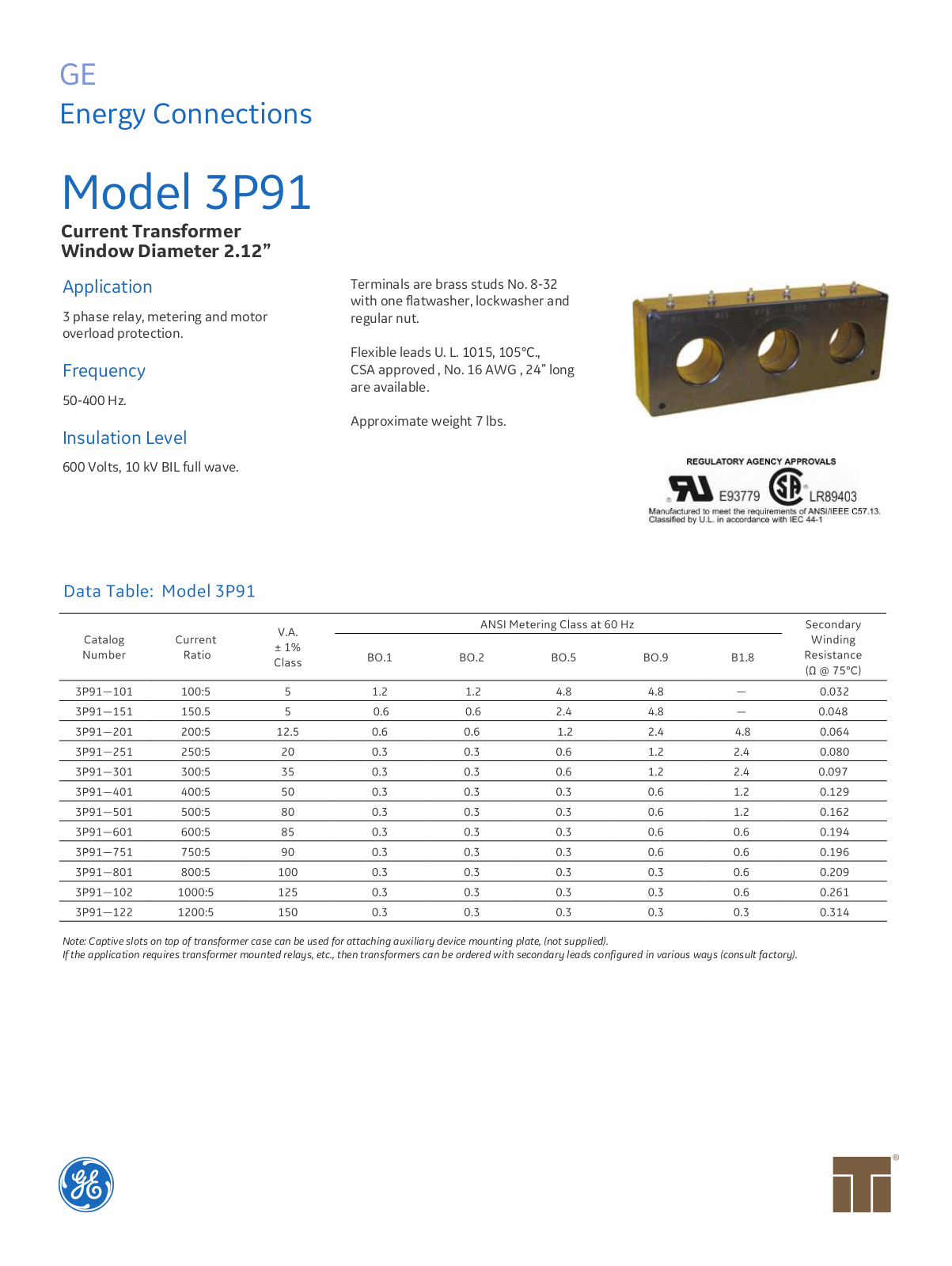

GE
Energy Connections
Model 3P91
Current Transformer
Window Diameter 2.12”
Application
3 phase relay, metering and motor
overload protection.
Frequency
50-400 Hz.
Insulation Level
600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32
with one flatwasher, lockwasher and
regular nut.
Flexible leads U. L. 1015, 105°C.,
CSA approved , No. 16 AWG , 24” long
are available.
Approximate weight 7 lbs.
Note: Captive slots on top of transformer case can be used for attaching auxiliary device mounting plate, (not supplied).
If the application requires transformer mounted relays, etc., then transformers can be ordered with secondary leads configured in various ways (consult factory).

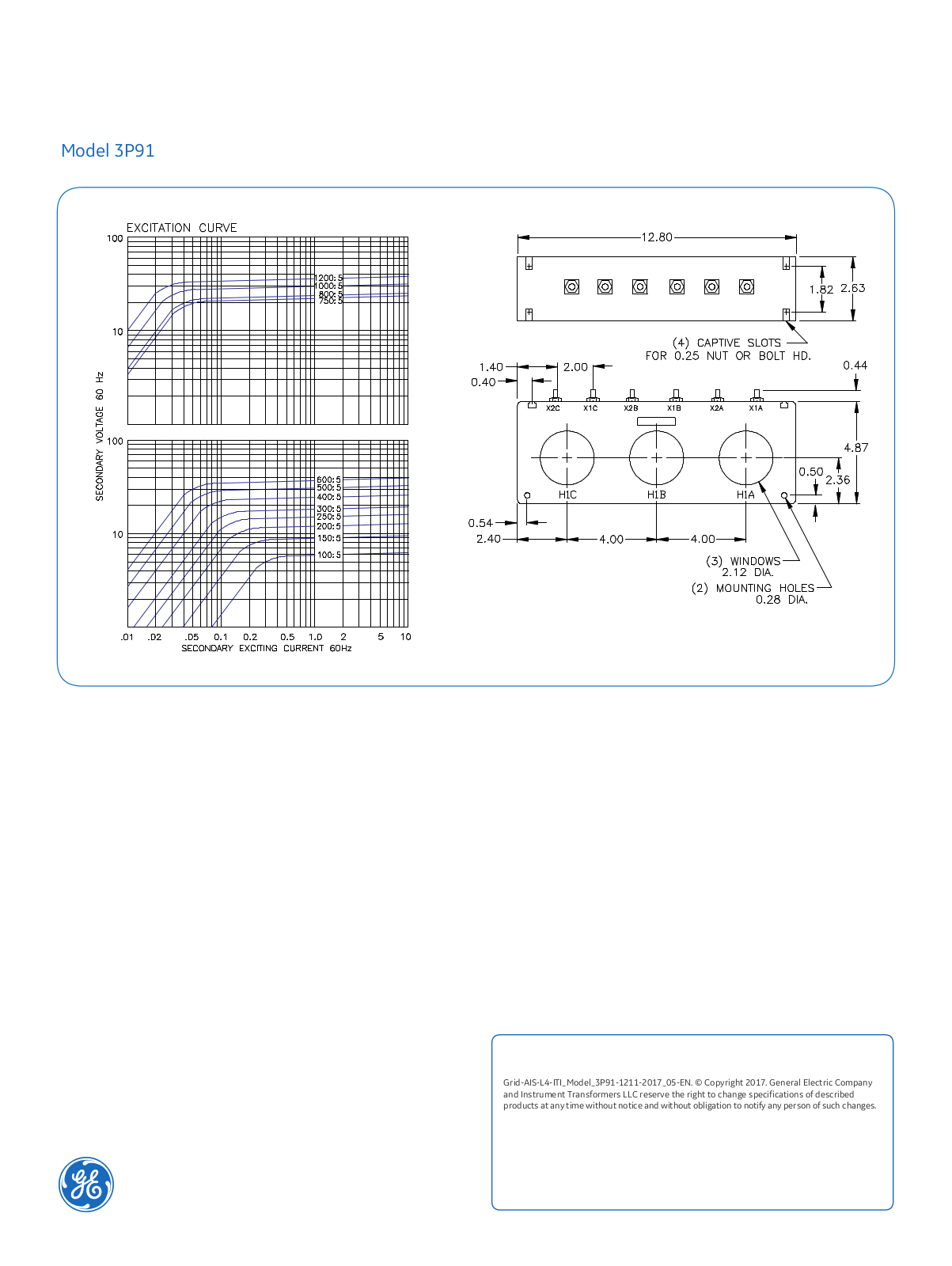

Model 3P91
Grid-AIS-L4-ITI_Model_3P91-1211-2017_05-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described
products at any time without notice and without obligation to notify any person of such changes.
