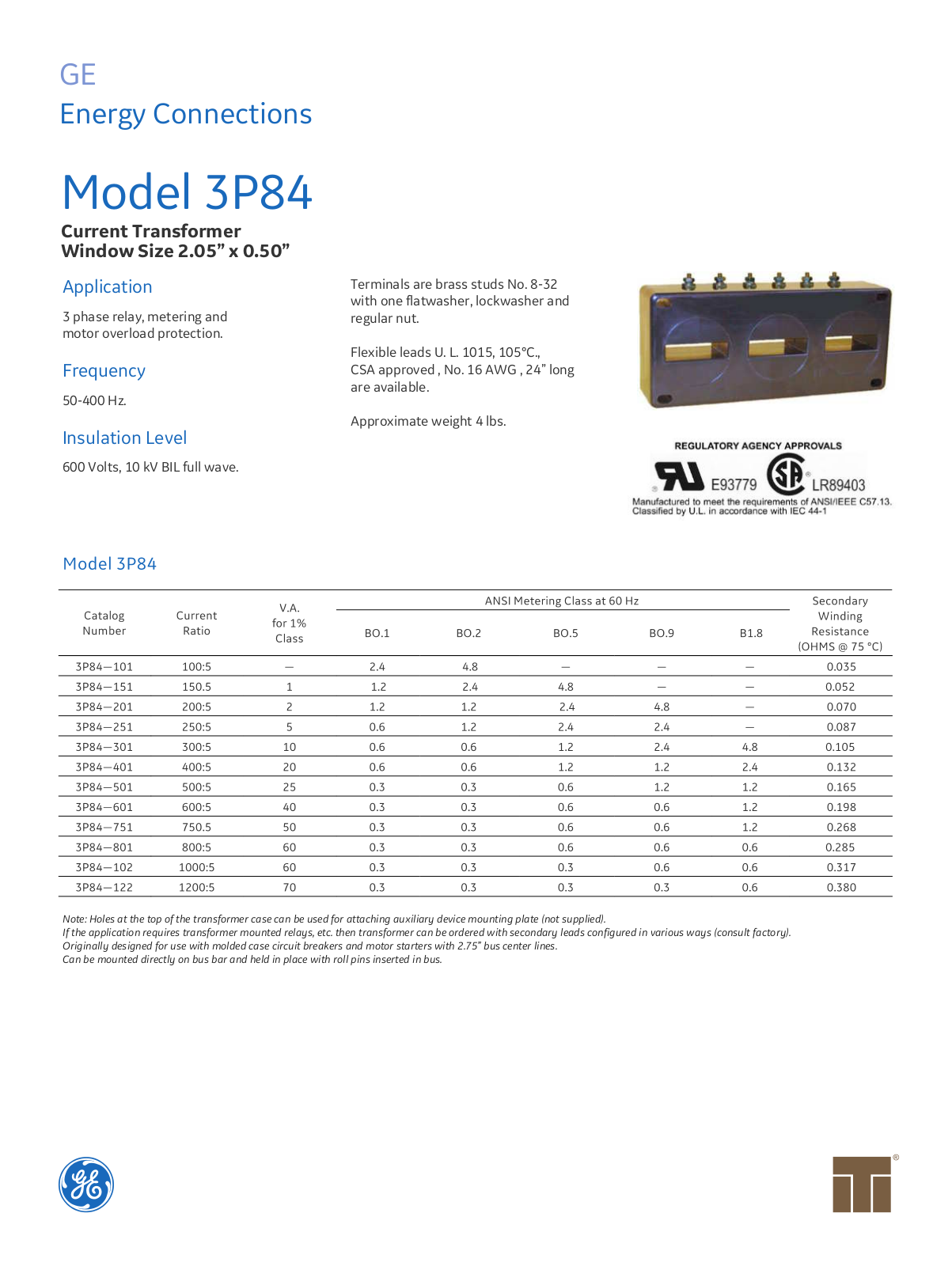

Instrument Transformer, Div of GE 3P84 Data Sheet

GE
Energy Connections

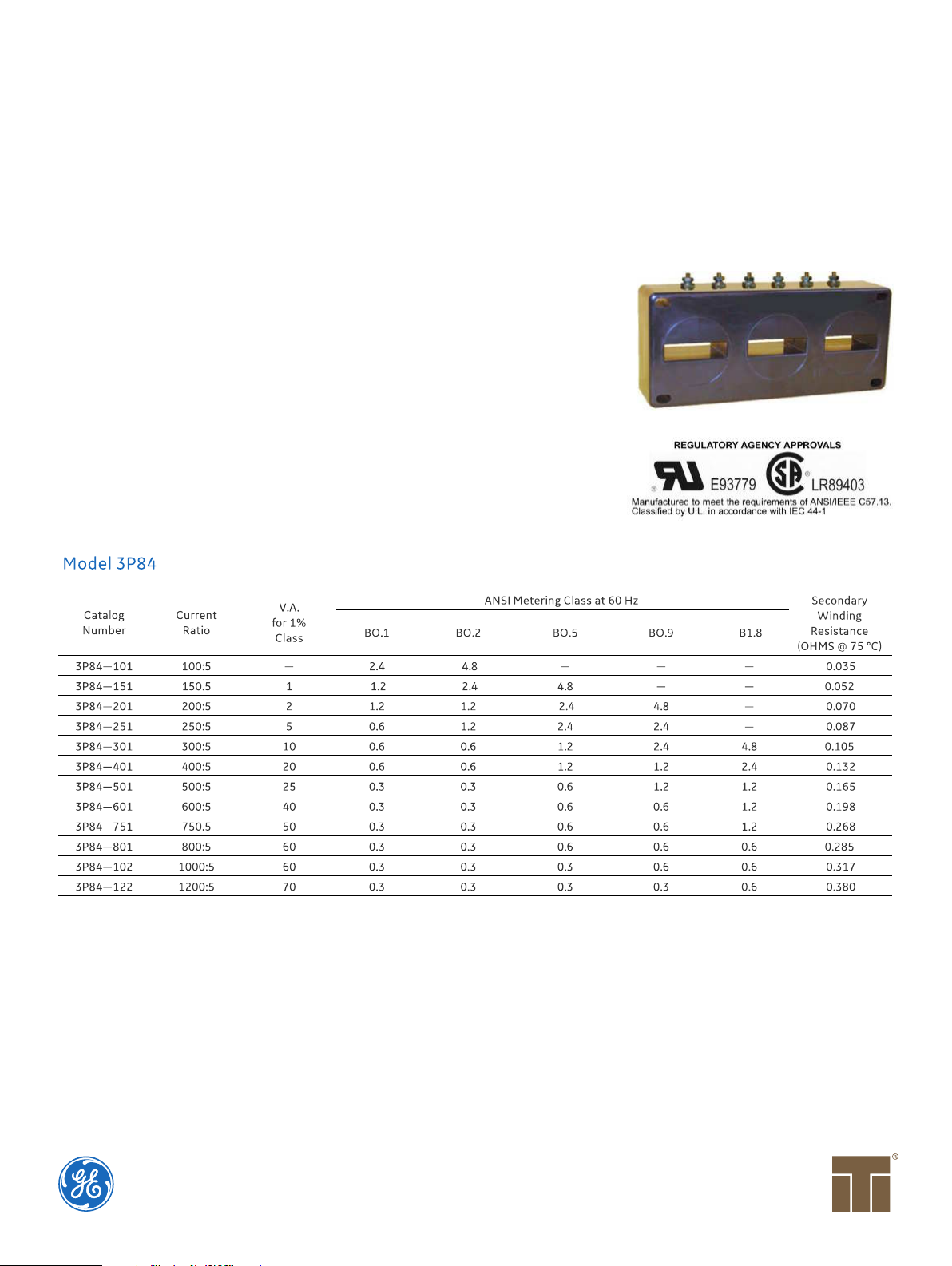

Model 3P84
Current Transformer Window Size 2.05” x 0.50”
Application
3 phase relay, metering and motor overload protection.
Frequency
50-400 Hz.
Insulation Level
600 Volts, 10 kV BIL full wave.
Terminals are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
Flexible leads U. L. 1015, 105°C., CSA approved , No. 16 AWG , 24” long are available.
Approximate weight 4 lbs.

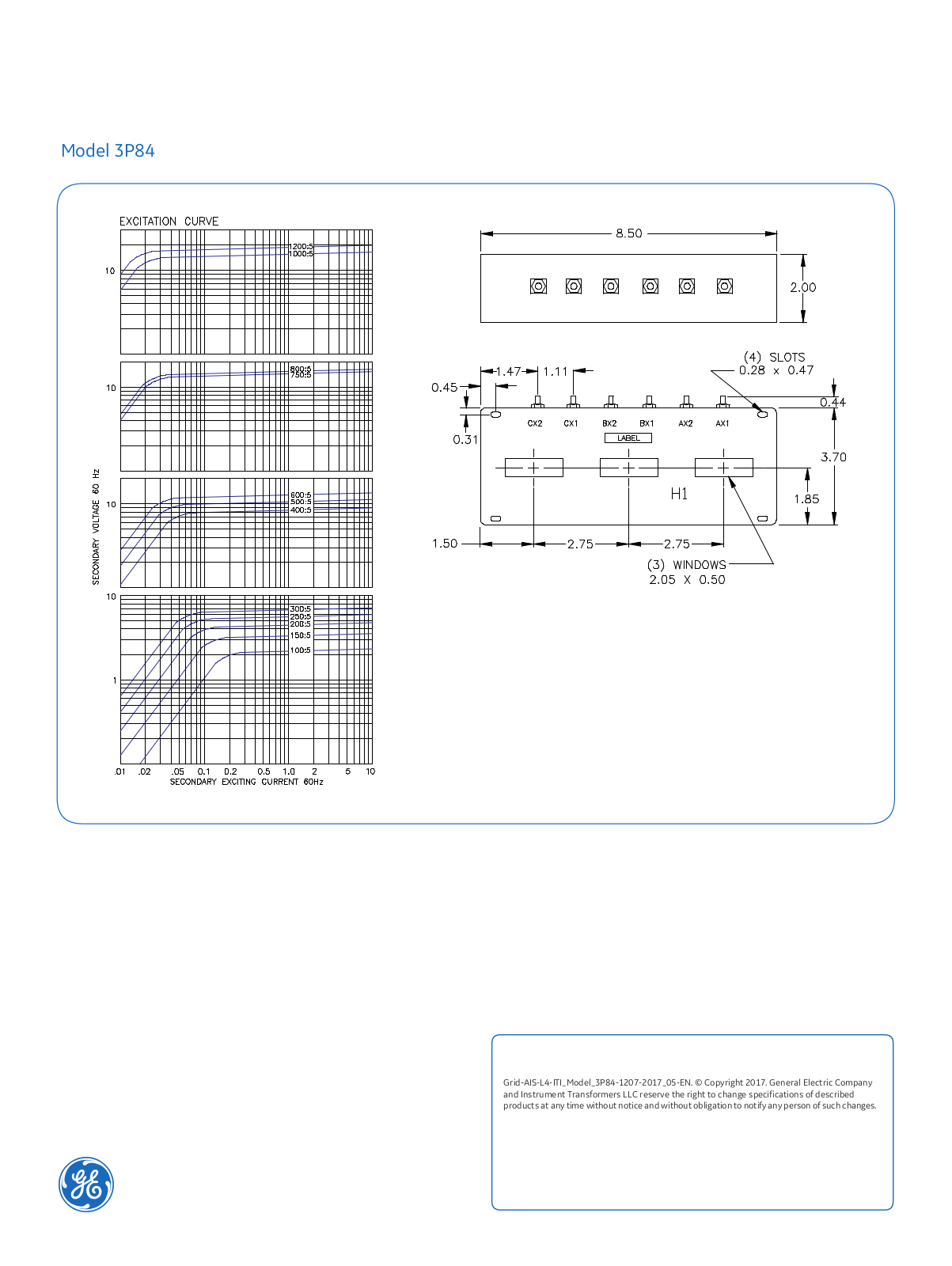

Note: Holes at the top of the transformer case can be used for attaching auxiliary device mounting plate (not supplied). If the application requires transformer mounted relays, etc. then transformer can be ordered with secondary leads configured in various ways (consult factory). Originally designed for use with molded case circuit breakers and motor starters with 2.75” bus center lines. Can be mounted directly on bus bar and held in place with roll pins inserted in bus.
Model 3P84
Grid-AIS-L4-ITI_Model_3P84-1207-2017_05-EN. © Copyright 2017. General Electric Company and Instrument Transformers LLC reserve the right to change specifications of described products at any time without notice and without obligation to notify any person of such changes.
