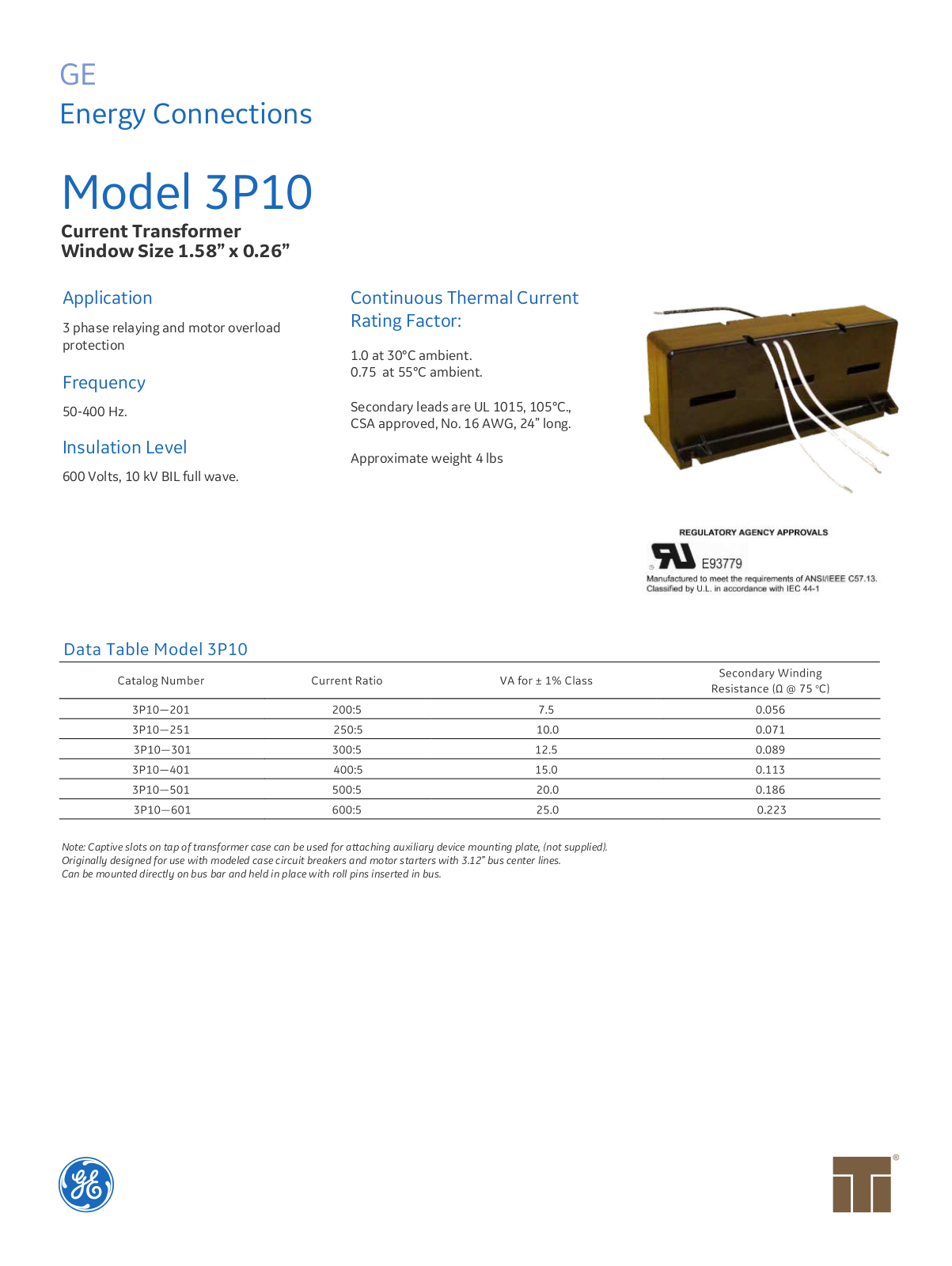

GE

Energy Connections

Model 3P10

Current Transformer
Window Size 1.58” x 0.26”

Application

3 phase relaying and motor overload
protection

Frequency

50-400 Hz.

Insulation Level

600 Volts, 10 kV BIL full wave.

Continuous Thermal Current
Rating Factor:

1.0 at 30°C ambient.

0.75 at 55°C ambient.

Secondary leads are UL 1015, 105°C.,
CSA approved, No. 16 AWG, 24” long.

Approximate weight 4 lbs

Note: Captive slots on tap of transformer case can be used for attaching auxiliary device mounting plate, (not supplied).
Originally designed for use with modeled case circuit breakers and motor starters with 3.12” bus center lines.
Can be mounted directly on bus bar and held in place with roll pins inserted in bus.

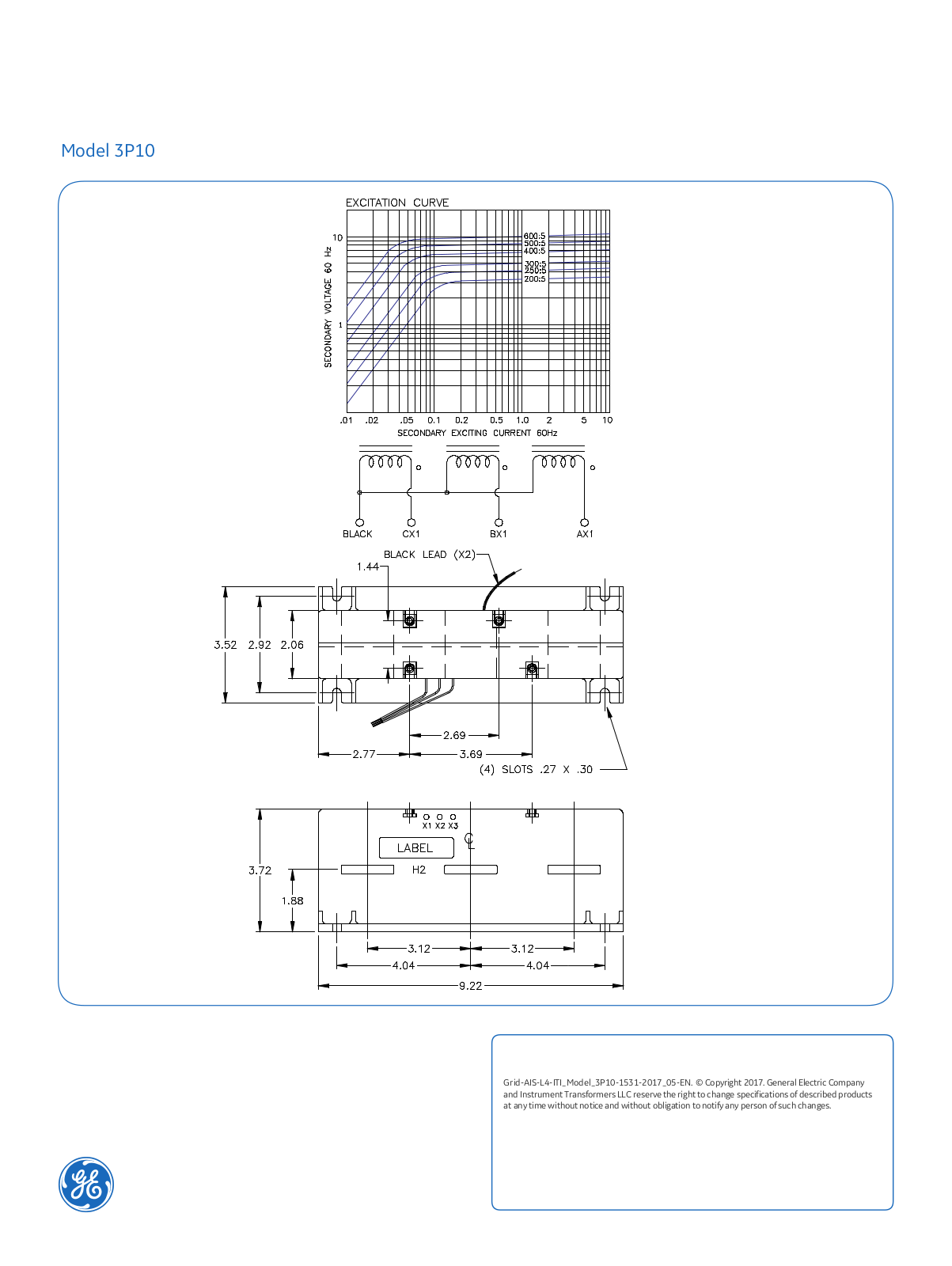

Model 3P10

Grid-AIS-L4-ITI_Model_3P10-1531-2017_05-EN. © Copyright 2017. General Electric Company
and Instrument Transformers LLC reserve the right to change specifications of described products
at any time without notice and without obligation to notify any person of such changes.
