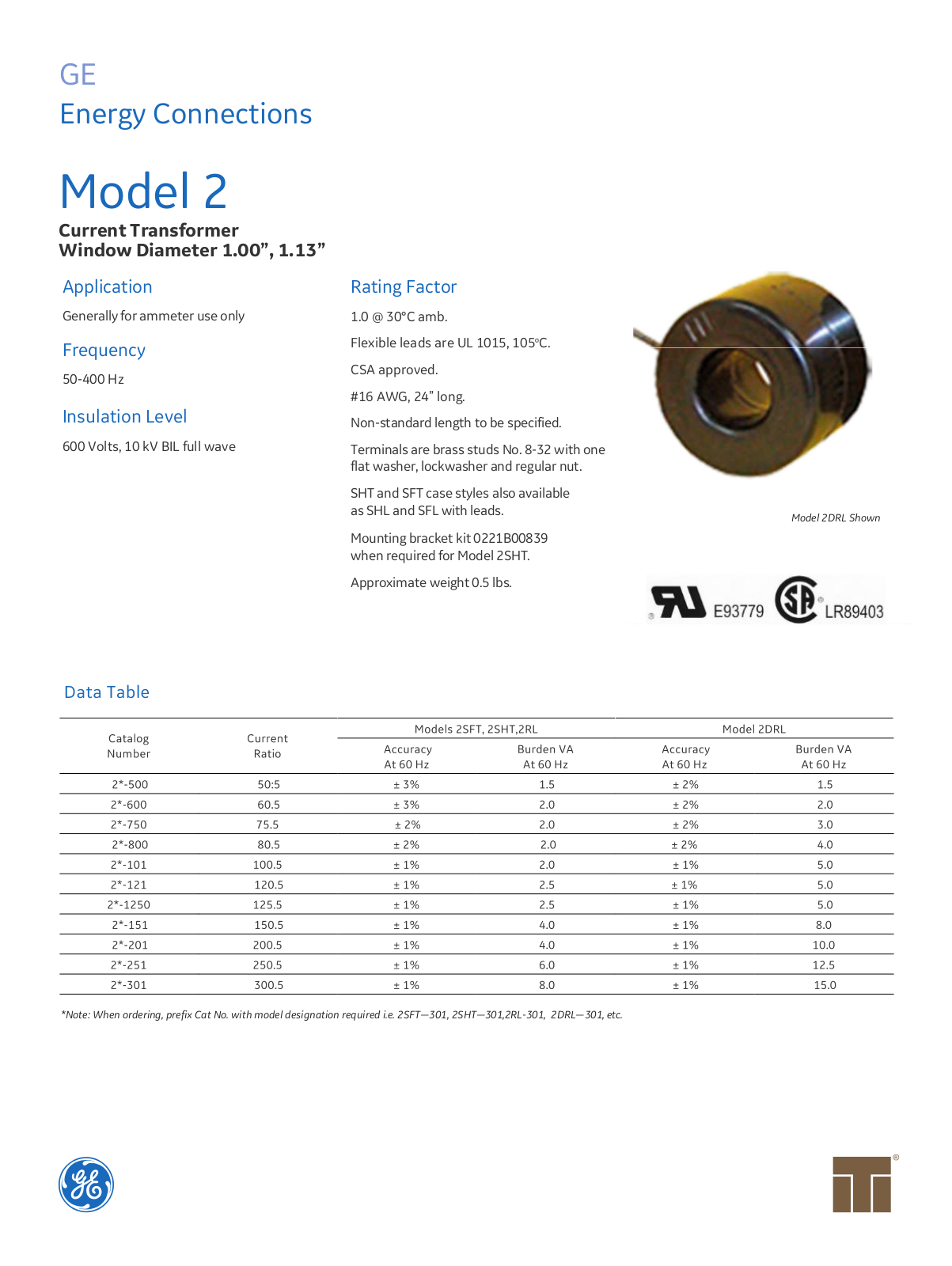

GE
Energy Connections
Model 2
Current Transformer
Window Diameter 1.00”, 1.13”
Application
Generally for ammeter use only
Frequency
50-400 Hz
Insulation Level
600 Volts, 10 kV BIL full wave
Rating Factor
1.0 @ 30°C amb.
Flexible leads are UL 1015, 105
CSA approved.
#16 AWG, 24” long.
Non-standard length to be specified.
Terminals are brass studs No. 8-32 with one
flat washer, lockwasher and regular nut.
SHT and SFT case styles also available
as SHL and SFL with leads.
Mounting bracket kit 0221B00839
when required for Model 2SHT.
Approximate weight 0.5 lbs.
oC.
Model 2DRL Shown
*Note: When ordering, prefix Cat No. with model designation required i.e. 2SFT—301, 2SHT—301,2RL-301, 2DRL—301, etc.
Page 2

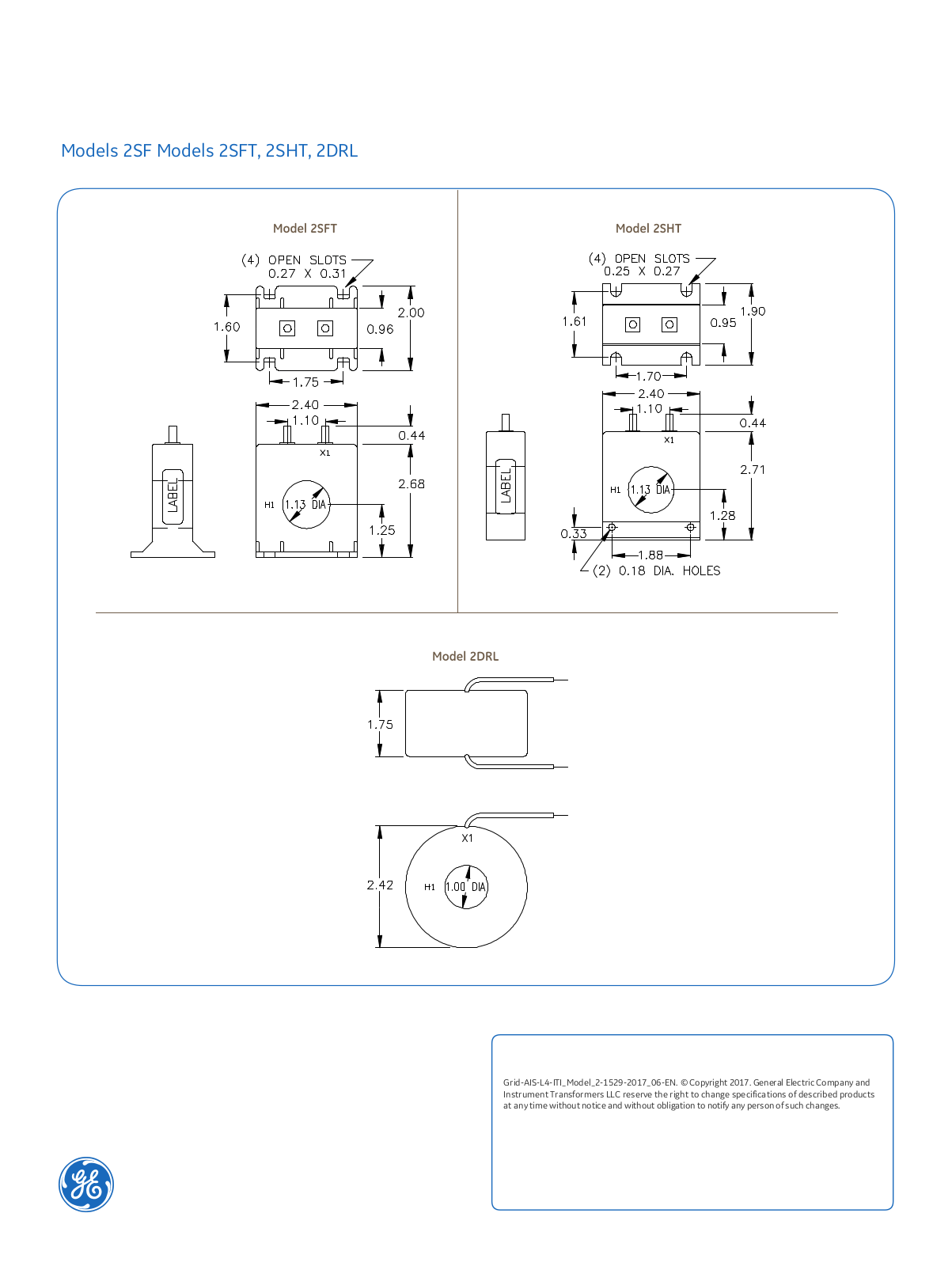

Models 2SF Models 2SFT, 2SHT, 2DRL
Grid-AIS-L4-ITI_Model_2-1529-2017_06-EN. © Copyright 2017. General Electric Company and
Instrument Transformers LLC reserve the right to change specifications of described products
at any time without notice and without obligation to notify any person of such changes.
