Instrument Transformer, Div of GE 19 Data Sheet

GE
Energy Connections

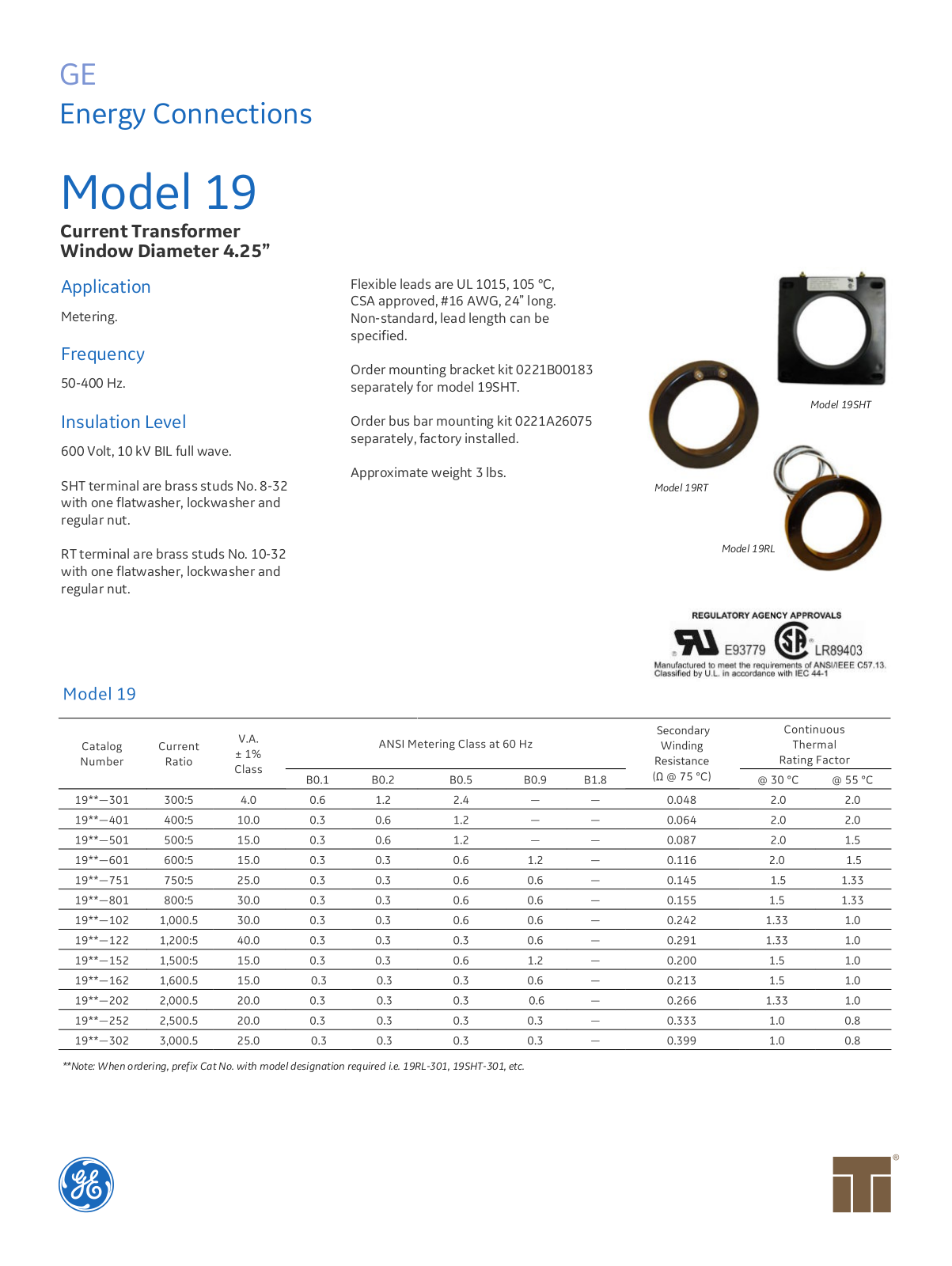

Model 19
Current Transformer Window Diameter 4.25”
Application
Metering.
Frequency
50-400 Hz.
Insulation Level
600 Volt, 10 kV BIL full wave.
SHT terminal are brass studs No. 8-32 with one flatwasher, lockwasher and regular nut.
RT terminal are brass studs No. 10-32 with one flatwasher, lockwasher and regular nut.
Flexible leads are UL 1015, 105 °C, CSA approved, #16 AWG, 24” long. Non-standard, lead length can be specified.
Order mounting bracket kit 0221B00183 separately for model 19SHT.
Model 19SHT
Order bus bar mounting kit 0221A26075 separately, factory installed.
Approximate weight 3 lbs.
Model 19RT
Model 19RL
**Note: When ordering, prefix Cat No. with model designation required i.e. 19RL-301, 19SHT-301, etc.

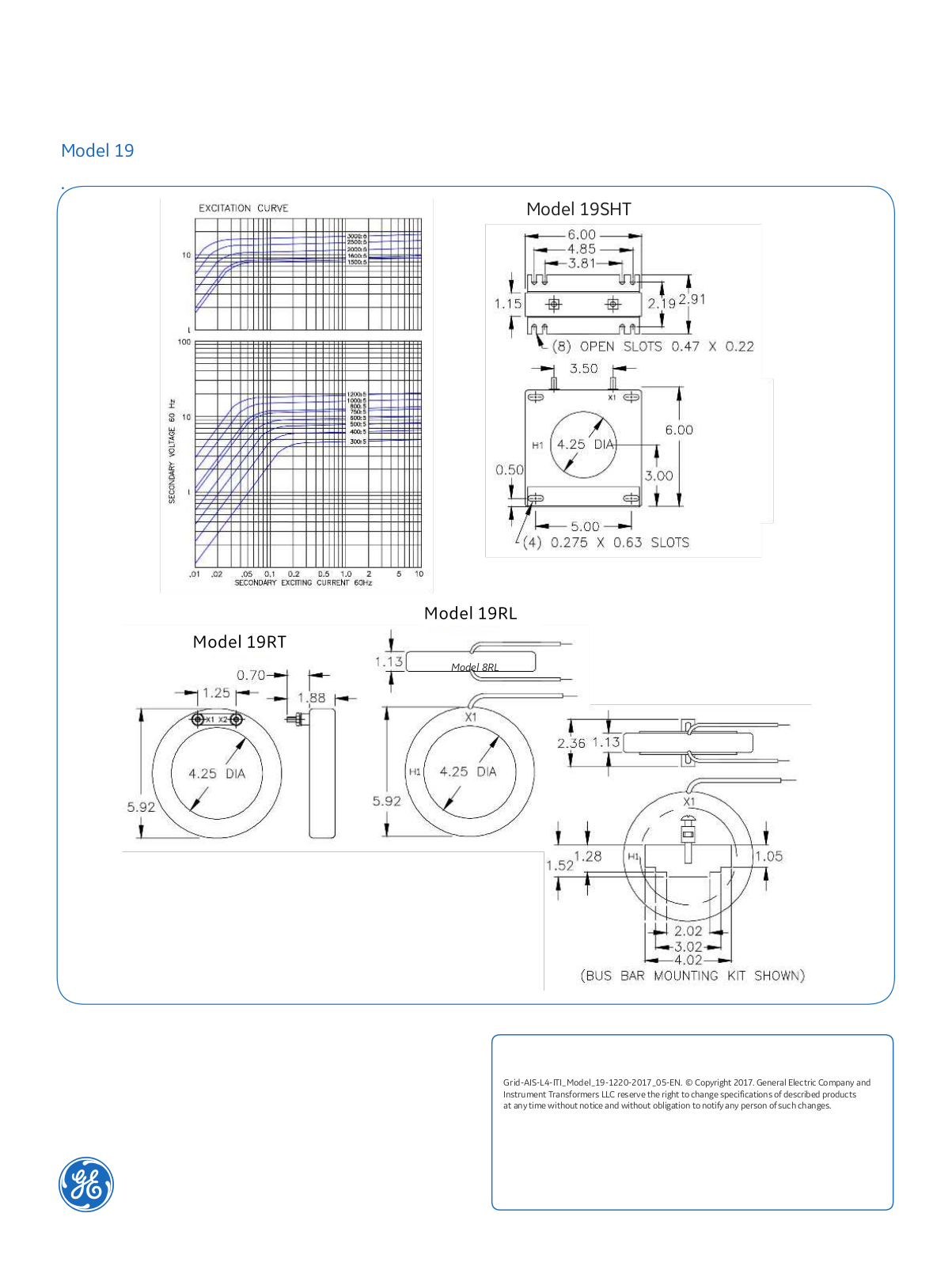

Model 19
.
Model 19SHT
Model 8RL
