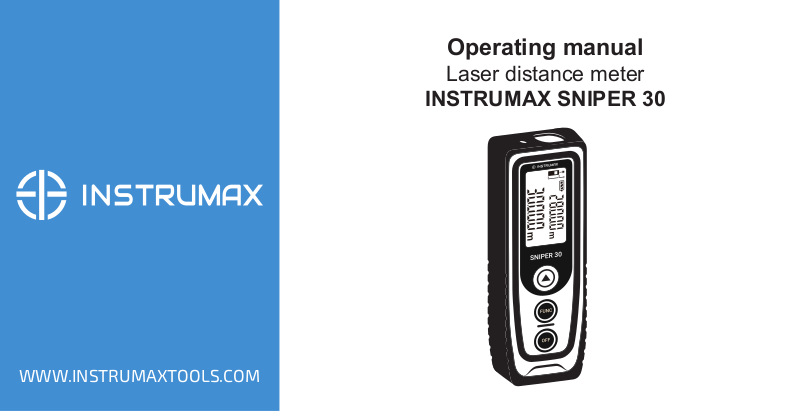

Operating manual

Laser distance meter

INSTRUMAX SNIPER 30

2

1

2
3

4

1

2

5

6

en

Table of contents

1. Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2. Start up. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3. Menu functions

4. Measurements

5. Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6. Message codes.

7. Techical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

8. Measuring conditions

9. Warranty

10. Exceptions from responsibility. . . . . . . . . . . . . . . . . . . . . 9

Appendix 1- “Warranty card”

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7

3

Congratulations on the purchase of laser distance meter
INSTRUMAX SNIPER 30!

Permitted use

· Measuring distances

· Computing functions, e.g. areas, volumes, Pythagorean
calculation

The safety regulations and instructions along with the
operating manual should be read carefully before initial
operation.The person responsible for the instrument
must ensure that equipment is used in accordance with
the instructions. This person is also accountable for the
deployment of personnel and for their training and for
the safety of the equipment when in use.

SAFETY INSTRUCTION
Prohibited use

Please follow up instructions given in operating manual.
Do not use instrument in explosive environment (lling sta­tion, gas equipment, chemical production and so on).
Do not remove warning labels or safety instructions.

Do not open instrument housing, do not change it’s construc-

tion or modication.

Do not stare at beam. Laser beam can lead to eye injury (even
from greater distances).
Do not aim laser beam at persons or animals.
Opening of the equipment by using tools (screwdrivers, etc.),

as far as not specically permitted for certain cases.

Inadequate safety precautions at the surveying site (e.g. when
measuring on the roads, construction sites and so on).
Use the instrument in the places where it could be dangerous:
on the air transport, near manufacturers, production facilities,
in the places where the work of laser distance meter can lead
to the harmful effects on people or animals.

Laser classication

The instrument is a laser class 2 laser product with
power < 1 mW and wavelength 635 nm. Laser is safety
in ordinary conditions of usage.

4

START UP

Keypad

1) ON / Measure / Continious measurements/ Selecting units

2) Area / Volume / Pythagorean measure / Reference
setting

3) Clear / OFF

Display

1) Laser ON

2) Reference (front/rear)

3) Area / volume/ Pythagorean

4) Battery level

5) Units

6) Line 1

7) Main line 2

Inserting / Replacing Batteries

Remove the battery cover, insert the battery correctly. Pay
attention to correct polarity. Close the battery compartment.
Replace the battery when symbol constantly blinks in the dis­play. Batteries should be removed in case of danger of corro-

1

2

sion, ift he device will not be used for a long time.

MENU FUNCTIONS
Swtich on and off

Press the button (1) to switch on the instrument and laser.
The device also switches off automatically after 3 minutes of
inactivity i.e. no key is pressed within that interval.
To switch off the instrument press and hold button (3) for
about 2 sec.

Clear-Key

Press button (3) to cancel the last action.

Reference setting

Default reference setting is from the rear of the device. Press
and hold button (2) for more than 2 sec to set the reference:
the front or the rear. You will see the reference symbol (2) on
the display.

Selecting Units

Instrument is switched ON. Press and hold button (1) for 8
sec. Selected unit will be shown on the display (ft/m). When

5

you switch ON the instrument again DO NOT press and hold
button (1) for 8 sec if you don’t want to change the units of
measurement.

MEASUREMENTS
Single distance measurement

Press and hold button (1) for 2 sec to activate the laser.
When in continuous laser mode, press this button to trigger
the distance measurement directly. The instrument will give
acoustical signal. The result is displayed immediately.

Continuous Measurement

Press and hold the button (1) for about 2 seconds to start
continuous measuring.

FUNCTIONS
Area

Press the button (2) once.The symbol “area” is displayed.

Press button (1) to take the rst measurement (for example,

length). Measured value is displayed in the second line.
Press button (1) to take the second measurement (for ex­ample, width). Measured value is displayed in the second

line. The result of measured area is displayed in the rst line.

Volume

For volume measurements, press button (2) twice until the in­dicator for volume measurement appears on the display.

Press button (1) to take the rst measurement (for example,

length). Measured value is displayed in the second line.
Press button (1) to take the second measurement (for exam­ple, width). Measured value is displayed in the second line.
Press button (1) to take the third measurement (for example,
height). Measured value is displayed in the second line. The

volume value will be displayed in the rst line.

Indirect measurement

Pythagorean measurement is used in the condition that the
objective needing to be measured is covered or
has no effective reecting surface and can’t be measured di­rectly.

Indirect measurement – determing a distance using 2
auxilary measurements

This function is used when height and distance can’t be mea-

6

sured directly.
Press button (2) 3 times. The symbol “triangle” is displayed.
The distance to be measured is blinking in the symbol triangle.
Press button (1) to take distance measuring (hypothenuse of
triangle). The result is displayed in the second line. This mea­surement can be taken in the indirect measurement function.
Press and hold button (1) for 2 sec. After second pressure

of the button (1) value is xed. The second distance to be

measured is blinking in the symbol triangle. Press button (1)
to take distance measuring. There is a right angle between
laser beam and the length you need to measure. The result of
the measurement is displayed in the second line. The result

of the function is displayed in the rst line.

MESSAGE CODES

All message codes are displayed with either “Info”. Following
mistakes can be corrected.

INFO CAUSE REMEDY

Data overow Repeat procedure

204

Measurement

205

range transnite

Temperature too

252

high

Temperature too low Warm device up

253

Receiver signal is

255

too weak

256 Received signal too

strong

206 Pythagorean mea-

surement violation

258 Initialization error Switch on – off the instrument

Use the meter in distance allowed

Let device cool down

Measure target point with stronger

reector

Measure target point with weaker

reector

Re-measure and ensure the hypot­enuse is
greater than right angle edge

7

TECHNICAL DATA

Range, without target, m 0.05 to 30

Accuracy, mm ±2*

Smallest unit displayed 1 mm

Laser class 2

Laser type 635 nm, <1 mW

IP rating IP 54

Automatic switch off 3 minutes of inactivity

Battery life, 2 x AAA > 5000 measurements

Dimensions, mm 110х38х23

Weight 100 g

Temperature range:
Storage
Operating

* In favourable conditions (good target surface properties, room
temperature).
Maximum deviation occurs under unfavorable conditions such as bright

sunlight or when measuring to poorly reecting or very rough surfaces.

-20º to +60º

-10º to +40º

MEASURING CONDITIONS

Measuring range

The range is limited to 30 m. It could be bigger when mea­suring at night, at dusk and when the target is shadowed.
Use a target plate to increase the measurement range during

daylight or if the target has a bad reection.

Measuring Surfaces

Measuring errors can occur when measuring toward color­less liquids (e.g. water) or dust free glass, styrofoam or sim

8

ilar semi-permeable surfaces. Aiming at high gloss surfaces

deects the laser beam and measurement errors can occur.
Against non-reective and dark surfaces the measuring time

can be increased.

PRECAUTIONS

Please, handle the instrument with care. Avoid viabrations,
hits, water, effect of heat. During transportation put the instru­ment into the soft bag.

Note: the instrument should be dry!

Care and cleaning

Do not immerse the instrument in water. Wipe off dirt with a
damp, soft cloth. Do not use aggressive cleaning agents or
solutions.

Specic reasons for erroneous measuring results

- Measurements through glass or plastic windows;

- Dirty laser emitting window;

- After instrument has been dropped or hit. Please check the
accuracy;

- Large uctuation of temperature: if instrument will be used

in cold areas after it has been stored in warm
areas (or the other way round) please wait some minutes
before carrying out measurements;

- Against non-reective and dark surfaces, colorless surfac­es and so on.

Electromagnetic acceptability (EMC)

It cannot be completely excluded that this instrument will
disturb other instruments (e.g. navigation systems); will be
disturbed by other instruments (e.g. intensive electromag­netic radiation nearby industrial facilities or radio transmit­ters).

Laser classication

INSTRUMAX Sniper 30 projects visible laser beam from the
front part of the instrument. The instrument is a laser class
2 laser product according to DIN IEC 6082 5-1:2007. It is

deects the laser beam and measurement errors can occur.
Against non-reective and dark surfaces the measuring time

can be increased.

9

Warranty
This product is warranted by the manufacturer to the origi­nal purchaser to be free from defects in material and work­manship under normal use for a period of one (1) year from
the date of purchase. During the warranty period, and upon
proof of purchase, the product will be repaired or replaced
(with the same or similar model at manufactures option),
without charge for either parts of labour.
In case of a defect please contact the dealer where you orig­inally purchased this product. The warranty will not apply to
this product if it has been misused, abused or altered. With­out limiting the foregoing, leakage of the battery, bending or
dropping the unit are presumed to be defects resulting from
misuse or abuse.

Exceptions from responsibility

The user of this product is expected to follow the instructions
given in operators’ manual.
Although all instruments left our warehouse in perfect con­dition and adjustment the user is expected to carry out pe­riodic checks of the product’s accuracy and general perfor-

mance. The manufacturer, or its representatives, assumes
no responsibility of results of a faulty or intentional usage or
misuse including any direct, indirect, consequential damage,

and loss of prots. The manufacturer, or its representatives,

assumes no responsibility for consequential damage, and

loss of prots by any disaster (earthquake, storm, ood ...),
re, accident, or an act of a third party and/or a usage in

other than usual conditions.
The manufacturer, or its representatives, assumes no re-

sponsibility for any damage, and loss of prots due to a

change of data, loss of data and interruption of business etc.,
caused by using the product or an unusable product. The
manufacturer, or its representatives, assumes no responsi-

bility for any damage, and loss of prots caused by usage

other thsn explained in the users’ manual.
The manufacturer, or its representatives, assumes no re­sponsibility for damage caused by wrong movement or ac­tion due to connecting with other products.

WARRANTY DOESN’T EXTEND TO FOLLOWING CASES:

1. If the standard or serial product number will be changed,
erased, removed or wil be unreadable.

2. Periodic maintenance, repair or changing parts as a result
of their normal runout.

3. All adaptations and modications with the purpose of im­provement and expansion of normal sphere of product appli­cation, mentioned in the service instruction, without tentative
written agreement of the expert provider.

4. Service by anyone other than an authorized service center.

5. Damage to products or parts caused by misuse, including,
without limitation, misapplication or nrgligence of the terms of
service instruction.

6. Power supply units, chargers, accessories, wearing parts.

7. Products, damaged from mishandling, faulty adjustment,
maintenance with low-quality and non-standard materials,
presence of any liquids and foreign objects inside the product.

8. Acts of God and/or actions of third persons.

9. In case of unwarranted repair till the end of warranty period
because of damages during the operation of the product, it’s
transportation and storing, warranty doesn’t resume.

For more information you can visit our website

WWW.INSTRUMAXTOOLS.COM

WARRANTY CARD

Name and model of the product _____________________________
Serial number ________________date of
sale_______________________

Name of commercial organization _____________________stamp of
commercial organization
Warranty period for the instrument explotation is 12 months after the
date of original retail purchase.
During this warranty period the owner of the product has the right for
free repair of his instrument in case of manufacturing defects.

Warranty is valid only with original warranty card, fully and clear lled

(stamp or mark of thr seller is obligatory).

Technical examination of instruments for fault identication which is

under the warranty, is made only in the authorized service center.
In no event shall manufacturer be liable before the client for direct

or consewuential damages, loss of prot or any other damage which

occur in the result of the instrument outage.
The product is received in the state of operability, without any visible
damages, in full completeness. It is tested in my presence. I have no
complaints to the product quality. I am familiar with the conditions of
qarranty service and i agree.

purchaser signature _______________________________

Before operating you should read service instruction!

If you have any questions about the warranty service and technical

support contact seller of this product

11

ru

Содержание

1. Инструкция по безопасной

эксплуатации прибора. . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2. Начало работы. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3. Функции меню. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

4. Измерения. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

5. Функции. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

6. Предупреждения на дисплее. . . . . . . . . . . . . . . . . . . . . .15

7. Технические характеристики. . . . . . . . . . . . . . . . . . . . . .16

8. Условия измерений. . . . . . . . . . . . . . . . . . . . . . . . . . . .17

9. Гарантия. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

10. Освобождение от ответственности. . . . . . . . . . . . . . .19

Приложение 1 - “Гарантийный талон”

Поздравляем Вас с приобретением лазерного
дальномера INSTRUMAX SNIPER 30!

Назначение инструмента

Лазерный дальномер INSTRUMAX SNIPER 30 позволит
Вам:

- измерять расстояния дистационно,

- вычислять функции площади, объема, расстояния по
теореме Пифагора

Руководство пользователя должно быть тщательно
изучено перед тем, как Вы начнете измерения. Лицо,
ответственное за прибор, должно удостовериться,
что все пользователи лазерного дальномера
следуют данному Руководству.

ИНСТРУКЦИЯ ПО БЕЗОПАСНОЙ ЭКСПЛУАТАЦИИ
ПРИБОРА
Запрещается:

Использование прибора не по инструкции и использование,
выходящее за пределы разрешенных операций;
Использование прибора во взрывоопасной среде (АЗС,
газовое оборудование, химическое производство и т.д.);

12

Вывод прибора из строя и удаление с прибора
предупредительных и указательных надписей;
Вскрытие прибора с помощью инструментов (отверток
и т.д.), изменение конструкции прибора или его
модификация;
Намеренное ослепление лазером третьих лиц, прямое
наведение прибора на солнце;
Смотреть на лазерный луч;
Ненадлежащие меры безопасности на участке
проведения геодезиической съемки (например, при
проведении измерений на дорогах, строительных
площадках и т.д.);
Использование прибора в местах, где это может быть
потенциально опасно: на воздушном транспорте, вблизи
производств и технологических объектов, в местах,
где работа дальномера может привести к вредному
воздействию на людей или животных.

Классификация лазерного прибора

Класс лазера 2. Мощность излучения менее 1 mW.
Длина волны лазера 635 нм.

Лазер является безопасным в нормальных условиях
эксплуатации и в поддающихся прогнозированию
ситуациях.

НАЧАЛО РАБОТЫ

Клавишная панель

1) Кнопка включения/измерения/трекинг/выбор ед. измерения

2) Площадь/объем/косвенные измерения
(по теореме Пифагора/ выбор точки отсчета)

3) Стереть/выключить

Дисплей

1) Лазер включен

2) Точка отсчета (верхний край/ нижний край)

3) Вычисление площадь/объем/косвенные
измерения (по теореме Пифагора)

4) Индикация заряда батареи

5) Единица измерения

6) Строка 1

7) Основная строка 2

2

1
