INSTEON 2476DBR, 2476DBK, 2476DLAL, 2476D, 2476DAL User Manual

...
Download
SwitchLinc™ Dimmer
INSTEON® Remote Control Dimmer Switch Owner’s Manual (rev 5.0+) (#2476Dxxx)
Page 1 of 21 2476D - Rev: 1/21/2014 7:15 AM
Features..................................................................................................................................................... 3
What’s in the Box? ..................................................................................................................................... 4
Identifying the Electrical Wires in Your Home ........................................................................................... 4
Tools Needed ............................................................................................................................................ 4
Paddle........................................................................................................................................................ 9
Air Gap....................................................................................................................................................... 9
Local On-Level .......................................................................................................................................... 9
Ramp Rate .............................................................................................................................................. 10
Make SwitchLinc a Controller .................................................................................................................. 11
Remove SwitchLinc as a Controller ........................................................................................................ 11
Make SwitchLinc a Responder ................................................................................................................ 11
Remove SwitchLinc as a Responder ...................................................................................................... 11
Scenes ..................................................................................................................................................... 12
Power Restore ......................................................................................................................................... 12
Add an X10 Address ................................................................................................................................ 12
Remove an X10 Address......................................................................................................................... 12
Advanced X10 Programming................................................................................................................... 13
Make SwitchLinc a Controller of Multiple Responders ............................................................................ 13
Remove SwitchLinc as a Controller of Mult ip le Res pon der s .................................................................. 13
Groups ..................................................................................................................................................... 13
Change LED Brightness Levels .............................................................................................................. 14
Factory Reset .......................................................................................................................................... 14
Change Paddle and LED Colors ............................................................................................................. 15
Additional Resources ............................................................................................................................... 16
Certification .............................................................................................................................................. 21
FCC and Industry Canada Compliance Statement ................................................................................. 21
ETL/UL Warning (Safety Warning) .......................................................................................................... 21
Limited Warranty ..................................................................................................................................... 21
Limitations ............................................................................................................................................ 21
Page 2 of 21 2476D - Rev: 1/21/2014 7:15 AM

SwitchLinc Dimmer – Features and Benefits

Congratulations on purchasing the high-quality INSTEON SwitchLinc Dimmer Switch. With its elegant look, smooth touch and stylish LED bar, you can not only control the lights you wire to it, but you can add remote control to all kinds of other INSTEON and X10 devices in your home to match your lifestyle. Besides controlling other devices, SwitchLinc itself can be remotely operated from other INSTEON controllers, including other SwitchLinc modules.

Features

- Quick setup links to other INSTEON devices in minutes
- Controls all incandescent lights up to 600 watts
- Integrated dimmer with 32 dim levels and 4 ramp rates
- Rocker paddle has tap (on/off) and press-and-hold (brighten/dim) actions
- LED bar indicates light brightness level and acts as a gentle nightl ig ht when li ght is off
- Setup state stored in non-volatile memory and preserved through power outages
- Swap out default white LED bar with optional green, blue, amber or red LED kit
- Change paddle and trim frame colors with optional ivory, almond, black, brown or gray kits
- Wires in like a standard wall switch (neutral connection required)
- Supports virtual 3-, 4- or more-way circuits with multiple SwitchLinc modules
- X10 compatible
- Two-year warranty
Page 3 of 21 2476D - Rev: 1/21/2014 7:15 AM

What’s in the Box?

circuitry, have a qualified electrician install the product for you.
- SwitchLinc Dimmer
- Quick Start Guide
- Two (2) mounting screws
- Four (4) wire nuts

Installing SwitchLinc

CAUTIONS AND WARNINGS
Read and understand these instructions before installing and retain them for future reference. This product is intended for installation in accordance with the National Electric Code and local regulations in the United States or
the Canadian Electrical Code and local regulations in Canada. Use indoors only. This product is not designed or approved for use on power lines other than 120V 60Hz, single phase. Attempting to use this product on non-approved power lines may have hazardous consequences.
Recommended installation practices:
- Use only indoors or in an outdoor rated box.
- Be sure that you have turned off the circuit breaker or removed the fuse for the circuit you are installing this product into. Installing this product with the power on will expose you to dangerous voltages.
- Connect using only copper or copper-clad wire.
- This product may feel warm during operation. The amount of heat generated is within approved limits and poses no hazards. To minimize heat buildup, ensure the area surrounding the rear of this product is as c l ear of clutter as possi ble.
- Each INSTE O N product is assigned a unique INSTEON I.D., which is printed on the product’s label.
- To reduce the risk of overheating and possible damage to other equipment, do not use this product to control loads in excess of the specified maximum(s) or, install in locations with electricity specific ations which are outside of the product’ s specifications. If this device supports dimming, please note that dimming an inductive load, such as a fan or transformer, could cause damage to the dimmer, the load-bearing device or both. If the manufacturer of the load device does not recommend dimming, use a non-dimming INSTEON on/off switch. USER ASSUMES ALL RISKS ASSOCIATED WITH DIMMING AN INDUCTIVE LOAD.

Identifying the Electrical Wires in Your Home

- line – carries 120VAC electricity into the wall box, may also be called hot, live or power, commonly black
- neutral – returns 120VAC to power company, commonly white and in a multi-wire bundle
- load – connects to light/load device, commonly black and in a separate cable jacket
- ground – connection to electrical ground, commonly a bare wire, a green wire or a screw on a metal box
IMPORTANT! If you have any difficulties or questions, consult an electrician. If you are not knowledgeable about and comfort abl e with electrical

Tools Needed

- Flathead screwdriver - Phillips screwdriver
- Wire cutter/stripper - Voltage meter

Installing SwitchLinc in a Typical 2-Way Circuit

1) At the circuit breaker or fuse panel, disable the circuit supplying power to the switch
2) Remove the faceplate from the existing switch, then unscrew the switch and pull it out from the wall box
3) Disconnect the wires from the switch you are replacing and ensure you have 1/2” of bare wire on the ends
4) Enable power to the switch from the circuit breaker or fuse panel, then use a line voltage meter to correctly identify the line, load, neutral and ground wires. Turn the breaker off again. (Refer to wiring diagram below to properly connect your wires to the INSTEON device.)
Note: Mechanical switches don’t utilize neutral wires, but they are usually available in the back of the switch box
Page 4 of 21 Rev: 1/21/2014 7:15 AM
5) Ensure that all wire connectors are firmly attached and that there is no exposed copper except for the ground wire
6) Orient SwitchLinc with the LED bar at the left, gently place it into the wall box and screw it into place
7) Enable power to the switch from the circuit breaker or fuse panel
8) Test that SwitchLinc is working properly by using the paddle to turn the light on and off
9) Reinstall the faceplate
Note: the neutral wire will not normally be connected to the switch you are replacing. If there is no neutral
wire in the box, consult an electrician or call the INSTEON Support line at 1-800-762-7845.

Understanding Multi-Way Circuits

If more than one switch controls a single set of lights (or load), the switches are part of a multi-way circuit. A 3-way uses two switches to control one load, a 4-way circuit uses three switches and so on. Most homes have one or more 3-way circuits, such as two switches located on opposite ends of hallways or at two different entrances to a room. Circuits that are 4- or more-way are less common. Here is how a typical wired-in 3-way circuit (with two switches) works:
Page 5 of 21 Rev: 1/21/2014 7:15 AM
A wired-in 4- or more-way circuit (with three or more switches) has additional switches added in the middle of the circuit. In the diagram below, the additional switch (Switch 3+) is shown in two different positions, since wiring can vary from home to home.
To learn more about multi-way circuits, go to your preferred Internet search engine and enter the search terms “3-way switch” or “4-way switch.”

Using SwitchLinc in Virtual Multi-Way Circuits

You can use SwitchLinc modules to replace switches in multi-way circuits that are already wired in or to create multi-way circuits where there is no existing wiring. These are called virtual multi-way circuits. In a virtual multi-way circuit, only one SwitchLinc (called SwitchLinc Primary) is actually connected to and controls the load. Any additional SwitchLinc modules (called SwitchLinc Secondaries) are only connected to the powerline via the line and neutral wires. Al l SwitchLinc modules can communicate with one another using INSTEON networking on the powerline. After wiring in SwitchLinc modules, you can create a virtual multi-way circuit by setting up all of the modules to control each other. The diagram below shows how you convert a wired-in 3-way circuit using two SwitchLinc modules.
Note: Actual location of SwitchLinc wires may differ with product revision or model.
Page 6 of 21 Rev: 1/21/2014 7:15 AM
Line wire (also called hot)
Black
Neutral wire
White wire bundle
Bare copper, green wire or
green screw
Load wire
Red
Traveler wires
Black and/or red
Fig. 1
Fig. 2
Fig. 3
Fig. 4
• Notice that the red traveler wires are not used, so they are capped off at both ends with wire nuts
o The black traveler wire (traveler 2) is converted to a line wire o In SwitchLinc Secondary wall box, connect traveler 2 to the existing line wire and to
SwitchLinc Secondary line wire
o In the wall box at the other end of the circuit, connect traveler 2 to SwitchLinc Primary line
wire
• The SwitchLinc Primary load wire is connected to the actual lights being controlled
• The load wires on all SwitchLinc Secondaries will not be connected to anything, so cap them off
with wire nuts
• All SwitchLinc modules—Primary and Secondaries—must be connected to neutral and ground
o SwitchLinc will not function without a neutral o The switches you are replacing usually will not have a neutral connection o If there is no neutral wire in the wall box, consult an electrician or call the INSTEON
Support line at 1-800-762-7845

Installing Multi-Way SwitchLinc Modules

When replacing a 3-way mechanical switch, each switch will have three wires connected to it from the wall box. Four- or more-way circuits will have four wires connected to the switches in the center of the circuit. For this tutorial, we will follow the most commonly used wire colors for North American homes:
Ground wire
1) Disable power at the circuit breaker panel
2) Pull all the switches in the multi-way circuit out of their wall boxes. Each switch should have at least three wires connected to it, depending on whether it is a 3-way, 4-way or more-way circuit.
3) Unscrew the wires from the old switches. If the wires cannot be unscrewed, cut the wires where they enter the switch and strip ½” of bare insulation off the ends.
4) Turn the electricity back on
Make sure the wires are not touching anything. They are not grounded and could cause an electrical shock.
5) Using a voltage meter, individually test and identify each wire (see Fig. 1) The wire measuring 120VAC is the line wire (usually black)
6) Turn the electricity back off
7) Connect the wall box line wire and black traveler wire to SwitchLinc Secondary line wire. Cap all three wires together with a wire nut (see Fig. 2).
8) Cap wall box red traveler wire with a wire nut
9) Cap SwitchLinc Secondary red load wire with a wire nut
10) Locate the neutral wires (usually a white wire bundle) in the rear of the wall box. Connect SwitchLinc Secondary white neutral wire to the box neutral wires with a wire nut (see Fig. 3)
11) Connect SwitchLinc Secondary bare copper ground wire to the wall box ground wires with a wire nut (see Fig. 4)
12) If necessary, install additional SwitchLinc Secondaries by repeating steps 7-11. See Special Treatment for 4- or More-Way Circuits at the end of this section for more information.
Page 7 of 21 Rev: 1/21/2014 7:15 AM
13) In the wall box where you will install SwitchLinc Primary, identify the load wire (usually red). This is the wire that carries power from the switch to the load.
14) Identify the black traveler wire. If you are unsure, repeat steps 3-6 to measure the voltage and find the wire measuring 120VAC. This is the wire connected to the line wire in step 7.
Make sure the electricity is turned off before proce edi n g
15) Connect SwitchLinc Primary black line wire to the wal l box black traveler wire with a wire nut (see Fig. 2)
16) Cap the wall box’s red traveler wire with a wire nut
17) Connect SwitchLinc Primary red load wire to the wall b ox load wire with a wire nut
18) Connect SwitchLinc Primary white neutral wire to the box neutral wires with a wire nut (see Fig. 3)
19) Connect SwitchLinc Primary bare copper ground wire to the wall bo x ground wires with a wire nut (see Fig. 4)
20) Refer to step 6 in Installing SwitchLinc in a Typical 2-Way Circuit to complete installation

Special Treatment for 4- or More-Way Circuits

If your lighting circuit includes more than two switches controlling a single set of lights, those extra switches will have four wires connected to them. Two of the wires are travelers from the preceding switch, while the other two are travelers to the next switch in the chain. You will convert the black traveler wires to line wires and replace the old 4-wire s witc hes with S wit chLinc Secondaries.
Page 8 of 21 Rev: 1/21/2014 7:15 AM
1) Connect SwitchLinc Secondary black line wire to the wall box black traveler w ire with a wire nut

Paddle

Tap
Double-Tap
Press and Hold
Top
Ramp to local on-level
Instant full-on
Brighten
Bottom
Ramp to full-off
Instant full-off
Dim
2) Cap the two unused traveler wires (usually red) with wire nuts
3) Cap SwitchLinc Secondary red load wire with a wire nut
4) Connect SwitchLinc Primary white neutral wire to the box neutral wires with a wire nut (see Fig. 3)
5) Connect SwitchLinc Primary bare copper ground wire to the wall bo x ground wires with a wire nut (see Fig. 4)

Using SwitchLinc

Paddle
Like any rocker switch, the paddle top turns on the load while the bottom turns it off. The load’s behavior changes depending on whether you tap, dou bl e-tap or press and hold the paddle.

Air Gap

Anytime you need SwitchLinc’s controlled circuit to be unpowered but don’t want to turn off the circuit breaker—such as when replacing light bulbs—use the air gap to quickly and conveniently disable power to the switch.
Using your fingernail or a small flathead screwdriver, pull out SwitchLinc Set button as far as it will go (about 1/8”). This opens the mechanical contacts and removes all power from SwitchLinc and its load. (Because SwitchLinc’s settings are stored in its non-volatile m em ory, your setup information will not be lost.) To re-enable pow er to SwitchLinc, simply push in the Set button until it is flush with the trim frame.

Local On-Level

The local on-level is the brightness setting at which the connected load will turn on. While SwitchLinc Dimmer’s default on-level is 100% brightness, it is adjustable anywhere from off to 100%.
1) Press and hold Switc hLi nc Set butt on until it beeps
SwitchLinc status LED will blink green
2) Press and hold Switc hLi nc Set button until it beeps again
SwitchLinc status LED will blink red
3) Press and hold Switc hLi nc Set butt on until it beeps a third time
SwitchLinc status LED will blink green
4) Press and hold SwitchLinc Set button until it beeps a fourth time
SwitchLinc status LED will blink red
5) Tap SwitchLinc Set button
SwitchLinc will beep Status LED will double-blink red
6) Use SwitchLinc’s paddle to adjust the connected load(s) to the designed brightness level
Press and hold the paddle top or bottom to gradually brighten/dim the light(s)
Press and hold the paddle bottom to gradually dim the light(s)
Release paddle when you reach the desired brightness level
7) Press and hold Switc hLi nc Set butt on until it beeps
8) Test the local on-level by tapping SwitchLinc’s paddle on and off
The load connected to SwitchLinc will ramp to the local on-level
Page 9 of 21 Rev: 1/21/2014 7:15 AM

Ramp Rate

The local ramp rate is the time it takes for SwitchLinc to reach 100% brightness (from off) when controlled at the paddle. The default ramp rate is 0.5 seconds, but it is adjustable from instant-on to 9 seconds (using Set button) or up to 8 minutes (with software).
The ramp rate is set up using the light’s brightness level as the indicator for the ramping speed: the brighter the light, the faster the ramp rate. Refer to this table to help you set your desired ramp rate:
Brightness Level Ramp Rate in Seconds
90-100% 0.1
77-86% 0.2 65-74% 0.3 52-61% 2.0 39-48% 2.0 26-35% 4.5 13-23% 6.5
1-10% 8.5
1% 9.0
1) Adjust the connected light(s) to the brightness corresponding with your desired ramp rate (see table
above).
2) Quickly double-tap SwitchLinc’s Set button.
SwitchLinc will beep.
3) Test ramp rate settings but tapping SwitchLinc or controller button on and off.
The connected light(s) will turn on and off at the programmed ramp rate(s).
4) If the ramp rate is not as desired:
a. Go back to step 1 and repeat the process. b. Your Set button double-tap in step 2 might not have been fast enough, and you may have
accidentually reprogrammed the local on-level instea d.
Note: HouseLinc (and other home automation software) will allow you to set on-levels and ramp rates to your exact specifications—it even extends the maximum ramp rate from 9 seconds to 8 minutes—and apply them consistently to m ultiple devices thr oug hou t your hom e.

Programming SwitchLinc as Part of an INSTEON Network

SwitchLinc Dimmer can be added to an INSTEON network as both a controller and a responder. Additionally, it can act as an Access Point to detect your home’s electrical phases and allow RF-only and powerline-on l y devices to communicate with each other.
Page 10 of 21 Rev: 1/21/2014 7:15 AM

Make SwitchLinc a Controller

Follow the steps below to link SwitchLinc as a controller of another INSTEON device.
1) Press and hold Switc hLi nc Set butt on until it beeps (about 3 seconds)
Status LED will blink green You will have 4 minutes to complete the next steps before linking mode times out
2) Set the responder to the state you want to activate from SwitchLinc (e.g., on, 50% brightness, off)
If the responder is a multi-scene device such as a KeypadLinc, tap the scene button you want to control so its LED illuminates
3) Press and hold the responder’s Set button for 3 seconds
SwitchLinc will double-beep and status LED w ill st op blink in g Responder LED will stop blinking and it may double-beep
4) Confirm that linking was successful by tapping SwitchLinc paddle on and off
The responder will respond appropriately
5) If you want SwitchLinc to control multiple responders, repeat steps 1-4 with each additional responder
or see Add Multiple Scene Res pon ders .

Remove SwitchLinc as a Controller

If you are disabling or removing any INSTEON responders that SwitchLinc controls, it is very important that you unlink each responder from SwitchLinc before disabling or removal. Otherwise, Switch Li n c will repeatedly try to send commands, causing delays in your INSTEON network’s inter-device communication.
1) Press and hold Switc hLi nc Set butt on until it beeps (about 3 seconds)
Status LED will blink green
2) Again, press and hold SwitchLinc Set button until it beeps (about 3 seconds)
Status LED will blink red You will have 4 minutes to complete the next step before unlinking mode times out
3) Press and hold the responder Set button for 3 seconds
SwitchLinc will double-beep and status LED will stop blinking
4) Confirm that unlinking was suc c essf ul by tapping S witc hLi nc paddle on and off
The responder will no longer respond

Make SwitchLinc a Responder

Follow the steps below to make SwitchLinc a responder of another INSTEON controller.
1) Press and hold the controller Set or scene button until it beeps and/or LED blinks (about 3 seconds)
If the controller is a multi-scene device such as a KeypadLinc, press and hold the scene button you want to use as the controller Controller LED will blink You will have 4 minutes to complete the next step before linking mode times out
2) Use SwitchLinc to set the connected load t o the stat e you wan t to activat e fr om the controller (e.g.,
on, 50% brightness, off)
3) Press and hold Switc hLi nc Set butt on until it double-beeps (about 3 seconds)
SwitchLinc status LED will flash once, then turn on solid
4) Confirm that linking was successful by tapping the controller button on and off
The load connected to SwitchLinc will respond appropriately

Remove SwitchLinc as a Responder

If you are going to disable or remove SwitchLinc, it is very important that you unlink it from all controllers. Otherwise, the controllers will try sending commands to SwitchLinc, causing delays in your INSTEON network’s inter-device communication.
Page 11 of 21 Rev: 1/21/2014 7:15 AM
1) Press and hold the controller Set or scene button until it beeps and/or LED blinks (about 3 seconds)
Controller LED will blink
2) Press and hold the controller Set or scene button unt il it beeps and/or LED blinks again
Controller LED will continue blinking You will have 4 minutes to complete the next step before unlinking mode times out
3) Press and hold Switc hLi nc Set butt on until it double-beeps
SwitchLinc status LED will flash once, then turn on solid
4) Confirm that unlinking was successful by tapping the controller button on and off
The load connected to SwitchLinc will no longer respond

Scenes

INSTEON scenes let you activate dramatic room ambiences with multiple lights and appliances. For example, you can set all the lights in a scene to dim to 50% or turn certain lights on while turning others off, all with the tap of a button on a controller.
INSTEON scenes are very easy to set up: just link more than one responder to the same On/Off or scene button on a controller. Then, when you press any of the linked buttons on the controller, all of the INSTEON devices linked in the scene will respond as a group.
To set up an INSTEON scene, you can individually link each device to a controller. Or save time and create multiple links at once.

Power Restore

SwitchLinc stores all of its scenes, properties, etc. in its internal non-volatile memory so all settings are retained after a power outage. Upon power being restored, SwitchLinc will return its connected load(s) and all LEDs to their states prior to power outage.

Using SwitchLinc in an X10 Network

Like most INSTEON devices, SwitchLinc X10-ready, meaning it can both send and respond to X10 commands. However, S witc hLinc does not ship with an X10 address, so you must set one up when first installing Sw itc hLinc or after performing a factory reset.

Add an X10 Address

1) Press and hold Switc hLi nc Set butt on until it beeps (about 3 seconds)
SwitchLinc status LED will blink You will have 4 minutes to complete the next step before linking mode times out
2) Using an X10 controller, send the X10 address you want to assign to SwitchLinc followed by the ON
command three times
For example, to assign the address A1, you would send A1-ON-A1-ON-A1-ON
3) Once SwitchLinc Dimmer has received the sequence, it will exit linking mode
SwitchLinc will double-beep

Remove an X10 Address

If you are no longer going to utilize an X10 address associated with SwitchLinc, it is very important that you remove its X10 address. Otherwise, SwitchLinc will still listen for X10 commands (somewhat hindering INSTEON reception) and may respond to spurious X10 “noise.” Furthermore, SwitchLinc will transmit an X10 address and command every time the button is tapped.
1) Press and hold SwitchLinc Set butt on until it beeps (about 3 seconds)
Page 12 of 21 Rev: 1/21/2014 7:15 AM
SwitchLinc status LED will blink
2) Press and hold SwitchLinc Set button until it beeps again
SwitchLinc status LED will continue blinking You will have 4 minutes to complete the next step before unlinking mode times out
3) Using an X10 controller, send the X10 address you want to remove followed by the ON command
three times
For example, to remove the address A1, you would send A1-ON-A1-ON-A1-ON
4) Once SwitchLinc has received the sequence, it will exit unlinking mode
SwitchLinc will beep.

Advanced X10 Program m i ng

Instructions on setting X10 primary address and scene addresses can be found at
http://www.insteon.com/insteon-x10-programming.html
.

Advanced Features

Make SwitchLinc a Controller of Multiple Responders

1) Press and hold Switc hLi nc Set butt on until it beeps
SwitchLinc status LED will start blinking green
2) Tap SwitchLinc Set button
SwitchLinc status LED will double-blink green
3) For each responder you are adding:
a. Tap on/off or press and hold to adjust responder to desired state b. Press and hold responder Set button until it beeps (or LED flashes)
SwitchLinc will double-beep
4) After all responders have been added, tap S witchL inc Set butt on
SwitchLinc LED will stop blinking
5) Test by tapping SwitchLinc on and off a couple of times
All the responders added will respond

Remove SwitchLinc as a Controller of Multiple Responders

1) Press and hold Switc hLi nc Set butt on until it beeps
SwitchLinc status LED will start blinking green
2) Press and hold Switc hLi nc Set butt on a ga in unt il it beeps again
SwitchLinc status LED will start blinking red
3) Tap SwitchLinc Set button
SwitchLinc status LED will double-blink red
4) For each responder you are removing:
a. If multi-button device, tap the responding button b. Press and hold responder Set button until it beeps (or LED flashes)
5) Tap SwitchLinc Set button
SwitchLinc status LED will stop blinking
6) Test by tapping controller button a couple of times
All responders removed will not respond

Groups

Groups are scenes in whic h all members stay synchronized. Common examples include 3-wa y light ing circuits and scenes with a single load-bearing device.
Example: 2-Switch Circuit
Page 13 of 21 Rev: 1/21/2014 7:15 AM
1) Link SwitchLinc as a controller of another INSTEON device. (See Make SwitchLinc a Controller.)
2) Link the same INSTEON device as a controller of SwitchLinc. (See Make SwitchLinc a Responder.)
3) Test the group by controlling the load from SwitchLinc Dimmer and the other device
The load, SwitchLinc LEDs and the other INSTEON device LEDs will remain in synch
Example: Multi-Way Circuit
Although we recommend using home automation software (such as HouseLinc) to set up multi-way circuit groups, the following steps will also work when carefully followed.
1) Turn on load(s) to desired same level
2) Press and hold SwitchLinc Set button until it beeps
3) Tap SwitchLinc Set button
4) Initiate linking mode on secondary INSTEON device, usually by pressing and holding the Set button
for about 3 seconds
5) Repeat step 3 for each addition INSTEON device in the circuit
6) Once all INSTEON devices are in linking mode, tap SwitchLinc Set button
7) Repeat steps 2-6 for each device in the circuit until each has been linked as a controller and
responder of all group members
8) Test the group by controlling the load(s) from SwitchLinc and the other devices

Change LED Brightness Levels

SwitchLinc LEDs can be adjusted to shine brighter or dimmer, or even turned off.
1) Press and hold Set button until it beeps
SwitchLinc status LED will blink green
2) Press and hold Set button until it beeps again
SwitchLinc status LED will blink red
3) Press and hold Set button until it beeps a third time
SwitchLinc status LED will blink green
4) Tap Set button
SwitchLinc wi ll bee p and its status LED will double-blink green
5) Press and hold the paddle top/bottom to brighten/dim the LEDs to your desired brightness
6) Once LEDs are adjusted, press and hold Set button until it beeps

Factory Reset

Factory Reset clears all user settings from SwitchLinc, including INSTEON scenes, on-levels, ramp rates, X10 addresses, etc.
1) Pull out SwitchLinc Set button to create an air gap
2) Wait 10 seconds
3) Push in Set button and hold it. Do not let go.
SwitchLinc will begin to emit a long beep
4) When beep stops, release Set button
A few seconds will pass SwitchLinc will double-beep LEDs will return to normal brightness The connected load will turn on
Page 14 of 21 Rev: 1/21/2014 7:15 AM

Change Paddle and LED Colors

You can swap out the included white LEDs and/or front paddle and trim frame assembly with a color-
body separated
flat tool.
5) Choose which LEDs and/or paddle and trim frame you would like to install into SwitchLinc
8) If both light pipes are installed correctly, they will stick straight out from the back of the frame (as shown in Figure 4, below left). If installed incorrectly, they will appear to be tilted (as shown
change kit before or after SwitchLinc is installed. During the changeover process, power and load may remain on and operating. There are no dangerous voltages or unsafe areas under the paddle.
• LED kits available: frosted white, four color (includes red, amber, green and blue)
• Paddle kits available: almond, light almond, ivory, gray, black, brown, white
1) If SwitchLinc is already installed in the wall, remove the wallplate from the switch wall box
2) Remove the four Phillips screws that hold the paddle assembly to the metal frame
3) Pull the entire paddle straight away from the switch. You may have to wiggle the bottom of the frame to get it free from the Set button

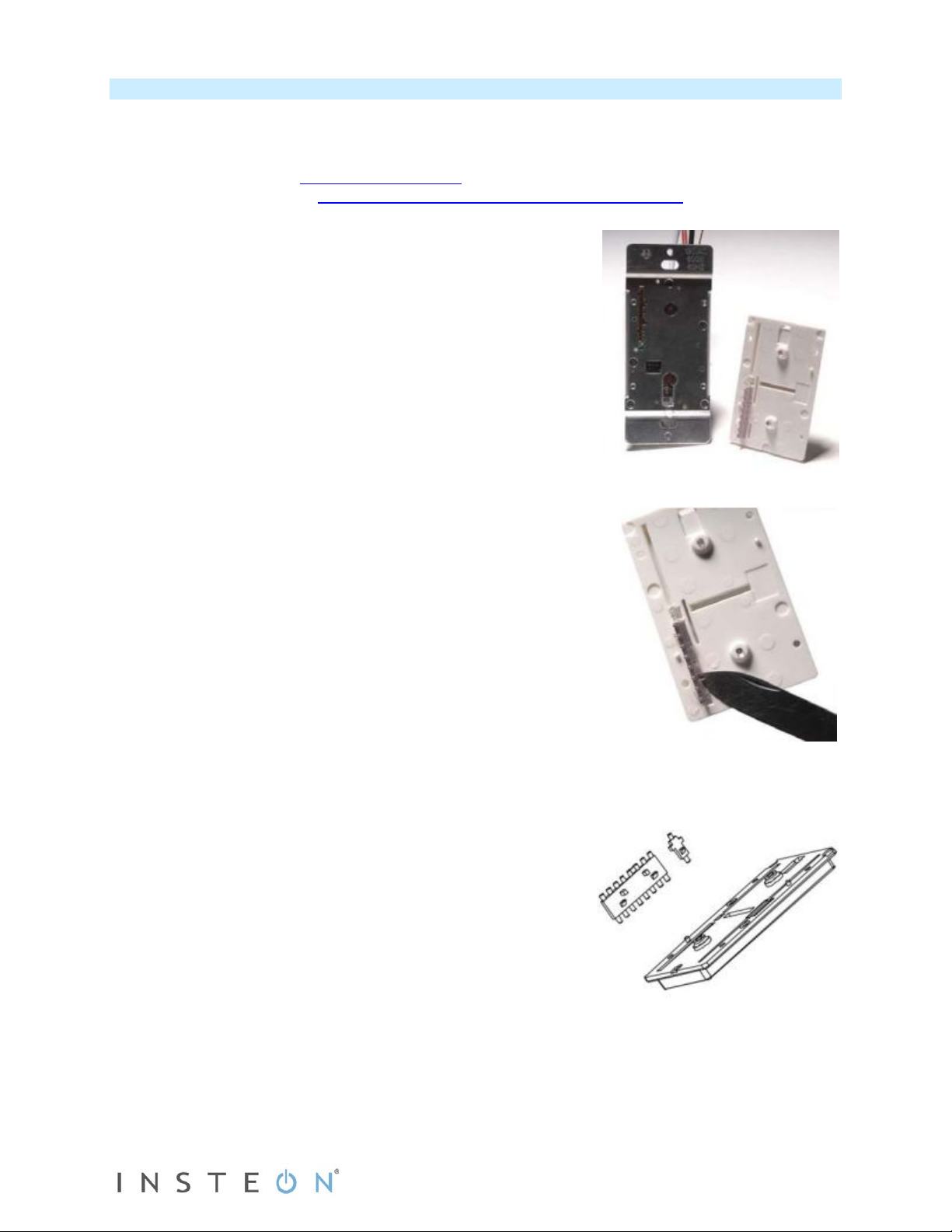

Figure 1: Paddle assembly and SwitchLinc
4) Using a flat blade or needlenose pliers, snap the large light pipe out of the frame (as shown in Figure 2 at right). Do the same for the small light pipe
Figure 2: Snap out the light pipes with a
6) Orient the new small light pipe with its protrusion facing toward center of the new frame. Snap it into place. If placed in backwards or reverse, it will not click into place. (Refer to Figure 3 at right.)
7) Orient the new large light pipe with side that has the most protrusions facing toward the center of the new frame. Using only finger pressure, snap the light pipe into the frame. (Refer to Figure 3 at right).
Figure 3: Insert the new light pi pes with the
protrusions facing the center
Page 15 of 21 Rev: 1/21/2014 7:15 AM
in Figure 5, below right).
Figure 4: LED light pipes correctly installed
Figure 5: LED light pipes incorrectly installed
9) Gently place the paddle assembly onto front of SwitchLinc. A little force may be necessary to
General
Product Name
SwitchLinc Dimmer
Brand
INSTEON
Manufacturer Product Number
2476D, INSTEON SwitchLinc Dimmer
White - 2476D: 891114000082
Patent Number
U.S. Patent No. 7,345,998, Internat iona l paten ts pendi ng
Warranty
Two years, limited
INSTEON
INSTEON Address
1 hard-coded out of 16,777,216 pos sib le
Maximum Scene Memberships
417
Brightness Levels
32
On-Level
4 locally, increments of 1% with software
0.1 to 2 seconds if programmed locally, 0.125 seconds to 8
snap the assembly over the Set button. Reinstall four screws that you removed in step 2.

Additional Resources

Find home automation solutions, helpful tips, interactive demos, videos, user forums, and more at the INSTEON Learning Center: www.smarthome.com/learningcenter.html

Specifications

Almond - 2476DAL: 68907 6406 345 Light Almond - 2476DL AL : 8139 220 115 62
UPC
Black -2476DBK: 689076406444 Gray - 2476DGY: 689076406741 Ivory - 2476DIV: 689076 40 6642 Brown - 2476DBR: 689076406543
Ramp Rate
minutes if programmed remotely)
Page 16 of 21 Rev: 1/21/2014 7:15 AM
Scene Commands Supported as
On
Fast-on
Off
Fast-off
Dim
Brighten
On
Fast-on
Off
Fast-off
Dim
Brighten
Software Configurable
Yes
RF Range
915 MHz
X10 Support
Yes
X10 Addresses
1 optional (ships unassigned)
INSTEON Device Category
Mechanical
Mounts in single or multiple-ganged wall box. Control 200W
rating.
Wire Nuts
load (red)
neutral (white)
ground (bare copper)
Case Color
White
Set Button
Yes
Beeper
Yes
LED
Dual-color red/green setup LED, 9 white LEDs
Dimensions
4.1" H x 1.8" W x 1.2" D
Weight
3.6 oz.
Operating Environm ent
Indoors
Operating Temperature Range
32°F to 104°F
Operating Humidity Range
Up to 85% relative humidity
Electrical
Voltage
120 volts AC +/- 10%, 60 Hertz, single phase
Maximum Dimmer load
600 watts (uses 12-Amp triac dimmer)
load Type(s)
Wired-in incandescent lighting devices
Retains all settings without power
Non-volatile EEPROM
Standby power consumption
0.59 watts
Controller
Scene Commands Supported as Responder
INSTEON Device Subcategory
Mounting
Dimmer switches
less load for each immediately adjacent SwitchLinc Dimmer installed. For example, 600 W load control becomes 400 W with another dimmer to the immediate right or left. Use a triple­gang box with a mechanical switch in the center to avoid de-
Wires
4 included line (black)
Page 17 of 21 Rev: 1/21/2014 7:15 AM
Certifications
Safety tested for use in USA and Canada (ETL #3017581)

Troubleshooting

Problem
Possible Cause
Solution
SwitchLinc is not getting power
Make sure the circuit breaker is turned on
Check wall box wires to ensure all connections are tight and no bare wires are exposed
Check the light fixture to ensure all connections are tight and no bare wires are exposed
SwitchLinc needs a w
Look in the rear of the wall box for a group of
neutral SwitchLinc wire ther e.
SwitchLinc and the controller are on opposite powerline phases
Make sure two Access Points (#2443) or other installed to detect the two powerline phases
The controller is plugged into a power strip
Powerline signals can't travel through power wall outlet works best.
Other modules are loading down the signal
Move the other modules or the controller to another outlet
The INSTEON signal may be too weak
Add new INSTEON devices or move around devices act as INSTEON network repeaters.
Make sure you are not experiencing
BoosterLinc modules (#4827).
SwitchLinc doesn't INSTEON controller
The INSTEON controller may have been reset without first unlinking SwitchLinc from it
Relink SwitchLinc to the INSTEON controller. Responder.
Another controller, a timer or stray X10 signals triggered Switch
Install a powerline signal blocker in your home
in X10 mode.
If the above doesn't work, perform a factory reset. See Factory Reset.
The lo electrical noise that is interfering with the reception of powerline signal
Install a powerline noise filter (such as FilterLinc) between the load and SwitchLinc
Install additional INSTEON devices to boost the INSTEON signal
Increase the X10 signal strength with an overcome the power line noise
Remove the X10 address from the button on your INSTEON controller so it doesn’t send
The LED bar on SwitchLinc is not turning on at all and SwitchLinc won't control my light
The switch I'm replacing only has two wires
SwitchLinc is not receiving signals from INSTEON or X10 controllers
SwitchLinc is not linking to or working with an INSTEON controller or device
always respond to an
The light turned on by itself
neutral
ire in order to operate
Linc
white wires all tied together with a wire nut. Those are the neutral wires. Connect the
dual-band INSTEON products are properly
filters. Plugging the Controller directly into a
existing INSTEON devices. All INSTEON
interference with older X10 BoosterLinc technology. Upgrade to INSTEON-compatible
See Adding SwitchLinc Relay as an INSTEON
to keep X10 signals from neighboring homes from interfering. Consider not using SwitchLinc
SwitchLinc turns on, but not off, using another controller
Page 18 of 21 Rev: 1/21/2014 7:15 AM
ad is producing
INSTEON-compatible X10 booster to
both INSTEON and X10 commands
My light only turns off
You may have removed an INSTEON device that your S SwitchLinc is retrying the missing INSTEON device
If the INSTEON device is still available, unlink it an INSTEON Controller.
When I press the paddle
respond
You may have removed an INSTEON device that your SwitchLinc is trying to operate. SwitchLinc is retrying the missing INSTEON device
If the INSTEON device is still available, unlink it Relay as an INSTEON Responder.
Unlike previous X10 products, SwitchLinc does not have an X10 address set up at the factory
The dimming component inside SwitchLinc "chops" the powerline sine wave to reduce the power
The buld filaments are vibrating. Use rough­reduce the noise.
Run SwitchLinc in “full-on” mode or switch to a non-dimming SwitchLinc On/Off Relay.
A surge or excessive noise on the powerline may have glitched it
Pull the Set button on SwitchLinc all the way
(don't push it all the way in).
If the above doesn't work, perform a factory reset. See Factory Reset.
It is normal for wall dimmers to feel warm, but not hot
SwitchLinc Dimmer will dissipate about 1W per
controlling a smaller load can lessen the heat.
SwitchLinc can turn off
from SwitchLinc
Your responder may b at its off state
My controller can turn off
controller
SwitchLinc may be linked at its off
SwitchLinc is issuing an error beep because the unit is wired incorrectly
Turn off the circuit breaker and try reinstalling SwitchLinc. If you are still experiencing an error
SwitchLinc.
The AFCI might be too sensitive
Replace your AFCI with a less sensitive br and
following AFCI models:
when I tap the paddle top on SwitchLinc, but I can brighten and dim it
witchLinc is trying to operate
from SwitchLinc. See Removing SwitchLinc as
Perform a factory reset. See Factory Reset.
on SwitchLinc, it takes a long time for other INSTEON responders to
SwitchLinc doesn't respond to X10 address A1 when I first set it up
The load is buzzing when on or dim
SwitchLinc is locked up
SwitchLinc is getting warm to the touch
from SwitchLinc. See Removing SwitchLinc
Perform a factory reset. See Factory Reset.
-only Set up an X10 address. See Adding an X10 Address.
service, 130V or appliance-grade bulbs to
out to create an air gap, wait 10 seconds, then push it back in until it’s flush with the trim frame
100W controlled. Using metal wall boxes, removing insulation around the box or
my responder, but nothing happens when I send an ON command
SwitchLinc, but SwitchLinc does not turn on when I send an ON command from my
After wiring in SwitchLinc, the unit lets out a continuous beep
SwitchLinc trips the Arc Fault Circuit Interrupter (AFCI)
Page 19 of 21 Rev: 1/21/2014 7:15 AM
state
e linked
Relink your responder to SwitchLinc, while the responding device is on
Relink SwitchLinc to your controller, while the load is on
beep, consult an electrician to help you install
or model from a hardware store with a customer-friendly return policy. SwitchLinc modules do not trip when used with the
• GE 15 Amp Combination Arc Fault
There might be loose connections within your home’s wiring
The status LEDS are adjustable and might be the brightest level
Breaker #THQL1115AFP2
• Murray 2-Pole Combination Type Arc Fault Circuit Interrupter #M P21 5AFCP
Install a powerline noise filter (such as a FilterLinc) between the output and the lead.
The status LEDS are too bright
set at
Dim the LEDs. See Changing the LED Brightness.
If you have tried these solutions, reviewed this Owner's Manual, and still cannot resolve an issue you are
having with SwitchLinc Dimmer, please call the INSTEON Support line at 1-800-762-7845.
Page 20 of 21 Rev: 1/21/2014 7:15 AM

Certification and Warranty

Certification

This product h as been t horoug hly test ed by ITS ETL S EMKO, a nati onally r ecogni zed inde pendent third-part y testi ng labo ratory. T he No rth Ameri can ETL Listed mark signifies that the device has been tes ted to an d has met the requi rements o f a widel y recogni zed conse nsus of U.S. and Canadian device safety sta ndards, t hat th e manu facturing s ite has b een audi ted, an d that th e manuf acture r has agr eed to a program of quart erly fact ory follow­up inspections to verify continued conformance.

FCC and Industry Canada Compliance Statement

This device complies with FCC Rul es Part 15 an d I ndu str y Ca na da RSS -21 0 ( R ev. 7 or 8). Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le present appareil e st c o nf orm e a u x CNR d' Ind us tri e C a na da appli c ables aux appareil s r adio exempts de lic ence. L'exploitation es t aut ori s e a u x d eu x conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radiolectrique subi, mme si le brouillage est susceptible d'en compromettre le
fonctionnement.
The digital circuitry of this device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to pro vide reasonable protection agai nst harmful inte rference in resid ential installatio ns. This equipm ent generates, uses, and can radiate radio freque ncy energ y and, if not installed and used in acco rdance with the instructio ns, may caus e harmful inte rference t o radio and television reception. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause such interference, whic h ca n be ve ri fie d by turning the device off a nd on, the user is encour age d to eli m ina te t h e inte rference by one or more of th e fol lo wi ng measures:
- Re-orient or relocate the receiving antenna of the device experiencing the interference
- Increase the distance between this device and the receiver
- Connect the device to an AC outlet on a circuit different from the one that supplies power to the receiver
- Consult the dealer or an experienced radio/TV technician WARNING: Chang es or m odificati ons t o this devic e not expressl y approved b y the party respo nsible for compli ance could void the user’s auth ority to operate the equipment.
ETL/UL Warning (Safety Warning) CAUTION: To reduc e the risk of overheating and possible damage t o other equipment, d o not install this device to control a receptacl e, a motor-
operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance. Gradateurs comman dant une lampe a filam ent de tungstene – afin de red uire le risqué de surc hauffe et la possibil ite d’endommagemen t a d’autres materiels, ne pas install er pour comm a nde r une pri se, un ap pa rei l a mot eur , une l am pe fluorescente ou un appareil al i m ente par un transformateur.

Limited Warranty

Seller warrants to the origin al consumer pur chaser of thi s product th at, for a peri od of two ye ars from the date of purcha se, this prod uct will be f ree from defects in mate rial and workmanship a nd will perform in substan tial conformity to the descri ption of the product in t his Owner’s Manual. T his warranty shall not apply to defe cts or errors c aused by mis use or negle ct. If the produc t is found t o be defectiv e in materi al or workmans hip, or if the product does not perform as warr anted above during the warranty perio d, Seller will either repair it, replace it, or refund the purchase pri ce, at its option, upon receip t of the p roduct at t he addr ess belo w, pos tage p repai d, with pr oof of th e date of purcha se and a n e xplana tion of th e defec t or e rror. The repair, replacem ent, or refund that is provided for ab ove shall be the full extent of Seller’s lia bility with respect to this product. For repair or replacement durin g the warrant y period, call the INSTEON Support line at 800-762-7845 with the Model # and Revi sion # of the devic e to receive an RMA# and send the product, along with all other required materials to:
INSTEON ATTN: Receiving 16542 Millikan Ave. Irvine, CA 92606-5027

Limitations

The above warrant y is in lieu of and Seller discl aims all other warranties, w hether oral or writ ten, express or implied, inclu ding any warranty or merchantability or fitness for a p articular pur pose. Any implie d warranty, incl uding any warra nty of mercha ntability or fit ness for a partic ular purpose, which may not be di sclaim ed o r su ppla nted as prov ided above sh all be l imited to t he two-year of the express warrant y above. No other re presenta tion or claim of any nature by any person shall be binding upon Seller or modify the terms of the above warranty and disclaimer. Home automation devices have the risk of failure to operate, incorrect operation, or electrical or mechanical tampering. For optimal use, manually verify the device state. Any home automation device should be viewed as a convenience, but not as a sole method for controlling your home.
In no event shall Seller be liable f or special, inci dental, conseque ntial, or other dam ages resulting f rom possession or use of this device, i ncluding without limitation damage to property and, to the e xt ent p erm i tte d by law, personal injury, even if Seller knew or should have known of t he pos s ibil ity of such damages. Som e st at es d o n ot all ow limitations on ho w l on g an im pl i ed w arr an t y last s an d/ o r th e e xcl usi o n o r li m itati on of d am age s , in w hich case the above limitations and/or exclusions may not apply to you. You may also have other legal rights that may vary from state to state.
Protected under U.S. and foreign patents (see www.insteon.com). © Copyright 2012 INSTEON, 16542 Millik an Ave., Irvine, CA 92606, 800-762-7845, www.insteon.com
Page 21 of 21 Rev: 1/21/2014 7:15 AM
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
