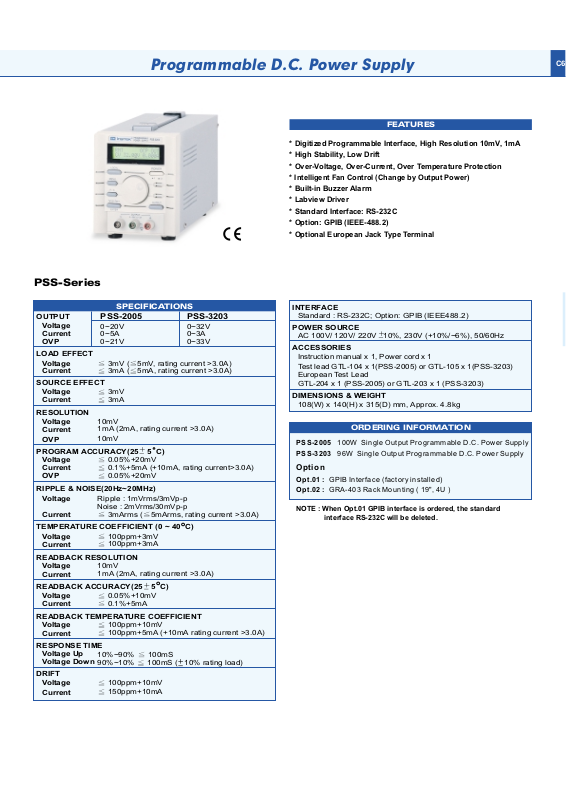

PSS-Series
Programmable D.C. Power Supply
FEATURES
* Digitized Programmable Interface, High Resolution 10mV, 1mA
* High Stability, Low Drift
* Over-Voltage, Over-Current, Over Temperature Protection
* Intelligent Fan Control (Change by Output Power)
* Built-in Buzzer Alarm
* Labview Driver
* Standard Interface: RS-232C
* Option: GPIB (IEEE-488.2)
* Optional European Jack Type Terminal
C6
SPECIFICATIONS
OUTPUT
Voltage
Current
OVP
LOAD EFFECT
Voltage
Current
SOURCE EFFECT
Voltage
Current
RESOLUTION
Voltage 10mV
Current
OVP
PROGRAM ACCURACY(25 5 C)
Voltage 0.05%+20mV
Current
OVP
RIPPLE & NOISE(20Hz~20MHz)
Voltage
Current
TEMPERATURE COEFFICIENT (0 ~ 40 C)
Voltage
Current
READBACK RESOLUTION
Voltage 10mV
Current
READBACK ACCURACY(25 5 C)
Voltage
Current
READBACK TEMPERATURE COEFFICIENT
Voltage 100ppm+10mV
Current
RESPONSE TIME
Voltage Up
Voltage Down
DRIFT
Voltage 100ppm+10mV
Current
PSS-2005 PSS-3203
0~20V 0~32V
0~5A 0~3A
0~21V 0~33V
3mV ( 5mV, rating current >3.0A)
3mA ( 5mA, rating current >3.0A)
3mV
3mA
1mA (2mA, rating current >3.0A)
10mV
0.1%+5mA (+10mA, rating current>3.0A)
0.05%+20mV
Ripple : 1mVrms/3mVp-p
Noise : 2mVrms/30mVp-p
3mArms ( 5mArms, rating current >3.0A)
100ppm+3mV
100ppm+3mA
1mA (2mA, rating current >3.0A)
0.05%+10mV
0.1%+5mA
100ppm+5mA (+10mA rating current >3.0A)
10%~90%
90%~10%
150ppm+10mA
100mS
100mS ( 10% rating load)
INTERFACE
Standard : RS-232C; Option: GPIB (IEEE488.2)
POWER SOURCE
AC 100V/ 120V/ 220V 10%, 230V (+10%/~6%), 50/60Hz
ACCESSORIES
Instruction manual x 1, Power cord x 1
Test lead GTL-104 x 1(PSS-2005) or GTL-105 x 1(PSS-3203)
European Test Lead
GTL-204 x 1 (PSS-2005) or GTL-203 x 1 (PSS-3203)
DIMENSIONS & WEIGHT
108(W) x 140(H) x 315(D) mm, Approx. 4.8kg
ORDERING INFORMATION
100W Single Output Programmable D.C. Power SupplyPSS-2005
PSS-3203 96W Single Output Programmable D.C. Power Supply
Option
Opt.01 : GPIB Interface (factory installed)
Opt.02 : GRA-403 Rack Mounting ( 19", 4U )
NOTE : When Opt.01 GPIB interface is ordered, the standard
interface RS-232C will be deleted.
