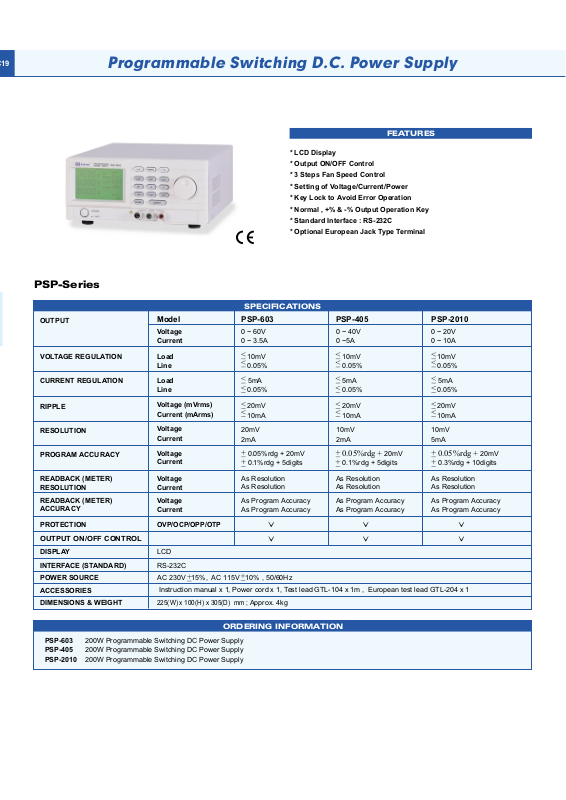

Programmable Switching D.C. Power Supply
PSP-Series
OUTPUT
VOLTAGE REGULATION
CURRENT REGULATION
RIPPLE
RESOLUTION
PROGRAM ACCURACY
READBACK (METER)
RESOLUTION
READBACK (METER)
ACCURACY
PROTECTION
OUTPUT ON/OFF CONTROL
DISPLAY
INTERFACE (STANDARD)
POWER SOURCE
ACCESSORIES
DIMENSIONS & WEIGHT
FEATURES
* LCD Display
* Output ON/OFF Control
* 3 Steps Fan Speed Control
* Setting of Voltage/Current/Power
* Key Lock to Avoid Error Operation
* Normal , +% & -% Output Operation Key
* Standard Interface : RS-232C
* Optional European Jack Type Terminal
SPECIFICATIONS
Model
Voltage
Current
Load
Line
Load
Line
Voltage (mVrms)
Current (mArms)
Voltage
Current
Voltage
Current
Voltage As Resolution As Resolution As Resolution
Current
Voltage As Program Accuracy As Program Accuracy As Program Accuracy
Current
OVP/OCP/OPP/OTP
LCD
RS-232C
AC 230V 15%, AC 115V 10% , 50/60Hz
Instruction manual x 1, Power cord x 1, Test lead GTL-104 x 1m , European test lead GTL-204 x 1
225(W) x 100(H) x 305(D) mm ;
PSP-603 PSP-405 PSP-2010
0 ~ 60V 0 ~ 40V 0 ~ 20V
0 ~ 3.5A
10mV
0.05%
5mA
0.05%
20mV
10mA
20mV
2mA 2mA 5mA
0.05%rdg + 20mV
0.1%rdg + 5digits
As Resolution As Resolution As Resolution
As Program Accuracy As Program Accuracy As Program Accuracy
Approx. 4kg
0 ~5A
10mV
0.05%
5mA
0.05%
20mV
10mA
10mV 10mV
0.05%rdg + 20mV
0.1%rdg + 5digits
0 ~ 10A
10mV
0.05%
5mA
0.05%
20mV
10mA
0.05%rdg + 20mV
0.3%rdg + 10digits
PSP-603
PSP-405
PSP-2010
ORDERING INFORMATION
200W Programmable Switching DC Power Supply
200W Programmable Switching DC Power Supply
200W Programmable Switching DC Power Supply
