Mixed-Signal Oscilloscope
MSO-2000E & MSO-2000EA
PROGRAMMING MANUAL
ISO-9001 CERTIFIED MANUFACTURER
September 2016
This manual contains proprietary information which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
right to change specifications, equipment, and maintenance
procedures at any time without notice.
Windows is a registered trademark of Microsoft Corporation in the United States and other countries.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
TABLE OF CONTENTS
Table of Contents
INTERFACE OVERVIEW .................................................... 5
Interface Configuration .............................. 5
COMMAND OVERVIEW ................................................. 17
Command Syntax ..................................... 17
List of Commands in Functional Order .... 19
COMMAND DETAILS ..................................................... 34
Common Commands ............................... 36
Acquisition Commands ............................ 42
Autoscale Commands .............................. 49
Vertical Commands .................................. 50
Math Commands ..................................... 56
Cursor Commands ................................... 65
Display Commands .................................. 75
Hardcopy Commands .............................. 79
Measure Commands ................................ 82
Measurement Commands ....................... 107
Reference Commands ............................. 114
Run Command ........................................ 117
Stop Command ....................................... 117
Single Command..................................... 117
Force Command ...................................... 118
Timebase Commands.............................. 119
Trigger Commands .................................. 122
System Commands ................................. 163
Save/Recall Commands .......................... 164
Ethernet Commands ............................... 169
Time Commands ..................................... 170
Bus Decode Commands .......................... 171
Mark Commands..................................... 185
3
MSO-2000E/2000EA Programming Manual
Search Commands ................................. 187
Digital Commands ................................. 220
Label Commands ................................... 228
Segment Commands .............................. 236
DVM Commands .................................... 245
Go_NoGo Commands ............................ 247
AWG Commands .................................... 253
Data Logging Commands ....................... 272
Remote Disk Commands ........................ 275
APPENDIX .................................................................... 278
Error messages ...................................... 278
INDEX .......................................................................... 282
INTERFACE OVERVIEW
USB
Configuration
PC side connector
Type A, host
MSO2000E/2000EA side
connector
Type B, device
Speed
1.1/2.0
USB Class
CDC (communications device
class)

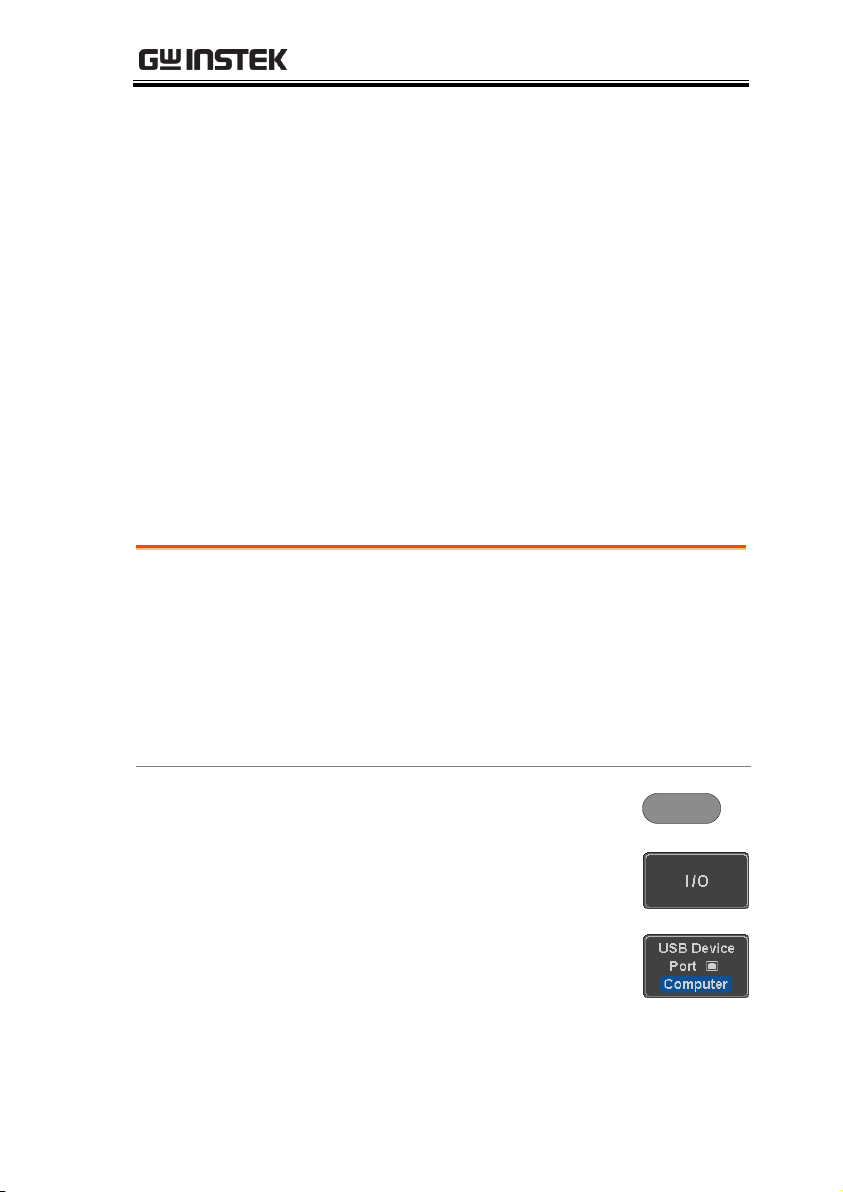

Panel Operation
1. Press the Utility key.
Utility
2. Press I/O from the bottom menu.
3. Press USB Device Port from the side
menu and select Computer.
INTERFACE OVERVIEW
This manual describes how to use the
MSO-2000E/2000EA’s remote command
functionality and lists the command details. The
Overview chapter describes how to configure the
USB and Ethernet remote control interfaces.
Interface Configuration
Configure USB Interface
5
MSO-2000E/2000EA Programming Manual
4. Connect the USB cable to the rear
panel device port.
5. When the PC asks for the USB driver, select the
USB driver included on the accompanying User
Manual CD or download the driver from the
GW Instek website, www.gwinstek.com, in the
MSO-2000E/2000EA Download section. The
driver automatically sets the MSO2000E/2000EA as a serial COM port (Shown as
VPO in the PORTS node).
Terminal
Application
Invoke a terminal application such as RealTerm.
Set the COM port, baud rate, stop bit, data bit, and
parity accordingly.
To check the COM port number and associated
port settings, see the Device Manager in the PC.
For Windows 7:
Control panel → Hardware and Sound→ Device
Manager
Example: Configuring RealTerm:
USB Functionality Check
6
INTERFACE OVERVIEW
Functionality
Check
Key in this query command via the terminal
application.
*idn?
This should return the Manufacturer, Model
number, Serial number, and Firmware version in
the following format.
GW,MSO-2202E,PXXXXXX,V1.00
7
MSO-2000E/2000EA Programming Manual
Ethernet
Configuration
MAC Address
Domain Name
Instrument Name
DNS IP Address
User Password
Gateway IP Address
Instrument IP
Address
Subnet Mask
HTTP Port 80 (fixed)
Background
The Ethernet interface is used for remote control
using a socket server connection. For details,
please see the Socket Server section on page 10.
Panel Operation
1. Connect the Ethernet cable to the
LAN port on the rear panel.
2. Press the Utility key.
Utility
3. Press I/O from the bottom menu.
4. Press Ethernet from the side menu.
5. Set DHCP/BOOTP to On or Off
from the side menu.
Note
IP addresses will automatically be assigned with
DHCP/BOOTP set to on. For Static IP Addresses,
DHCP/BOOTP should be set to off.
Configure the Ethernet Interface
8
INTERFACE OVERVIEW
6. Use the Up and Down arrows on
the side menu to navigate to each
Ethernet configuration item.
Items
MAC Address, Instrument Name,
User Password, Instrument IP
Address, Domain Name, DNS IP
Address, Gateway IP Address,
Subnet Mask
Note: HTTP Port is fixed at 80.
7. Use the Variable knob to highlight a
character and use the Select key to
choose a character.
Select
VARIABLE
9
MSO-2000E/2000EA Programming Manual

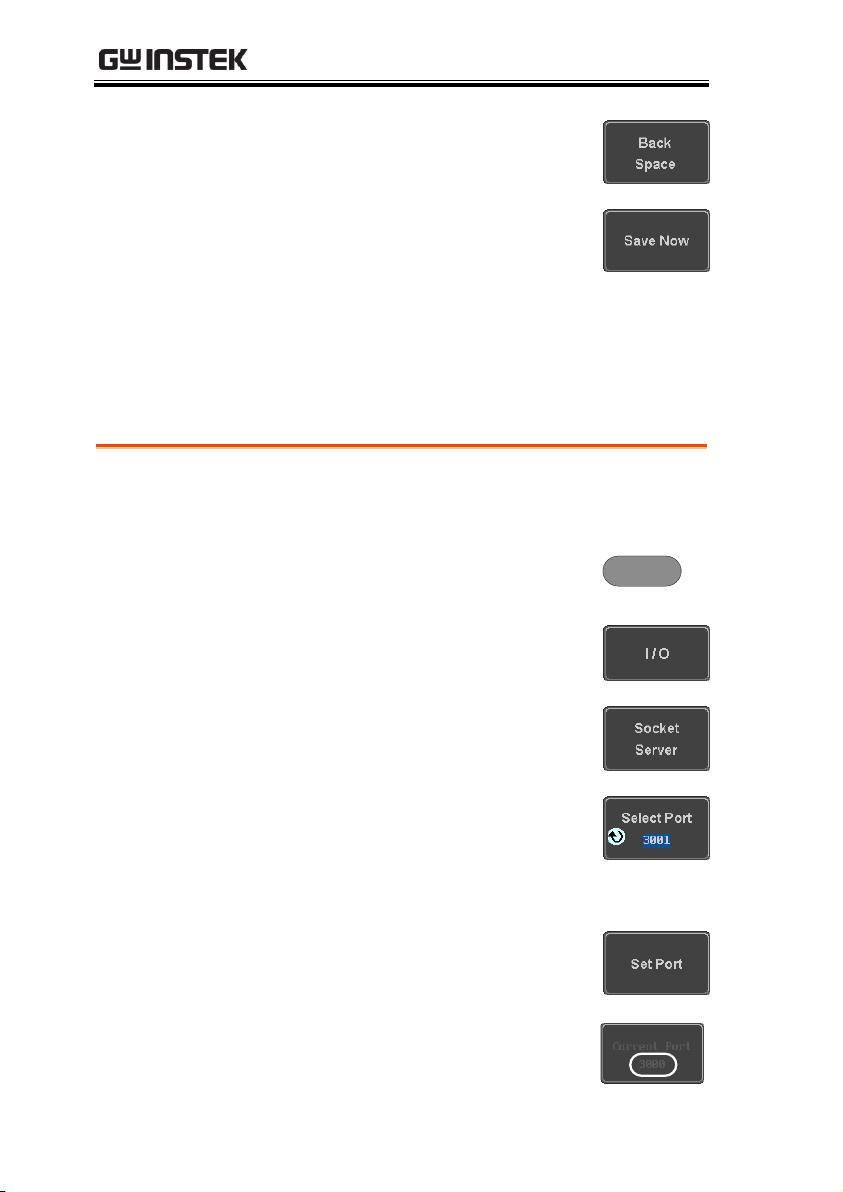

Press Backspace to delete a
character.
Press Save Now to save the
configuration. Complete will be
displayed when successful.
Configure Socket
Server
1. Configure the IP address for the
MSO-2000E/2000EA.
Page 8
2. Press the Utility key.
Utility
3. Press I/O from the bottom menu.
4. Press Socket Server from the side
menu.
5. Press Select Port and choose the
port number with the Variable
knob.
Range
1024~65535
6. Press Set Port to confirm the port
number.
7. The Current Port icon will update
to the new port number.
Configure Socket Server
The MSO-2000E/2000EA supports socket server functionality for
direct two-way communication with a client PC or device over LAN.
By default, the Socket Server is off.
10
INTERFACE OVERVIEW

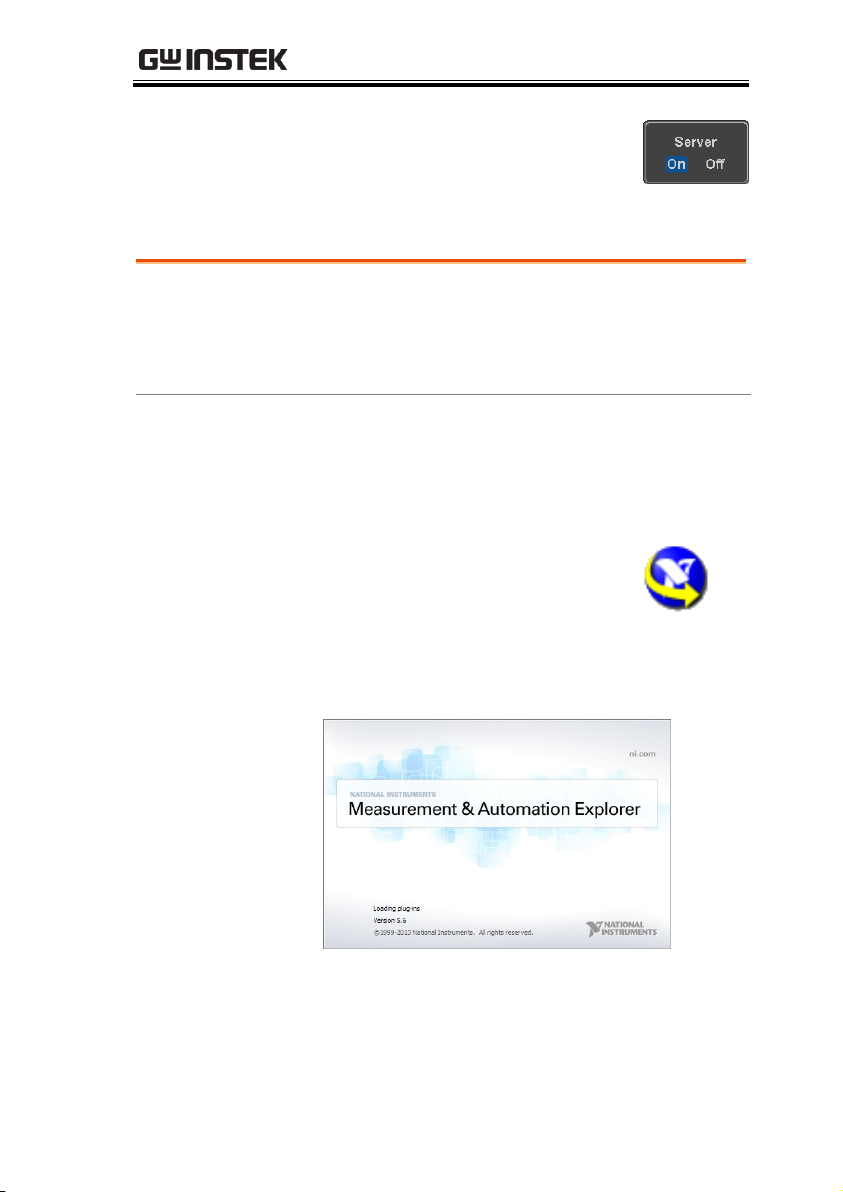

8. Press Server and turn the socket
server On.
NI Measurement
and Automation
Explorer
To test the socket server functionality, National
Instruments Measurement and Automation
Explorer can be used. This program is available on
the NI website, www.ni.com.
Operation
1. Configure the IP address for the
MSO-2000E/2000EA.
Page 8
2. Configure the socket port.
Page 10
3. Start the NI Measurement and
Automation Explorer (MAX)
program. Using Windows, press:
Start>All Programs>National
Instruments>Measurement & Automation
4. From the Configuration panel access;
My System>Devices and Interfaces>Network
Devices
Socket Server Functionality Check
11
MSO-2000E/2000EA Programming Manual

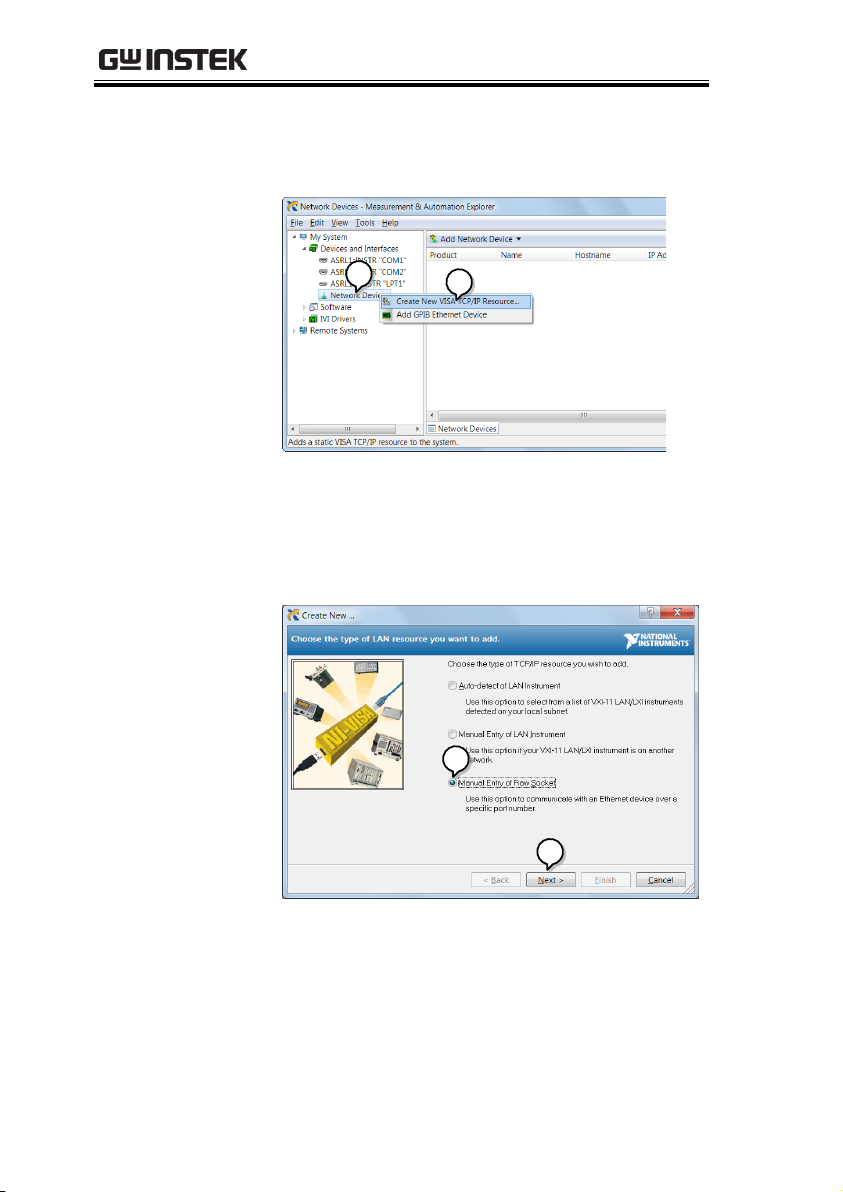

5. Right click Network Devices and select Create
New Visa TCP/IP Resource…
4
5
6. Select Manual Entry of Raw Socket from the
popup window.
7. Click Next.
6
7
12
INTERFACE OVERVIEW
8. Enter the MSO-2000E/2000EA’s IP address and
socket port number.
9. Click Validate.
10. A popup will appear to tell you if a VISA socket
session was successfully created.
11. Click Next.
10
11
8
9
13
MSO-2000E/2000EA Programming Manual

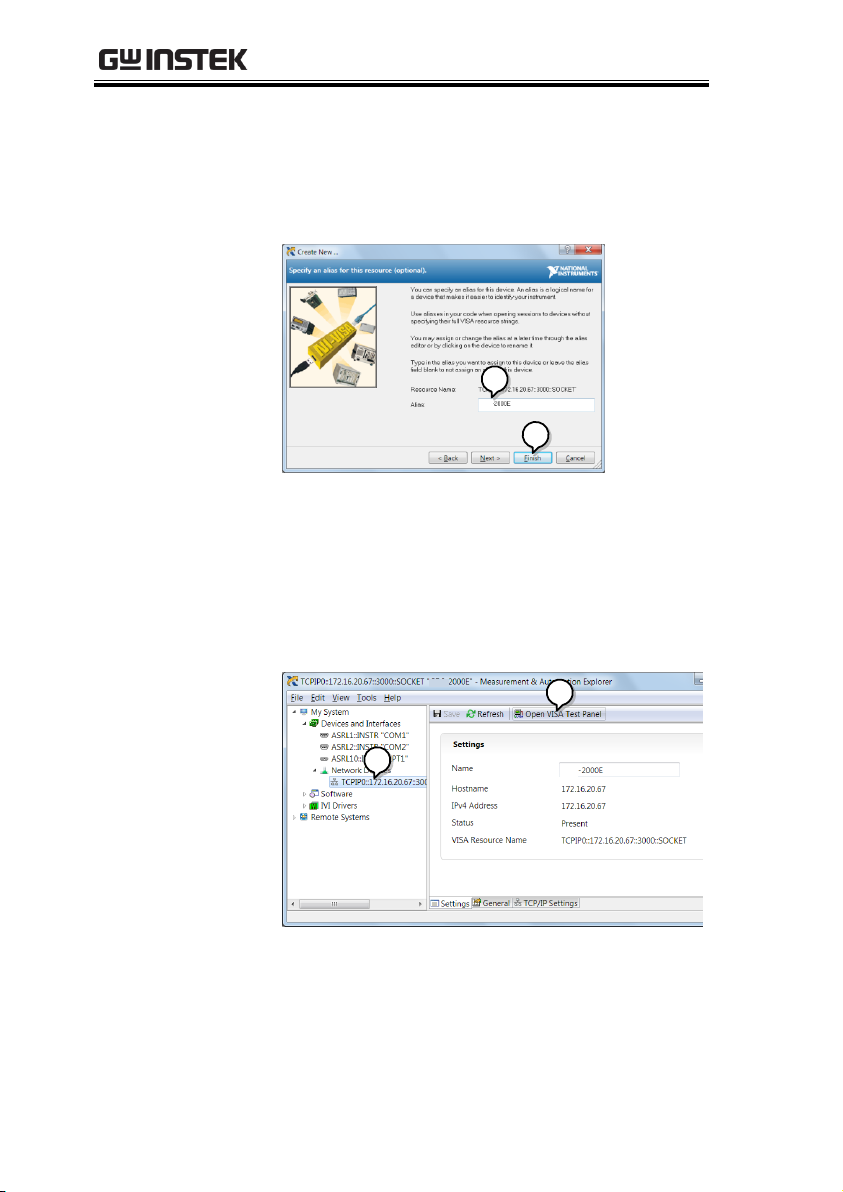

12. Choose an alias for the socket connection if you
like.
13. Click Finish to finish the configuration.
12
13
MSO
14. The MSO-2000E/2000EA will now appear
under Network Devices in the Configuration
Panel.
Functionality
Check
15. Click the Open Visa Test Panel to send a remote
command to the MSO-2000E/2000EA.
14
15
MSO
MSO-
14
INTERFACE OVERVIEW
16. Click on the Configuration icon.
17. Select the I/O Settings tab.
18. Mark the Enable Termination Character checkbox.
Make sure the termination character is a line
feed (/n, value: xA).
19. Click Apply Changes.
16
17
18
19
15
MSO-2000E/2000EA Programming Manual
20. Click the Input/Output icon.
21. Make sure *IDN? query is selected in the Select
or Enter Command drop box.
22. Click on Query.
23. The manufacturer, model number, serial
number and firmware version will be displayed
in the buffer. For example:
GW,MSO-2202E,PXXXXXX,V1.00
20
21
22
23
MSO
16
COMMAND OVERVIEW
Compatible
standard
USB CDC_ACM compatible
SCPI, 1994 (partially compatible)
Command forms
Commands and queries have two different forms,
long and short. The command syntax is written
with the short form of the command in capitals
and the remainder (long form) in lower case.
The commands can be written in capitals or lowercase, just so long as the short or long forms are
complete. An incomplete command will not be
recognized.
Below are examples of correctly written
commands.
LONG
:TIMebase:SCALe?
:TIMEBASE:SCALE?
:timebase:scale?
:TIMebase:SCALe?
Short
Long
Short
COMMAND OVERVIEW
The Command overview chapter lists all MSO2000E/2000EA commands in functional order as
well as alphabetical order. The command syntax
section shows you the basic syntax rules you have
to apply when using commands.
Command Syntax
17
MSO-2000E/2000EA Programming Manual
SHORT
:TIM:SCAL?
:TIM:SCAL?
Command format
1: command header
2: single space
3: parameter
4: message terminator
Parameter
Type
Description
Example
<Boolean>
boolean logic
0, 1
<NR1>
Integers
0, 1, 2, 3
<NR2>
floating point
0.1, 3.14, 8.5
<NR3>
floating point
with an exponent
4.5e-1, 8.25e+1
<NRf>
any of NR1, 2, 3
1, 1.5, 4.5e-1
Message
terminator
LF
line feed code
Note
Commands are non-case sensitive.
:TIMebase:SCALe <NR3>LF
1 2 3 4
18
COMMAND OVERVIEW
Common
*IDN? ...........................................................................36
*LRN? ...........................................................................36
*SAV .............................................................................37
*RCL .............................................................................37
*RST .............................................................................38
*CLS .............................................................................38
*ESE .............................................................................38
*ESR .............................................................................39
*OPC ............................................................................39
*SRE .............................................................................40
*STB .............................................................................40
Acquisition
:ACQuire:AVERage .......................................................42
:ACQuire:MODe ..........................................................43
:ACQuire<X>:MEMory? ...............................................43
:ACQuire:FILTer:SOURce ............................................45
:ACQuire:FILTer ...........................................................46
:ACQuire:FILTer:FREQuency .......................................46
:ACQuire:FILTer:TRACking ..........................................46
:ACQuire<X>:STATe? ...................................................47
:ACQuire:INTERpolation .............................................47
:ACQuire:RECOrdlength ..............................................47
:HEADer .......................................................................48
Autoscale
:AUTOSet .....................................................................49
:AUTORSET:MODe .....................................................49
List of Commands in Functional Order
19
MSO-2000E/2000EA Programming Manual
Vertical Scale
:CHANnel<X>:BWLimit ............................................... 50
:CHANnel<X>:COUPling ............................................ 51
:CHANnel<X>:DESKew ............................................... 51
:CHANnel<X>:DISPlay ................................................ 51
:CHANnel<X>:EXPand ................................................ 52
:CHANnel<X>:IMPedance? ......................................... 52
:CHANnel<X>:INVert .................................................. 53
:CHANnel<X>:POSition .............................................. 53
:CHANnel<X>:PROBe:RATio ...................................... 54
:CHANnel<X>:PROBe:TYPe ........................................ 54
:CHANnel<X>:SCALe .................................................. 54
Math
:MATH:DISP ................................................................ 56
:MATH:TYPe ................................................................ 57
:MATH:DUAL:SOURce<X> ......................................... 57
:MATH:DUAL:OPERator ............................................. 57
:MATH:DUAL:POSition ............................................... 58
:MATH:DUAL:SCALe ................................................... 58
:MATH:FFT:SOURce ................................................... 59
:MATH:FFT:MAG ........................................................ 59
:MATH:FFT:WINDow .................................................. 59
:MATH:FFT:POSition .................................................. 60
:MATH:FFT:SCALe ...................................................... 60
:MATH:FFT:HORizontal:SCALe .................................. 61
MATH:FFT:HORizontal:POSition ............................... 61
:MATH:DEFine ............................................................ 61
MATHVAR? .................................................................. 62
MATHVAR:VAR<X> ..................................................... 63
:MATH:ADVanced:POSition ....................................... 63
:MATH:ADVanced:SCALe ........................................... 63
Cursor
:CURSor:MODe ........................................................... 66
:CURSor:SOURce......................................................... 66
:CURSor:HUNI ............................................................ 67
:CURSor:HUSE ............................................................ 67
:CURSor:VUNI ............................................................. 68
20
COMMAND OVERVIEW
:CURSor:VUSE .............................................................68
:CURSor:DDT ...............................................................68
:CURSor:H1Position ....................................................69
:CURSor:H2Position ....................................................69
:CURSor:HDELta .........................................................70
:CURSor:V1Position .....................................................70
:CURSor:V2Position .....................................................70
:CURSor:VDELta ..........................................................71
:CURSor:XY:RECTangular:X:POSition<X> ..................71
:CURSor:XY:RECTangular:X:DELta .............................71
:CURSor:XY:RECTangular:Y:POSition<X> ..................72
:CURSor:XY:RECTangular:Y:DELta .............................72
:CURSor:XY:POLar:RADIUS:POSition<X> ..................72
:CURSor:XY:POLar:RADIUS:DELta .............................73
:CURSor:XY:POLar:THETA:POSition<X> ...................73
:CURSor:XY:POLar:THETA:DELta ...............................73
:CURSor:XY:PRODuct:POSition<X> ...........................74
:CURSor:XY:PRODuct:DELta.......................................74
:CURSor:XY:RATio:POSition<X> .................................74
:CURSor:XY:RATio:DELta ............................................75
Display
:DISPlay:INTensity:WAVEform ....................................75
:DISPlay:INTensity:GRATicule.....................................76
:DISPlay:INTensity:BACKLight ....................................76
:DISPlay:INTensity:BACKLight:AUTODim:ENAble ....76
:DISplay:INTENSITy:BACKLight:AUTODim:TIMe .....77
:DISPlay:PERSistence ..................................................77
:DISPlay:GRATicule .....................................................78
:DISPlay:WAVEform .....................................................78
:DISPlay:OUTPut .........................................................78
21
MSO-2000E/2000EA Programming Manual
Hardcopy
:HARDcopy:START ...................................................... 79
:HARDcopy:MODe ...................................................... 79
:HARDcopy:PRINTINKSaver ....................................... 80
:HARDcopy:SAVEINKSaver ......................................... 80
:HARDcopy:SAVEFORMat .......................................... 81
:HARDcopy:ASSIGN .................................................... 81
Measure
:MEASure:GATing........................................................ 83
:MEASure:SOURce ...................................................... 83
:MEASure:METHod ..................................................... 84
:MEASUrement:REFLevel:PERCent:HIGH ................. 84
:MEASUrement:REFLevel:PERCent:LOW ................... 85
:MEASUrement:REFLevel:PERCent:MID .................... 85
:MEASUrement:REFLevel:PERCent:MID2 .................. 85
:MEASure:FALL ............................................................ 86
:MEASure:FOVShoot ................................................... 86
:MEASure:FPReshoot .................................................. 87
:MEASure:FREQuency ................................................. 87
:MEASure:NWIDth ...................................................... 88
:MEASure:PDUTy ........................................................ 88
:MEASure:PERiod ........................................................ 89
:MEASure:PWIDth ....................................................... 89
:MEASure:RISe ............................................................ 90
:MEASure:ROVShoot ................................................... 90
:MEASure:RPReshoot .................................................. 91
:MEASure:PPULSE ....................................................... 92
:MEASure:NPULSE ...................................................... 92
:MEASure:PEDGE ........................................................ 93
:MEASure:NEDGE ....................................................... 93
:MEASure:AMPlitude ................................................... 94
:MEASure:MEAN ......................................................... 94
:MEASure:CMEan ........................................................ 95
:MEASure:HIGH .......................................................... 96
:MEASure:LOW ............................................................ 96
:MEASure:MAX ............................................................ 97
22
COMMAND OVERVIEW
:MEASure:MIN ............................................................97
:MEASure:PK2PK .........................................................98
:MEASure:RMS ............................................................98
:MEASure:CRMS ..........................................................99
:MEASure:AREa .........................................................100
:MEASure:CARea .......................................................100
:MEASure:FRRDelay ..................................................101
:MEASure:FRFDelay...................................................101
:MEASure:FFRDelay...................................................102
:MEASure:FFFDelay ...................................................103
:MEASure:LRRDelay ..................................................103
:MEASure:LRFDelay ...................................................104
:MEASure:LFRDelay ...................................................104
:MEASure:LFFDelay ...................................................105
:MEASure:PHAse .......................................................106
Measurement
:MEASUrement:MEAS<X>:SOURCE<X> ..................107
:MEASUrement:MEAS<X>:TYPe ...............................108
:MEASUrement:MEAS<X>:STATE ............................108
:MEASUrement:MEAS<X>:VALue.............................109
:MEASUrement:MEAS<X>:MAXimum .....................110
:MEASUrement:MEAS<X>:MEAN ............................111
:MEASUrement:MEAS<X>:MINImum .....................111
:MEASUrement:MEAS<X>:STDdev ..........................112
:MEASUrement:STATIstics:MODe ...........................113
:MEASUrement:STATIstics:WEIghting .....................113
:MEASUrement:STATIstics .......................................113
Reference
:REF<X>:DISPlay ........................................................114
:REF<X>:TIMebase:POSition ....................................114
:REF<X>:TIMebase:SCALe ........................................115
:REF<X>:OFFSet ........................................................115
:REF<x>:SCALe ..........................................................116
Run
:RUN ..........................................................................117
23
MSO-2000E/2000EA Programming Manual
Stop
:STOP ......................................................................... 117
Single
:SINGle ...................................................................... 117
Force
:FORCe ....................................................................... 118
Timebase
:TIMebase:EXPand .................................................... 119
:TIMebase:POSition .................................................. 119
:TIMebase:SCALe ...................................................... 119
:TIMebase:MODe ...................................................... 120
:TIMebase:WINDow:POSition .................................. 120
:TIMebase:WINDow:SCALe ...................................... 121
Trigger
:TRIGger:FREQuency ................................................. 124
:TRIGger:TYPe ........................................................... 124
:TRIGger:SOURce ...................................................... 125
:TRIGger:COUPle....................................................... 125
:TRIGger:NREJ ........................................................... 126
:TRIGger:MODe ......................................................... 126
:TRIGger:HOLDoff..................................................... 126
:TRIGger:LEVel........................................................... 127
:TRIGger:HLEVel ....................................................... 127
:TRIGger:LLEVel ......................................................... 128
:TRIGger:EDGe:SLOP ................................................ 128
:TRIGger:DELay:SLOP ............................................... 128
:TRIGger:DELay:TYPe ................................................ 129
:TRIGger:DELay:TIMe ................................................ 129
:TRIGger:DELay:EVENt.............................................. 130
:TRIGger:DELay:LEVel ............................................... 130
:TRIGger:PULSEWidth:POLarity ............................... 130
:TRIGger:RUNT:POLarity .......................................... 131
:TRIGger:RUNT:WHEn .............................................. 131
:TRIGger:RUNT:TIMe ................................................ 132
:TRIGger:RISEFall:SLOP ............................................ 132
:TRIGger:RISEFall:WHEn .......................................... 132
24
COMMAND OVERVIEW
:TRIGger:RISEFall:TIMe .............................................133
:TRIGger:VIDeo:TYPe ................................................134
:TRIGger:VIDeo:FIELd ...............................................134
:TRIGger:VIDeo:LINe .................................................135
:TRIGger:VIDeo:POLarity ..........................................135
:TRIGger:PULSe:WHEn .............................................135
:TRIGger:PULSe:TIMe ...............................................136
:TRIGger:TIMEOut:WHEn .........................................136
:TRIGger:TIMEOut:TIMER ........................................137
:TRIGger:ALTernate ...................................................137
:TRIGger:STATe .........................................................138
:TRIGger:EXTERnal:PROBe:TYPe ..............................138
:TRIGger:EXTERnal:PROBe:RATio ............................139
:TRIGger:BUS:TYPe ...................................................139
:TRIGger:BUS:THReshold:CH<x> .............................140
:TRIGger:BUS:B1:I2C:CONDition .............................140
:TRIGger:BUS:B1:I2C:ADDRess:MODe ....................141
:TRIGger:BUS:B1:I2C:ADDRess:TYPe .......................141
:TRIGger:BUS:B1:I2C:ADDRess:VALue ....................142
:TRIGger:BUS:B1:I2C:ADDRess:DIRection ...............142
:TRIGger:BUS:B1:I2C:DATa:SIZe ..............................143
:TRIGger:BUS:B1:I2C:DATa:VALue ...........................143
:TRIGger:BUS:B1:UART:CONDition .........................144
:TRIGger:BUS:B1:UART:RX:DATa:SIZe ....................145
:TRIGger:BUS:B1:UART:RX:DATa:VALue .................145
:TRIGger:BUS:B1:UART:TX:DATa:SIZe .....................146
:TRIGger:BUS:B1:UART:TX:DATa:VALue .................146
:TRIGger:BUS:B1:SPI:CONDition .............................147
:TRIGger:BUS:B1:SPI:DATa:SIZe ..............................148
:TRIGger:BUS:B1:SPI:DATa:MISO:VALue ................148
:TRIGger:BUS:B1:SPI:DATa:MOSI:VALue ................149
:TRIGger:BUS:B1:CAN:CONDition ...........................150
:TRIGger:BUS:B1:CAN:FRAMEtype ..........................150
:TRIGger:BUS:B1:CAN:IDentifier:MODe ..................151
:TRIGger:BUS:B1:CAN:IDentifier:VALue ..................151
25
MSO-2000E/2000EA Programming Manual
:TRIGger:BUS:B1:CAN:IDentifier:DIRection ............ 152
:TRIGger:BUS:B1:CAN:DATa:QUALifier ................... 152
:TRIGger:BUS:B1:CAN:DATa:SIZe ............................ 153
:TRIGger:BUS:B1:CAN:DATa:VALue ......................... 154
:TRIGger:BUS:B1:LIN:CONDition ............................ 154
:TRIGger:BUS:B1:LIN:DATa:QUALifier .................... 155
:TRIGger:BUS:B1:LIN:DATa:SIZe ............................. 156
:TRIGger:BUS:B1:LIN:DATa:VALue .......................... 156
:TRIGger:BUS:B1:LIN:ERRTYPE ................................ 157
:TRIGger:BUS:B1:LIN:IDentifier:VALue .................... 158
:TRIGger:LOGic:INPut:CLOCK:SOURce................... 158
:TRIGger:LOGic:INPut:CLOCK:EDGe ....................... 159
:TRIGger:LOGic:FUNCtion ....................................... 159
:TRIGger:LOGic:PATtern ........................................... 160
:TRIGger:LOGic:PATtern:INPut:D<x> ...................... 160
:TRIGger:LOGic:PATtern:DELTatime........................ 161
:TRIGger:LOGic:PATtern:WHEn ............................... 161
System
commands
:SYSTem:LOCK .......................................................... 163
:SYSTem:ERRor ......................................................... 163
Save/Recall
:RECAll:SETUp ........................................................... 164
:RECAll:WAVEform .................................................... 164
:SAVe:IMAGe ............................................................. 165
:SAVe:IMAGe:FILEFormat ......................................... 165
:SAVe:IMAGe:INKSaver ............................................. 166
:SAVe:SETUp ............................................................. 166
:SAVe:WAVEform ....................................................... 167
:SAVe:WAVEform:FILEFormat .................................. 168
Ethernet
Commands
:ETHERnet:DHCP ...................................................... 169
Time Commands
:DATe ......................................................................... 170
Bus Decode
Commands
:BUS1 ......................................................................... 172
:BUS1:STATE ............................................................. 172
26
COMMAND OVERVIEW
:BUS1:TYPe ................................................................172
:BUS1:INPut ...............................................................173
:BUS1:I2C:ADDRess:RWINClude ..............................173
:BUS1:I2C:SCLK:SOURce ..........................................174
:BUS1:I2C:SDA:SOURce ............................................174
:BUS1:UART:BITRate .................................................174
:BUS1:UART:DATABits ..............................................175
:BUS1:UART:PARIty ...................................................175
:BUS1:UART:PACKEt .................................................175
:BUS1:UART:EOFPAcket ...........................................176
:BUS1:UART:TX:SOURce ..........................................176
:BUS1:UART:RX:SOURce ..........................................177
:BUS1:SPI:SCLK:POLARity ........................................177
:BUS1:SPI:SS:POLARity .............................................177
:BUS1:SPI:WORDSize ...............................................178
:BUS1:SPI:BITORder .................................................178
:BUS1:SPI:SCLK:SOURce ..........................................178
:BUS1:SPI:SS:SOURce ...............................................179
:BUS1:SPI:MOSI:SOURce .........................................179
:BUS1:SPI:MISO:SOURce .........................................179
:BUS1:DISplay:FORMAt ............................................180
:LISTer:DATA .............................................................180
:BUS1:CAN:SOURce ..................................................181
:BUS1:CAN:PROBe ....................................................181
:BUS1:CAN:SAMPLEpoint .........................................181
:BUS1:CAN:BITRate ...................................................182
:BUS1:LIN:BITRate ....................................................183
:BUS1:LIN:IDFORmat ...............................................183
:BUS1:LIN:POLARity..................................................183
:BUS1:LIN:SAMPLEpoint ..........................................183
:BUS1:LIN:SOURce ...................................................184
:BUS1:LIN:STANDard ...............................................184
Mark Commands
:MARK ........................................................................185
:MARK:CREATE ..........................................................185
27
MSO-2000E/2000EA Programming Manual
:MARK:DELEte ........................................................... 186
Search
Commands
:SEARCH:COPY ......................................................... 188
:SEARCH:STATE ........................................................ 189
:SEARCH:TOTAL ....................................................... 189
:SEARCH:TRIGger:TYPe ............................................ 189
:SEARCH:TRIGger:SOURce....................................... 190
:SEARCH:TRIGger:EDGE:SLOP ................................ 190
:SEARCH:TRIGger:LEVel ........................................... 191
:SEARCH:TRIGger:HLEVel ........................................ 191
:SEARCH:TRIGger:LLEVel ......................................... 192
:SEARCH:TRIGger:PULSEWidth:POLarity ................ 192
:SEARCH:TRIGger:RUNT:POLarity ........................... 193
:SEARCH:TRIGger:RISEFall:SLOP ............................ 193
:SEARCH:TRIGger:PULSe:WHEn .............................. 194
:SEARCH:TRIGger:PULSe:TIMe ................................ 194
:SEARCH:TRIGger:RUNT:WHEn .............................. 195
:SEARCH:TRIGger:RUNT:TIMe ................................ 195
:SEARCH:TRIGger:RISEFall:WHEn ........................... 196
:SEARCH:TRIGger:RISEFall:TIMe ............................. 196
:SEARCH:TRIGger:BUS:TYPe .................................... 197
:SEARCH:TRIGger:BUS:B1:I2C:CONDition ............. 197
:SEARCH:TRIGger:BUS:B1:I2C:ADDRess:MODe .... 198
:SEARCH:TRIGger:BUS:B1:I2C:ADDRess:TYPe ....... 198
:SEARCH:TRIGger:BUS:B1:I2C:ADDRess:VALue ..... 199
:SEARCH:TRIGger:BUS:B1:I2C:ADDRess:DIRection200
:SEARCH:TRIGger:BUS:B1:I2C:DATa:SIZe .............. 200
:SEARCH:TRIGger:BUS:B1:I2C:DATa:VALue ........... 201
:SEARCH:TRIGger:BUS:B1:UART:CONDition.......... 202
:SEARCH:TRIGger:BUS:B1:UART:RX:DATa:SIZe ..... 203
:SEARCH:TRIGger:BUS:B1:UART:RX:DATa:VALue .. 203
:SEARCH:TRIGger:BUS:B1:UART:TX:DATa:SIZe ..... 204
:SEARCH:TRIGger:BUS:B1:UART:TX:DATa:VALue .. 204
:SEARCH:TRIGger:BUS:B1:SPI:CONDition .............. 205
:SEARCH:TRIGger:BUS:B1:SPI:DATa:SIZe ............... 206
28
COMMAND OVERVIEW
:SEARCH:TRIGger:BUS:B1:SPI:DATa:MISO:VALue .206
:SEARCH:TRIGger:BUS:B1:SPI:DATa:MOSI:VALue .207
:SEARCH:TRIGger:BUS:B1:CAN:CONDition ...........208
:SEARCH:TRIGger:BUS:B1:CAN:FRAMEtype ...........209
SEARCH:TRIGger:BUS:B1:CAN:IDentifier:MODe ...209
:SEARCH:TRIGger:BUS:B1:CAN:IDentifier:VALue ...210
:SEARCH:TRIGger:BUS:B1:CAN:IDentifier:DIRection210
:SEARCH:TRIGger:BUS:B1:CAN:DATa:QUALifier ....211
:SEARCH:TRIGger:BUS:B1:CAN:DATa:SIZe ............212
:SEARCH:TRIGger:BUS:B1:CAN:DATa:VALue .........212
:SEARCH:TRIGger:BUS:B1:LIN:CONDition .............213
:SEARCH:TRIGger:BUS:B1:LIN:DATa:QUALifier .....214
:SEARCH:TRIGger:BUS:B1:LIN:DATa:SIZe ..............215
:SEARCH:TRIGger:BUS:B1:LIN:DATa:VALue ...........215
:SEARCH:TRIGger:BUS:B1:LIN:ERRTYPE ................216
:SEARCH:TRIGger:BUS:B1:LIN:IDentifier:VALue .....217
:SEARCH:FFTPeak:METHod .....................................217
:SEARCH:FFTPeak:METHod:MPEak .........................218
:SEARCH:FFTPeak:SINFo ..........................................219
Digital
Commands
:D<x>:DISPlay ............................................................220
:D<x>:POSition ..........................................................220
:DISPlay:DIGital:HEIght ............................................221
:DIGital:GROUP<x>:THReshold ...............................221
:DIGital:ANAlog:A<x>:DISPlay ..................................222
:DIGital:ANAlog:A<x>:RATio .....................................223
:DIGital:ANAlog:A<x>:POSition ................................223
:D<x>:MEMory ...........................................................223
:DIGital:MEMory........................................................225
Label Commands
:CHANnel<X>:LABel ..................................................228
:CHANnel<X>:LABel:DISPlay ....................................229
:REF<X>:LABel ...........................................................229
:REF<X>:LABel:DISPlay .............................................230
:BUS1:LABel ...............................................................231
29
MSO-2000E/2000EA Programming Manual
:BUS1:LABel:DISPlay ................................................. 231
:D<x>:LABel ............................................................... 232
:D<x>:LABel:DISPlay ................................................. 233
:DIGital:ANAlog:A<x>:LABel ..................................... 233
:DIGital:ANAlog:A<x>:LABel:DISPlay ....................... 234
:SET<X>:LABel ........................................................... 235
Segment
Commands
:SEGMents:STATE ..................................................... 236
:SEGMents:CURRent ................................................. 237
:SEGMents:TOTalnum .............................................. 237
:SEGMents:TIMe ....................................................... 238
:SEGMents:DISPALL ................................................. 238
:SEGMents:MEASure:MODe .................................... 238
:SEGMents:MEASure:PLOT:SOURce ....................... 239
:SEGMents:MEASure:PLOT:DIVide .......................... 239
:SEGMents:MEASure:PLOT:SELect .......................... 240
:SEGMents:MEASure:PLOT:RESults ........................ 240
:SEGMents:MEASure:TABle:SOURce ....................... 241
:SEGMents:MEASure:TABle:SELect .......................... 241
:SEGMents:MEASure:TABle:LIST ............................. 242
:SEGMents:MEASure:TABle:SAVe ............................ 242
:SEGMents:SAVe ....................................................... 242
:SEGMents:SAVe:SOURce ........................................ 243
:SEGMents:SAVe:SELect:STARt ................................ 243
:SEGMents:SAVe:SELect:END .................................. 244
DVM Commands
:DVM:STATE .............................................................. 245
:DVM:SOURce ........................................................... 245
:DVM:MODe .............................................................. 246
:DVM:VALue .............................................................. 246
Go-NoGo
Commands
:GONogo:CLEar ......................................................... 247
:GONogo:EXECute .................................................... 247
:GONogo:FUNCtion .................................................. 248
:GONogo:NGCount .................................................. 248
30
COMMAND OVERVIEW
:GONogo:NGDefine ..................................................248
:GONogo:SOURce .....................................................249
:GONogo:VIOLation ..................................................249
:GONogo:SCRipt .......................................................249
:TEMPlate:MODe ......................................................250
:TEMPlate:MAXimum ................................................250
:TEMPlate:MINimum ................................................250
:TEMPlate:POSition:MAXimum ................................251
:TEMPlate:POSition:MINimum ................................251
:TEMPlate:SAVe:MAXimum ......................................251
:TEMPlate:SAVe:MINimum ......................................252
:TEMPlate:TOLerance ................................................252
:TEMPlate:SAVe:AUTo ...............................................252
AWG Commands
:AWG<x>:AMPlitude ..................................................254
:AWG<x>:FREQuency ................................................254
:AWG<x>:FUNCtion ..................................................255
:AWG<x>:OFFSet .......................................................256
:AWG<x>:OUTPut:LOAd:IMPEDance.......................256
:AWG<x>:OUTPut:STATE ..........................................256
:AWG<x>:PHAse ........................................................257
:AWG<x>:PULSe:DUTYcycle .....................................257
:AWG<x>:RAMP:SYMmetry ......................................257
:AWG<x>:MODulation:STATE ..................................258
:AWG<x>:MODulation:TYPe .....................................258
:AWG<x>:MODulation:AM:DEPth ............................258
:AWG<x>:MODulation:AM:FREQ .............................259
:AWG<x>:MODulation:AM:SHApe ...........................259
:AWG<x>:MODulation:AM:PHAse ...........................259
:AWG<x>:MODulation:AM:DUTYcycle.....................260
:AWG<x>:MODulation:AM:SYMmetry .....................260
:AWG<x>:MODulation:AM:RATE .............................260
:AWG<x>:MODulation:FM:DEV ...............................261
:AWG<x>:MODulation:FM:FREQ .............................261
:AWG<x>:MODulation:FM:SHApe ...........................262
31
MSO-2000E/2000EA Programming Manual
:AWG<x>:MODulation:FM:PHAse ........................... 262
:AWG<x>:MODulation:FM:DUTYcycle ..................... 263
:AWG<x>:MODulation:FM:SYMmetry ..................... 263
:AWG<x>:MODulation:FM:RATE .............................. 263
:AWG<x>:MODulation:FSK:FREQ ............................ 264
:AWG<x>:MODulation:FSK:RATE ............................. 264
:AWG<x>:SWEep:STATE ........................................... 265
:AWG<x>:SWEep:TYPe .............................................. 265
:AWG<x>:SWEep:START ........................................... 265
:AWG<x>:SWEep:STOP ............................................. 266
:AWG<x>:SWEep:TIMe.............................................. 266
:AWG<x>:SWEep:SPAN ............................................ 266
:AWG<x>:SWEep:CENTer ......................................... 267
:AWG<x>:ARBitrary:EDIT:NUMPOINt ..................... 267
:AWG<x>:ARBitrary:EDIT:FUNCtion ........................ 267
:AWG<x>:ARBitrary:SAVe:WAVEform ....................... 268
:AWG<x>:ARBitrary:LOAd:WAVEform ...................... 268
:AWG<x>:ARBitrary:EDIT:COPY ............................... 269
:AWG<x>:ARBitrary:EDIT:CLEar ............................... 269
:AWG<x>:ARBitrary:EDIT:LINe ................................. 270
:AWG<x>:ARBitrary:EDIT:SCALe .............................. 270
:AWG<x>:ARBitrary:EDIT:POINt............................... 270
:AWG<x>:ARBitrary:EDIT:POINt:ADD...................... 271
:AWG<x>:ARBitrary:EDIT:POINt:DELEte ................. 271
Data Logging
Commands
:DATALOG:STATE ..................................................... 272
:DATALOG:SOURce .................................................. 272
:DATALOG:SAVe ....................................................... 273
:DATALOG:INTerval .................................................. 273
:DATALOG:DURation ................................................ 274
Remote Disk
Commands
:REMOTEDisk:IPADDress ......................................... 275
:REMOTEDisk:PATHName ....................................... 275
:REMOTEDisk:USERName ....................................... 275
:REMOTEDisk:PASSWord ......................................... 276
32
COMMAND OVERVIEW
:REMOTEDisk:MOUNT.............................................276
:REMOTEDisk:AUTOMount......................................277
33
MSO-2000E/2000EA Programming Manual
Common Commands ............................... 36
Acquisition Commands ............................ 42
Autoscale Commands .............................. 49
Vertical Commands .................................. 50
Math Commands ..................................... 56
Cursor Commands ................................... 65
Display Commands .................................. 75
Hardcopy Commands ............................... 79
Measure Commands ................................ 82
Measurement Commands ...................... 107
Reference Commands ............................ 114
Run Command ....................................... 117
Stop Command ...................................... 117
Single Command .................................... 117
Force Command ..................................... 118
Timebase Commands ............................. 119
Trigger Commands ................................. 122
System Commands ................................ 163
Save/Recall Commands .......................... 164
Ethernet Commands .............................. 169
Time Commands .................................... 170
Bus Decode Commands ......................... 171
Mark Commands .................................... 185
Search Commands ................................. 187
COMMAND DETAILS
The Command details chapter shows the detailed
syntax, equivalent panel operation, and example
for each command. For the list of all commands,
see page19.
34
COMMAND DETAILS
Digital Commands .................................. 220
Label Commands .................................... 228
Segment Commands ............................... 236
DVM Commands ..................................... 245
Go_NoGo Commands ............................. 247
AWG Commands ..................................... 253
Data Logging Commands ........................ 272
Remote Disk Commands ......................... 275
35
MSO-2000E/2000EA Programming Manual
*IDN? ........................................................................... 36
*LRN? .......................................................................... 36
*SAV ............................................................................. 37
*RCL ............................................................................. 37
*RST ............................................................................. 38
*CLS ............................................................................. 38
*ESE ............................................................................. 38
*ESR ............................................................................. 39
*OPC ............................................................................ 39
*SRE ............................................................................. 40
*STB ............................................................................. 40
*IDN?
Description
Returns the manufacturer, model, serial number
and version number of the unit.
Syntax
*IDN?
Example
*IDN?
GW,MSO-2074E,PXXXXXX,V1.XX
*LRN?
Description
Returns the oscilloscope settings as a data string.
Syntax
*LRN?
Example
*LRN?
:DISPlay:WAVEform VECTOR;PERSistence 2.400E-01;
INTensity:WAVEform 50;INTensity:GRATicule
50;GRATicule FULL;:CHANnel CH1:DISPlay
ON;BWLimit FULL;COUPling DC;INVert
OFF;POSition -1.600E+00;PROBe:RATio
Query
Query
Common Commands
36
COMMAND DETAILS
1.000e+01;PROBe:TYPe VOLTAGE;SCALe 2.000E+
01;IMPedance 1E+6;EXPand GROUND;:CHANnel
CH2:DISPlay ON;BWLimit FULL;COUPling DC;INVert
OFF;POSition 0.000E+00;PROBe:RATio
1.000e+01;PROBe:TYPe VOLTAGE;SCALe
2.000E+00;IMPedance 1E+6;EXPand
GROUND;:CHANnel CH3:DISPlay OFF;BWLimit
FULL;COUPling DC;INVert OFF;POSition
0.000E+00;PROBe:RATio 1.000e+01;PROBe:TYPe
VOLTAGE;SCALe 1.000E+00;IMPedance 1E+6;EXPand
GROUND;:CHANnel CH4:DISPlay OFF;BWLimit
FULL;COUPling DC;INVert OFF;POSition
0.000E+00;PROBe:RATio 1.000e+01;PROBe:TYPe
VOLTAGE;SCALe 1.000E+00;IMPedance 1E+6;EXPand
GROUND;:MATH:TYPe FFT;DISP
OFF;DUAL:SOURce1 CH1;SOURce2 CH2;OPERator
MUL;POSition 0.000E+00;SCALe ?;FFT:SOURce
CH1;MAG DB;WINDow HANNING;POSition 2.800E01;SCALe 2.000E+01;MATH:ADVanced:OPERator
DIFF;ADVanced:SOURce CH1;ADVanced:EDIT:
SOURce1 CH1;ADVanced:EDIT:S
*SAV
Description
Saves the current panel settings to the selected
memory number( setup 1 ~ 20).
Syntax
*SAV {1 | 2 | 3 |…. | 20}
Example
*SAV 1
Saves the current panel settings to Set 1.
*RCL
Description
Recalls a set of panel settings.
Syntax
*RCL {1 | 2 | 3 |…. | 20}
Example
*RCL 1
Recalls the selected setup from Set 1.
Set
Set
37
MSO-2000E/2000EA Programming Manual
*RST
Description
Resets the MSO-2000E/2000EA (recalls the default
panel settings).
Syntax
*RST
*CLS
Description
Clears the error queue.
Syntax
*CLS
*ESE
Description
Sets or queries the Standard Event Status Enable
register.
Syntax
Query Syntax
*ESE <NR1>
*ESE?
Return parameter
<NR1>
0~255
Bit Weight
Bit#
Weight
Event
Description
0 1 OPC
Operation Complete Bit
1 2 RQC
Not used
2 4 QYE
Query Error
3 8 DDE
Device Error
4
16
EXE
Execution Error
5
32
CME
Command Error
6
64
URQ
User Request
7
128
PON
Power On
Example
*ESE?
>4
Indicates that there is a query error.
Set
Set
Set
Query
38
COMMAND DETAILS
*ESR
Description
Queries the Standard Event Status (Event) register.
The Event Status register is cleared after it is read.
Query Syntax
*ESR?
Return parameter
<NR1>
0~255
Bit Weight
Bit#
Weight
Event
Description
0 1 OPC
Operation Complete Bit
1 2 RQC
Not used
2 4 QYE
Query Error
3 8 DDE
Device Error
4
16
EXE
Execution Error
5
32
CME
Command Error
6
64
URQ
User Request
7
128
PON
Power On
Example
*ESR?
>4
Indicates that there is a query error.
*OPC
Description
The *OPC command sets the OPC bit (bit0) of the
Standard Event Status Register when all current
commands have been processed.
The *OPC? Query returns 1 when all the
outstanding commands have completed.
Syntax
Query Syntax
*OPC
*OPC?
Return parameter
1
Returns 1 when all the outstanding
commands have completed.
Query
Set
Query
39
MSO-2000E/2000EA Programming Manual
*SRE
Description
Sets or queries the Service Request Enable register.
The Service Request Enable register determines
which registers of the Status Byte register are able
to generate service requests.
Syntax
Query Syntax
*SRE <NR1>
*SRE?
Parameter/
Return parameter
<NR1>
0~255
Bit Weight
Bit#
Weight
Event
Description
0 1
Not used
1 2
Not used
2 4
Not used
3 8
Not used
4
16
MAV
Message Available Bit
5
32
ESB
Event Status Bit
6
64
MSS
Master Summary Bit
6
64
RQS
Request Service Bit
7
128 Not used
Example
*SRE?
>48
Indicates that the MAVB and ESB bit are both set.
*STB
Description
Queries the bit sum of the Status Byte register with
MSS (Master summary Status) replacing the RQS
bit (bit 6).
Query Syntax
*STB?
Return parameter
<NR1>
0 ~ 255
Set
Query
Query
40
COMMAND DETAILS
Bit Weight
Bit#
Weight
Event
Description
0 1
Not used
1 2
Not used
2 4
Not used
3 8
Not used
4
16
MAV
Message Available Bit
5
32
ESB
Event Status Bit
6
64
MSS
Master Summary Bit
6
64
RQS
Request Service Bit
7
128 Not used
Example
*STB?
>16
Indicates that the MAV bit is set.
41
MSO-2000E/2000EA Programming Manual
:ACQuire:AVERage ...................................................... 42
:ACQuire:MODe .......................................................... 43
:ACQuire<X>:MEMory? ............................................... 43
:ACQuire:FILTer:SOURce ............................................ 45
:ACQuire:FILTer ........................................................... 46
:ACQuire:FILTer:FREQuency ....................................... 46
:ACQuire:FILTer:TRACking .......................................... 46
:ACQuire<X>:STATe? .................................................. 47
:ACQuire:INTERpolation ............................................. 47
:ACQuire:RECOrdlength .............................................. 47
:HEADer ....................................................................... 48
:ACQuire:AVERage
Description
Selects or returns the number of waveform
acquisitions that are averaged in the average
acquisition mode.
Syntax
:ACQuire:AVERage {<NR1>| ?}
Related
Commands
:ACQuire:MODe
Parameter
<NR1>
2, 4, 8 ,16, 32, 64, 128, 256
Note
Before using this command, select the average
acquisition mode. See the example below.
Example
:ACQuire:MODe AVERage
:ACQuire:AVERage 2
Selects the average acquisition mode, and sets the
average number to 2.
Set
Query
Acquisition Commands
42
COMMAND DETAILS
:ACQuire:MODe
Description
Selects or returns the acquisition mode.
Syntax
:ACQuire:MODe {SAMPle | PDETect | AVERage | ?}
Related
Commands
:ACQuire:AVERage
Parameter
SAMPle
Sample mode sampling
PDETect
Peak detect sampling
AVERage
Average sampling mode
Example
:ACQuire:MODe PDETect
Sets the sampling mode to peak detection.
:ACQuire<X>:MEMory?
Description
Returns the data in acquisition memory for the
selected channel as a header + raw data.
Syntax
:ACQuire<X>:MEMory?
Related
Commands
:ACQuire:RECOrdlength
:HEADer
Parameter
<X>
Channel number (1 to 4)
Return parameter
<string>
<waveform
block data>
Returns acquisition settings followed
by raw waveform block data.
<string>
Returns the acquisition settings for the
selected channel.
Format:
parameter(1),setting(1);parameter(2),se
tting(2)…parameter(n),setting(n);Wav
eform Data;
<waveform block data>
Header followed by the raw waveform
data.
Set
Query
Query
43
MSO-2000E/2000EA Programming Manual
Format:
Header: The header (in ASCII)
encodes the number of bytes for the
header followed by the number of
data points in bytes for the raw data.
#42000
Header identifier
Indicates the number
of characters that will
encode the number of
data points (ie. 2000
= 4 characters) after
which the raw data
will follow.
Indicates the number
of bytes that follow
(for the raw data).
ASCII
Raw Data:
Each two bytes (in hex) encodes the
vertical data of a data point. The data
is signed hex data (2’s complement, 32768 ~ 32767).
Waveform Raw Data Example:
Header raw data……….
Hex:
23 34 32 30 30 30 00 1C 00 1B 00 1A 00
1A 00 1B ………..
ASCII/Decimal:
#42000 28 27 26 26 27…….
The actual value of a data point can be
calculated with the following formula:
(Decimal value of hex data/AD
Factor) * vertical scale.
Note: AD Factor is fixed as 25. The
vertical scale is returned with the
44
COMMAND DETAILS
acquisition settings that precede the
raw data.
For example if the raw data for a point
is 001C (=28 decimal) then,
(28/25) x 0.5 = 0.56V
Example
:ACQuire1:MEMory?
Format,2.0E;Memory Length,10000;IntpDistance,0;
Trigger Address,4999;Trigger Level,1.160E+01;
Source,CH1;Vertical Units,V;Vertical Units
Div,0;Vertical Units Extend
Div,15;Label,ACK ;Probe Type,0;Probe
Ratio,1.000e+01;Vertical Scale,5.000e+00;Vertical
Position,-1.100e+01;Horizontal Units,S;Horizontal
Scale,5.000E-04;Horizontal Position,0.000E+00;
Horizontal Mode,Main;SincET Mode,Real
Time;Sampling Period,5.000e-07;Horizontal Old
Scale,5.000E-04;Horizontal Old Position,0.000E+00;
Firmware,V0.99b8;Time,02-Oct-14 17:00:43;
Waveform Data;
#520000………………..follows waveform block
data in hex…………………..
:ACQuire:FILTer:SOURce
Description
Returns the source of the filter.
Syntax
:ACQuire:FILTer:SOURce {CH1|CH2|CH3|CH4|?}
Parameter/
Return parameter
CH1 ~ CH4
Source channel
Example
:ACQuire:FILTer:SOURce?
CH1
Sets the filter source to CH1.
Set
Query
45
MSO-2000E/2000EA Programming Manual
:ACQuire:FILTer
Description
Turns the filter on/off or queries its status.
Syntax
:ACQuire:FILTer {ON|OFF|?}
Parameter/
Return parameter
ON
Filter on.
OFF
Filter off.
Example
:ACQuire:FILTer?
OFF
Indicates that the filter is turned off.
:ACQuire:FILTer:FREQuency
Description
Sets or queries the filter frequency.
Syntax
:ACQuire:FILTer:FREQuency {DEFault|<NRf>|?}
Parameter/
Return parameter
DEFault
Sets the filter frequency to the default.
<NRf>
Manually sets the filter frequency.
(1Hz ~ 500MHz)
Example
:ACQuire:FILTer:FREQuency 1
Sets the filter frequency to 1Hz.
:ACQuire:FILTer:TRACking
Description
Turns filter tracking on/off or queries its state.
Syntax
:ACQuire:FILTer:TRACking {ON|OFF|?}
Parameter/
Return parameter
OFF
Tracking off
ON
Tracking on
Example
:ACQuire:FILTer:TRACking ON
Turns filter tracking on.
Set
Query
Set
Query
Set
Query
46
COMMAND DETAILS
:ACQuire<X>:STATe?
Description
Returns the status of waveform data.
Syntax
:ACQuire<X>:STATe?
Parameter
<X>
Channel number (1 to 4)
Return parameter
0
Raw data is not ready
1
Raw data is ready
Example
:ACQuire1:STATe?
0
Returns 0. Channel 1’s raw data is not ready.
Note: If the oscilloscope changes the acquisition status
from STOP to RUN, the status will be reset as zero.
:ACQuire:INTERpolation
Description
Selects or returns the interpolation mode.
Syntax
:ACQuire:INTERpolation {ET | SINC | ?}
Parameter/Return
parameter
ET
Equivalent Time interpolation. The MSO2000E/2000EA doesn’t support ET.
SINC
Sets to SIN(X)/X interpolation
Example
:ACQuire:INTERpolation?
>SINC
Returns SINC as the interpolation mode.
:ACQuire:RECOrdlength
Description
Sets or queries the record length.
Syntax
:ACQuire:RECOrdlength {<NRf>| ?}
Parameter/Return
parameter
<NRf>
Record length. Settable record length:
(1e+3 | 1e+4 | 1e+5 | 1e+6 | 1e+7)
Query
Set
Query
Set
Query
47
MSO-2000E/2000EA Programming Manual
Example
:ACQuire:RECOrdlength 1e+3
Sets the record length to 1000 points.
:HEADer
Description
Configures whether the returned data of
the :ACQuire:MEM query will contain header
information or not. It is set to ON by default.
Syntax
:HEADer {OFF | ON | ?}
Related
Commands
:ACQuire<X>:MEMory?
Parameter
ON
Add header information.
OFF
Don’t add header information.
Return parameter
Returns the configuration (ON, OFF) for the selected
channel.
Example
:HEADer ON
Set
Query
48
COMMAND DETAILS
:AUTOSet .....................................................................49
:AUTORSET:MODe .....................................................49
:AUTOSet
Description
Runs the Autoset function to automatically
configure the horizontal scale, vertical scale, and
trigger according to the input signal.
Syntax
:AUTOSet
:AUTORSET:MODe
Description
Sets the Autoset mode or queries its state.
Syntax
:AUTORSET:MODe {FITScreen | ACPriority | ?}
Related
Commands
:AUTOSet
Parameter/Return
parameter
FITScreen
Fit Screen mode
ACPriority
AC priority mode
Example
:AUTORSET?
FITSCREEN
Set
Set
Query
Autoscale Commands
49
MSO-2000E/2000EA Programming Manual
:CHANnel<X>:BWLimit ............................................... 50
:CHANnel<X>:COUPling ............................................ 51
:CHANnel<X>:DESKew ............................................... 51
:CHANnel<X>:DISPlay ................................................ 51
:CHANnel<X>:EXPand ................................................ 52
:CHANnel<X>:IMPedance? ......................................... 52
:CHANnel<X>:INVert .................................................. 53
:CHANnel<X>:POSition .............................................. 53
:CHANnel<X>:PROBe:RATio ...................................... 54
:CHANnel<X>:PROBe:TYPe ........................................ 54
:CHANnel<X>:SCALe .................................................. 54
:CHANnel<X>:BWLimit
Description
Sets or returns the bandwidth limit on/off.
Syntax
:CHANnel<X>:BWLimit {FULL | <NR3> | ?}
Parameter
<X>
Channel 1,2,3,4
FULL
Full bandwidth
<NR3>
Sets the bandwidth limit to a pre-defined
bandwidth.
100E+6: 100MHz
20E+6: 20MHz
Return Parameter
<NR3>
Returns the bandwidth.
Full
Full bandwidth
Example
:CHANnel1:BWLimit 2.000E+07
Sets the channel 1 bandwidth to 20MHz.
Set
Query
Vertical Commands
50
COMMAND DETAILS
:CHANnel<X>:COUPling
Description
Selects or returns the coupling mode.
Syntax
CHANnel<X>:COUPling {AC | DC | GND | ?}
Parameter
<X>
Channel 1,2,3,4
AC
AC coupling
DC
DC coupling
GND
Ground coupling
Return parameter
Returns the coupling mode.
Example
:CHANnel1:COUPling DC
Sets the coupling to DC for Channel 1.
:CHANnel<X>:DESKew
Description
Sets the deskew time in seconds.
Syntax
:CHANnel<X>:DESKew { <NR3> | ?}
Parameter
<X>
Channel 1,2,3,4
<NR3>
Deskew time:
-5.00E -11 to 5.00E-11
-50ns to 50 ns. (10 ps /step)
Return parameter
<NR3>
Returns the deskew time.
Example
:CHANnel1:DESKew 1.300E-9
Sets the deskew time to 1.3 nano seconds.
:CHANnel<X>:DISPlay
Description
Turns a channel on/off or returns its status.
Syntax
:CHANnel<X>:DISPlay {OFF | ON | ?}
Parameter
<X>
Channel 1,2,3,4
OFF
Channel off
ON
Channel on
Set
Query
Set
Query
Set
Query
51
MSO-2000E/2000EA Programming Manual
Return Parameter
ON
Channel is on
OFF
Channel is off
Example
:CHANnel1:DISPlay ON
Turns on Channel 1
:CHANnel<X>:EXPand
Description
Sets Expand By Ground or Expand By Center for a
channel or queries its status.
Syntax
:CHANnel<X>:EXPand {GND | CENTer | ?}
Parameter
<X>
Channel 1,2,3,4
GND
Ground
CENTer
Center
Return parameter
GND
Expand By Ground
CENTER
Expand By Center
Example
:CHANnel1:EXPand GND
Sets Channel 1 to Expand By Ground.
:CHANnel<X>:IMPedance?
Description
Returns the impedance of the oscilloscope. (The
impedance of the MSO-2000E/2000EA is fixed at
1MΩ)
Syntax
:CHANnel<X>:IMPedance?
Parameter
<x>
Channel
1/2/3/4
CH1/2/3/4
Return parameter
<NR3>
Returns the impedance value.
Example
:CHANnel1:IMPedance?
1.000000E+06
The impedance is 1M ohms.
Set
Query
Query
52
COMMAND DETAILS
:CHANnel<X>:INVert
Description
Inverts a channel or returns its status.
Syntax
:CHANnel<X>:INVert {OFF | ON | ?}
Parameter
<X>
Channel 1, 2, 3, 4
OFF
Invert off
ON
Invert on
Return parameter
ON
Invert on
OFF
Invert off
Example
:CHANnel1:INVert ON
Inverts Channel 1
:CHANnel<X>:POSition
Description
Sets or returns the position level for a channel.
Note
The vertical position will only be set to closest
allowed value. The position level range depends
on the vertical scale.
The scale must first be set before the position can
be set.
Syntax
:CHANnel<X>:POSition { <NRf> | ?}
Parameter
<X>
Channel 1, 2, 3, 4
<NRf>
Position. Range depends on the vertical
scale.
Return parameter
<NR3>
Returns the position value.
Example 1
:CHANnel1:POSition 2.4E–3
Sets the Channel 1 position to 2.4mV/mA
Example 2
:CHANnel1:POSition?
2.4E-3
Returns 2.4mV as the vertical position.
Set
Query
Set
Query
53
MSO-2000E/2000EA Programming Manual
:CHANnel<X>:PROBe:RATio
Description
Sets or returns the probe attenuation factor.
Syntax
:CHANnel<X>:PROBe:RATio { <NRf> | ?}
Related
Commands
:CHANnel<X>:PROBe:TYPe
Parameter
<X>
Channel 1, 2, 3, 4
<NRf>
Probe attenuation factor
Return parameter
<NR3>
Returns the probe factor
Example
:CHANnel1:PROBe:RATio 1.00E+0
Sets the Channel 1 probe attenuation factor to 1x
:CHANnel<X>:PROBe:TYPe
Description
Sets or returns the probe type (voltage/current).
Syntax
:CHANnel<X>:PROBe:TYPe { VOLTage | CURRent | ?}
Related
Commands
:CHANnel<X>:PROBe:RATio
Parameter
<X>
Channel 1, 2, 3, 4
VOLTage
Voltage
CURRent
Current
Return parameter
Returns the probe type.
Example
:CHANnel1:PROBe:TYPe VOLTage
Sets the Channel 1 probe type to voltage.
:CHANnel<X>:SCALe
Description
Sets or returns the vertical scale. The scale depends
on the probe attenuation factor.
Note the probe attenuation factor should be set
before the scale.
Set
Query
Set
Query
Set
Query
54
COMMAND DETAILS
Syntax
:CHANnel<X>:SCALe { <NRf> | ?}
Parameter
<X>
Channel 1, 2, 3, 4
<NRf>
Vertical scale:
2e–3 to 1e+1
2mV to 10V (Probe x1)
Return parameter
<NR3>
Returns the vertical scale in volts or amps.
Example
:CHANnel1:SCAle 2.00E–2
Sets the Channel 1 vertical scale to 20mV/div
55
MSO-2000E/2000EA Programming Manual
:MATH:DISP ................................................................ 56
:MATH:TYPe ................................................................ 57
:MATH:DUAL:SOURce<X> ......................................... 57
:MATH:DUAL:OPERator ............................................. 57
:MATH:DUAL:POSition ............................................... 58
:MATH:DUAL:SCALe ................................................... 58
:MATH:FFT:SOURce ................................................... 59
:MATH:FFT:MAG ........................................................ 59
:MATH:FFT:WINDow .................................................. 59
:MATH:FFT:POSition .................................................. 60
:MATH:FFT:SCALe ...................................................... 60
:MATH:FFT:HORizontal:SCALe .................................. 61
MATH:FFT:HORizontal:POSition ............................... 61
:MATH:DEFine ............................................................ 61
MATHVAR? .................................................................. 62
MATHVAR:VAR<X> ..................................................... 63
:MATH:ADVanced:POSition ....................................... 63
:MATH:ADVanced:SCALe ........................................... 63
:MATH:DISP
Description
Turns the math display on or off on the screen.
Syntax
:MATH:DISP {OFF|ON|?}
Parameter/
Return parameter
OFF
Math is not displayed on screen
ON
Math is displayed on screen
Example
:MATH:DISP OFF
Math is off.
Set
Query
Math Commands
56
COMMAND DETAILS
:MATH:TYPe
Description
Queries or sets the Math type to FFT, Advanced
Math or to dual channel math operations
Syntax
:MATH:TYPe { DUAL | ADVanced | FFT | ? }
Related
Commands
:MATH:DISP
Parameter
DUAL
Dual channel operations
ADVanced
Advanced math operations
FFT
FFT operations
Return parameter
Returns the math type.
Example
:MATH:TYPe DUAL
Sets the Math type to dual channel math operation.
:MATH:DUAL:SOURce<X>
Description
Sets the dual math source for source 1 or 2.
Syntax
:MATH:DUAL:SOURce<X> { CH1 | CH2 | CH3 | CH4 |
REF1 | REF2 | REF3 | REF4 | ? }
Parameter
<X>
Source number 1 or 2
CH1~4
Channel 1 to 4
REF1~4
Reference waveforms 1 to 4
Return parameter
Returns the source for the source 1 or 2.
Example
:MATH:DUAL:SOURce1 CH1
Sets source1 as channel 1.
:MATH:DUAL:OPERator
Description
Sets the math operator for dual math operations.
Set
Query
Set
Query
Set
Query
57
MSO-2000E/2000EA Programming Manual
Syntax
:MATH:DUAL:OPERator {PLUS | MINUS | MUL|
DIV|?}
Parameter
PLUS
+ operator
MINUS
- operator
MUL
operator
DIV
÷ operator
Return parameter
Returns operator type.
Example
:MATH:DUAL:OPERator PLUS
Sets the math operator as plus (+).
:MATH:DUAL:POSition
Description
Sets the vertical position of the displayed math
result expressed by unit/division.
Syntax
:MATH:DUAL:POSition {<NRf> | ? }
Parameter
<NRf>
Vertical position
Depends on the vertical scale (Unit/Div)
Return parameter
<NR3>
Returns the vertical position.
Example
:MATH:DUAL:POSition 1.0E+0
Sets the vertical position to 1.00 unit/div.
:MATH:DUAL:SCALe
Description
Sets the vertical scale of the displayed math result.
Syntax
:MATH:DUAL:SCALe {<NRf> | ?}
Parameter
<NRf>
Vertical scale
Return parameter
<NR3>
Returns the scale.
Example
:MATH:DUAL:SCALe 2.0E-3
Sets the vertical scale to 2mV/2mA.
Set
Query
Set
Query
58
COMMAND DETAILS
:MATH:FFT:SOURce
Description
Sets and queries the FFT math source.
Syntax
:MATH:FFT:SOURce { CH1 | CH2 | CH3 | CH4 | REF1 |
REF2 | REF3 | REF4 | ? }
Related
commands
:MATH:ADVanced:EDIT:SOURce<X>
:MATH:ADVanced:EDIT:OPERator
Parameter
CH1~4
Channel 1 to 4
REF1~4
Reference waveform 1 to 4
Return parameter
Returns the FFT source.
Example
:MATH:FFT:SOURce CH1
Sets the FFT math source as channel 1.
:MATH:FFT:MAG
Description
Sets FFT vertical units as linear or decibels.
Syntax
:MATH:FFT:MAG {LINEAR | DB | ?}
Parameter
LINEAR
Linear units (Vrms)
DB
Logarithmic units (dB)
Return parameter
Returns the FFT vertical units.
Example
:MATH:FFT:MAG DB
Sets FFT vertical units to dB.
:MATH:FFT:WINDow
Description
Sets the windowing filter used for the FFT
function.
Syntax
:MATH:FFT:WINDow
{RECTangular|HAMming|HANning|BLAckman|?}
Parameter
RECTangular
Rectangular window
Set
Query
Set
Query
Set
Query
59
MSO-2000E/2000EA Programming Manual
HAMming
Hamming window
HANning
Hanning window
BLAckman
Blackman window
Return parameter
Returns the FFT window.
Example
:MATH:FFT:WINDow HAMming
Sets the FFT window filter to hamming.
:MATH:FFT:POSition
Description
Sets the vertical position of the displayed FFT
result.
Syntax
MATH:FFT:POSition { <NRf> | ? }
Parameter
<NRf>
Vertical position: -12e+0 to +12e+0
(12 units/division to +12 units/division.)
Return parameter
<NR3>
Returns the vertical position.
Example
:MATH:FFT:POSition -2e-1
Sets the FFT position to -0.2 divisions.
:MATH:FFT:SCALe
Description
Sets the vertical scale of the displayed FFT result.
Syntax
:MATH:FFT:SCALe {<NRf> | ?}
Parameter
<NRf>
Vertical scale:
Linear: 2e-3 to 1e+3 (2mV~1kV)
dB: 1e+0 to 2e+1 (1~20dB)
Return parameter
<NR3>
Returns vertical scale.
Example
:MATH:FFT:SCAle 1.0e+0
Sets the scale to 1dB.
Set
Query
Set
Query
60
COMMAND DETAILS
:MATH:FFT:HORizontal:SCALe
Description
Sets or queries the zoom scale for FFT math.
Syntax
:MATH:FFT:HORizonatal:SCALe {<NRf> | ?}
Parameter
<NRf>
Zoom scale: 1 to 20 times
Return parameter
<NR3>
Returns zoom scale.
Example
:MATH:FFT:HORizontal:SCALe 5
Sets the zoom scale to 5X.
MATH:FFT:HORizontal:POSition
Description
Sets the horizontal position of the displayed FFT
result.
Syntax
MATH:FFT:HORizontal:POSition { <NRf> | ? }
Parameter
<NRf>
Horizontal position: 0Hz ~ 999.9kHz
Return parameter
<NR3>
Returns the vertical position.
Example
:MATH:FFT:HORizontal:POSition 6.0e5
Sets the FFT horizontal position to 600kHz.
:MATH:DEFine
Description
Sets or queries the advanced math expression as a
string.
Syntax
:MATH:DEFine {<string>| ?}
Related
:MATH:DISP
:MATH:TYPe
Parameter
<string>
An expression enclosed in double
quotes. Note, ensure parentheses are
used correctly in the expression. The
expression can contain the following
parts:
Set
Query
Set
Query
Set
Query
61
MSO-2000E/2000EA Programming Manual
Source
CH1~CH4, Ref1~Ref4
Function
Intg(, Diff(, log(, ln(, Exp(,
Sqrt(, Abs(, Rad(, Deg(,
sin(, cos(, tan(, asin(,
acos(, atan(
Variable
VAR1, VAR2
Operator
+, -, *, /, (, ), !(, <, >, <=,
>=, ==, !=, ||, &&
Figure
0, 1, 2, 3, 4, 5, 6, 7, 8, 9, ., E
Measurement
Pk-Pk(, Max(, Min(, Amp(,
High(, Low(, Mean(,
CycleMean(, RMS(,
CycleRMS(, Area(,
CycleArea(, ROVShoot(,
FOVShoot(, Freq(, Period(,
Rise(, Fall(, PosWidth(,
NegWidth(, Dutycycle(,
FRR(, FRF(, FFR(, FFF(,
LRR(, LRF(, LFR(, LFF(,
Phase(
Return parameter
Returns the expression as a string.
Example
:MATH:DISP ON
:MATH:TYPe ADVanced
MATH:DEFine "CH1-CH2"
Sets the math expression to CH1-CH2.
MATHVAR?
Description
Returns the value of the VAR1 and VAR2
variables.
Syntax
MATHVAR?
Related
Commands
MATHVAR:VAR<X>
MATH:DEFine
Return parameter
<string>
VAR1 <NR3>; VAR2 <NR3>
Query
62
COMMAND DETAILS
Example
MATHVAR?
VAR1 1.000000E+06; VAR2 1.0E+1
Returns the value of both variables.
MATHVAR:VAR<X>
Description
Sets or returns the VAR1 or VAR2 variables.
Syntax
MATHVAR:VAR<x> {<NRf> | ?}
Related
Commands
MATH:DEFine
Parameter
<X>
1, 2 (VAR1 or VAR2)
<NRf>
Value of VAR1/VAR2
Return parameter
<NR3>
Returns the value of VAR1/VAR2
Example
:MATH:VAR1 6.0e4
Sets VAR1 to 60000.
:MATH:ADVanced:POSition
Description
Sets the vertical position of the advanced math
result, expressed in unit/div.
Syntax
MATH:ADVanced:POSition { <NRf> | ? }
Parameter
<NRf>
Vertical position: -12e+0 to +12e+0
(12 units/division to +12 units/division.)
Return parameter
<NR3>
Returns the vertical position.
Example
:MATH:ADVanced:POSition 1.0e+0
Sets the position as 1.00 unit/div.
:MATH:ADVanced:SCALe
Description
Sets or queries the vertical scale the advanced
math result.
Syntax
:MATH:ADVanced:SCALe {<NRf> | ?}
Set
Query
Set
Query
Set
Query
63
MSO-2000E/2000EA Programming Manual
Parameter
<NRf>
Vertical scale
Return parameter
<NR3>
Returns the vertical scale.
Example
:MATH:ADVanced:SCALe 2.0E-3
Sets the vertical scale to 2mV/Div.
64
COMMAND DETAILS
:CURSor:MODe ...........................................................66
:CURSor:SOURce .........................................................66
:CURSor:HUNI ............................................................67
:CURSor:HUSE ............................................................67
:CURSor:VUNI .............................................................68
:CURSor:VUSE .............................................................68
:CURSor:DDT ...............................................................68
:CURSor:H1Position ....................................................69
:CURSor:H2Position ....................................................69
:CURSor:HDELta .........................................................70
:CURSor:V1Position .....................................................70
:CURSor:V2Position .....................................................70
:CURSor:VDELta ..........................................................71
:CURSor:XY:RECTangular:X:POSition<X> ..................71
:CURSor:XY:RECTangular:X:DELta .............................71
:CURSor:XY:RECTangular:Y:POSition<X> ..................72
:CURSor:XY:RECTangular:Y:DELta .............................72
:CURSor:XY:POLar:RADIUS:POSition<X> ..................72
:CURSor:XY:POLar:RADIUS:DELta .............................73
:CURSor:XY:POLar:THETA:POSition<X> ...................73
:CURSor:XY:POLar:THETA:DELta ...............................73
:CURSor:XY:PRODuct:POSition<X> ...........................74
:CURSor:XY:PRODuct:DELta.......................................74
:CURSor:XY:RATio:POSition<X> .................................74
:CURSor:XY:RATio:DELta ............................................75
Cursor Commands
65
MSO-2000E/2000EA Programming Manual
:CURSor:MODe
Description
Sets cursor mode to horizontal (H) or horizontal
and vertical (HV).
Note: When the cursor source is set to bus, then
only the horizontal cursor is available.
Syntax
:CURSor:MODe {OFF | H | HV | ? }
Parameter
OFF
Turns the cursors off.
H Turns the horizontal cursors on.
HV
Turns horizontal and vertical cursors on.
Return parameter
Returns the state of the cursors (H, HV, OFF).
Example
:CURSor:MODe OFF
Turns the cursors off.
:CURSor:SOURce
Description
Sets or queries the cursor source.
Syntax
:CURSor:SOURce {CH1 | CH2 |CH3 | CH4 | REF1 |
REF2 | REF3 | REF4 | MATH | LOGic | BUS1 | ?}
Parameter
CH1~CH4
Channel 1 to 4
REF1~4
Reference waveform 1 to 4
MATH
Math source
LOGic
Logic source
BUS1
Bus source
Return parameter
Returns the cursor source.
Example
:CURSor:SOURce CH1
Turns the cursor source as channel 1.
Set
Query
Set
Query
66
COMMAND DETAILS
:CURSor:HUNI
Description
Sets or queries the units for the horizontal bar
cursors.
Syntax
:CURSor:HUNI {SEConds | HERtz | DEGrees |
PERcent | ?}
Related
Commands
:CURSor:MODe
Parameter
SEConds
Sets the cursor units to time in seconds.
HERtz
Sets the cursor units to frequency.
DEGrees
Sets the cursor units to degrees.
PERcent
Sets the cursor units to percent.
Return parameter
Returns the unit type.
Example
:CURSor:HUNI SEConds
Sets the units to time in seconds.
:CURSor:HUSE
Description
Sets the current cursor position as the phase or
ratio reference for the Percent or Degrees
(horizontal) cursors.
Note
This command can only be used when
:CURSor:HUNI is set to DEGrees or PERcent.
Syntax
:CURSor:HUSE {CURRent}
Related
Commands
:CURSor:MODe
:CURSor:HUNI
Parameter
CURRent
Uses the current horizontal position
Example
:CURSor:HUSE CURRent.
Set
Query
Set
67
MSO-2000E/2000EA Programming Manual
:CURSor:VUNI
Description
Sets or queries the units for the vertical bar cursors.
Syntax
:CURSor:VUNI {BASE | PERcent | ?}
Related
Commands
:CURSor:MODe
Parameter
BASE
Sets the vertical cursor units the same
as the scope units (V or A).
PERcent
Sets the displayed units to percent.
Return parameter
Returns the unit type.
Example
:CURSor:VUNI BASE
Sets the units to the base units.
:CURSor:VUSE
Description
Sets the current cursor position as the ratio
reference for the Percent (vertical) cursors.
Note
This command can only be used when
:CURSor:VUNI is set to PERcent.
Syntax
:CURSor:VUSE {CURRent}
Related
Commands
:CURSor:MODe
:CURSor:VUNI
Parameter
CURRent
Uses the current vertical position
Example
:CURSor:VUSE CURRent.
:CURSor:DDT
Description
Returns the deltaY/deltaT (dy/dT) readout. This
function is only supported if the source channels
are CH1~4, Ref1~4 or Math.
Syntax
:CURSor:DDT{?}
Set
Query
Set
Query
68
COMMAND DETAILS
Related
Commands
:CURSor:MODe
Return Parameter
<NR3>
Returns the readout in <NR3> format.
Example
:CURSor:DDT?
4.00E-05
:CURSor:H1Position
Description
Sets or returns the first horizontal cursor (H1)
position.
Syntax
:CURSor:H1Position {<NRf>| ?}
Related
Commands
:CURSor:H2Position
Parameter
<NRf>
Horizontal position
Return parameter
Returns the cursor position.
Example
:CURSor:H1Position?
-1.34E-3
Returns the H1 cursor position as -1.34ms.
:CURSor:H2Position
Description
Sets or returns the second horizontal cursor (H2)
position.
Syntax
:CURSor:H2Position {<NRf> | ?}
Related
Commands
:CURSor:H1Position
Parameter
<NRf>
Horizontal Position
Return parameter
Returns the cursor position.
Example
:CURSor:H2Position 1.5E-3
Sets the H2 cursor position to 1.5ms.
Set
Query
Set
Query
69
MSO-2000E/2000EA Programming Manual
:CURSor:HDELta
Description
Returns the delta of H1 and H2.
Syntax
:CURSor:HDELta{?}
Return Parameter
<NR3>
Returns the distance between two
horizontal cursors.
Example
:CURSor:HDELta?
5.0E-9
Returns the horizontal delta as 5ns.
:CURSor:V1Position
Description
Sets the first vertical cursor (V1) position.
Syntax
:CURSor:V1Position {<NRf>| ?}
Parameter
<NRf>
Vertical position. Depends on the
vertical scale.
Return parameter
<NR3>
Returns the cursor position.
Example
:CURSor:V1Position 1.6E -1
Sets the V1 cursor position to 160mA.
:CURSor:V2Position
Description
Sets the first vertical cursor (V2) position.
Syntax
:CURSor:V2Position {<NRf> | ?}
Parameter
<NRf>
Vertical position. Depends on the
vertical scale.
Return parameter
<NR3>
Returns the cursor position.
Example
:CURSor:V2Position 1.1E-1
Sets the V2 cursor position to 110mA.
Query
Set
Query
Set
Query
70
COMMAND DETAILS
:CURSor:VDELta
Description
Returns the delta of V1 and V2.
Syntax
:CURSor:VDELta{?}
Return Parameter
<NR3>
Returns the difference between two
vertical cursors.
Example
:CURSor:VDELta?
4.00E+0
Returns the vertical delta as 4 volts.
:CURSor:XY:RECTangular:X:POSition<X>
Description
Sets or queries the horizontal position in XY mode
for the X rectangular coordinates for cursor 1 or 2.
Syntax
:CURSor:XY:RECTangular:X:POSition<X> {<NRf>|?}
Parameter
<X>
Cursor 1, 2
<NRf>
Horizontal position co-ordinates
Return parameter
<NR3>
Returns the cursor position.
Example
:CURSor:XY:RECTangular:X:POSition1 4.0E-3
Sets the X-coordinate cursor 1 position to
40mV/mV.
:CURSor:XY:RECTangular:X:DELta
Description
Returns the delta value of cursor 1 and 2 on the X
coordinate.
Syntax
:CURSor:XY:RECTangular:X:DELta{?}
Return Parameter
<NR3>
Returns the delta value of cursor 1 and 2
as <NR3>.
Query
Set
Query
Query
71
MSO-2000E/2000EA Programming Manual
Example
:CURSor:XY:RECTangular:X:DELta?
80.0E-3
Returns the horizontal delta as 80mV.
:CURSor:XY:RECTangular:Y:POSition<X>
Description
Sets or queries the vertical position in XY mode for
the Y rectangular coordinates for cursor 1 or 2.
Syntax
:CURSor:XY:RECTangular:Y:POSition<X> {<NRf>|?}
Parameter
<X>
Cursor 1, 2
<NRf>
Vertical position co-ordinates
Return parameter
<NR3>
Returns the cursor position.
Example
:CURSor:XY:RECTangular:Y:POSition1 4.0E-3
Sets the Y-coordinate cursor 1 position to
40mV/mV.
:CURSor:XY:RECTangular:Y:DELta
Description
Returns the delta value of cursor 1 and 2 on the Y
coordinate.
Syntax
:CURSor:XY:RECTangular:Y:DELta{?}
Return Parameter
<NR3>
Returns the delta value of cursor 1 and 2
as <NR3>.
Example
:CURSor:XY:RECTangular:Y:DELta?
80.0E-3
Returns the horizontal delta as 80mV.
:CURSor:XY:POLar:RADIUS:POSition<X>
Description
Queries the polar radius position for the specified
cursor in XY mode, where X can be either cursor 1
or 2.
Set
Query
Query
Query
72
COMMAND DETAILS
Syntax
:CURSor:XY:POLar:RADIUS:POSition<X>{?}
Parameter
<X>
1, 2 (cursor 1, cursor 2)
Return Parameter
<NR3>
Returns the polar radius position.
Example
:CURSor:XY:POLar:RADIUS:POSition1?
80.0E-3
Returns the polar radius position as 80.0mV.
:CURSor:XY:POLar:RADIUS:DELta
Description
Returns the radius delta value of cursor 1 and 2.
Syntax
:CURSor:XY:POLar:RADIUS:DELta{?}
Return Parameter
<NR3>
Returns the radius delta.
Example
:CURSor:XY:POLar:RADIUS:DELta?
31.4E-3
Returns the radius delta as 31.4mV.
:CURSor:XY:POLar:THETA:POSition<X>
Description
Queries the polar angle for the specified cursor in
XY mode, where X can be either 1 or 2.
Syntax
:CURSor:XY:POLar:THETA:POSition<X>{?}
Parameter
<X>
1, 2 (Cursor 1, Cursor 2)
Return parameter
<NR3>
Returns the polar angle.
Example
:CURSor:XY:POLAR:RADIUS:POSition1?
8.91E+1
Returns the polar angle for cursor1 as 89.1˚.
:CURSor:XY:POLar:THETA:DELta
Description
Queries the polar angle delta between cursor1 and
cursor2.
Query
Query
Query
73
MSO-2000E/2000EA Programming Manual
Syntax
:CURSor:XY:POLar:THETA:DELta{?}
Return parameter
<NR3>
Returns the theta delta between cursor1
and cursor2.
Example
:CURSor:XY:POLar:THETA:DELta?
9.10E+0
Returns the delta as 9.1˚.
:CURSor:XY:PRODuct:POSition<X>
Description
Queries the product in XY mode for the specified
cursor, where x can be either 1 or 2.
Syntax
:CURSor:XY:PRODuct:POSition<X>{?}
Parameter
<X>
1, 2 (Cursor 1, Cursor 2)
Return parameter
<NR3>
Returns the product value of the Cursor1 or
Cursor2.
Example
:CURSor:XY:PRODuct:POSition1?
9.44E-5
Returns the product of cursor1 as 94.4uVV.
:CURSor:XY:PRODuct:DELta
Description
Queries the product delta in XY mode.
Syntax
:CURSor:XY:PRODuct:DELta{?}
Return parameter
<NR3>
Returns the product delta.
Example
:CURSor:XY:PRODuct:DELta?
1.22E-5
Returns the product delta as 12.2uVV.
:CURSor:XY:RATio:POSition<X>
Description
Queries the ratio in XY mode for the specified
cursor, where x can be either cursor 1 or 2.
Query
Query
Query
74
COMMAND DETAILS
Syntax
:CURSor:XY:RATio:POSition<X>{?}
Parameter
<X>
1, 2 (Cursor 1, Cursor 2)
Return parameter
<NR3>
Returns the ratio.
Example
:CURSor:XY:RATio:POSition?
6.717E+1
Returns the ratio value as 6.717V/V.
:CURSor:XY:RATio:DELta
Description
Queries the ratio delta in XY mode.
Syntax
:CURSor:XY:RATio:DELta{?}
Return parameter
<NR3>
Returns the ratio delta.
Example
:CURSor:XY:RATio:DELta?
5.39E+1
Returns the ratio delta as 53.9V/V.
:DISPlay:INTensity:WAVEform ....................................75
:DISPlay:INTensity:GRATicule.....................................76
:DISPlay:INTensity:BACKLight ....................................76
:DISPlay:INTensity:BACKLight:AUTODim:ENAble ....76
:DISplay:INTENSITy:BACKLight:AUTODim:TIMe .....77
:DISPlay:PERSistence ..................................................77
:DISPlay:GRATicule .....................................................78
:DISPlay:WAVEform .....................................................78
:DISPlay:OUTPut .........................................................78
:DISPlay:INTensity:WAVEform
Description
Sets or queries the waveform intensity level.
Query
Set
Query
Display Commands
75
MSO-2000E/2000EA Programming Manual
Syntax
:DISPlay:INTensity:WAVEform {<NRf> | ?}
Parameter
<NRf>
0.0E+0 to 1.0E+2 (0% to 100%)
Return Parameter
<NR3>
Returns the intensity.
Example
:DISPlay:INTensity:WAVEform 5.0E+1
Sets the waveform intensity to 50%.
:DISPlay:INTensity:GRATicule
Description
Sets or queries the graticule intensity level.
Syntax
:DISPlay:INTensity:GRATicule {<NRf> | ?}
Parameter
<NRf>
1.0E+0 to 1.0E+2 (10% to 100%)
Return Parameter
<NR3>
Returns the graticule intensity.
Example
:DISPlay:INTensity:GRATicule 5.0E+1
Sets the graticule intensity to 50%.
:DISPlay:INTensity:BACKLight
Description
Sets or queries the intensity of the backlight
display.
Syntax
:DISPlay:INTensity:BACKLight {<NRf> | ?}
Parameter
<NRf>
1.0E+0 to 1.0E+2 (10% to 100%)
Return Parameter
<NR3>
Returns the backlight intensity.
Example
:DISPlay:INTensity:BACKLight 5.0E+1
Sets the backlight intensity to 50%.
:DISPlay:INTensity:BACKLight:AUTODim
:ENAble
Description
Sets or queries the display auto-dim function.
Syntax
:DISPlay:INTensity:BACKLight:AUTODim:ENAble
{OFF | ON | ?}
Set
Query
Set
Query
Set
Query
76
COMMAND DETAILS
Parameter/
Return parameter
OFF
Turn auto-dim on.
ON
Turn auto-dim off.
Example
:DISPlay:INTensity:BACKLight:AUTODim:ENAble ON
Turns the auto-dim function on.
:DISplay:INTENSITy:BACKLight:AUTODim
:TIMe
Description
Sets or queries the display auto-dim time.
Syntax
:DISPlay:INTensity:BACKLight:AUTODim:TIMe
{ <NR1> | ? }
Parameter/
Return parameter
<NR1>
1 ~ 180 minutes. Time in minutes.
Example
:DISPlay:INTensity:BACKLight:AUTODim:TIMe 10
Sets the auto-dim time to 10 minutes.
:DISPlay:PERSistence
Description
Sets or queries the waveform persistence level.
Syntax
:DISPlay:PERSistence { INFInite | OFF | <NRf> | ? }
Parameter
<NRf>
1.6E-2 ~ 4.0E+0. (16mS to 10S)
Range(1.6E-2, 30E-3, 60E-3, 120E-2, 240E3, 500E-3, 750E-3, 1, 1.5,2,...,9.5,10
INFInite
Infinite persistence
OFF
No persistence
Return Parameter
<NR3>
Returns the persistence time.
INFInite
Infinite persistence
OFF
No persistence
Example
:DISPlay:PERSistence 2.0E+0
Sets the persistence to 2 seconds.
Set
Query
Set
Query
77
MSO-2000E/2000EA Programming Manual
:DISPlay:GRATicule
Description
Sets or queries graticule display type.
Syntax
:DISPlay:GRATicule {FULL | GRID|CROSs | FRAMe | ?}
Parameter
FULL
CROSs
FRAMe
GRID
Return parameter
Returns the graticule type.
Example
:DISPlay:GRATicule FULL
Sets the graticule to .
:DISPlay:WAVEform
Description
Sets or queries whether the waveforms are drawn
as vectors or dots.
Syntax
:DISPlay:WAVEform {VECTor | DOT | ?}
Parameter
VECTor
Vectors
DOT
Dots
Return parameter
Returns VECTOR or DOT.
Example
:DISPlay:WAVEform VECTor
Sets the waveform to vectors.
:DISPlay:OUTPut
Description
Returns the screen image as a 16 bit RGB run
length encoded image.
Syntax
:DISPlay:OUTPut{?}
Set
Query
Set
Query
Query
78
COMMAND DETAILS
Return parameter
Format: header+data+LF
For example assuming the image data size is 60072
bytes then the following would be returned:
#560072<[count] [color] [count] [color]….. ><LF>
Where #560072 is the header, each [count] and [color]
data are 2 bytes and <LF> is a line feed character.
:HARDcopy:START ......................................................79
:HARDcopy:MODe ......................................................79
:HARDcopy:PRINTINKSaver .......................................80
:HARDcopy:SAVEINKSaver .........................................80
:HARDcopy:SAVEFORMat ..........................................81
:HARDcopy:ASSIGN ....................................................81
:HARDcopy:START
Description
Executing the HARDcopy:START command is the
equivalent of pressing the Hardcopy key on the
front panel.
Syntax
:HARDcopy:START
Related
Commands
:HARDcopy:MODe
:HARDcopy:PRINTINKSaver
:HARDcopy:SAVEINKSaver
:HARDcopy:SAVEFORMat
:HARDcopy:ASSIGN
:HARDcopy:MODe
Description
Sets or queries whether hardcopy is set to print or
save.
Syntax
:HARDcopy:MODe { PRINT | SAVE | ? }
Set
Set
Query
Hardcopy Commands
79
MSO-2000E/2000EA Programming Manual
Related
Commands
:HARDcopy:START
Parameter
PRINT
Print mode
SAVE
Save mode
Return parameter
Returns the mode.(PRINT/SAVE)
Example
:HARDcopy:MODe PRINT
Sets hardcopy to print.
:HARDcopy:PRINTINKSaver
Description
Sets Inksaver On or Off for printing.
Syntax
:HARDcopy:PRINTINKSaver { OFF | ON | ? }
Related
Commands
:HARDcopy:START
:HARDcopy:MODe
Parameter
ON
Inksaver ON
OFF
Inksaver OFF
Return parameter
Returns the print Ink Saver mode.(ON/OFF)
Example
:HARDcopy:PRINTINKSaver ON
Sets Ink Saver to ON for printing.
:HARDcopy:SAVEINKSaver
Description
Sets Inksaver On or Off for saving screen images.
Syntax
:HARDcopy:SAVEINKSaver { OFF | ON | ? }
Related
Commands
:HARDcopy:START
:HARDcopy:MODe
Parameter
ON
Inksaver ON
OFF
Inksaver OFF
Return parameter
Returns the screen image Ink Saver mode (ON/OFF).
Example
:HARDcopy:SAVEINKSaver ON
Sets Inksaver to ON for saving screen images.
Set
Query
Set
Query
80
COMMAND DETAILS
:HARDcopy:SAVEFORMat
Description
Sets or queries the image save file type.
Syntax
:HARDcopy:SAVEFORMat { PNG | BMP | ? }
Related
Commands
:HARDcopy:START
:HARDcopy:MODe
Parameter
PNG
PNG file format
BMP
BMP file format
Return parameter
Returns the image file format (PNG/BMP).
Example
:HARDcopy:SAVEFORMat PNG
Sets the file format to PNG.
:HARDcopy:ASSIGN
Description
Sets or queries what file type the hardcopy key has
been assigned to save.
Syntax
:HARDcopy:ASSIGN
{IMAGe | WAVEform | SETUp | ALL | ?}
Related
Commands
:HARDcopy:START
:HARDcopy:MODe
Parameter
Save image files.
WAVEform
Save waveforms.
SETUp
Save the panel setup.
ALL
Save All (image, waveform,setup)
Return parameter
Returns the file type.
(IMAGE/WAVEFORM/SETUP/ALL)
Example
:HARDcopy:ASSIGN IMAGE.
Set the hardcopy key to save image files.
Set
Query
Set
Query
81
MSO-2000E/2000EA Programming Manual
:MEASure:GATing........................................................ 83
:MEASure:SOURce ...................................................... 83
:MEASure:METHod ..................................................... 84
:MEASUrement:REFLevel:PERCent:HIGH ................. 84
:MEASUrement:REFLevel:PERCent:LOW ................... 85
:MEASUrement:REFLevel:PERCent:MID .................... 85
:MEASUrement:REFLevel:PERCent:MID2 .................. 85
:MEASure:FALL ............................................................ 86
:MEASure:FOVShoot ................................................... 86
:MEASure:FPReshoot .................................................. 87
:MEASure:FREQuency ................................................. 87
:MEASure:NWIDth ...................................................... 88
:MEASure:PDUTy ........................................................ 88
:MEASure:PERiod ........................................................ 89
:MEASure:PWIDth ....................................................... 89
:MEASure:RISe ............................................................ 90
:MEASure:ROVShoot ................................................... 90
:MEASure:RPReshoot .................................................. 91
:MEASure:PPULSE ....................................................... 92
:MEASure:NPULSE ...................................................... 92
:MEASure:PEDGE ........................................................ 93
:MEASure:NEDGE ....................................................... 93
:MEASure:AMPlitude ................................................... 94
:MEASure:MEAN ......................................................... 94
:MEASure:CMEan ........................................................ 95
:MEASure:HIGH .......................................................... 96
:MEASure:LOW ............................................................ 96
:MEASure:MAX ............................................................ 97
:MEASure:MIN ............................................................ 97
:MEASure:PK2PK ......................................................... 98
:MEASure:RMS ............................................................ 98
:MEASure:CRMS .......................................................... 99
Measure Commands
82
COMMAND DETAILS
:MEASure:AREa .........................................................100
:MEASure:CARea .......................................................100
:MEASure:FRRDelay ..................................................101
:MEASure:FRFDelay...................................................101
:MEASure:FFRDelay...................................................102
:MEASure:FFFDelay ...................................................103
:MEASure:LRRDelay ..................................................103
:MEASure:LRFDelay ...................................................104
:MEASure:LFRDelay ...................................................104
:MEASure:LFFDelay ...................................................105
:MEASure:PHAse .......................................................106
:MEASure:GATing
Description
Sets or queries the measurement gating.
Syntax
:MEASure:GATing { OFF | SCREen | CURSor | ? }
Parameter
OFF
Full record
SCREen
Gating set to screen width
CURSor
Gating between cursors
Return parameter
Returns the gating. (OFF, SCREEN, CURSOR)
Example
:MEASure:GATing OFF
Turns gating off (full record).
:MEASure:SOURce
Description
Sets or queries the measurement source for source1
or source2.
Syntax
:MEASure:SOURce<X> { CH1 | CH2 | CH3 | CH4 |
MATH | ? }
Parameter
<X>
Source1 or source2
CH1~CH4
Channel 1 to 4
Set
Query
Set
Query
83
MSO-2000E/2000EA Programming Manual
MATH
Math
Return parameter
Returns the source (CH1, CH2, CH3, CH4, MATH)
Example
:MEASure:SOURce1 CH1
Sets source1 to channel 1.
:MEASure:METHod
Description
Sets or queries the method used to determine the
High-Low measurement values.
Syntax
:MEASure:METHod { AUTo | HIStogram | MINMax
| ? }
Parameter
AUTo
Set to auto.
HIStogram
Set to the Histogram method.
MINMax
Set to the Min-Max method.
Return parameter
Returns the measurement method (AUTO,
HISTOGRAM, MINMAX)
Example
:MEASure:METHod: AUTo
Set the measurement method to auto.
:MEASUrement:REFLevel:PERCent:HIGH
Description
Sets or queries the high reference level as a
percentage.
Syntax
:MEASUrement:REFLevel:PERCent:HIGH {<NRf> | ?}
Parameter
<NRf>
0 - 100%
Return parameter
Returns the high reference level
Example
:MEASUrement:REFLevel:PERCent:HIGH 50.1
Set the high reference level to 50.1%.
Set
Query
Set
Query
84
COMMAND DETAILS
:MEASUrement:REFLevel:PERCent:LOW
Description
Sets or queries the low reference level as a
percentage.
Syntax
:MEASUrement:REFLevel:PERCent:LOW {<NRf> | ?}
Parameter
<NRf>
0 - 100%
Return parameter
Returns the low reference level.
Example
:MEASUrement:REFLevel:PERCent:LOW 40.1
Set the low reference level to 40.1%.
:MEASUrement:REFLevel:PERCent:MID
Description
Sets or queries the first mid reference level as a
percentage.
Syntax
:MEASUrement:REFLevel:PERCent:MID {<NRf> | ?}
Parameter
<NRf>
0 - 100%
Return parameter
Returns the mid reference level.
Example
:MEASUrement:REFLevel:PERCent:MID 50
Set the mid reference level to 50%.
:MEASUrement:REFLevel:PERCent:MID2
Description
Sets or queries the second mid reference level as a
percentage.
Syntax
:MEASUrement:REFLevel:PERCent:MID2 {<NRf> | ?}
Parameter
<NRf>
0 - 100%
Return parameter
Returns the mid reference level of the second
source.
Example
:MEASUrement:REFLevel:PERCent:MID2 50
Set the mid reference level to 50%.
Set
Query
Set
Query
Set
Query
85
MSO-2000E/2000EA Programming Manual
:MEASure:FALL
Description
Returns the fall time measurement result.
Syntax
:MEASure:FALL{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:FALL?
Selects Channel 1 as the source, and then measures
the fall time.
:MEASure:FOVShoot
Description
Returns the fall overshoot amplitude.
Syntax
:MEASure:FOVShoot{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the fall overshoot as a
percentage
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Query
Query
86
COMMAND DETAILS
Example
:MEASure:SOURce1 CH1
:MEASure:FOVShoot?
1.27E+0
Selects Channel 1, and then measures the fall
overshoot.
:MEASure:FPReshoot
Description
Returns fall preshoot amplitude.
Syntax
:MEASure:FPReshoot{?}
Related
Commands
:MEASure:SOURce<X>
Returns
Returns the fall preshoot as <NR3>.
Return parameter
<NR3>
Returns the fall preshoot as a percentage.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:FPReshoot?
Selects Channel 1, and then measures the fall
preshoot.
:MEASure:FREQuency
Description
Returns the frequency value.
Syntax
:MEASure:FREQuency{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the frequency in Hz.
Chan Off
Indicates the source channel is not
activated.
Query
Query
87
MSO-2000E/2000EA Programming Manual
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:FREQuency?
>1.0E+3
Selects Channel 1, and then measures the
frequency.
:MEASure:NWIDth
Description
Returns the first negative pulse width timing.
Syntax
:MEASure:NWIDth{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the negative pulse width in
seconds.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:NWIDth?
4.995E-04
Selects Channel 1, and then measures the negative
pulse width.
:MEASure:PDUTy
Description
Returns the positive duty cycle ratio as percentage.
Syntax
:MEASure:PDUTy{?}
Related
commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the positive duty ratio.
Query
Query
88
COMMAND DETAILS
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PDUTy?
5.000E+01
Selects Channel 1, and then measures the positive
duty cycle.
:MEASure:PERiod
Description
Returns the period.
Syntax
:MEASure:PERiod{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the period.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PERiod?
1.0E-3
Selects Channel 1, and then measures the period.
:MEASure:PWIDth
Description
Returns the first positive pulse width.
Syntax
:MEASure:PWIDth{?}
Related
Commands
:MEASure:SOURce<X>
Query
Query
89
MSO-2000E/2000EA Programming Manual
Return parameter
<NR3>
Returns the positive pulse width.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PWIDth?
5.0E-6
Selects Channel 1, and then measures the positive
pulse width.
:MEASure:RISe
Description
Returns the first pulse rise time.
Syntax
:MEASure:RISe{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the rise time.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:RISe?
8.5E-6
Selects Channel 1, and then measures the rise time.
:MEASure:ROVShoot
Description
Returns the rising overshoot over the entire
waveform in percentage.
Syntax
:MEASure:ROVShoot{?}
Query
Query
90
COMMAND DETAILS
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the overshoot.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:ROVShoot?
5.00E+00
Selects Channel 1, and then measures the rise
overshoot.
:MEASure:RPReshoot
Description
Returns rising preshoot over the entire waveform
in percentage.
Syntax
:MEASure:RPReshoot{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the rising preshoot.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:RPReshoot?
2.13E-2
Selects Channel 1, and then measures the rise
preshoot.
Query
91
MSO-2000E/2000EA Programming Manual
:MEASure:PPULSE
Description
Returns the number of positive pulses.
Syntax
:MEASure:PPULSE{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the number of positive pulses.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PPULSE?
6.000E+00
Selects Channel 1, and then measures the number
of positive pulses.
:MEASure:NPULSE
Description
Returns the number of negative pulses.
Syntax
:MEASure:NPULSE{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the number of negative pulses.
Chan Off
Indicates the source channel is not
activated.
Query
Query
92
COMMAND DETAILS
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:NPULSE?
4.000E+00
Selects Channel 1, and then measures the number
of negative pulses.
:MEASure:PEDGE
Description
Returns the number of positive edges.
Syntax
:MEASure:PEDGE{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the number of positive edges.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PEDGE?
1.100E+01
Selects Channel 1, and then measures the number
of positive edges.
:MEASure:NEDGE
Description
Returns the number of negative edges.
Syntax
:MEASure:NEDGE{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the number of negative edges.
Query
Query
93
MSO-2000E/2000EA Programming Manual
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:NEDGE?
1.100E+01
Selects Channel 1, and then measures the number
of negative edges.
:MEASure:AMPlitude
Description
Returns the amplitude difference between the
Vhigh-Vlow.
Syntax
:MEASure:AMPlitude{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the amplitude.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:AMPlitude?
3.76E-3
Selects Channel 1, and then measures the
amplitude.
:MEASure:MEAN
Description
Returns the mean voltage/current of one or more
full periods.
Syntax
:MEASure:MEAN{?}
Query
Query
94
COMMAND DETAILS
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the mean.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:MEAN?
1.82E-3
Selects Channel 1, and then measures the mean
value.
:MEASure:CMEan
Description
Returns the mean voltage/current of one full
period.
Syntax
:MEASure:CMEan{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the cyclic mean.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:CMEan?
9.480E-01
Selects Channel 1, and then measures the mean
value of the first period.
Query
95
MSO-2000E/2000EA Programming Manual
:MEASure:HIGH
Description
Returns the global high voltage/current.
Syntax
:MEASure:HIGH{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the high value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:HIGH?
3.68E-3
Selects Channel 1, and then measures the high
voltage/current.
:MEASure:LOW
Description
Returns the global low voltage/current.
Syntax
:MEASure:LOW{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the global low value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Query
Query
96
COMMAND DETAILS
Example
:MEASure:SOURce1 CH1
:MEASure:LOW?
1.00E-0
Selects Channel 1, and then measures the low
current/voltage.
:MEASure:MAX
Description
Returns the maximum amplitude.
Syntax
:MEASure:MAX{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the maximum amplitude.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:MAX?
1.90E-3
Selects Channel 1, and then measures the
maximum amplitude.
:MEASure:MIN
Description
Returns the minimum amplitude.
Syntax
:MEASure:MIN{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the minimum amplitude.
Chan Off
Indicates the source channel is not
activated.
Query
Query
97
MSO-2000E/2000EA Programming Manual
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:MIN?
-8.00E-3
Selects Channel 1, and then measures the
minimum amplitude.
:MEASure:PK2PK
Description
Returns the peak-to-peak amplitude (difference
between maximum and minimum amplitude).
Syntax
:MEASure:PK2Pk{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the voltage or current peak to
peak measurement.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:PK2Pk?
2.04E-1
Selects Channel 1, and then measures the peak-topeak amplitude.
:MEASure:RMS
Description
Returns the root-mean-square voltage/current of
one or more full periods.
Syntax
:MEASure:RMS{?}
Query
Query
98
COMMAND DETAILS
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the RMS value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:RMS?
1.31E-3
Selects Channel 1, and then measures the RMS
voltage/current.
:MEASure:CRMS
Description
Returns the root-mean-square voltage/current of
one full periods.
Syntax
:MEASure:CRMS{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the CRMS value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:CRMS?
1.31E-3
Selects Channel 1, and then measures the CRMS
voltage/current.
Query
99
MSO-2000E/2000EA Programming Manual
:MEASure:AREa
Description
Returns the voltage/current area over one or more
full periods.
Syntax
:MEASure:AREa{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the area value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Example
:MEASure:SOURce1 CH1
:MEASure:AREa?
1.958E-03
Selects Channel 1, and then measures the area.
:MEASure:CARea
Description
Returns the voltage/current area over one full
period.
Syntax
:MEASure:CARea{?}
Related
Commands
:MEASure:SOURce<X>
Return parameter
<NR3>
Returns the area value.
Chan Off
Indicates the source channel is not
activated.
Note
Before using this command, select the
measurement channel. See the example below.
Query
Query
100
Loading...
