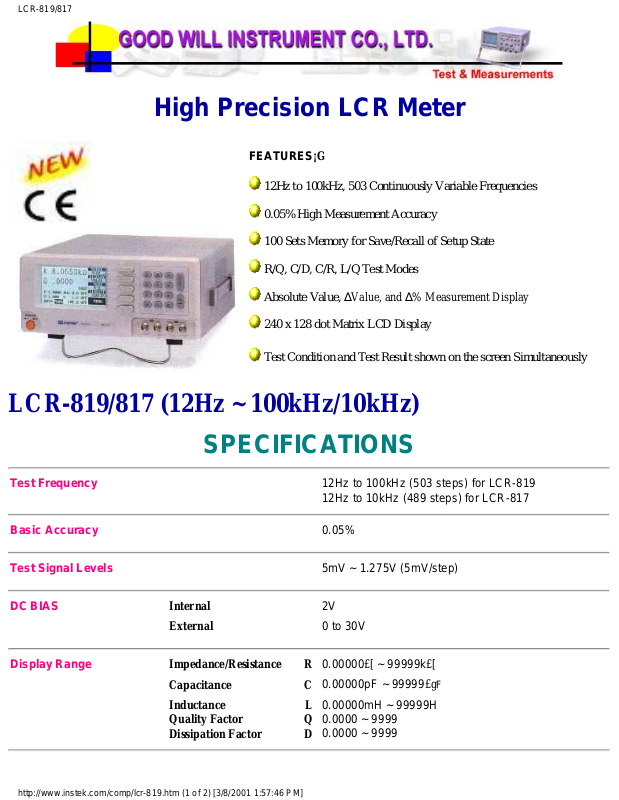

High Precision LCR Meter
FEATURES¡G
12Hz to 100kHz, 503 Continuously Variable Frequencies
0.05% High Measurement Accuracy
100 Sets Memory for Save/Recall of Setup State
R/Q, C/D, C/R, L/Q Test Modes
Absolute Value, ∆Value, and ∆% Measurement Display
240 x 128 dot Matrix LCD Display
Test Condition and Test Result shown on the screen Simultaneously
LCR-819/817 (12Hz ~ 100kHz/10kHz)
SPECIFICATIONS
Test Frequency
12Hz to 100kHz (503 steps) for LCR-819
12Hz to 10kHz (489 steps) for LCR-817
Basic Accuracy
0.05%
Test Signal Levels
5mV ~ 1.275V (5mV/step)
DC BIAS
Internal
2V
External
0 to 30V
Display Range
Impedance/Resistance R
0.00000£[ ~ 99999k£[
Capacitance C
0.00000pF ~ 99999£g
F
Inductance L
0.00000mH ~ 99999H
Quality Factor Q
0.0000 ~ 9999
Dissipation Factor D
0.0000 ~ 9999
LCR-819/817
http://www.instek.com/comp/lcr-819.htm (1 of 2) [3/8/2001 1:57:46 PM]
Test Mode
R/Q, C/D, C/R, L/Q
Equivalent Circuit
Parallel or serial selectable
Memory
100 memory blocks totally
Average
1 to 255 times
Test Speed
SLOW, MEDIUM, and FAST
Display Mode
Value, ¡µ%, ¡µ
Display
240 x 128 dot matrix C.C.F.L back light LCD
Power Source
100V ~ 240V, 50/60Hz
Accessories
Power cord x 1, Instruction manual x 1, LCR-06A x 1
Dimensions & Weight
330(W) x 149(H) x 437(D)mm, Approx. 5.5kg
Test Fixtures
LCR-05 LCR-06A LCR-07 LCR-08 LCR-09
Update : 2000/11/21
