Page 1
Isolated Transformer
GIT-5060
USER MANUAL
GW INSTEK PART NO.
ISO-9001 CERTIFIED MANUFACTURER
99 Washington Street
Melrose, MA 02176
Phone 781-665-1400
Toll Free 1-800-517-8431
Visit us at www.TestEquipmentDepot.com
Page 2
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will company.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve products and reserves the
rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan
Page 3
Table of Contents
Table of Contents
OVERVIEW ........................................................................ 2
PACKAGE CONTENTS ....................................................... 3
CONDUCTION TESTING SYSTEM ..................................... 4
PRODUCT AND ACCESSORIES ......................................... 5
APPENDIX ........................................................................ 6
GIT-5060 Specifications ......................... 6
1
Page 4
OVERVIEW
For conduction measurements, there is a lot of
leakage current due to the nature of the artificial
mains network design principal. The network
must be well grounded, otherwise a potential
safety hazard may exist. For actual measurements,
isolated transformers are always needed to avoid
dangerous conditions. With a 900VA operation
capacity, 5A current limit with a built-in air
switch, the GIT-5060 isolated transformer is able
to meet most measurement requirements.
GIT-5060 User Manual
2
Page 5
PACKAGE CONTENTS
Item
Quantity
Isolated transformer main unit
1 Unit
AC power cables
1 Pcs
User manual
1 Book
Warranty Card
1 Paper
PACKAGE CONTENTS
3
Page 6
GIT-5060 User Manual

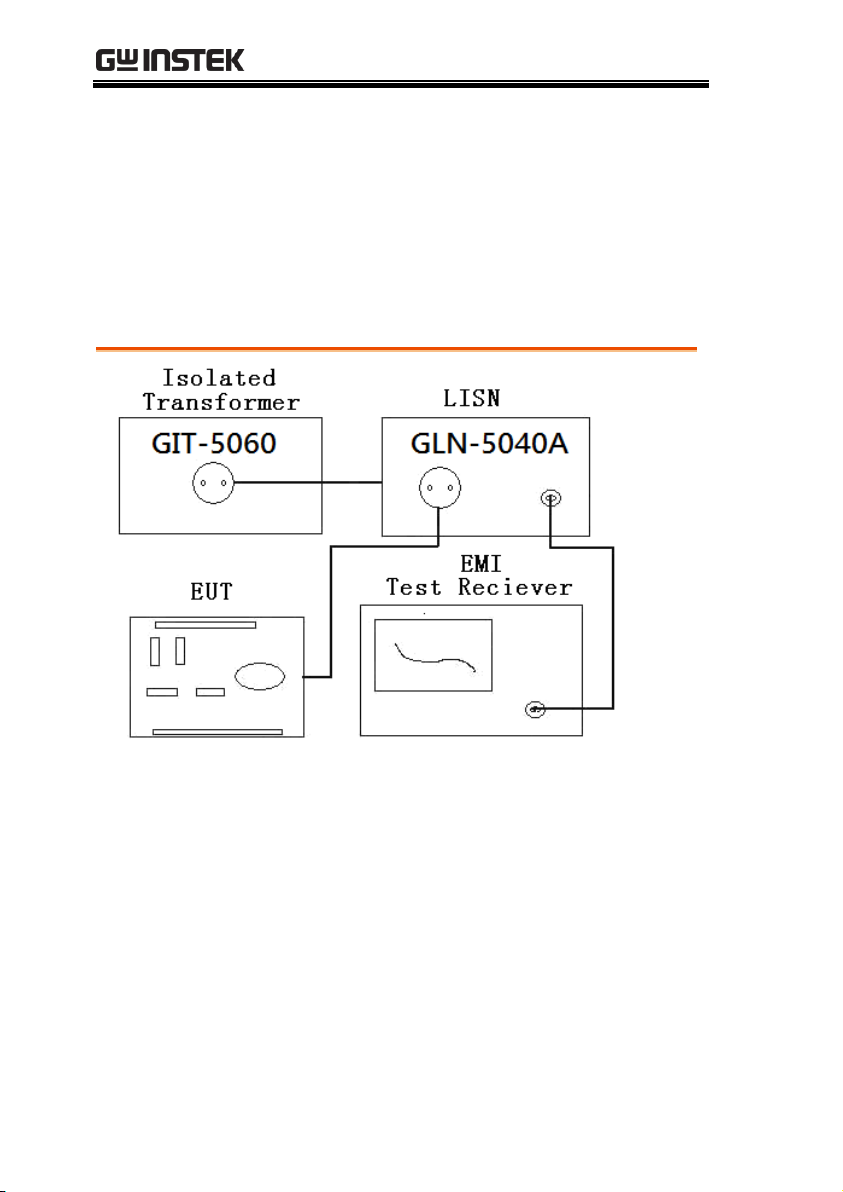

CONDUCTION TESTING
SYSTEM
4
Page 7

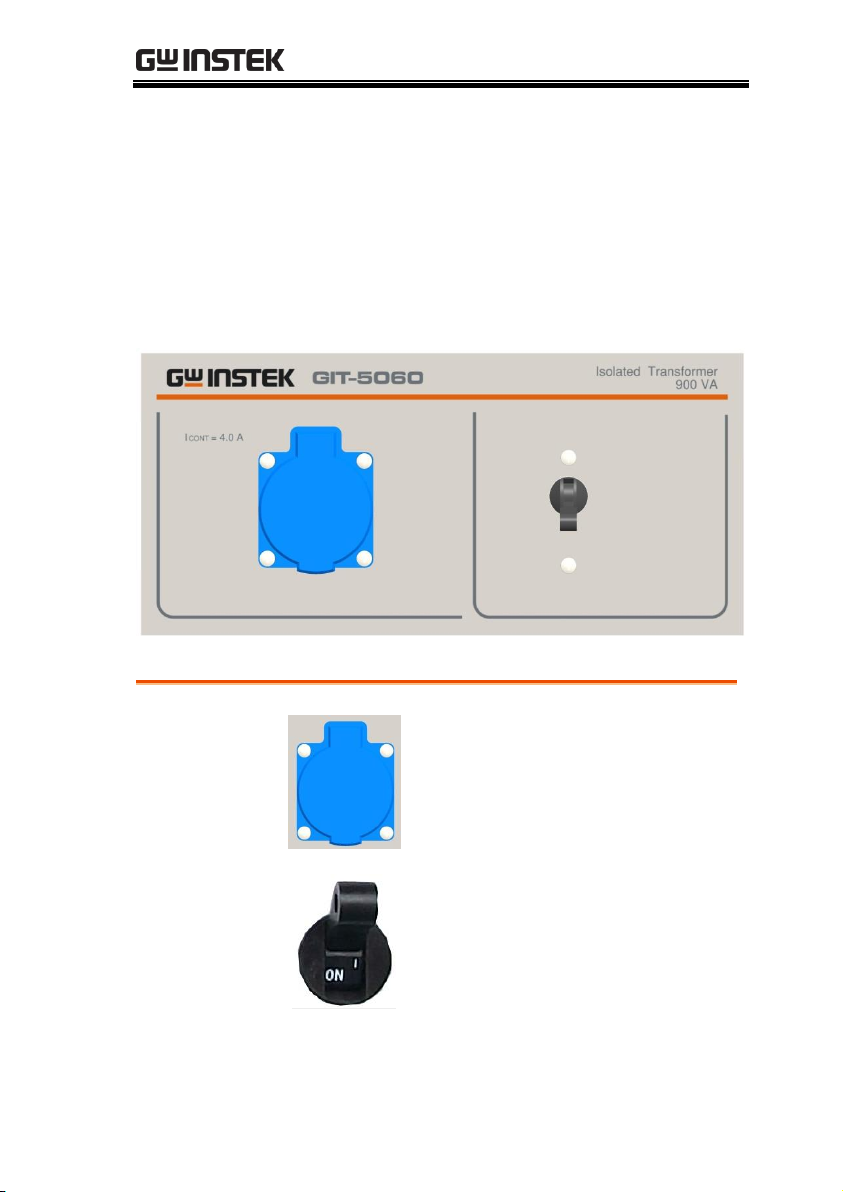

PRODUCT AND ACCESSORIES
Power supply
connector
National standard power connector
Measurement
Air switch
5A current limit threshold to ensure
safety.
PRODUCT AND
ACCESSORIES
Isolated Transformer Panel
5
Page 8
APPENDIX
Capacity
900VA
Max. voltage
250V
Max. current
4A
Input voltage frequency
50~60Hz
Air switch current limiting
threshold value
5A
EUT power supply connector
Universal standard power socket
Working temperature range
-15°C ～45°C
Storage temperature
-40°C ～70°C
Dimensions
338mm(L)×237mm(W)×133mm(H)
Weight
11.5kg
Certification
CE(EN61010-1:2010
EN61326-1:2013
EN61000-3-2:2014
EN61000-3-3:2013)
GIT-5060 Specifications
GIT-5060 User Manual
