Arbitrary Function Generator
AFG-3000 Series
QUICK START GUIDE
GW INSTEK PART NO. 82FG-30820MA1
ISO-9001 CERTIFIED MANUFACTURER
October 2010 edition
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve its products and therefore
reserves the right to change the specifications, equipment, and
maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.
Table of Contents
Table of Contents
SAFETY INSTRUCTIONS .................................. 4
GETTING STARTED .......................................... 8
Main Features ..................................................................... 8
Panel Overview .................................................................. 10
Selecting a Waveform ........................................................ 15
Modulation ........................................................................ 16
Sweep ................................................................................ 18
Burst ................................................................................. 18
ARB ................................................................................... 19
Utility Menu ...................................................................... 22
AFG-3000 Series Specifications ......................................... 24
EC Declaration of Conformity ............................................ 30
3
AFG-3000 Quick Start Guide
SAFETY INSTRUCTIONS
This chapter contains important safety instructions
that should be followed when operating and
storing the function generator. Read the following
before any operation to ensure your safety and to
keep the function generator in the best condition.

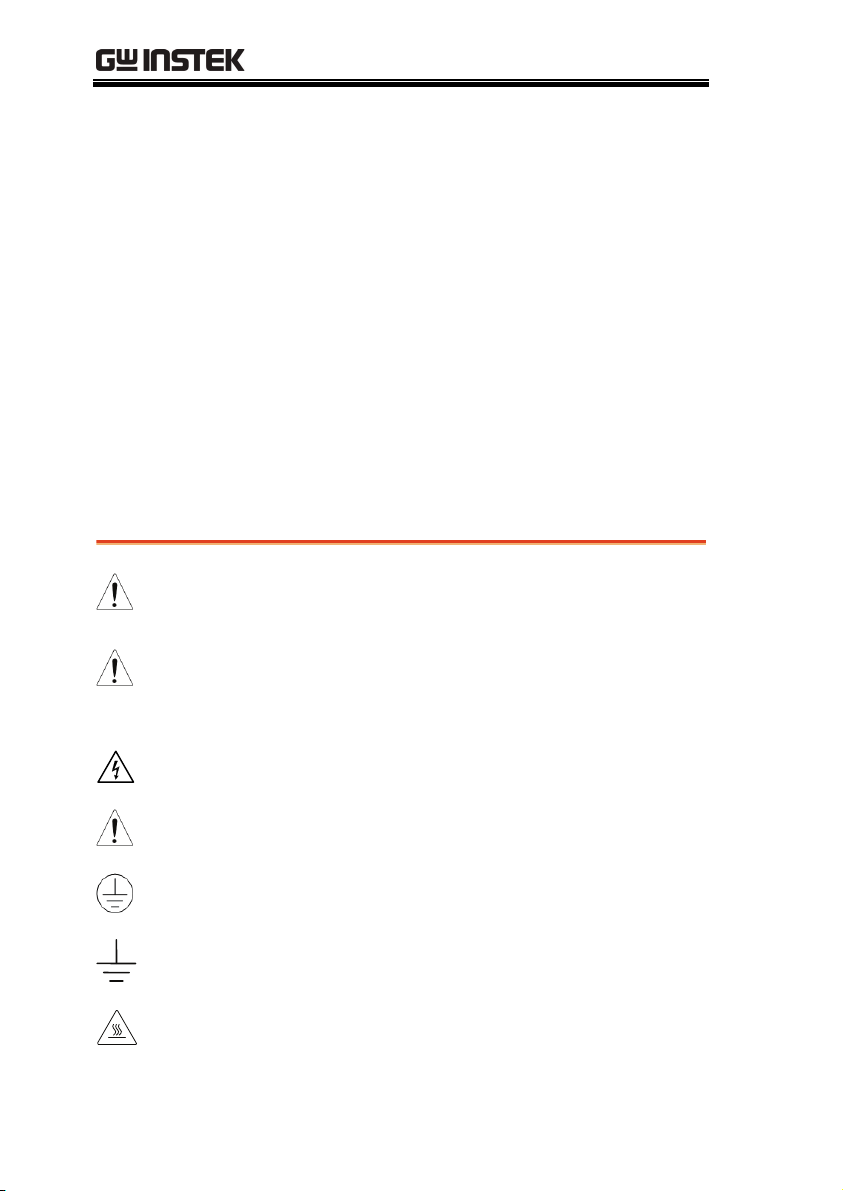

Safety Symbols
These safety symbols may appear in this manual or on the
instrument.
WARNING
CAUTION
4
Warning: Identifies conditions or practices that
could result in injury or loss of life.
Caution: Identifies conditions or practices that
could result in damage to the function generator or
to other objects or property.
DANGER High Voltage
Attention: Refer to the Manual
Protective Conductor Terminal
Earth (Ground) Terminal
DANGER Hot Surface
SAFETY INSTRUCTIONS
Double Insulated
Do not dispose electronic equipment as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased.
Safety Guidelines
General
Guideline
CAUTION
Power Supply
WARNING
Do not place heavy objects on the instrument.
Do not place flammable objects on the
Avoid severe impact or rough handling that
Avoid discharges of static electricity on or near
Use only mating connectors, not bare wires, for
The instrument should only be disassembled by
(Measurement categories) EN 61010-1:2001 specifies the
measurement categories and their requirements as follows. The
AFG-3000 falls under category II.
Measurement category IV is for measurement performed at the
Measurement category III is for measurement performed in a
Measurement category II is for measurement performed on
Measurement category I is for measurements performed on
AC Input voltage: 100 ~ 240V AC, 50 ~ 60Hz.
Connect the protective grounding conductor of
instrument.
may damage the function generator.
the function generator.
the terminals.
a qualified technician.
source of a low-voltage installation.
building installation.
circuits directly connected to a low voltage installation.
circuits not directly connected to Mains.
the AC power cord to an earth ground to
prevent electric shock.
5
AFG-3000 Quick Start Guide
Fuse
WARNING
Cleaning the
function
generator
Operation
Environment
Fuse type: T0.63A/250V.
Only qualified technicians should replace the
fuse.
To ensure fire protection, replace the fuse only
with the specified type and rating.
Disconnect the power cord and all test leads
before replacing the fuse.
Make sure the cause of fuse blowout is fixed
before replacing the fuse.
Disconnect the power cord before cleaning the
function generator.
Use a soft cloth dampened in a solution of mild
detergent and water. Do not spray any liquid
into the function generator.
Do not use chemicals containing harsh products
such as benzene, toluene, xylene, and acetone.
Location: Indoor, no direct sunlight, dust free,
almost non-conductive pollution (Note below)
and avoid strong magnetic fields.
Relative Humidity: < 80%
Altitude: < 2000m
Temperature: 0°C to 40°C
(Pollution Degree) EN 61010-1:2001 specifies pollution degrees and
their requirements as follows. The function generator falls under
degree 2.
Pollution refers to “addition of foreign matter, solid, liquid, or
gaseous (ionized gases), that may produce a reduction of dielectric
strength or surface resistivity”.
Pollution degree 1: No pollution or only dry, non-conductive
pollution occurs. The pollution has no influence.
Pollution degree 2: Normally only non-conductive pollution
occurs. Occasionally, however, a temporary conductivity caused
by condensation must be expected.
Pollution degree 3: Conductive pollution occurs, or dry, non-
conductive pollution occurs which becomes conductive due to
condensation which is expected. In such conditions, equipment
is normally protected against exposure to direct sunlight,
6
Storage
environment
SAFETY INSTRUCTIONS
precipitation, and full wind pressure, but neither temperature
nor humidity is controlled.
Location: Indoor
Relative Humidity: < 70%
Temperature: -10°C to 70°C
Disposal
Do not dispose this instrument as unsorted
municipal waste. Please use a separate collection
facility or contact the supplier from which this
instrument was purchased. Please make sure
discarded electrical waste is properly recycled to
reduce environmental impact.
Power cord for the United Kingdom
When using the function generator in the United Kingdom, make sure the
power cord meets the following safety instructions.
NOTE: This lead/appliance must only be wired by competent persons
WARNING: THIS APPLIANCE MUST BE EARTHED
IMPORTANT: The wires in this lead are coloured in accordance with the following code:
Green/ Yellow: Earth
Blue: Neutral
Brown: Live (Phase)
As the colours of the wires in main leads may not correspond with the coloured
marking identified in your plug/appliance, proceed as follows:
The wire which is coloured Green & Yellow must be connected to the Earth terminal
marked with either the letter E, the earth symbol
Yellow.
The wire which is coloured Blue must be connected to the terminal which is marked
with the letter N or coloured Blue or Black.
The wire which is coloured Brown must be connected to the terminal marked with
the letter L or P or coloured Brown or Red.
If in doubt, consult the instructions provided with the equipment or contact the
supplier.
This cable/appliance should be protected by a suitably rated and approved HBC
mains fuse: refer to the rating information on the equipment and/or user instructions
for details. As a guide, a cable of 0.75mm
Larger conductors would normally require 13A types, depending on the connection
method used.
Any exposed wiring from a cable, plug or connection that is engaged in a live socket
is extremely hazardous. If a cable or plug is deemed hazardous, turn off the mains
power and remove the cable, any fuses and fuse assemblies. All hazardous wiring
must be immediately destroyed and replaced in accordance to the above standard.
or coloured Green/Green &
2
should be protected by a 3A or 5A fuse.
7
AFG-3000 Quick Start Guide
GETTING STARTED
The Getting started chapter introduces the
function generator’s main features, appearance
and introduces a quick instructional summary of
some of the basic functions. For comprehensive
operation instructions, please see the user manual.
Main Features
Model name Frequency bandwidth
AFG-3081 80MHz
AFG-3051 50MHz
Performance
DDS Function Generator series
1μHz high frequency resolution maintained at
full range
1ppm frequency stability
Full Function Arbitrary Waveform Capability
200 MSa/s sample rate
100 MSa/s repetition rate
1 M-point waveform length
16-bit amplitude resolution
Ten 1M waveform memories
True waveform output to display
User define output section
User defined marker output section
DWR (Direct Waveform Reconstruction)
capability
8
GETTING STARTED
Waveform editing capability sans PC
N Cycle and Infinite output mode selectable
-60dBc low distortion sine wave
Features
Interface
Sine, Square, Ramp, Pulse, Noise, Sinc standard
waveforms
Internal and external LIN/LOG sweep with
marker output
Int/Ext AM, FM, PWM, FSK modulation
Modulation/sweep signal output
Burst function with internal and external
triggers without marker output
Store/recall 10 groups of setting memories
Output overload protection
GPIB, RS232, USB standard interfaces
4.3 inch Color TFT LCD (480 × 272) Graphical
User Interface.
AWES (Arbitrary Waveform Editing Software)
PC software
9
AFG-3000 Quick Start Guide

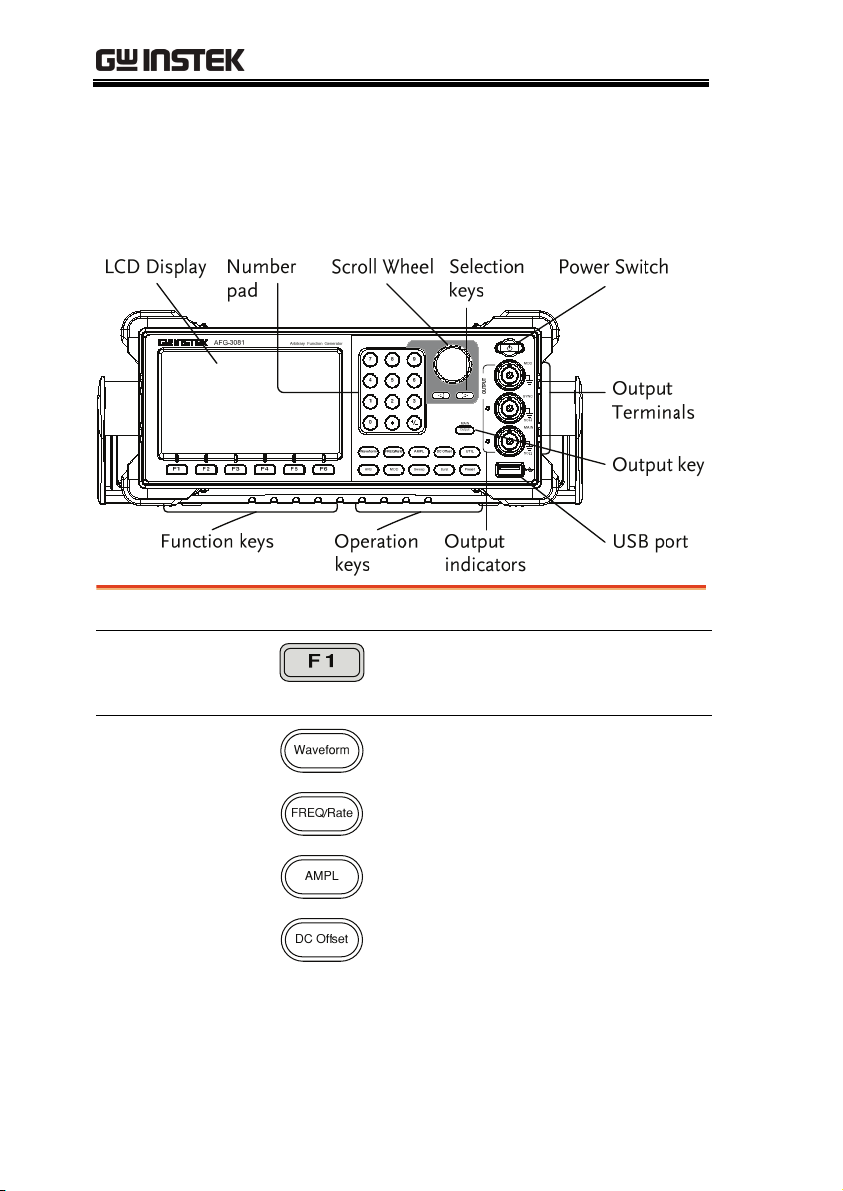

Panel Overview
Front Panel
LCD display
TFT color LCD display, 480 x 272 resolution.
Function keys:
F1~F6
Operation keys
10
Activates the functions which
appear in the bottom of the LCD
display.
Waveform is used to select a
waveform type.
The FREQ/Rate key is used to set
the frequency or sample rate
AMPL sets the waveform
amplitude.
Sets the DC offset.
GETTING STARTED

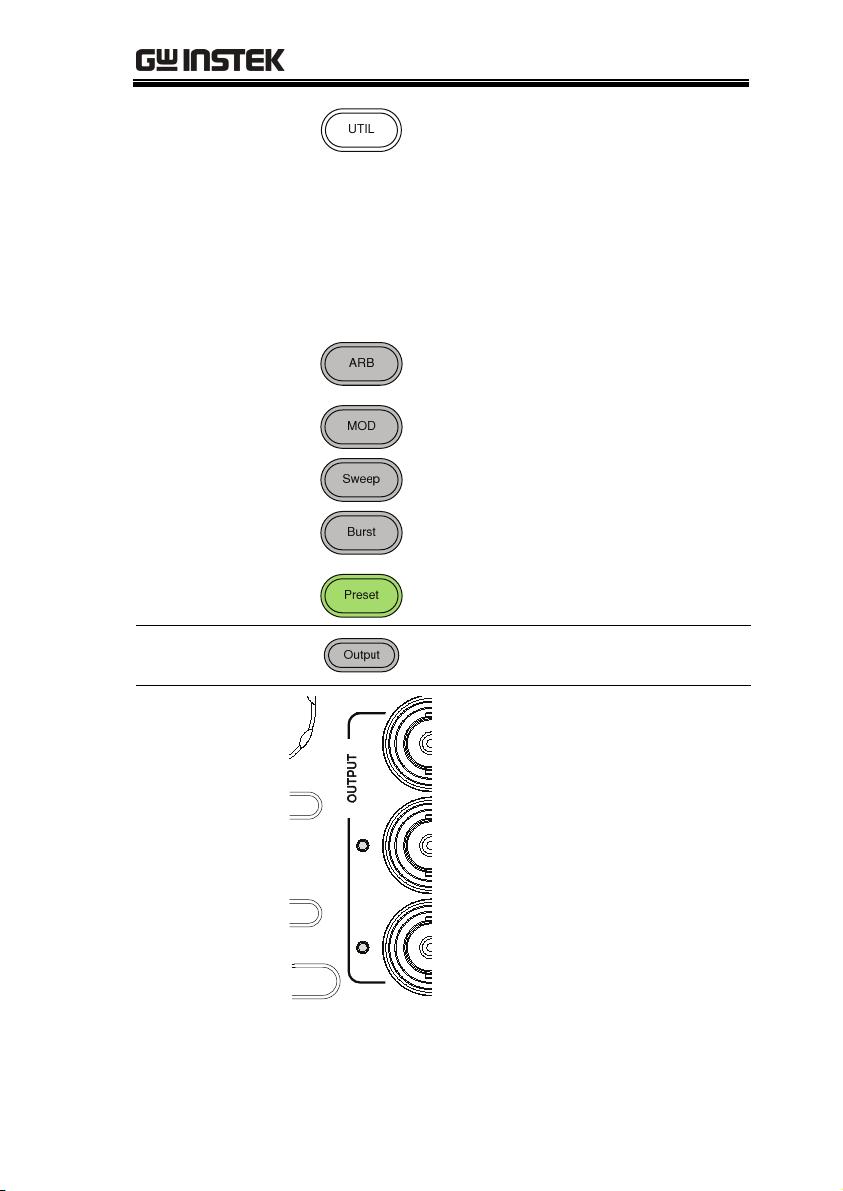

Preset
Output key
The UTIL key is used to access the
save and recall options, set the
remote interface (USB, GPIB,
RS232), use DSO link, update and
view the firmware version, access
the calibration options, output
impedance settings, set the
language and access the help
menu.
ARB is used to set the arbitrary
waveform parameters.
The MOD, Sweep and Burst keys
are used to set the modulation,
sweep and burst settings and
parameters.
The preset key is used to recall a
preset state.
The Output key is used to turn on
or off the waveform output.
Output
indicators
When an Output indicator is
green, it indicates that the output
is active.
11
AFG-3000 Quick Start Guide

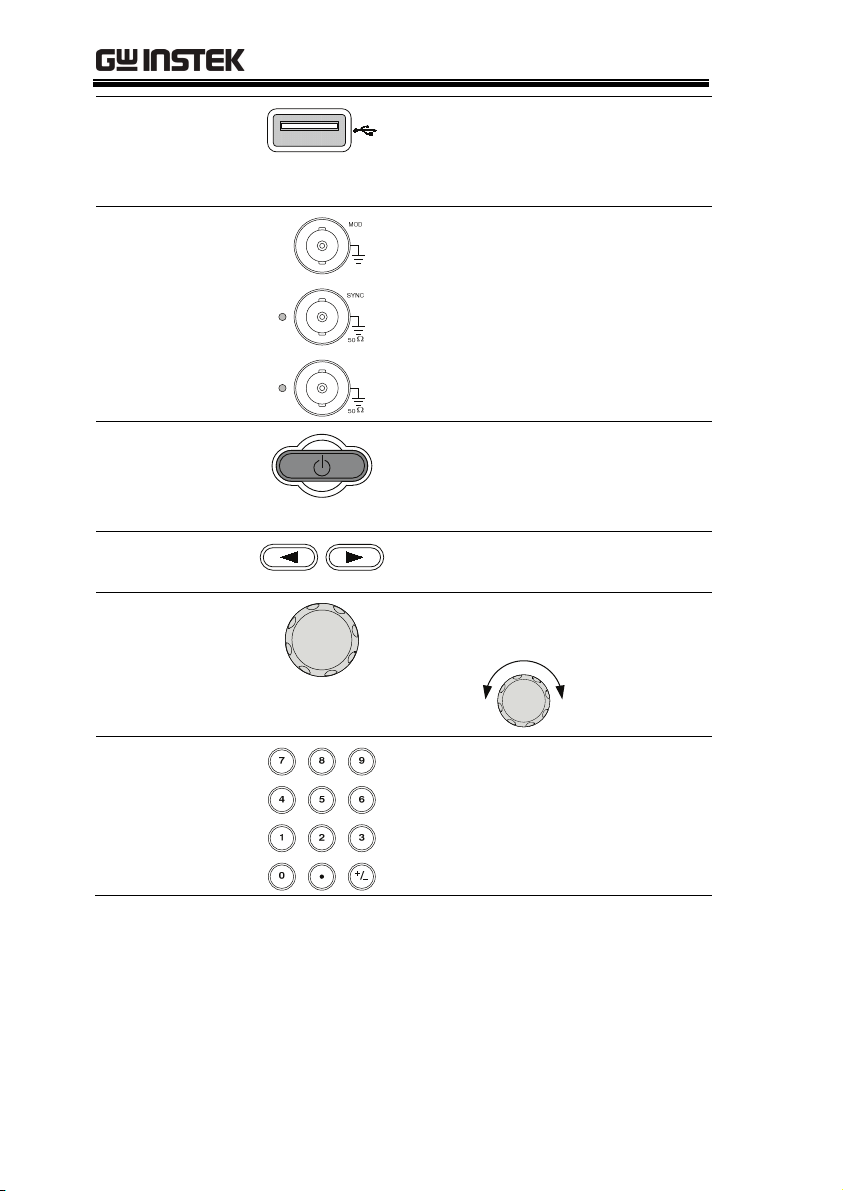

USB host
connector
Output terminals
Standby key
Selection keys
Scroll Wheel
The USB Host connector is used
to save and restore waveform
data and images, as well as
update the firmware.
Modulation output terminal.
The SYNC output terminal. 50Ω
output impedance.
The primary output terminal. 50Ω
output impedance.
The standby key is used to turn
the function generator on (green)
or to put the function generator
into standby mode (red).
Used to select digits when editing
parameters.
The scroll wheel is used to edit
values and parameters.
Keypad
Decrease
The digital keypad is used to
Increase
enter values and parameters. The
keypad is often used in
conjunction with the selection
keys and variable knob.
12

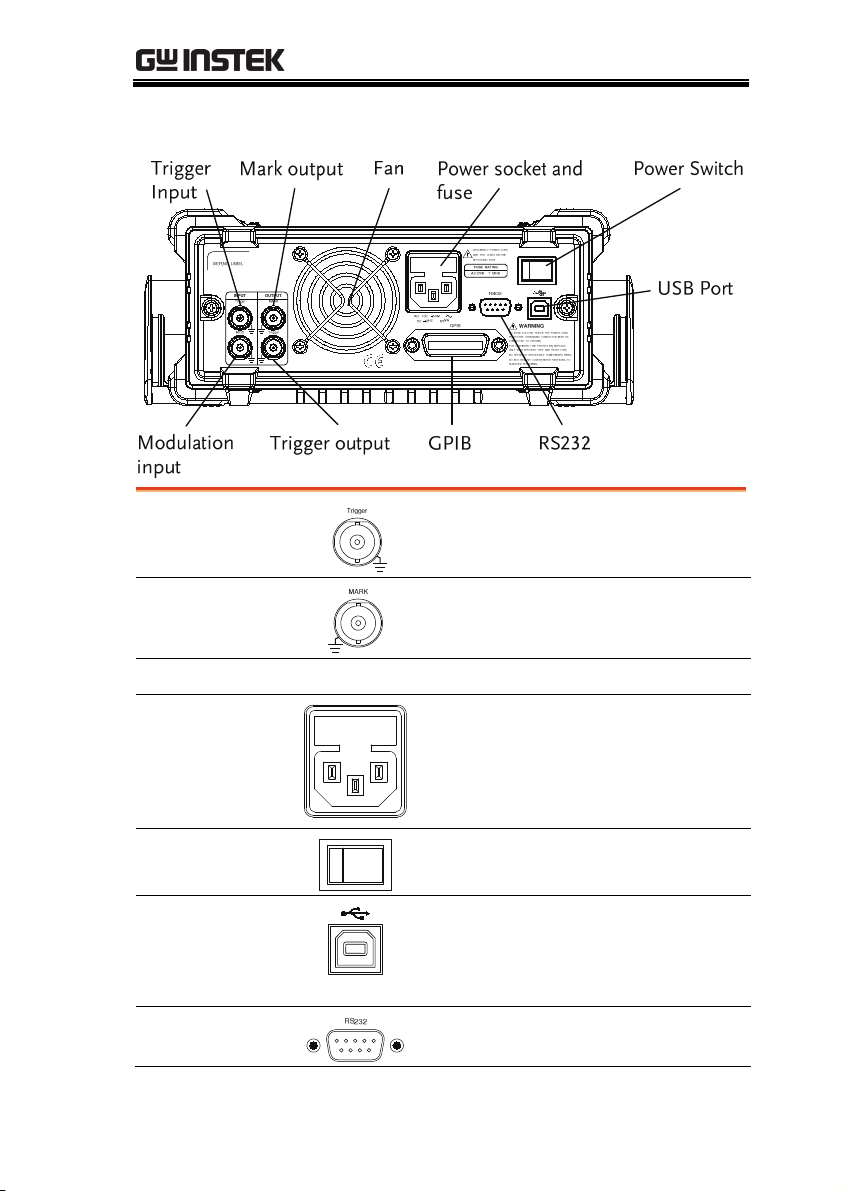

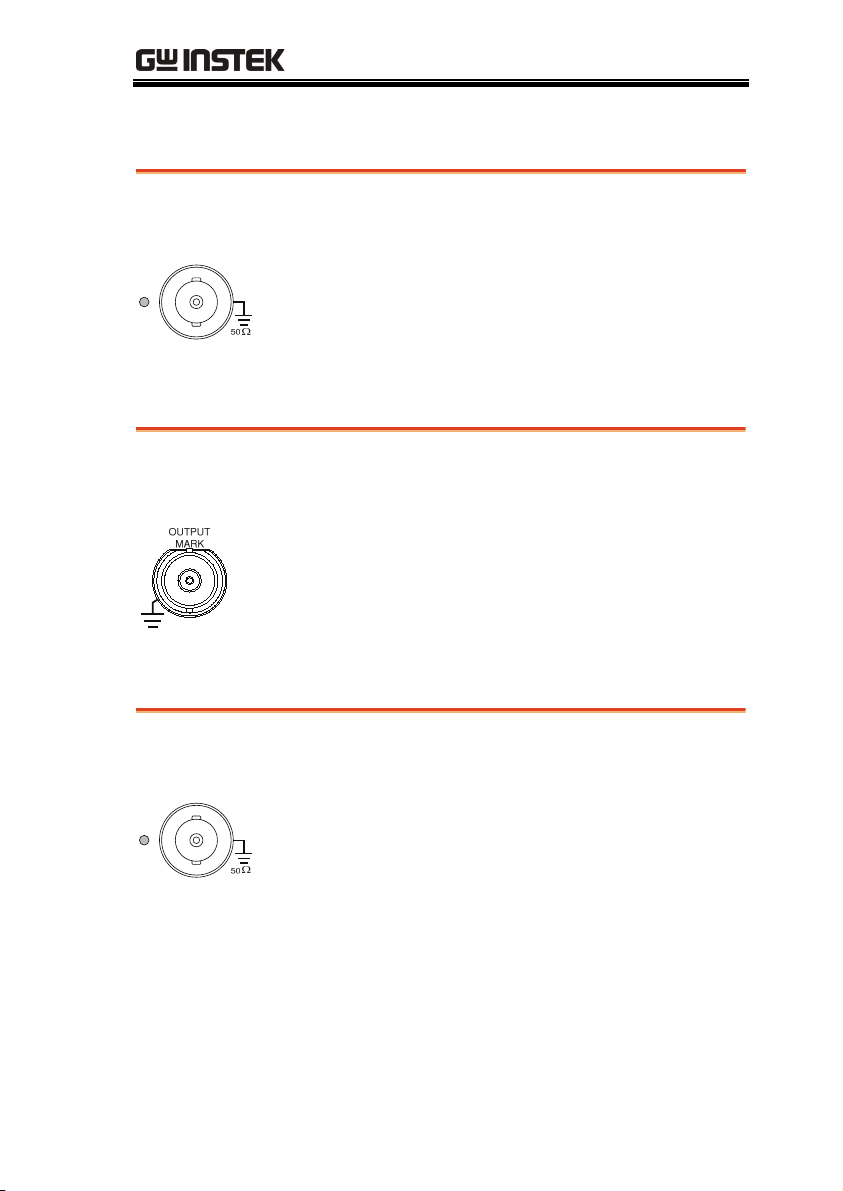

Rear Panel

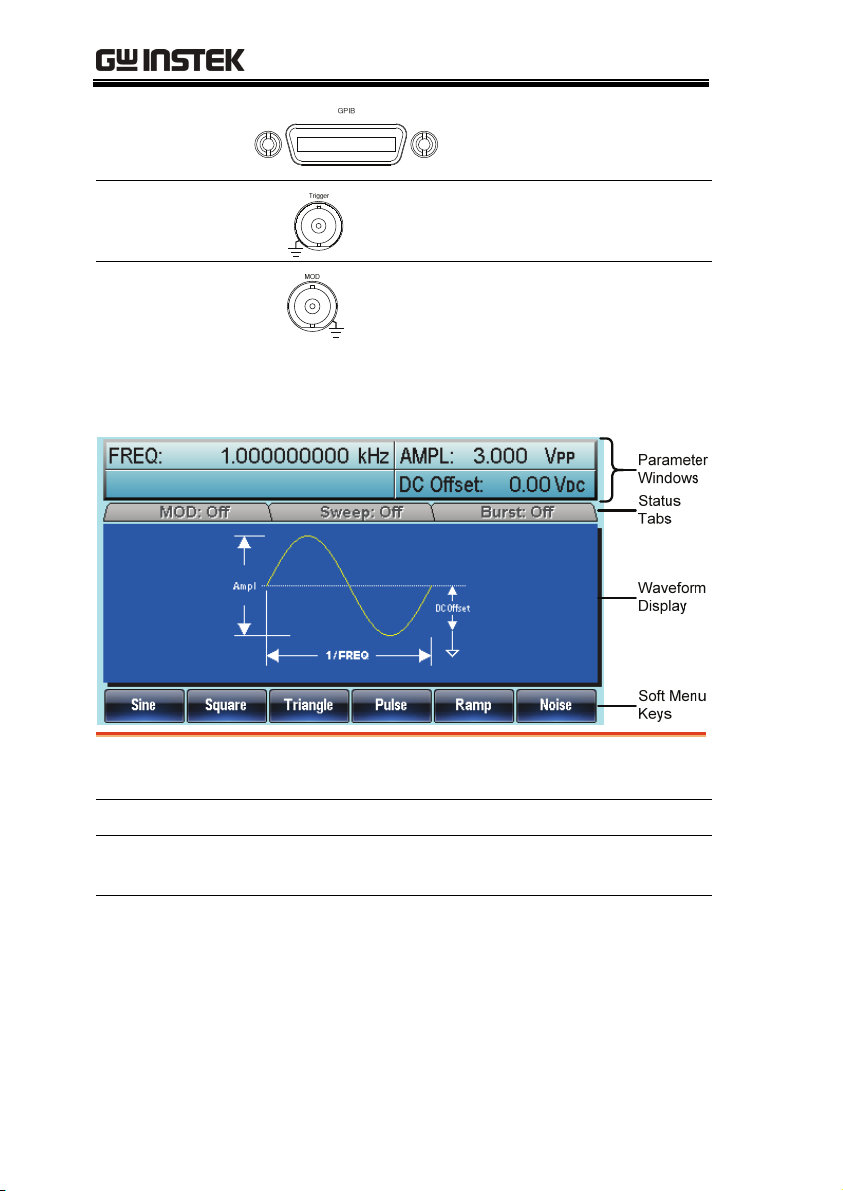

Trigger input
GETTING STARTED
External trigger input. Used to
receive external trigger signals.
MARK output
Fan
Power Socket
Input and fuse
Power Switch
USB port
RS232 port
Mark output signal. Used for Sweep
and ARB mode only.
Power input: 100~240V AC
50~60Hz.
Fuse: T0.63A/250V
Main power switch.
The Mini-B type USB connector is
used to connect the function
generator to a PC for remote
control.
9 pin female RS232 socket used for
PC remote control.
13
AFG-3000 Quick Start Guide
GPIB
Trigger output
MOD input
Display
24 pin female GPIB
connector for PC remote
control.
Trigger output terminal.
Modulation input terminal.
Parameter
The Parameter display and edit window.
Windows
Status Tabs Shows the status of MOD, Sweep and Burst modes.
Waveform Dis play
The Waveform Display is used to output the
waveform on the display.
Soft Menu Keys
The function keys (F1~F6) below the Soft Menu
keys correspond to the soft keys.
14
GETTING STARTED
Selecting a Waveform
Square Wave
Example: Square Wave, 3Vpp, 75%Duty, 1 kHz
Output
Input: N/A
1. Press Waveform> Square (F2).
2. Press Duty(F1)>7>5>%(F5).
3. Press Freq/Rate>1>kHz (F5).
4. Press AMPL>3>VPP (F6).
5. Press Output.
Triangle Wave
Example: Triangle Wave, 5Vpp,10kHz
Output
Input: N/A
1. Press Waveform>Triangle (F3).
2. Press Freq/Rate>1>0>kHz (F5).
3. Press AMPL>5>VPP (F6).
4. Press Output.
Sine Wave
Example: Sine Wave, 10Vpp,100kHz
Output
Input: N/A
1. Press Waveform >Sine (F1).
2. Press Freq/Rate>1> 0>0> kHz (F5).
3. Press AMPL >1> 0>VPP (F6).
4. Press Output.
15
AFG-3000 Quick Start Guide
Modulation
AM
Example: AM modulation. 100Hz modulating square wave. 1kHz
Sine wave carrier. 80% modulation depth.
Output
Input: N/A
1. Press MOD>AM (F1).
2. Press Waveform>Sine (F1).
3. Press Freq/Rate>1>kHz (F5).
4. Press MOD>AM (F1)>Shape (F4)>Square
(F2).
5. Press MOD>AM (F1)>AM Freq (F3).
6. Press 1>0>0>Hz (F2).
7. Press MOD>AM (F1)>Depth (F2).
8. Press 8>0>% (F1).
9. Press MOD>AM (F1)>Source (F1)>INT (F1).
10. Press Output.
FM
Example: FM modulation. 100Hz modulating square wave. 1kHz
Sine wave carrier. 100 Hz frequency deviation. Internal Source.
Output
Input: N/A
1. Press MOD>FM (F2).
2. Press Waveform>Sine (F1).
3. Press Freq/Rate>1>kHz (F5).
4. Press MOD>FM (F2)>Shape (F4)>Square
(F2).
5. Press MOD>FM (F2)>FM Freq (F3).
6. Press 1>0>0>Hz (F2).
7. Press MOD>FM (F2)>Freq Dev (F2).
8. Press 1>0>0>Hz (F3).
9. Press MOD>FM (F2)>Source (F1)>INT (F1).
10. Press Output.
16
GETTING STARTED
FSK Modulation
Example: FSK modulation. 100Hz Hop frequency. 1kHz Carrier
wave. Triangle wave. 10 Hz Rate. Internal Source.
Output
1. Press MOD>FSK (F3).
2. Press Waveform>Triangle (F3).
3. Press Freq/Rate>1>kHz (F5).
4. Press MOD>FSK (F3)>FSK Rate (F3).
Input: N/A
5. Press 1>0>Hz (F2).
6. Press MOD>FSK (F3)>Hop Freq (F2).
7. Press 1>0>0>Hz (F3).
8. Press MOD>FSK (F3)>Source (F1)>INT (F1).
9. Press Output.
PWM Modulation
Example: PWM modulation. 800Hz Carrier wave. 15 kHz
modulating sine wave. 50% Duty Cycle. Internal Source.
Output
Input: N/A
1. Press Waveform>Square (F2).
2. Press MOD>PWM (F4).
3. Press Freq/Rate>8>0>0>Hz (F4).
4. Press MOD>PWM (F4)>Shape (F4)>Sine
(F1).
5. Press MOD>PWM (F4)>PWM Freq (F3).
6. Press 1>5>kHz (F3).
7. Press MOD>PWM (F4)>Duty (F2).
8. Press 5>0>% (F1).
9. Press MOD>PWM (F4)>Source (F1)>INT
(F1).
10. Press Output.
17
AFG-3000 Quick Start Guide
Sweep
Example: Frequency Sweep. Start Frequency 10mHz, Stop frequency
1MHz. Log sweep, 1 second sweep, Marker Frequency 550 Hz,
Manual Trigger, Trigger out, rising edge.
Output
Input: N/A
1. Press Sweep>Start (F3).
2. Press 1>0>mHz (F2).
3. Press Sweep>Stop (F4).
4. Press 1>MHz (F5).
5. Press Sweep>Type (F2)>Log (F2).
6. Press Sweep>SWP Time (F5).
7. Press 1>SEC (F2).
8. Press Sweep>More (F6)>Marker
(F3)>ON/OFF (F2)>Freq (F1).
9. Press 5>5>0>Hz (F3).
10. Press Sweep>More (F6)>TRIG out
(F4)>ON/OFF (F3)>Rise (F1).
11. Press Output.
12. Press Sweep>Source (F1)>Manual
(F3)>Trigger (F1).
Burst
Example: Burst Mode, N-Cycle (Internally triggered), 1kHz burst
frequency, Burst count = 5, 10 ms Burst period, 0˚ burst phase,
Internal trigger, 10 us delay, rising edge trigger out
Output
Input: N/A
18
1. Press FREQ/Rate>1> kHz (F5).
2. Press Burst>N Cycle (F1)>Cycles (F1).
3. Press 5>Cyc (F5).
4. Press Burst>N Cycle (F1)>Period (F4).
5. Press 1>0>msec (F2).
6. Press Burst>N Cycle (F1)>Phase (F3).
7. Press 0>Degree (F5).
GETTING STARTED
8. Press Burst>N Cycle (F1)>TRIG Setup
(F5)>INT (F1).
9. Press Burst>N Cycle (F1)>TRIG Setup
(F5)>Delay (F4).
10. Press 1>0>uSEC (F2).
11. Press Burst>N Cycle (F1)>TRIG Setup
(F5)>TRIG out (F5)>ON/OFF (F3)>Rise (F1).
12. Press Output.
ARB
ARB – Add Built-In Waveform
Example: ARB Mode, Exponential Rise. Start 0, Length 100, Scale
32767.
1. Press ARB>Built in (F3)>More (F5)>Exp Rise
Output
(F1).
2. Press Start (F1)>0>Enter (F5)>Return (F6).
3. Press Length (F2)>100>Enter (F5)>Return
(F6).
4. Press Scale (F3)>32767>Enter (F5)>Return
(F6)>Done (F4).
ARB - Add Point
Example: ARB Mode, Add point, Address 40, data 300.
Output
1. Press ARB>Edit (F2)>Point (F1)>Address
(F1).
2. Press 4>0>Enter (F5)>Return (F6).
3. Press Data (F2)>3>0>0>Enter (F5).
19
AFG-3000 Quick Start Guide
ARB - Add Line
Example: ARB Mode, Add line, Address:Data (10:30, 50:100)
1. Press ARB>Edit (F2)>Line (F2)>Start ADD
Output
(F1).
2. Press 1>0>Enter (F5)>Return (F6).
3. Press Start Data (F2)>3>0>Enter (F5)>Return
(F6).
4. Press Stop ADD (F3)>5>0>Enter (F5)>Return
(F6).
5. Press Stop Data (F4)>1>0>0>Enter
(F5)>Return (F6)>Done (F5).
ARB – Output Section
Example: ARB Mode, Output ARB Waveform, Start 0, Length 100.
1. Press ARB>Output (F6).
Output
2. Press Start (F1)>0>Enter (F5)>Return (F6).
3. Press Length (F2)>100>Enter (F5)>Return
(F6).
ARB – Output N Cycle
Example: ARB Mode, Output N Cycle, Start 0, Length 100, Cycles 10.
1. Press ARB>Output (F6).
Output
20
2. Press Start (F1)>0>Enter (F5)>Return (F6).
3. Press Length (F2)>100>Enter (F5)>Return
(F6).
4. Press N Cycle (F4)>Cycles(F1)>10>Enter
(F5)>Return (F6).
5. Press Trigger (F6) to output once.
GETTING STARTED
ARB – Output Infinite
Example: ARB Mode, Output Infinite, Start 0, Length 100.
6. Press ARB>Output (F6).
Output
7. Press Start (F1)>0>Enter (F5)>Return (F6).
8. Press Length (F2)>100>Enter (F5)>Return
(F6).
9. Press Infinite (F5).
ARB – Output Markers
Example: ARB Mode, Output Markers, Start 0, Length 80.
Output
1. Press ARB>Output (F6)>Marker (F3).
2. Press Start (F1)>30, Enter (F5)>Return (F6).
3. Press Length (F2)>80>Enter (F5)>Return (F6).
ARB – Save
Example: ARB Mode, Save ARB waveform, Start 0, Length 100.
4. Press ARB>Save (F4).
Output
5. Press Start (F1)>0>Enter (F5)>Return (F6).
6. Press Length (F2)>100>Enter (F5)>Return
(F6).
7. Press either Memory(F3) or USB(F4).
8. Choose a file using the scroll wheel and press
Select (F1).
21
AFG-3000 Quick Start Guide
ARB – Load
Example: ARB Mode, Load ARB waveform.
1. Press ARB>Load (F5).
Output
2. Press either Memory(F1) or USB(F2).
3. Choose a file using the scroll wheel and press
Select (F1).
4. Press To (F3)>0>Enter (F5)>Return (F6).
5. Press Done (F5).
Utility Menu
Save
Example: Save to Memory file #5.
1. Press UTIL>Memory (F1)>Store (F1).
2. Choose a file using the scroll wheel and press
Select (F1)>Done (F5).
Recall
Example: Recall Memory file #5.
22
1. Press UTIL>Memory (F1)>Recall (F2).
2. Choose a file using the scroll wheel and press
Select (F1)>Done (F5).
GETTING STARTED

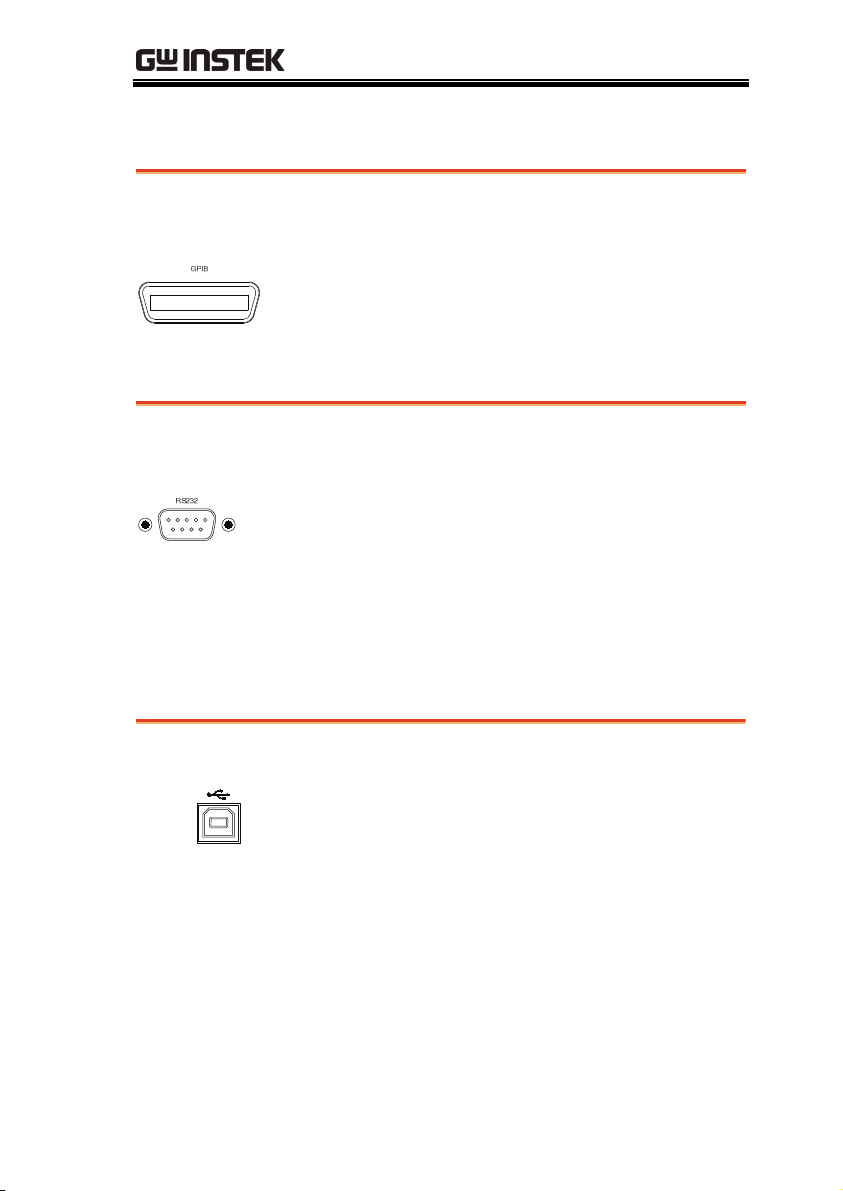

Interface GPIB
Example: GPIB interface, Address 10.
GPIB
1. Press UTIL>Interface (F2)>GPIB
(F1)>Address (F1).
2. Press 10>Done (F5).
Interface RS232
Example: RS232 interface, Baud 115200, Parity None, Bits 8.
RS232
1. Press UTIL>Interface (F2)>RS232 (F2).
2. Press Baud Rate (F1)>115k (F5).
3. Press UTIL>Interface (F2)>RS232 (F2).
4. Press Parity/Bits (F2)>None/8Bits (F1).
Interface USB
Example: USB interface.
1. Press UTIL>Interface (F2)>USB (F3).
USB B
23
AFG-3000 Quick Start Guide
AFG-3000 Series Specifications
The specifications apply when the function generator is powered on
for at least 30 minutes under +20°C~+30°C.
Waveforms AFG-3051 AFG-3081
Sine, Square, Ramp, Pluse, Noise, DC,
Sin(x)/x, Exponential Rise, Exponential
Fall, Negative Ramp
Arbitrary Waveforms
ARB Function Built in
Repetition Rate 100MHz
Amplitude
User defined
Output mode 1 to 1048575 cycles or Infinite mode
Sample Rate 200 MSa/s
Wav eform Le ngth 1M points
16 bits
Resolution
Non-Volatile
Memory
Output Section
User define Mark
Output
Ten 1M waveforms(1)
Any section from 2 to 1M points
Any section from 2 to 1M points
selectable
Frequency Characteristics
Range Sine 50MHz 80MHz
Square 50MHz 80MHz
Triangle, Ramp 1MHz
Resolution 1μHz
Accuracy Stability
Tolera n c e ≤ 1 μHz
Output Characteristics(2)
Amplitude Range 10 mVpp to 10 Vpp( into 50Ω)
Resolution 0.1 mV or 4 digits
Aging ±1 ppm, per 1 year
Accuracy ± 1% of setting ±1 mVpp
±1 ppm 0 to 50˚C
±0.3 ppm 18 to 28˚C
20 mVpp to 20 Vpp(open-circuit)
(at 1 kHz,>10 mVpp)
24
GETTING STARTED
Flatness ± 1% (0.1dB) <10 MHz
± 2% (0.2 dB) 10 MHz to 50 MHz
± 10% (0.9 dB) 50 MHz to 70 MHz
± 20% (1.9 dB) 70 MHz to 80 MHz (sine
wave relative to 1 kHz)
Units Vpp, Vrms, dBm,
Offset Range ±5 Vpk ac +dc (into 50Ω)
±10Vpk ac +dc (Open circuit)
Accuracy 1% of setting + 2 mV + 0.5% Amplitude
Wav eform Ou tput Impedance 50Ω typical (fixed)
> 10MΩ (output disabled)
Protection Short-circuit protected
Overload relay automatically disables
main output
Sync Output Level TTL-compatible into>1kΩ
Impedance 50Ω nominal
Sine wave Characteristics
Harmonic
distortion(5)
–60 dBc
–55 dBc
–45 dBc
–30 dBc
Total H a r m onic
Distortion
Spurious (non-
harmonic)(5)
< 0.2%+0.1mVrms
DC to 20 kHz
–60 dBc
–50 dBc
DC～1 MHz, Ampl＜3 Vpp
DC～1 MHz, Ampl＞3 Vpp
1MHz～5 MHz, Ampl＞3 Vpp
5MHz～80 MHz, Ampl＞3 Vpp
DC～1 MHz
1MHz～20MHz
–50 dBc+ 6 dBc/octave 1MHz～80MHz
Phase Noise
＜-65dBc typical 10MHz, 30 kHz band
＜-47dBc typical 80MHz, 30 kHz band
Square wave Characteristics
Rise/Fall Time <8 ns(3)
Overshoot <5%
Asymmetry 1% of period +1 ns
Variable duty
Cycle
20.0% to 80.0% ≤ 25 MHz
40.0% to 60.0% 25～50MHz
50.0%(Fixed) 50～80MHz
Jitter
0.01%+525ps ＜ 2 MHz
0.1%+75ps ＞ 2 MHz
Ramp Characteristics
Linearity
Var iabl e
＜ 0.1% of peak output
0% to 100%
Symmetry
Pulse Characteristics
Period
20ns～ 2000s
25
AFG-3000 Quick Start Guide
Pulse Width
Overshoot <5%
Jitter 100 ppm +50 ps
AM Modulation
Carrier Waveforms Sine, Square, Triangle, Ramp, Pulse, Arb
Modulating
Waveforms
Modulating
Frequency
Depth 0% to 120.0%
Source Internal / External
FM Modulation
Carrier Waveforms
Modulating
Waveforms
Modulating
Frequency
Peak Deviation DC to 50 MHz DC to 80 MHz
Source Internal / External
PWM
Carrier Waveforms
Modulating
Waveforms
Modulating
Frequency
Deviation
Source Internal / External
FSK
Carrier Waveforms Sine, Square, Triangle, Ramp, Pulse
Modulating
Waveforms
Internal Rate 2 mHz to 100 kHz
Frequency Range DC to 50 MHz DC to 80 MHz
Source Internal / External
Sweep
Waveforms Sine, Square, Triangle, Ramp
Type Linear or Logarithmic
Sine, Square, Triangle, Up/Dn Ramp
Sine, Square, Triangle, Up/Dn Ramp
Sine, Square, Triangle, Up/Dn Ramp
8ns～ 1999.9s
Minimum Pulse Width:
8nS when FREQ50MHz
5% of setting period when
FREQ6.5MHz
Resolution:
1nS when FREQ50MHz
1% of setting period when
FREQ6.5MHz
2 mHz to 20 kHz
Sine, Square, Triangle, Ramp
2 mHz to 20 kHz
Square
2 mHz to 20 kHz
0% ～ 100.0% of pulse width
50% duty cycle square
26
GETTING STARTED
Direction Up or Down
Start/Stop Freq 100 μHz to 50 MHz 100 μHz to 80 MHz
Sweep Time 1 ms to 500 s
Trigger Single, External, Internal
Marker Falling edge of Mark signal
(Programmable frequency)
Source Internal / External
Burst
Waveforms Sine, Square, Triangle, Ramp
Frequency 1 μHz to 50
MHz(4)
Burst Count 1 to 1000000 cycles or Infinite
Start/Stop Phase
Internal Period 1 ms to 500 s
Gate Source External Trigger
Trigger Source Single, External or Internal Rate
Trigger Delay N-Cycle, Infinite 0s to 85 s
External Modulation Input
Type For AM, FM, Sweep, PWM
Voltage Range ± 5V full scale
Input Impedance
Frequency DC to 20kHz
External Trigger Input
Type For FSK, Burst, Sweep
Input Level TTL Compatibility
Slope Rising or Falling (Selectable)
Pulse Width >100ns
Input Impedance
Latency Sweep <10us (typical)
Burst <100ns (typical)
Jitter Sweep 2.5 us
Burst 1 ns; except pulse, 300 ps
Modulation Output
Type For AM, FM, Sweep, PWM
Amplitude Range ≥1Vpp
Impedance >10kΩ typical (fixed)
Trigger Output
Type For Burst, Sweep
Level
Pulse Width >450 ns
Maximum Rate 1 MHz
Fan -out ≥4 TTL load
Impedance
Marker Output
Type For ARB, Sweep
-360.0 to +360.0
10kΩ, DC coupled
TTL Compatible into 50Ω
50Ω Typical
1 μHz to 80
MHz(4)
10kΩ
27
AFG-3000 Quick Start Guide
Level
Fan -out ≥4 TTL load
Impedance
Store/Recall 10 Groups of Setting Memories
Interface GPIB, RS232, USB
Display 4.3 inch TFT LCD
TTL Compatible into 50Ω
50Ω Typical
480 × 3 (RGB) × 272
System Characteristics
Configuration
Times (typical)
Select User Arb: < 2s for 1M points
Arb Download
Times
(typical)
1M points 189 sec 34 sec 70 sec
512K points 95 sec 18sec 35 sec
256K points 49 sec 9 sec 18 sec
64K points 16 sec 3 sec 6 sec
16K points 7 sec 830 ms 1340 ms
8K points 6 sec 490 ms 780 ms
4K points 6 sec 365 ms 520 ms
2K points 5 sec 300 ms 390 ms
General Specifications
Power Source AC100~240V, 50~60Hz
Power
Consumption
Operating
Environment
Operating
Altitude
GPIB/RS232
(115 Kbps)
Temperature to satisfy the specification :
Function Change:
Standard---->102ms
Pulse-------->660ms
Built-In Arb->240ms
Frequency Change: 24ms
Amplitude Change: 50ms
Offset Change: 50ms
Modulation Change: < 200ms
Binary Code ASCII Code
USB Device USB Host
65 VA
18 ~ 28˚C
Operating temperature :
0 ~ 40˚C
Relative Humidity:
≤ 80%, 0 ~ 40˚C
≤ 70%, 35 ~ 40˚C
Installation category： CAT Ⅱ
2000 Meters
28
GETTING STARTED
Pollution Degree IEC 61010 Degree 2, Indoor Use
Storage
Te mp e ra t ur e
Dimensions
(WxHxD)
Weight Approx. 4kg
Safety Designed
EMC Tested to EN 55011, IEC-61326
Accessories Test cable(GTL-110× 1), User Manual
(1). A total of ten waveforms can be stored. (Every waveform can be composed of
1M points maximum.)
(2). Add 1/10th of output amplitude and offset specification per C for operation
outside of 0 C to 28 C range (1-year specification).
(3). Edge time decreased at higher frequency.
(4). Sine and square waveforms above 25 MHz are allowed only with an “Infinite”
burst count.
(5). Harmonic distortion and Spurious noise at low amplitudes is limited by a -70
dBm floor.
Bench Top 265 (W) x 107 (H) x 374 (D)
to
-10~70˚C, Humidity: ≤70%
EN61010-1
Compact Disk × 1, Quick Start Guide × 1,
Power cord × 1
29
AFG-3000 Quick Start Guide
EC Declaration of Conformity
We
GOOD WILL INSTRUMENT CO., LTD.
No.7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan
GOOD WILL INSTRUMENT (SUZHOU) CO., LTD.
No. 69, Lushan Road, Suzhou New District Jiangsu, China
declares that the below mentioned product
AFG-3081, AFG-3051
Are herewith confirmed to comply with the requirements set out in the
Council Directive on the Approximation of the Law of Member States
relating to Electromagnetic Compatibility (2004/108/EC) and Low
Voltage Equipment Directive (2006/95/EC). For the evaluation
regarding the Electromagnetic Compatibility and Low Voltage
Equipment Directive, the following standards were applied:
◎ EMC
EN 61326-1 :
EN 61326-2-1:
Conducted and Radiated Emissions
EN 55011: 2007+A2: 2007
Current Harmonic
EN 61000-3-2: 2006+A1: 2009+A2: 2009
Voltage Fluctuation
EN 61000-3-3: 2008
-------------------------
-------------------------
-------------------------
-------------------------
Electrical equipment for measurement, control and
laboratory use –– EMC requirements (2006)
Electrostatic Discharge
EN 61000-4-2: 2009
Radiated Immunity
EN 61000-4-3: 2006+A1: 2008
Electrical Fast Transients
IEC 61000-4-4: 2004+Corr.1 : 2006+Corr.2 :
2007
Surge Immunity
EN 61000-4-5: 2006
Conducted Susceptibility
EN 61000-4-6: 2009
Power Frequency Magnetic Field
EN 61000-4-8: 1993+A1: 2001
Voltage Dips/ Interrupts
EN 61000-4-11: 2004
Test Eq
◎ Safety
Low Voltage Equipment Directive 2006/95/EC
Safety Requirements
IEC/EN 61010-1: 2001
uipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176
30
TestEquipmentDepot.com
Loading...
