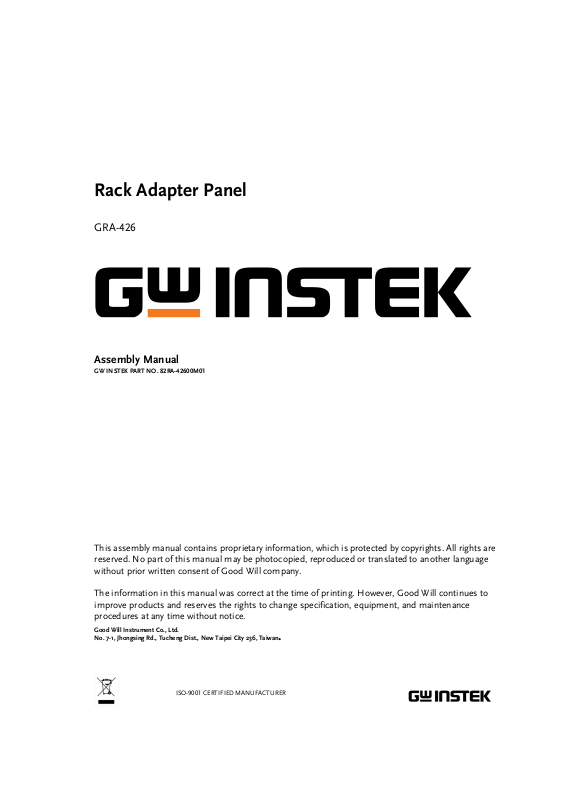

Rack Adapter Panel
GRA-426
Assembly Manual
GW INSTEK PART NO. 82RA-42600M01
This assembly manual contains proprietary information, which is protected by copyrights. All rights are
reserved. No part of this manual may be photocopied, reproduced or translated to another language
without prior written consent of Good Will company.
The information in this manual was correct at the time of printing. However, Good Will continues to
improve products and reserves the rights to change specification, equipment, and maintenance
procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.
ISO-9001 CERTIFIED MANUFACTURER
Overview
Description
Please check to make sure all the components of the
GRA-426 rack mount kit are provided.
GRA-426
Assembly
Item
Part NO.
Description
QTY
1
62RA-411HD101
CA MS-740-20-160, U HANDLE, 160mm, AL,
RoHS
2
2
62RA-426FP101
CA GRA-426 FRONT PLATE, RoHS
1
3
62RA-426LO101
CA GRA-426 BOTTOM COVER, RoHS
1
4
594B-06012ZS1
SCREW BMS +, M6*12, ISO, ZINC, RoHS
4
5
6010-L00040S1
NUT (Embossed) MS-2031-20-M4, 20@
13.5mm PLASTIC
2
6
62RA-426HP101
CA GRA-426 LEFT HP, RoHS
1
7
62RA-426HP201
CA GRA-426 RIGHT HP, RoHS
1
8
57RG-20B03701
SPONGE GRA-420 35*20*10T, BLACK, RoHS
2
9
57RG-20B03801
SPONGE GRA-420 50*20*10T, BLACK, RoHS
2
GRA-426
Overview
The GRA-426 rack mount is suited for the GDS-2000E and GDS-1000B. The
GRA-426 is designed for use with standard sized rack units.
Rack Mount Adapter Component List and Assembly
