LEAKAGE CURRENT TESTER
GLC-9000
QUICK START GUIDE
GWINSTEK PART NO.：82LC-90000MB1
ISO-9001 CERTIFIED MANUFACTURER
This manual contains proprietary information, which is protected by
copyright. All rights are reserved. No part of this manual may be
photocopied, reproduced or translated to another language without
prior written consent of Good Will Corporation.
The information in this manual was correct at the time of printing.
However, Good Will continues to improve its products and therefore
reserves the right to change the specifications, equipment, and
maintenance procedures at any time without notice.
Good Will Instrument Co., Ltd.
No. 7-1, Jhongsing Rd., Tucheng City, Taipei County 236, Taiwan.
Table of Contents
Table of Contents
INTRODUCTION .............................................. 5
Introduction ........................................................................ 5
Front Panel .......................................................................... 6
Rear Panel ........................................................................... 8
Leakage Current Modes ....................................................... 9
Key Features ...................................................................... 10
Power and Probe Connection ............................................. 14
Preparation ....................................................................... 17
Interface ............................................................................ 19
OPERATION ................................................... 23
Measurement Terminals .................................................... 23
Non-medical Network (General Electrical Appliance) ........ 23
Medical Equipment .............................................................. 24
Leakage Current Testing Connections ................................ 25
OTHER ........................................................... 29
EUT Voltage and Current Check ......................................... 29
Voltage Measurement ........................................................ 30
3
4
INTRODUCTION
INTRODUCTION
This quick start guide is designed to help those who are not familiar
with the GLC-9000 to quickly learn the fundamentals. For details on
system settings, parameter settings, save/recall, remote instructions
and other operation features and functions, please refer to the user
manual.
Introduction
Overview
This quick start guide provides the basics on:
Front and rear panels with descriptions of all
features and functions on the panels
Description of the Leakage current modes
Basic preparation and power up
Main screen display overview
Summaries of the different leakage current
measurement operations
Summary of the EUT Voltage and Current
Check function and the Voltage Meter function.
5
GLC-9000 Quick Start Guide

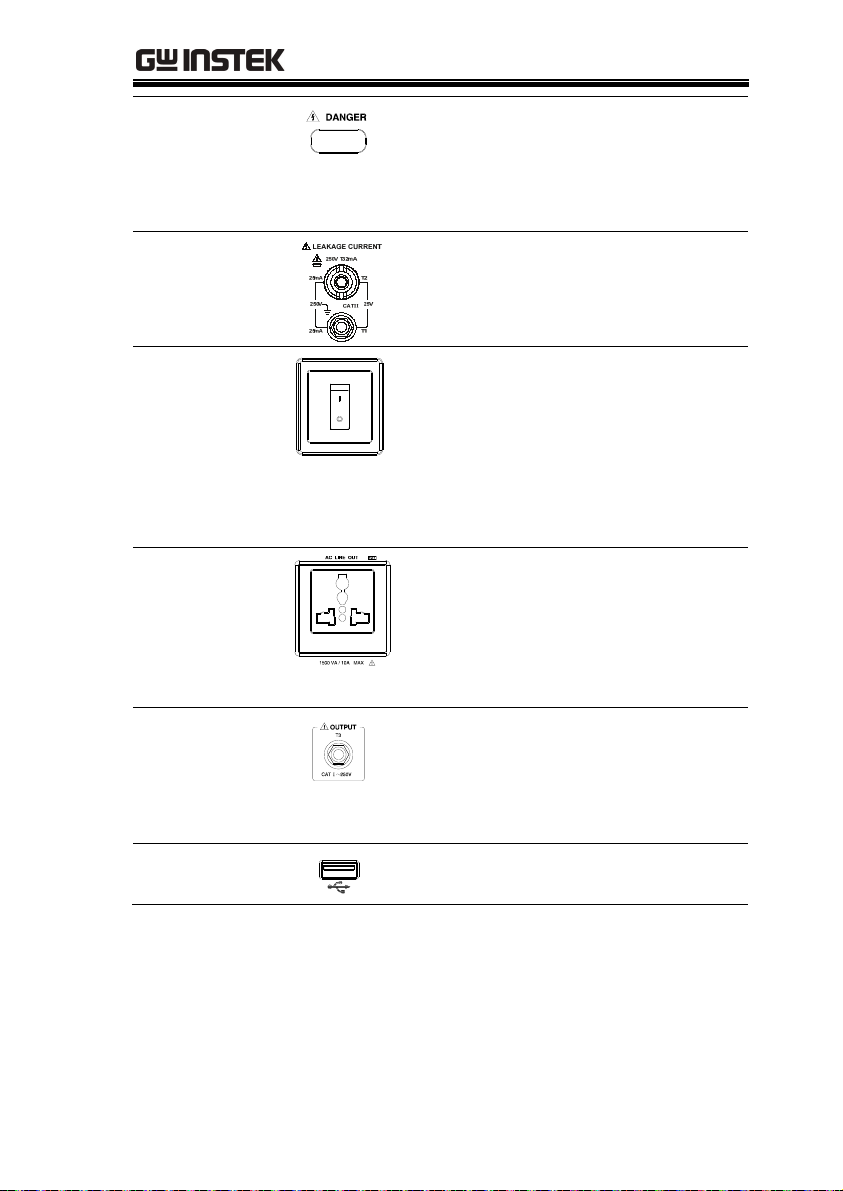

Front Panel
Item Description
1. POWER
The power switch turns the power
on or off.
2. START
3. RESET
4. Display
6
: ON
: OFF
The green START button starts
measurements.
The red RESET button stops
measurements.
5.6” inch touch screen LCD display.
The touch screen display is the
primary user interface.
INTRODUCTION
5. War ning
Indicator
6. Measuring
Te rm i na l s
7. Circuit
Breaker
8. EUT AC
Te rm i na l
Block
The warning indicator lights up
when high voltages are produced
from terminals T1, T2 or T3. The
warning indicator will flash when
in standby mode.
Measuring Terminals T1 and T2 are
used to measure leakage current.
Terminal T2 has a replaceable fuse
(250V, 32mA).
The circuit breaker has over-current
protection for the EUT rated at 15A.
When testing, the warning indicator
will illuminate.
I: ON, normal operation
O: OFF, inactive or during over-
current protection.
Supplies AC power for the EUT.
Includes automatic shut-down
(circuit breaker) with over-current
protection. Maximum current
output 10A, maximum power
output, 1500VA.
9. T3 110%
Vol tag e
Application
10. USB HOST
An isolated voltage (1:1) is output to
T3 from the EUT AC IN voltage by
an isolation transformer. This
terminal is limited to medical
networks (MD:F)
USB host terminal.
7
GLC-9000 Quick Start Guide
Rear Panel
ITEM Description
1. EUT AC IN
2. RS-232
Terminal
3. USB
connector
4. EXT I/O
connector
5. GPIB
connector
6. Power Socket/
Fuse socket.
RS232C
USB
EXT I/O
GPIB
EUT AC inlet. AC voltage range:
85V～ 250V AC, 50～60Hz
10A Max
RS-232 Interface
USB terminal for remote control.
External input/output remote
control connector.
GPIB Interface for remote control.
The power socket accepts AC
mains power for the GLC-9000.
Power: 100V/120/220/ 230V AC
Fuse: T0.4A/250V
8
INTRODUCTION
Leakage Current Modes
1. Earth
Leakage
Current
2. Enclosure
Leakage
Current
3. Patient
Leakage
Current I
4. Patient
Leakage
Current II
Refers to the current that flows through a
protective grounding wire to earth. (General
Electrical, Medical Equipment)
Refers to the current that flows through a human
body in contact with a device enclosure. (General
Electrical, Medical Equipment)
Refers to the current that flows through a human
body that is directly connected to a device.
(Medical Equipment)
Refers to the current that flows through a human
body that is directly connected to a device under
faulty conditions.
(Medical Equipment)
9
GLC-9000 Quick Start Guide
5. Patient
Leakage
Current III
6. Patient
Auxiliary
Current
Refers to the current that flows through a human
body that is directly connected to a device that
malfunctions.
Refers to the current that flows through a human
and a device during normal operation. This is not
intended to be perceptive. (Medical Equipment)
Key Features
International
Standards and
Regulations
The GLC-9000 has nine measurement networks
(Measuring Devices: MD) supporting GB/12113,
IEC/UL and other international standards for
electrical products:
(1) MD-A:IEC60990
(2) MD-B:IEC60990
(3) MD-C:IEC60990
(4) MD-D:UL
(5) MD-E(1kΩ):-general application
(6) MD-F: Medical
(7) MD-G:UL
(8) MD-H:(2kΩ)-general application
(9) MD-I:JIS
(Medical Equipment)
10
INTRODUCTION
Measurement
Modes
Leakage Current
Type s
Measurement
Range
There are a number of leakage current
measurement tests covering general electrical
equipment and medical electrical equipment.
(1) Earth Leakage Current.
(2) Leakage current from enclosure and earth.
(3) Leakage current from enclosure to enclosure.
(4) Leakage current from enclosure to line.
(5) Patient Auxiliary Current*.
(6) Patient leakage current I*.
(7) Patient leakage current II*.
(8) Patient leakage current III*.
*Tests 5,6,7,8 are applicable to medical MD-F
devices.
Leakage current measurement modes：
DC, AC, AC+DC, AC Peak.
Automatic/Manual ranges:
DC/AC/AC+DC：50uA/500uA/5mA/25mA
(Range：4uA～25mA)
AC Peak：500uA/1mA/10mA/75mA
(Range：40uA～75mA)
11
GLC-9000 Quick Start Guide
Operation

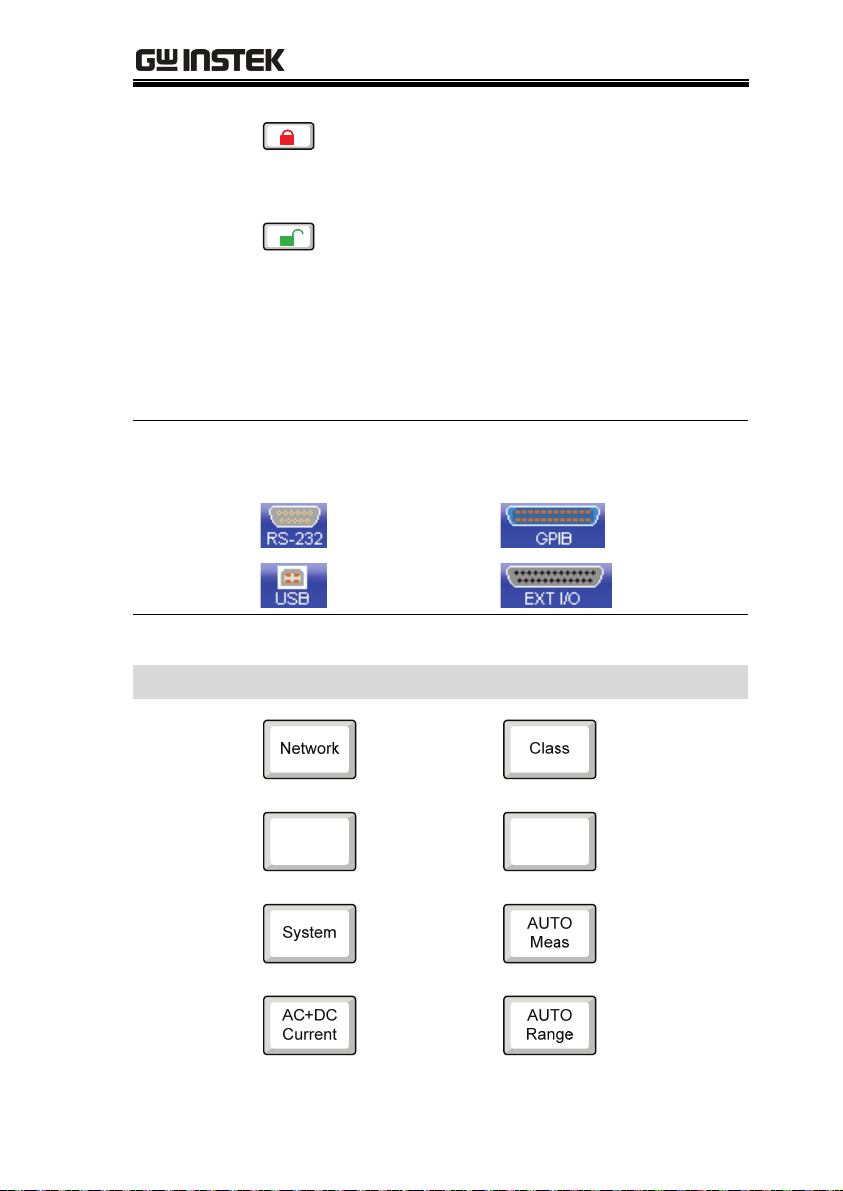

Interface
LCD
Auto/Manual/Programmable
Single fault conditions and power supply
polarity switch
Measurement/Delay time settings
Maximum / minimum hold
PASS/FAIL(Upper, Lower) Judgement (limits)

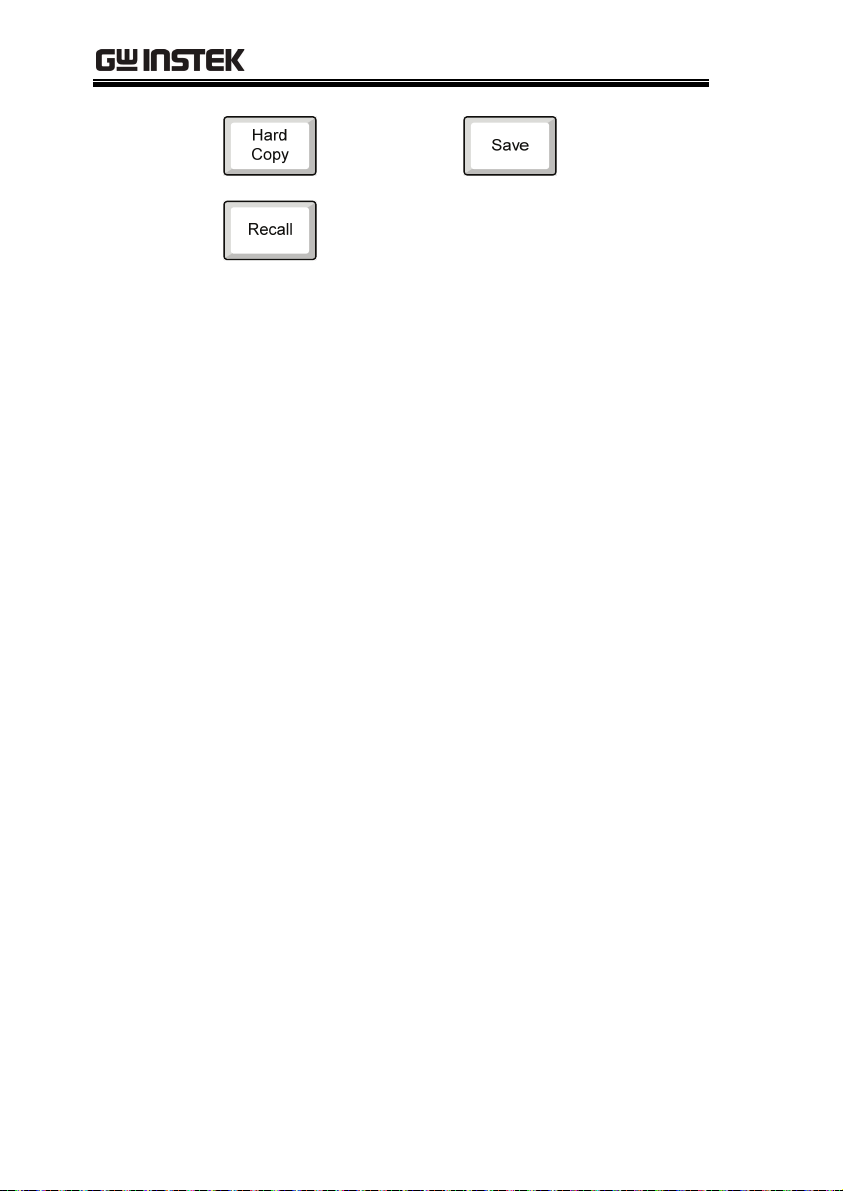

save and recall setup and measurement results
System clock settings
Multilanguage support
System Self test
EUT voltage/current/power consumption
High output alarm and led indicators.
Remote control interface options
With the exception of the Start, Reset and power
switches, the user-interface is entirely controlled
via a touch screen.
The simple, user-friendly interface is extremely
intuitive with a large 5.6” color TFT screen.
EUT Test Status
The voltage, current and power consumption of
the EUT can be measured.
Built-in Voltage
Meter
The built in voltage meter detects 0-300V. The
voltage meter is activated when the Safety Extra
Low Voltage (SELV) function is on.
Memory
30 sets of memory for user defined test
conditions
50 sets of standard test conditions.
(e.g., IEC60990)
100 sets of measurements can be saved/recalled
12
INTRODUCTION
y
Remote Interface
Protection
There are a variety of remote control interfaces
including: RS-232, USB (Host/Device), GPIB and
the EXT I/O connector.
The LED warning indicator will illuminate and
emit a tone by default for:
Judgment limits. (high/low limits).
High Voltages output from the testing
terminals.
Overload protection (fuse protection).
Rela
protection for EUT overloads.
13
GLC-9000 Quick Start Guide
Power and Probe Connection
Mains Power
EUT Power
Ensure the power is switched off from the front
1.
panel.
2. Insert the AC mains power into the power
socket on the right-hand side of the rear panel.
The arrow above shows the location of the AC main
power socket.
1. Ensure the power switch is off on the front
panel.
2. Insert the power cord as shown on the right
into the EUT AC Line In.
14
The arrow above shows the EUT AC line in socket,
located on the left-hand side of the rear panel.
INTRODUCTION
Caution
T1/T2/T3
Te rm i na l s
If network B (MD B) is selected an isolation
transformer that outputs 110% of the rated voltage
specified for the EUT is required. The neutral line
must be grounded (from the secondary side of the
transformer).
Measurement networks (MD)A, B, C all require an
isolation transformer.
1. Insert the test leads to one of the terminals
2. The measuring mode determines which
terminal will be used.
Terminals T1, T2 and T3 are shown above.
Warning: To avoid the risk of electric shock, do not
touch the tips of the test leads when operating.

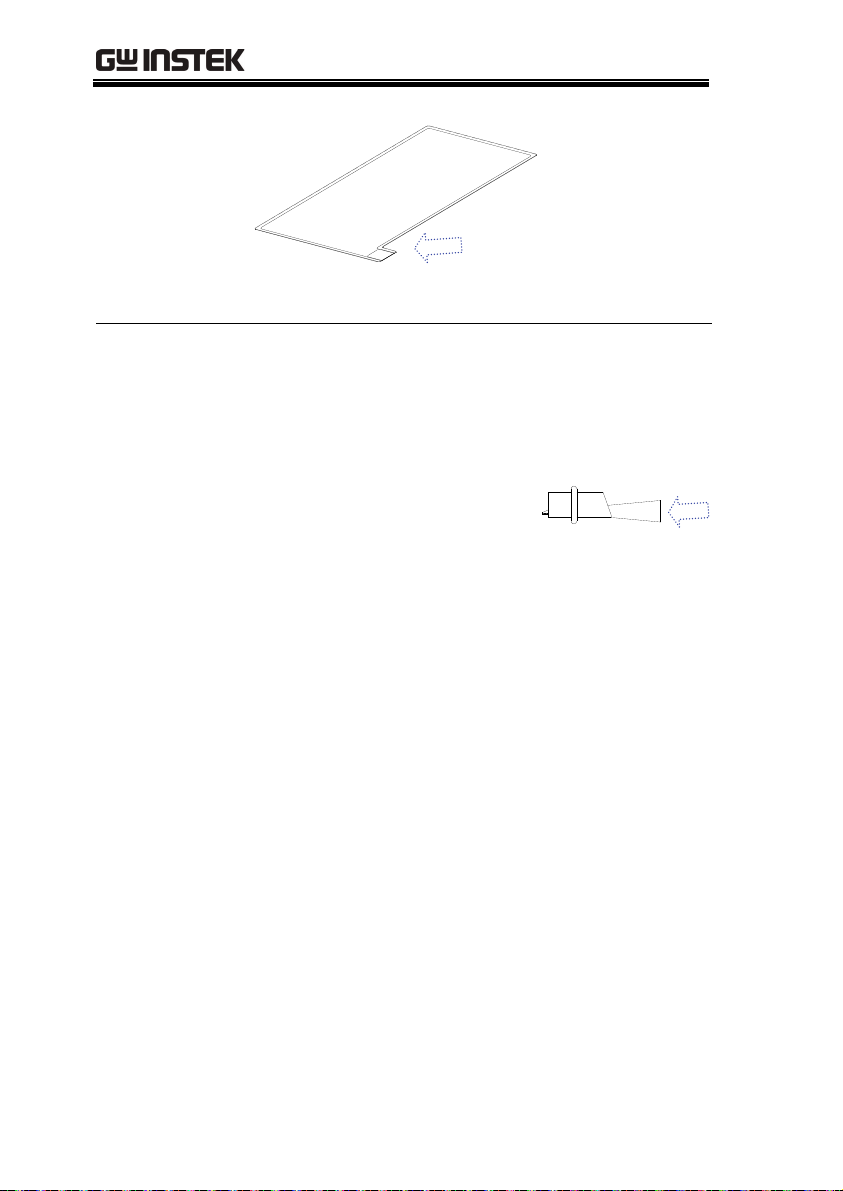

Foil Probe
1. The foil probe is used to measure the surface
leakage current (touch current) of the EUT.
Attach the probe metal-foil-side down onto the
enclosure of the EUT.
2. Attach the test leads to the foil probe using
alligator clips to the area on the right, as shown
in the diagram
15
GLC-9000 Quick Start Guide
The arrow above shows the contact point for the test
lead.
Alligator Clips
1. Plug a test lead into the rear panel.
2. Use an alligator clip to clip to the metal foil or
to other points under test.
The arrow mark indicates the
location that the test lead and
alligator clips are clipped
together.
16
Preparation
INTRODUCTION
Vol tage Line
Selection
Warning
Fuse
EUT AC Line In
Before power is turned on,
ensure the line voltage is
correct for the environment.
The line voltage is shown on
the rear panel.
100V
120V
220V
230V
Voltage: 100/120/220/230V
±10% Frequency: 50~60Hz
Ensure a three pronged grounded power socket is
used.
Ensure the correct fuse is used
before power up. (Fuse:
T0.4A/250V)
Before connecting power to the
EUT AC Line In, confirm the
EUT input power and test
requirements do not exceed the
EUT AC Line In requirements.
Voltage Range: 85V ~ 250V / 50
~ 60Hz
Caution
* EUT : 10A(max), 1500VA(max)
17
GLC-9000 Quick Start Guide
A
Power Up
Shutdown
Press the power switch to turn
on the power. The system will
enter the measurement
interface after a quick
initialization. The interface
panel will appear after a short
time.
Leakage: Enclo-Enclo
Probe: T1/T2
Upper limit: 12.00mA
Lower limit: OFF
Wait time: 120 sec
Meas time: 220 sec
Wait for setting…
UTO
Meas
AC+DC
AC+DC
Current
Current
graph
Judge:
Current :
Max :
Min:
Network: E
Class: I
Name:
Key unlock
AUTO
Range
14:58 2009.09.01
clear
Save Recall
Network
Class
Leakage
Limit
System
Hard
Copy
Before shutdown, ensure the EUT is shut down
properly. As illustrated below, power off the
circuit breaker before turning off the equipment.
After the EUT is powered down, the GLC-9000 can
be powered down.
18
Interface
A
INTRODUCTION
Leakage: Enclo-Enclo
Probe: T1/T2
10mA
OFF
Ready…
AUTO
Meas
AC+DC
C+DC
Current
Current
Main Display
Network Leakage
graph
Judge:
Current :
Max :
Min:
Network: E
Class: I
Name:
Key unlock
AUTO
Range
FAIL
10.10 mA
12.10 mA
10.00 uA
Save Recall
14:58 2009.09.01
U
Network
Class
Leakage
clear
Limit
System
Hard
Copy
Displays the current measuring
network types (general electrical
equipment and medical networks):
Earth leakage current
Enclosure to earth leakage current
Enclosure to enclosure leakage
current
Enclosure to line leakage current
Patient auxiliary leakage current
Patient leakage current I
Patient leakage current II
Patient leakage current III
Probe
Shows the probe terminals used for
the current measuring network.
19
GLC-9000 Quick Start Guide
Judge:
Set Limits
Upper Limit:
Lower Limit:
Wait Time:
Shows the test result judgment.
Displays the upper test limit.
Displays the lower test limit
Displays the wait time before a test
commences.
Meas Time
Measurement time.

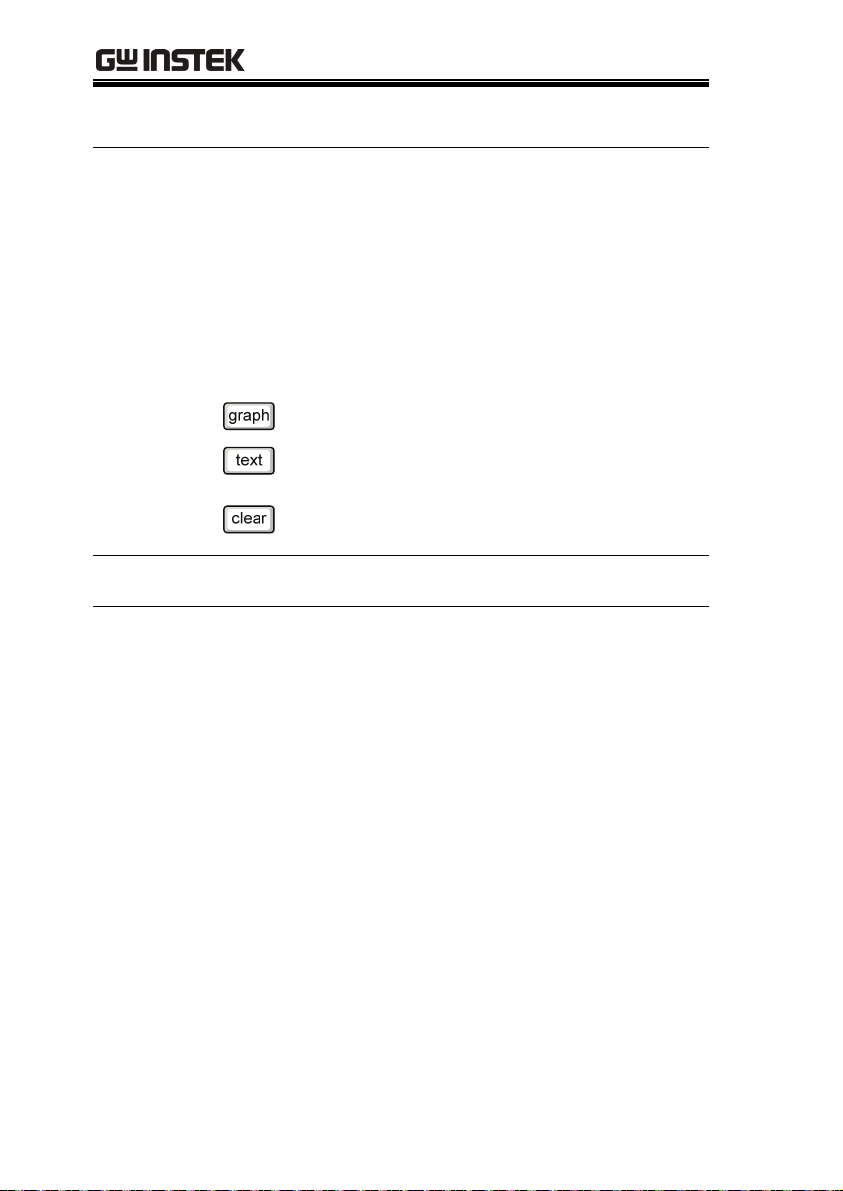

Toggle the Set Limit display from
graphical to text mode. Graphical
mode graphs the results in real-time.
Power State
Status
Displays the current power state settings.
Displays the status of the test. There are three status
Clears the Max/Min test results
from the screen.
types.
Wait for Setting
Occurs when the instrument is
powered up or when the
measurement network, class or
leakage current mode has changed.
Ready
Occurs when the Meas key is pressed
after Network, Class or Leakage is
Testing
chosen.
Press the START button whilst in
Ready mode to enter Testing mode.
The RESET option will be displayed
when in Testing mode.
20
INTRODUCTION
Remote
Control
Time
Operation Keys
Indicates that the touch panel is
currently unlocked. Press the Lock
key to lock the front panel.
Indicates the front panel is locked.
To unlock press and hold the unlock
key for a 3 seconds.
Note: The front panel will also
become locked when Start is pressed
or the remote control function is
used.
There are four types of remote control.
RS-232
USB
Displays the current system date and time.
GPIB
EXT I/O
Measuring
network
Equipment class
type
selection
Leakage
Leakage
current mode
Limit
Set leakage
current limits
selection
Access the
system
parameters
Leakage
current type
Sets the
measurement
mode
Leakage current
range selection
selection
21
GLC-9000 Quick Start Guide
Save a screen
image (BMP)
Save settings.
Manual
measurements
Recall settings
can be saved in
real-time.
22
OPERATION
OPERATION
Measurement Terminals
Non-medical Network (General Electrical Appliance)
MD-A, B, C, D, E, G, H, I
Earth leakage current Not used N/A N/A
Enclosure and earth leakage
current
Enclosure and enclosure
leakage current
Enclosure and line leakage
current
When a measurement network is selected,
different measuring terminals are required for
each test and equipment class. The tables below list
which terminals are used for with which
network/test.
CLASS I CLASS II Internal Power Supply
T2 T2 T2
T1,T2 T1,T2 T1,T2
T2 T2 N/A
23
GLC-9000 Quick Start Guide
Medical Equipment
MD-F
Earth leakage current Not Used N/A N/A
Enclosure and
earth leakage
current
Enclosure and
enclosure leakage
current
Patient auxiliary current T1,T2 T1,T2 T1,T2 T1,T2 T1,T2 T1,T2
Patient leakage current I T2 T2 T2 T2 T1,T2 T1,T2
Patient leakage current II T2,T3 N/A T2,T3 N/A T2,T3 N/A
Patient leakage current III N/A T2 N/A T2 N/A T2
*Ty pe F = Typ e BF and Type CF.
Normal T2 T2 T2 T2 T2 T2
Fault T2,T3 T2,T3 T2,T3 T2,T3 T2,T3 T2,T3
Normal T1,T2 T1,T2 T1,T2 T1,T2 T1,T2 T1,T2
Fault T1~3 T1~3 T1~3 T1~3 T1~3 T1~3
CLASS I CLASS II
Typ e B Typ e F* Typ e B Ty pe F * Type B Type F*
Internal Power
24
OPERATION

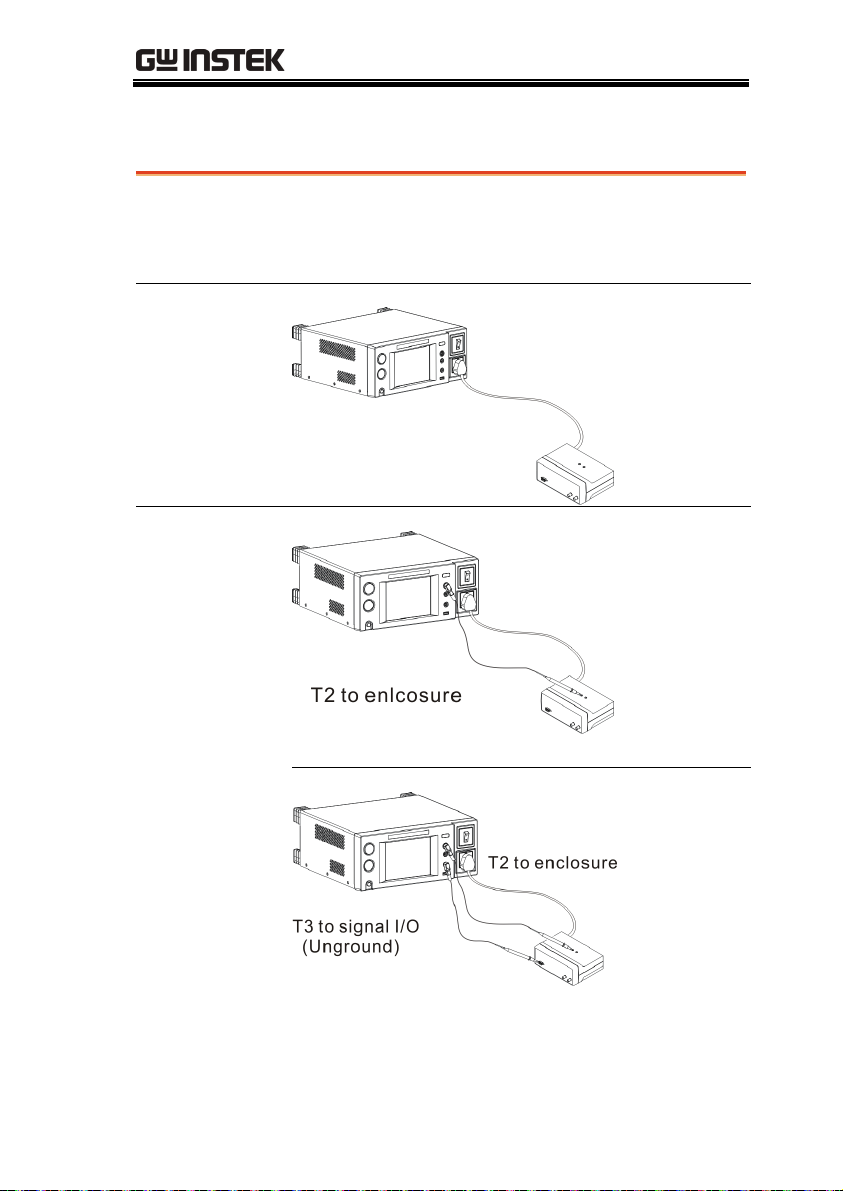

Leakage Current Testing Connections
Background
Earth Leakage
Current
Enclosure
Leakage Current
Confirm all settings including MD, leakage current
mode, measurement time, upper and lower limits,
and other parameters.
Non-medical type (General electrical equipment)
Medical type (MD-F) Requires 110% power supply
voltage output.
25
Enclosure to
Enclosure
Leakage Current
GLC-9000 Quick Start Guide
The T3 terminal is high voltage. Avoid contact with the
terminal. The T3 terminal should not be connected
with an earth conductor.
Non-medical type (General electrical equipment)
26
Medical type (MD-F) Requires 110% power supply
voltage output.
The T3 terminal is high voltage. Avoid contact with the
terminal. The T3 terminal should not be connected
with an earth conductor.
Enclosure and
Line Leakage
Current
Patient Auxiliary
Current
OPERATION
Non-medical type (General electrical equipment)
The T2 terminal is high voltage. Avoid contact with the
terminal. The T2 terminal should not be connected
with an earth conductor.
Medical network
Patient Leakage
Current I
Medical network (Class I and Class II)
27
Patient Leakage
Current II
GLC-9000 Quick Start Guide
Medical network (Internal power supply)
Type B Medical Network
The T3 terminal is high voltage. Avoid contact with the
terminal. The T3 terminal should not be connected
with an earth conductor.
Patient Leakage
Current III
Type F Medical Network
The T2 terminal is high voltage. Avoid contact with the
terminal. The T2 terminal should not be connected
with an earth conductor.
For more details on leakage current connections, please see the GLC9000 user manual.
28
OTHER
OTHER
EUT Voltage and Current Check
Background
Panel Operation
The EUT voltage and current check tests voltage,
current and power consumption.
1. To access the EUT voltage &
current check menu, press the
V/A Check key from the
System setup
Voltage, current, power consumption and voltage
between Live and Earth as well as Neutral to Earth will
be displayed.
menu.
2. To perform the voltage and
current check again, press
Recheck.
29
GLC-9000 Quick Start Guide
Voltage Measurement
Background
Meter Mode
From the System menu, the meter function can
measure different types of voltages: AC,
DC,AC+DC and AC peak. The safety extra low
voltage limit can also be set from the Meter
1. From the System Menu, press
the Meter key to access the
Voltage Meter (T1/T2)
menu.
menu.
Meter
Ready will be displayed before starting
measurements.
Range AC, DC, AC+DC, AC Peak
SELV
30
2. Choose the measurement type. Press the
START button to begin measuring. Press
RESET to stop measuring.
When a voltage exceeds the safety extra low
voltage (SELV), the warning indicator will become
illuminated and an alarm will sound. SELV can be
auto configured or turned off.
OTHER
1. To set the safety extra low
voltage, press the SELV key.
2. To set the SELV use the number pad and press
Confirm.
SELV Range
0～99 volts
3. Press ON to enable the SELV.
SELV Setting On/Off
For more details see the
System Settings
chapter of the GLC-9000 user
manual.
31
Loading...
