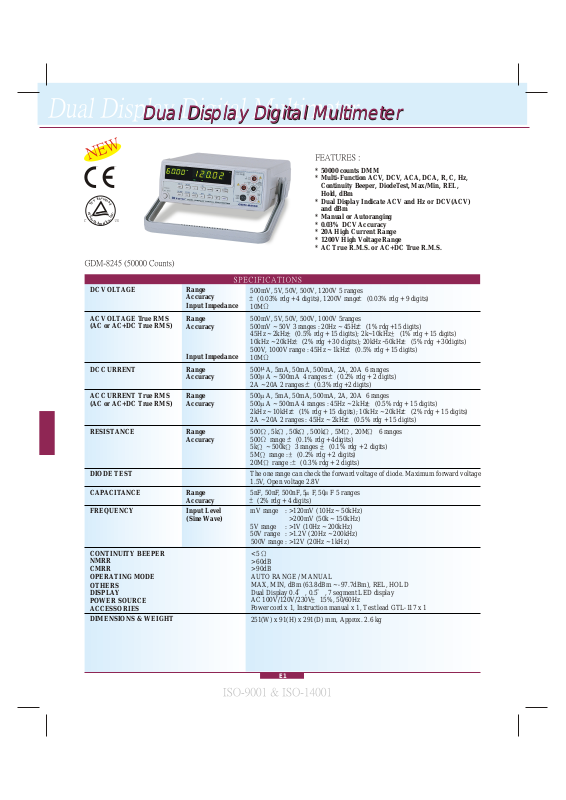

Dual Display Digital Multimeter
Dual Display Digital Multimeter
* 50000 counts DMM
* Multi-Function ACV, DCV, ACA, DCA, R, C, Hz,
Continuity Beeper, DiodeTest, Max/Min, REL,
e
h
i
n
R
l
a
V
n
U
d
T
o
f
N
.
c
n
l
o
,
r
a
t
h
c
i
r
A
e
m
Hold, dBm
* Dual Display Indicate ACV and Hz or DCV(ACV)
and dBm
* Manual or Autoranging
* 0.03% DCV Accuracy
* 20A High Current Range
* 1200V High Voltage Range
* AC True R.M.S. or AC+DC True R.M.S.
DC VOLTAGE
AC VOLTAGE True RMS
(AC or AC+DC True RMS)
DC CURRENT
AC CURRENT True RMS
(AC or AC+DC True RMS)
RESISTANCE
DIODE TEST
CAPACITANCE
FREQUENCY
CONTINUITY BEEPER
NMRR
CMRR
OPERATING MODE
OTHERS
DISPLAY
POWER SOURCE
ACCESSORIES
DIMENSIONS & WEIGHT
Range
Accuracy
Input Impedance
Range
Accuracy
Input Impedance
Range
Accuracy
Range
Accuracy
Range
Accuracy
Range
Accuracy
Input Level
(Sine Wave)
500mV, 5V, 50V, 500V, 1200V 5 ranges
(0.03% rdg + 4 digits), 1200V range (0.03% rdg + 9 digits)
10M
500mV, 5V, 50V, 500V, 1000V 5ranges
500mV ~ 50V 3 ranges :
20Hz ~ 45Hz (1% rdg +15 digits)
45Hz ~ 2kHz (0.5% rdg + 15 digits); 2k~10kHz (1% rdg + 15 digits)
10kHz ~ 20kHz (2% rdg + 30 digits); 20kHz~50kHz (5% rdg + 30digits)
500V, 1000V range : 45Hz ~ 1kHz (0.5% rdg + 15 digits)
10M
500 A, 5mA, 50mA, 500mA, 2A, 20A
6 ranges
500 A ~ 500mA 4 ranges : (0.2% rdg + 2 digits)
2A ~ 20A 2 ranges : (0.3% rdg +2 digits)
500 A, 5mA, 50mA, 500mA, 2A, 20A 6 ranges
500 A ~ 500mA 4 ranges :
45Hz ~ 2kHz (0.5% rdg + 15 digits)
2kHz ~ 10kHz (1% rdg + 15 digits); 10kHz ~ 20kHz (2% rdg + 15 digits)
2A ~ 20A 2 ranges : 45Hz ~ 2kHz (0.5% rdg + 15 digits)
500 , 5k , 50k , 500k , 5M , 20M 6 ranges
500 range : (0.1% rdg + 4digits)
5k ~ 500k 3 ranges : (0.1% rdg + 2 digits)
5M range : (0.2% rdg + 2 digits)
20M range : (0.3% rdg + 2 digits)
The one range can check the forward voltage of diode. Maximum forward voltage
1.5V, Open voltage 2.8V
5nF, 50nF, 500nF, 5 F, 50 F 5 ranges
(2% rdg + 4 digits)
mV range :
>120mV (10Hz ~ 50kHz)
>200mV (50k ~ 150kHz)
5V range : >1V (10Hz ~ 200kHz)
50V range : >1.2V (20Hz ~ 200kHz)
500V range : >12V (20Hz ~ 1kHz)
< 5
> 60dB
> 90dB
AUTO RANGE / MANUAL
MAX, MIN, dBm (63.8dBm ~ -97.7dBm), REL, HOLD
Dual Display 0.4 , 0.5 , 7 segment LED display
AC 100V/120V/230V 15%, 50/60Hz
Power cord x 1, Test lead GTL-117 x 1Instruction manual x 1,
251(W) x 91(H) x 291(D) mm, Approx. 2.6 kg
E1
