Insportline AVALOR ST 16186 User Manual

USER MANUAL – EN

IN 16186 Stepper inSPORTline AVALOR ST

2

CONTENTS

INTRODUCTION ..................................................................................................................................... 3

SAFETY PRECAUTIONS ........................................................................................................................ 3

EXPLODED DRAWINGS ........................................................................................................................ 4

PARTS LIST ............................................................................................................................................ 6

PRODUCT DESCRIPTION ..................................................................................................................... 9

PRODUCT SPECIFICATION .................................................................................................................. 9

HARDWARE LIST ................................................................................................................................. 10

ASSEMBLY STEPS .............................................................................................................................. 12

EXERCISE INSTRUCTIONS ................................................................................................................ 17

CONSOLE OPERATON INSTRUCTION .............................................................................................. 18

Functional description: ........................................................................................................................... 18

Main function Description ...................................................................................................................... 18

OPERATION DESCRIPTION ................................................................................................................ 21

POWER ON: ...................................................................................................................................... 21

SLEEP: ............................................................................................................................................... 21

MANUAL MODE (PRESS START/STOP KEY) ................................................................................. 23

PROGRAM MODE ............................................................................................................................. 23

USER MODE ..................................................................................................................................... 25

HRC MODE........................................................................................................................................ 25

WATT MODE ..................................................................................................................................... 26

KEY OPERATING .............................................................................................................................. 27

BODY FAT ......................................................................................................................................... 28

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS ................................................. 29

3

INTRODUCTION

Thank you for purchasing this product. To use it properly and safely, read the entire manual and
observe all warnings and recommendations.

SAFETY PRECAUTIONS

• WARNING! This product has been designed to offer the maximum safety. Nevertheless,
certain precaution should be kept while using it. Read the whole manual before first using and
retain it for future reference.

• It’s the owner responsibility to use it safely and properly. Instruct all other users in correct
using.

• Use this product only for intended purpose. Don’t do any improper modification.

• Keep it away from children and pets. Never let children unattended near this device.

• Regularly check all bolt, nuts and components, if they are well tightened. Retighten, if

necessary. Regularly check this machine for damage or wearing. Never use damaged or worn
product. All damager or worn parts should be replaced immediately.

• Place it only on a flat, clear and solid surface and keep a safety clearance of at least 0.6 m
round it. Put a mat under this device to protect your floor.

• Use it only indoors and protect it from humidity and dust. Assure sufficient ventilation. Never
exercise in an airless place.

• Don’t put any sharp objects on or near this stepper.

• Always wear appropriate clothes and sports shoes. Avoid too loose dress that can be caught

in device.

• Keep your hands away from moving parts to avoid an injury. No adjustable part should
protrude and obstruct user movements.

• Control your speed and exercise reasonably.

• If you remark it works abnormally, stop using.

• Only one person can use it at time.

• Consult your physician before starting any exercise. It is especially necessary if you are over

35 years of age or if you have some problems. If you feel faintly or remark other health
complications, stop immediately. Don’t use it, if you have health complications or if you take
some medical care.

• Avoid using if you have: leg pain, waist pain, wounded neck, waist, leg, arthritis, rheumatic,
gout, osteoporosis, perfunctory obstacles (heart problems, wrong blood circulation,
hypertension), respiratory complications, sarcomata, thrombus, diabetes, skin irritation,
hyperpyrexia, bone problems, if you are pregnant or have catamenia or similar problems.

• Weight limit: 120 kg

• Category: SC (according to EN957 norm) suitable for semi-commercial, hotel and Club use.

• WARNING! The heart rate frequency monitoring may not be completely accurate.

Overexertion during training can lead to a serious injury or even death. If you start to feel faint,
stop the exercise immediately.

4

EXPLODED DRAWINGS

5

6

PARTS LIST

No.

Description

Specification

Qty.

1

Main frame

1

2

Basic frame

1

3

Left pedal connection leg

1 4 Right pedal connection leg

1

5

Left pedal

1

6

Right pedal

1

7

Left upper swing arm

1

8

Right upper swing arm

1

9

Handlebar

1

10

Console

1

11

I-Pad holder

Optional

1

12

Tube cap

Ø55

4

13

Roll wheel position stopper

Ø17xØ8.5x47

2

14

Communication line A

L-650 mm

1

15

Hand pulse communication line

L-550 mm

2

16

Hand pulse communication console line

2

17

Communication line A of console

1

18

Allen cylinder head full-thread screw

M10x90x20

2

19

Spring washer

Ø10

10

20

Curved washer

Ø10.5xR100xt2.0

2

21

Allen cylinder head half-thread bolt

M10x70x20

6

22

Flat washer

Ø10x Ø22x2.0

12

23

Allen pan-head half-thread bolt

M8x40x20

4

24

Curved washer

Ø8.5xR25xt2.0

8

25

Hex self-locking nut

M8

12

26

Allen cylinder head full-thread bolt

M8x15

12

27

Spring washer

Ø8

18

28

Flat washer

Ø8.2x Ø25xt2.0

4

29

Allen cylinder head half-thread bolt

M8x60x20

2

30

Allen cylinder head full-thread bolt

M6x15

6

31

Spring washer

Ø6

6

32

Allen pan head full-thread bolt

M8x20

7

33

Flat washer

Ø8.5xØ20xt1.5

13

34

Philips CKS full-thread bolt

M5x15

25

35

Philips CKS self-tapping screw

ST4x16 (optional)

30

7

36

Communication line B

L-650 mm

1

37

Communication line B of console

1

38

Deep-groove ball bearing

6004-ZZ

6

39

Swing arm

2

40

Deep-groove ball bearing

6005-ZZ

4

41

Spring washer

Ø120

2

42

Deep-groove ball bearing

61819

2

43

Eccentric fixer

2

44

Deep-groove ball bearing

6203-ZZ

2

45

Spring washer

Ø40

2

46

Spring washer

Ø25

2

47

Crank axle group

Ø25x133

1

48

Belt pulley

Ø308.9x22.2

1

49

Allen counter-sunk head full-thread bolt

M8x20

12

50

Spring washer

Ø95

2

51

Eccentric wheel

Ø103x26

2

52

Allen big head full-thread bolt

5/16-18UNC-25

2

53

Crank-right

1

54

Crank cover

2

55

Phillips CKS full-thread bolt

M5x10

4

56

Crank-left

1

57

Switch

1

58

Re-set switch

6A

1

59

Allen countersunk head self-tapping screw

ST3x10

2

60

Socket

1

61

Socket fixer

1

62

Spring washer

Ø10

1

63

Tensioning wheel

Ø43.5x25

1

64

Tensioning wheel fixer

1

65

Allen nut

M6

1

66

Flat washer

Ø6XØ20XT2.0

1

67

Hook

103Xø26XM6x50

1

68

Magnet sensor fixer

1

69

Philips self-tapping screw

ST4x12

8

70

Magnet control motor

1

71

Flywheel weight stack

6

72

Inside magnet flywheel

1

73

Flywheel

Ø450x62

1

8

74

Allen cylinder head half-thread bolt

M10x45x20

1

75

Incline motor

1

76

Hex self-locking nut

M10

2

77

Allen cylinder head full-thread bolt

M10x15

2

78

Powder case

Ø32xØ16x12.7

2

79

Sliding rail axle

Ø16x145.5

1

80

Tube cap

Ø38x17.5

4

81

Sliding rail tube cover

1

82

Sliding rail aluminium sheet

4

83

Philips CKS self-tapping screw

ST4x20

8

84

Bottom cover-left

1

85

Bottom cover-right

1

86

Allen cylinder head half-thread bolt

M10x60x20

1

87

Allen CKS hollow bolt

Ø8x33xM6x15

2

88

Wheels

Ø55x25.8

2

89

Allen pan head full-thread bolt

M6x12

10

90

Tube cap

4

91

Hex nut

M10

5

92

Feet pad

Ø49x22xM10x40

5

93

Rubber case

110x75x3

1

94

Motor belt

560PJ8

1

95

Top cover-middle

1

96

Top cover-left

1

97

Top cover-right

1

98

Water cup holder

1

99

Hand pulse

2

100

Philips pan head self-tapping screw

ST3x30

4

101

Out cover-left

1

102

Out cover-right

1

103

Out cover decoration strip

2

104

Philips CKS self-tapping screw

ST4x10

6

105

Spring washer

Ø42

2

106

Brake line

1

107

Sliding rail group

1

108

Philips CKS full-thread bolt

M4x10

8

109

Wheel cover-left

2

110

Wheel cover-right

2

111

Wheels

Ø79x37.8

4

9

112

Pedal fixer

2

113

Tube cap

Ø32xt1.5

2

114

Power line with computer tail

1

115

Tube cap

Ø32x17

2

116

Foam

Ø30xt3.0x350

2

117

Magnet sensor

L-300 mm

1

118

Communication line

L-200 mm

1

119

Power line

L-450 mm

1

120

Power line

L-450 mm

1

121

Controller

1

122

Tube cap

Ø39x Ø30x27.5

4

PRODUCT DESCRIPTION

1) Console group

2) Swing arm

3) Incline frame

4) Basic frame

5) Handlebar

6) Cup holder

7) Pedal connection leg

8) Pedal

PRODUCT SPECIFICATION

Model No.

E13

Dimensions (unfold)

1660x880x1780 mm

Max. user weight

120 kg

Speed ratio

8.8

Flywheel

Inside magnet, two-way, Ø450/8kg

Resistance level

1-24

Stride length

264 mm

NOTE: The producer reserves the right to amend this product without any prior notice.

10

HARDWARE LIST

No.

Description

Specification

Qty.

18

Allen cylinder head full-thread screw

M10x90x20

2

19

Spring washer

Ø10

8

20

Curved washer

Ø10.5xR100xt2.0

2

21

Allen cylinder head half-thread bolt

M10x70x20

6

22

Flat washer

Ø10x Ø22x2.0

6

23

Allen pan-head half-thread bolt

M8x40x20

4

24

Curved washer

Ø8.5xR25xt2.0

8

25

Hex self-locking nut

M8

6

26

Allen cylinder head full-thread bolt

M8x15

4

27

Spring washer

Ø8

10

11

28

Flat washer

Ø8.2x Ø25xt2.0

2

29

Allen cylinder head half-thread bolt

M8x60x2.0

2

30

Allen cylinder head full-thread bolt

M6x15

6

31

Spring washer

Ø6

6

32

Allen pan head full-thread bolt

M8x20

6

33

Flat washer

Ø8.5xØ20xt1.5

4

34

Philips CKS full-thread bolt

M5x15

4

35

Philips CKS self-tapping screw

ST4x16 (optional)

4

TOOLS:

Description

Specification

Qty.

L wrench

5x80x80S

1

L wrench

5x35x85S

1

L wrench

6x40x120

1

L wrench

8x45x145

1

Philips wrench

14x17x75

1

Open end wrench

15#&17#

1

12

ASSEMBLY STEPS

STEP 1

• Place the main frame (1) on the basic frame (2) and secure with six allen cylinder head half­thread screws (21), six spring washers (19), six flat washers (22), two allen cylinder head half­thread screws (18), two spring washers (19), two curved washers (20). Use included Philips
wrench.

• WARNING! First put all the bolts and washers onto the frame holes. Thereafter secure them.

STEP 2

• Insert the left pedal connection leg (3) into the left pedal (5) and secure with two allen pan
head half-thread bolts (23), two curved washers (24), two hex self-locking nuts (25), one
curved washer (24), one spring washer (27), one allen cylinder head full-thread bolt (26).

• Assemble the right pedal connection leg (4) and the right pedal (6) in the same way.

• WARNING! First put all the bolts and washers onto the frame holes. Thereafter secure them.

13

STEP 3

• Assemble the left pedal group (3) on the main frame (1) and secure with one flat washer (28),
one spring washer (27), one allen cylinder head full-thread bolt (26). Then assemble the tube
cover (12) on the left pedal group (3).

STEP 4

• Assemble the right pedal group (4) on the main frame (1) and secure with one flat washer
(28), one spring washer (27) and one allen cylinder head full-thread bolt (26). Then assemble
the tube cover (12) on the right pedal group (4).

14

STEP 5

• Assemble one roll wheel position stopper (13) on the left pedal group (3) and secure with one
hex self-locking nut (25) and one allen pan head half-thread bolt (29).

• Assemble one roll wheel position stopper (13) on the right pedal group (4) in the same way.

STEP 6

• Assemble the left upper swing arm (7) on the main frame (1). Secure with three spring
washers (31) and three allen cylinder head full-thread bolts (30).

• WARNING! First put all the bolts and washers onto the frame holes. Thereafter secure them.

15

STEP 7

• Assemble the left upper swing arm (8) on the main frame (1). Secure with three spring
washers (31) and three allen cylinder head full-thread bolts (30).

• WARNING! First put all the bolts and washers onto the frame holes. Thereafter secure them.

STEP 8

• Put the hand pulse communication line (15) through the hole of the main frame group (1).
Place the line on the console fix plate.

• Insert the handlebar group (9) into the main frame (1) and secure with four flat washers (33),
four spring washers (27), four allen pan head full-thread bolts (32), two curved washers (24)
two spring washers (27), two allen pan head full-thread bolts (32).

• WARNING! First put all the bolts and washers onto the frame holes. Thereafter secure them.

16

STEP 9

• Connect the communication line of the console A (17) and the communication line A (14),
hand pulse line of the console (16) and the hand pulse line (15), communication line B (37),
communication line B (36). Assemble the console group (10) on the main frame (1) and
secure with four Philips CKS full-thread bolts (34).

STEP 10 (OPTIONAL)

• Place the I-pad holder (11) on the console group (8) and secure with four Philips CKS self­tapping screws (35).

• WARNING! If you buy an I-pad holder, this step is necessary. Otherwise you can skip it.

17

EXERCISE INSTRUCTIONS

A successful workout starts with the warm-up phase and ends with the cool-down phase (relaxation).
At the warm-up phase your muscle should be prepared for strenuous workout. The cool-down phase
should protect your body form muscular problems. Follow stretching exercise instructions for warming
up and cooling down your body.

Touching your toes

Slowly bend your back from hips. Keep your back and arms relaxed
while stretching downwards to your toes. Do it as far as you are able
and hold the position for 15 seconds. Bend your knees slightly.

Upper thigh

Lean against a wall with one hand. Reach down and behind you. Lift
up your right or left foot to your buttock as high as possible. Keep for
30 seconds and repeat twice for each leg.

Hamstring stretched

Sit and outstretch your right leg. Rest the sole of your left foot against
the inside of your right tight. Stretch out your right arm along your right
leg as far as you can. Hold for 15 seconds and relax. Repeat all with
your left leg and left arm.

Inside upper thigh

Sit on the floor and place your feet together. Knees are pointed
outwards. Pull your feet as close as possible to your groin. Press your
knees carefully downwards. Keep this position for 30-40 seconds if
possible.

Calves and Achilles tendon

Lean against a wall with your left leg in front of the right one and your
arms forward. Stretch out your right leg and keep your left foot on the
floor. Bend your left leg and lean forwards by moving your right hip in
the direction of the wall. Hold for 30-40 seconds. Keep your leg
stretched and repeat exercising with other leg.

18

CONSOLE OPERATON INSTRUCTION

Functional description:

• Manual: adjust exercise mode.

• Program: 12programs (P1~P12) adjust the load level automatically.

• Watt: display power consumption during training.

• HRC: Set 55%/75%/90%/TARGET, adjust load level base on heartbeat value automatically.

• User program: self-selected load to exercise

• Recovery: recovery the heart rate test

• Bodyfat: To test user’s body fat and fat ratio.

• User data: Set user information, you can choose UX(X=1~4).

• Incline function: (01~15) levels

• Music speaker

• USB charging function.

Main function Description

Function

Display
range

Setting range

Memorize

Return to 0

Description

Time

0:00 ~
99:59
Minute

0~99
Circulation (+­1 minute)

Yes

Yes

a. Count – no preset target,

time will count from 0:00.

b. Count down – with

preset target, time will
count down from preset
to 0, then system STOP.
The indicator light of
TIME flash, and system
alarm 8s with 4 sounds
in every second. (Press

19

any key to stop alarm)

SPEED

0.0~99.9
KMH

0.0~99.9
MLH

Can’t be
preset

No

Yes

In START mode:
a. With sensor input,

screen display training
speed in 3s.

b. Without sensor input for

4.6s, the SPEED value
is 0.

c. SPEED & RPM value

will display 6s by turn in
same window.

RPM

0~999

Can’t be
preset

No

Yes

In START mode:
a. With sensor input,

screen display training
RPM in 3s.

b. Without sensor input for

4.6s, the RPM value is 0.

c. SPEED & RPM value

will display 6s by turn in
same window.

DISTANCE

0.0~99.99
KM
(ML)

0.0 ~99.90
(+-0.1)

Yes

Yes

a. Count – no preset

target, time will count
from 0.0.

b. Count down – with

preset target, time will
count down from
preset to 0, then
system STOP. The
indicator light of
DISTANCE flash, and
system alarm 8s with
4 sounds in every
second. (Press any
key to stop alarm)

CALORIES

0~9999
CAL

0~9990
(+-10)

Yes

Yes

a. Count – no preset target,

time will count from 0.

b. Count down – with

preset target, time will
count down from preset
to 0, then system STOP.
The indicator light of
CALORIES flash, and
system alarm 8s with 4
sounds in every second.
(Press any key to stop
alarm)

PULSE

P-30~230
BPM

0-30~230
(+-1) BPM
Circulation

Yes

Yes

a. With pulse input, screen

display initial value in

7.5s.

b. Without pulse input in

6s, the PULSE value is

0.

c. Pulse exceed the preset

target, console will
remind with Bi-bi sound.

WATT

0~999

Can’t be
preset

Yes

Yes

a. With sensor input,

screen display WATT
value in 3s.

20

d. Without sensor input for

4.6s, the WATT value is

0.

AGE

1~99

1~99

Yes

Yes

The indicator light flash
waiting for preset, the screen
display default value is 25.

RECOVERY

F1~F6

Can’t be
preset

No

No

To display the PULSE input
value.

MANUAL

1~24LEVEL

Yes

Yes

a. Press ▲, ▼KEY to

preset LEVEL.

b. CPU adjust the

resistance base on
LEVEL preset value.

PROGRAM

(P1~P12)

(P1~P12)

Yes

Yes

a. Press ▲, ▼KEY to

preset PROGRAM.
When you select, the
indicator light flash,
press MODE confirm
your selection.

b. CPU adjust the

resistance base on
LEVEL preset value.

USER

16X*8Y

Yes

Yes

a. When you select, the

indicator light flash,
press MODE confirm
your selection.

b. USER can preset one

PROGRAM.

H.R.C

55%,75%,
90%,TAG

Yes

Yes

a. When you select, the

indicator light flash,
press MODE confirm
your selection.

b. Before this preset, you

must set the AGE first.

WATT
CONSTANT

(10~350)
(+-5)
Circulation

Yes

Yes

a. When you select, the

indicator light flash,
press MODE confirm
your selection.

b. The default value is 120,

finished preset, press
the START to conduct
this WATT
CONSTARNT function.

CIRCLE

Can’t be

preset

Yes

No

Select by OPTION

LEVEL

Display 1
~24

1 ~24

No

No

Screen display LEVEL value
when you select and adjust
this function.

SEX

Male OR
Female

Male OR
Female

Yes

No

Select Male or Female.

HEIGHT

100~200
CM

100~200
(+-1) CM
40~80 (+-1)
INCH

Yes

Yes

a. Set the height of user, as

the calculation
parameter of exercise,
preset value is 160CM
(60 INCH).

b. When you select, the

indicator light of “HT”

21

flash.

BODY FAT

20~150
KG

20-150 KG

(+-1) KG

40~350 LB (+-

1)

Yes

Yes

a. Set the weight of
user, as the calculation
parameter of exercise,
preset value is 50KG (100
LB).
b. When you select, the
indicator light of “WT” flash.

BMI

5.0%~50%

Can’t be

preset

No

No

LED display.

INC

0~50

Can’t be

preset

Yes

No

LED display.

OPERATION DESCRIPTION

POWER ON:

• Connect power or when step RPM>, (self-power generation), buzzer sounds for 1s and LED
will full display 2S /drawing 1). Then display KM or ML in center of screen.

• Enter USER setting mode (with FAT function), input user information U1~U4, select one user
(Drawing 3), press MODE / ENTER KEY to select SEX (Drawing 4), AGE (Drawing 5),
HEIGHT (Drawing 6), WEIGHT (Drawing 7). When you select, the window show the default
value or previous record, then go to main function window (Drawing 8 MANUAL 、

PROGRAM、User Program、H.R.C.、WATT function.

SLEEP:

• If SM&SE system without any RPM information input 4 minutes, the console will enter sleep
mode, the console will wake up if any RPM information input.

• SR system without any RPM information input 90s, the console will be in sleep mode, the
console will wake up when sensor input >15RPM.

Drawing 1

Drawing 2

Drawing 3

Drawing 4

22

Drawing 5

Drawing 6

Drawing 7

Drawing 8

FUNCTION CIRCULATION: MANUAL – PROGRAM-USER-HRC-WATT

Drawing 9

Drawing 10

Drawing 11

Drawing 12

Drawing 13

23

MANUAL MODE (PRESS START/STOP KEY)

A. Select MANUAL mode to adjust setting value, use MODE key to select, press UP /DOWN

to set the value. TIME (Drawing 14) DISTANCE (Drawing 15) CALORIES (Drawing 16) PULSE
(Drawing 17))

B. Press START/STOP key to start exercise, press UP or DOWN key to adjust resistance

during exercise.

C. During exercise, press START/STOP key, the console will change from LEVEL mode to

INC mode automatically, press +/- adjust the incline height.

D. Re-press START/STOP key, console pause, press RESET to enter the new program.

Drawing 14

Drawing 15

Drawing 16

Drawing 17

PROGRAM MODE

A. Select PROGRAM mode, press UP/DOWN to choose P1~P12 (Drawing 18~Drawing 29)
B. Enter time window, press UP/DOWN key to adjust (Drawing 30)
C. Press START/STOP key to start exercise, press UP or DOWN key to adjust resistance

during exercise.

D. During exercise, press START/STOP key, the console will change from LEVEL mode to

INC mode automatically, press +/- adjust the incline height.

E. Re-press START/STOP key, console pause, press RESET to enter the program.

Drawing 18

Drawing 19

24

Drawing 20

Drawing 21

Drawing 22

Drawing 23

Drawing 24

Drawing 25

Drawing 26

Drawing 27

Drawing 28

Drawing 29

25

Drawing 30

Drawing31

Drawing 32

Drawing 33

USER MODE

A. Select USER mode, press UP/DOWN key to set USER PROGRAM (Drawing 34)Press

MODE key 2s to skip this setting, (keep previous record, or keep as LOAD 1 if no setting

before)
B. Enter time window, press UP/DOWN key to adjust (Drawing 35)
C. Press START/STOP key to start exercise, press UP or DOWN key to adjust resistance

during exercise.
D. During exercise, press START/STOP key, the console will change from LEVEL mode to

INC mode automatically, press +/- adjust the incline height.
E. Re-press START/STOP key, console pause, press RESET enter to choose program.

Drawing 34

Drawing 35

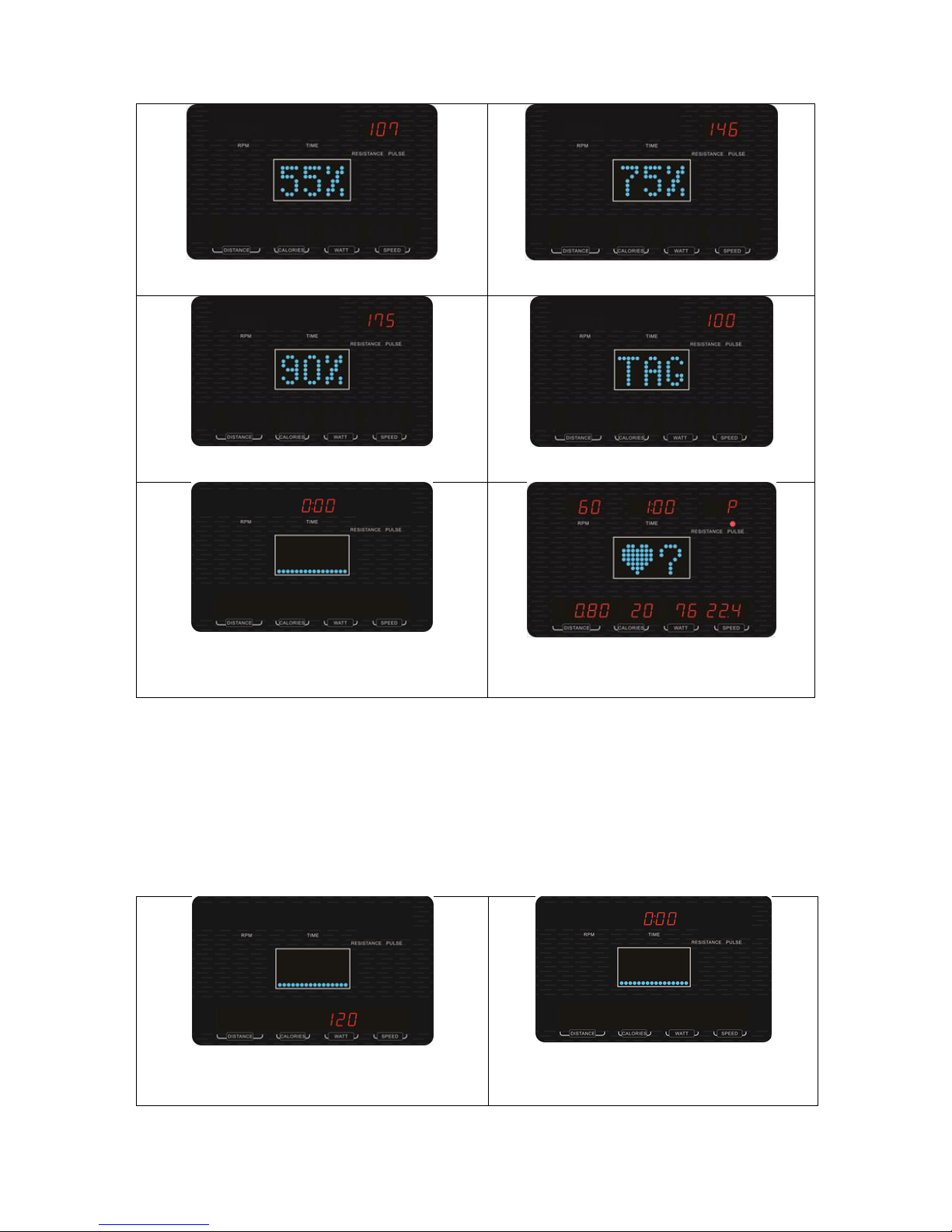

HRC MODE

A. Enter HRC mode, press UP/DOWN key to select 55%(107) 75%(146)，90%(175)，TAG

(100) (Drawing 36~Drawing 39)
B. Enter time window, press UP/DOWN key to adjust (Drawing 40).
C. Press START/STOP key to start exercise, press UP or DOWN key to adjust resistance

during exercise.
D. During exercise, press START/STOP key, the console will change from LEVEL mode to

INC mode automatically, press +/- adjust the incline height.
E. Re-press START/STOP key, console pause, press RESET to enter and choose program
F. The window will show, if no heartbeat input. (Drawing 41).

26

Drawing 36

Drawing 37

Drawing 38

Drawing 39

Drawing 40

Drawing 41

WATT MODE

A. Enter WATT mode, press UP/DOWN key to adjust the value (Default value is 120W)

(Drawing 41)
B. Enter time window, press UP/DOWN key to adjust (Drawing 42)
C. Press START/STOP key to start exercise, based on the value of WATT to adjust

resistance automatically.
D. During exercise, press START/STOP key, the console will change from LEVEL mode to

INC mode automatically, press +/- adjust the incline height.
E. Re-press START/STOP key, console pause, press RESET to enter and choose program.

Drawing 41

Drawing 42

27

OPERATING KEY

Console with key alarm function (Valid KEY: 1 short sound, Invalid KEY: 2 short sound, count
down to zero: 4 short sound in every second, H.R.C & WATT CONTROL stop forcedly: 6 short
sound continuously, PULSE over setting value: 2 short sound in every second, WATT OVER
SPEC:3 short sound in every second).

UP/DOWN KEY

• Press up this button to add or reduce value 1, long press to add or reduce value continuously.

Select user U1~U4 (Age, Sex, Weight, Height)Select MANUAL,PROGRAM, USER, HRC,

WATT function

INCLINE KEY

• INC UP/INC DOWN (Level 1~15)

• Press this button to add or reduce value 1 UP MODE Key

1. Select function(TIME, DIST, CAL, PULSE) ect

2. After select or preset value, press this key go to next step.

MODE KEY

• Select function(TIME, DIST, CAL, PULSE) ect

• After select or preset value, presS this key go to next ste P.

RESET KEY

1. RESET：Press RESET key when system under STOP state, enter the main function
window to select (WATT, H.R.C, User, PROGRAM, MANUAL function，and clear
previous record of TIME, DISTANCE, CALORIES, PULSE, WATT).

2. TOTAL RESET：Press RESET key 2s, enter to just power on state, which is TOTAL
RESET. system with 1s long sound alarm, and enter setting mode 2s later, the system is

stand by LEVEL 1 waiting for preset.

START/STOP KEY

• Press this key to start exercise, press it one more time, the console stop.

RECOVERY

1. If no PULSE input, this key is invalid.

2.In START or STOP state display PULSE value, press RECOVERY key：
A, Conduct RECOVERY function, display TIME and PULSE window only. Voltage value of

LEVEL reduce to LEVEL 1 immediately.
B, TIME window display 0:60(Drawing 43), start to time count down (if no PULSE input

during time count down, the window display"F1~F6" when the time count down to 0).
Press the RECOVERY key resume display.

3.Press this key during time count down, resume normal display.

28

Drawing 43

Drawing 44

BODY FAT

• Under STOP state, after finish user’s information, this function is ready.

• Press this key to test body fat ratio, put your hands on the handlebar, the test result

display on the window (Drawing 45~Drawing 47).

• If window display E-1(Drawing 48), which means not hold the handlebar closely.

• If the window display E-1(Drawing 49), which means the bodyfat ratio over setting range

(5%~50%).

• After test, the FAT% and BIM will display on the window (Drawing 50, Drawing 51,
Drawing 52).

• Press BODY FAT key one more time during test to cancel this function.

Drawing 45

Drawing 46

Drawing 47

Drawing 48

29

Drawing 49

Drawing 50

Drawing 51

Drawing 52

TERMS AND CONDITIONS OF WARRANTY, WARRANTY CLAIMS

General Conditions of Warranty and Definition of Terms

All Warranty Conditions stated hereunder determine Warranty Coverage and Warranty Claim
Procedure. Conditions of Warranty and Warranty Claims are governed by Act No. 40/1964 Coll. Civil
Code, Act No. 513/1991 Coll., Commercial Code, and Act No. 634/1992 Coll., Consumer Protection
Act, as amended, also in cases that are not specified by these Warranty rules.

The seller is SEVEN SPORT s.r.o. with its registered office in Borivojova Street 35/878, Prague
13000, Company Registration Number: 26847264, registered in the Trade Register at Regional Court
in Prague, Section C, Insert No. 116888.

According to valid legal regulations it depends whether the Buyer is the End Customer or not.
“The Buyer who is the End Customer” or simply the “End Customer” is the legal entity that does not

conclude and execute the Contract in order to run or promote his own trade or business activities.

“The Buyer who is not the End Customer” is a Businessman that buys Goods or uses services for the

purpose of using the Goods or services for his own business activities. The Buyer conforms to the
General Purchase Agreement and business conditions to the extent specified in the Commercial
Code.

These Conditions of Warranty and Warranty Claims are an integral part of every Purchase Agreement
made between the Seller and the Buyer. All Warranty Conditions are valid and binding, unless
otherwise specified in the Purchase Agreement, in the Amendment to this Contract or in another
written agreement.

Warranty Conditions

Warranty Period
The Seller provides the Buyer a 24 months Warranty for Goods Quality, unless otherwise specified in

the Certificate of Warranty, Invoice, Bill of Delivery or other documents related to the Goods. The legal
warranty period provided to the Consumer is not affected.

By the Warranty for Goods Quality, the Seller guarantees that the delivered Goods shall be, for a
certain period of time, suitable for regular or contracted use, and that the Goods shall maintain its
regular or contracted features.

The Warranty does not cover defects resulting from (if applicable):

• User’s fault, i.e. product damage caused by unqualified repair work, improper assembly,
insufficient insertion of seat post into frame, insufficient tightening of pedals and cranks

• Improper maintenance

• Mechanical damages

• Regular use (e.g. wearing out of rubber and plastic parts, moving mechanisms, joints etc.)

• Unavoidable event, natural disaster

30

• Adjustments made by unqualified person

• Improper maintenance, improper placement, damages caused by low or high temperature,

water, inappropriate pressure, shocks, intentional changes in design or construction etc.

Warranty Claim Procedure

The Buyer is obliged to check the Goods delivered by the Seller immediately after taking the
responsibility for the Goods and its damages, i.e. immediately after its delivery. The Buyer must check
the Goods so that he discovers all the defects that can be discovered by such check.

When making a Warranty Claim the Buyer is obliged, on request of the Seller, to prove the purchase
and validity of the claim by the Invoice or Bill of Delivery that includes the product’s serial number, or
eventually by the documents without the serial number. If the Buyer does not prove the validity of the
Warranty Claim by these documents, the Seller has the right to reject the Warranty Claim.

If the Buyer gives notice of a defect that is not covered by the Warranty (e.g. in the case that the
Warranty Conditions were not fulfilled or in the case of reporting the defect by mistake etc.), the Seller
is eligible to require a compensation for all the costs arising from the repair. The cost shall be
calculated according to the valid price list of services and transport costs.

If the Seller finds out (by testing) that the product is not damaged, the Warranty Claim is not accepted.
The Seller reserves the right to claim a compensation for costs arising from the false Warranty Claim.

In case the Buyer makes a claim about the Goods that is legally covered by the Warranty provided by
the Seller, the Seller shall fix the reported defects by means of repair or by the exchange of the
damaged part or product for a new one. Based on the agreement of the Buyer, the Seller has the right
to exchange the defected Goods for a fully compatible Goods of the same or better technical
characteristics. The Seller is entitled to choose the form of the Warranty Claim Procedures described
in this paragraph.

The Seller shall settle the Warranty Claim within 30 days after the delivery of the defective Goods,
unless a longer period has been agreed upon. The day when the repaired or exchanged Goods is
handed over to the Buyer is considered to be the day of the Warranty Claim settlement. When the
Seller is not able to settle the Warranty Claim within the agreed period due to the specific nature of the
Goods defect, he and the Buyer shall make an agreement about an alternative solution. In case such
agreement is not made, the Seller is obliged to provide the Buyer with a financial compensation in the
form of a refund.

SEVEN SPORT s.r.o.

Registered Office: Borivojova 35/878, 130 00 Praha 3, Czech Republic
Headquarters: Delnicka 957, 749 01 Vitkov, Czech Republic
Warranty & Service Centre: Cermenska 486, 749 01 Vitkov, Czech Republic

CRN: 26847264
VAT ID: CZ26847264
Phone: [phone]
E-mail: [e-mail]
[e-mail]
[e-mail]
Web: www.insportline.cz

SK
INSPORTLINE s.r.o.

Headquarters, Warranty & Service centre: Elektricna 6471, 911 01 Trencin, Slovakia
CRN: 36311723

VAT ID: SK2020177082

31

Phone: [phone]
E-mail: [e-mail]
[e-mail]
[e-mail]
Web: www.insportline.sk

Date of Sale: Stamp and Signature of Seller:
