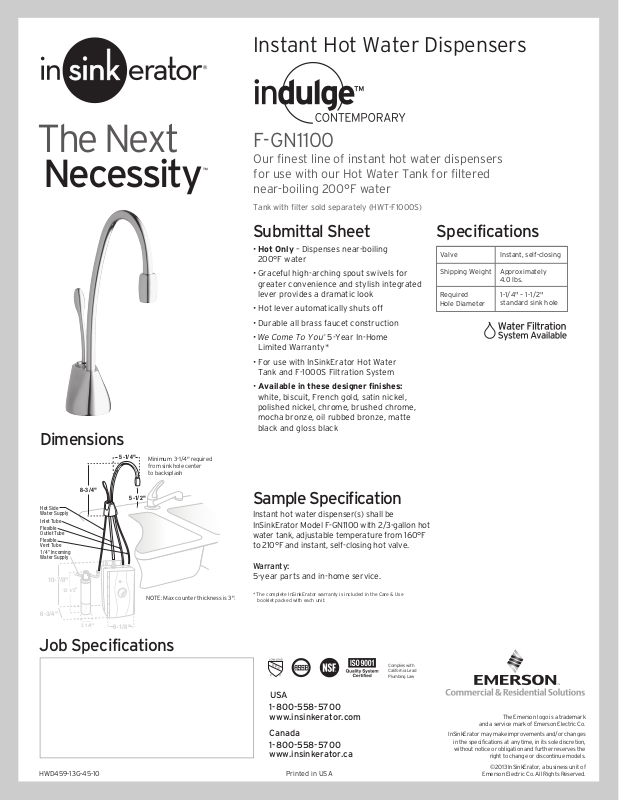

Insinkerator F-GN1100 User Manual

Instant Hot Water Dispensers

The Next

Necessity

Dimensions

5-1/ 4"

Minimum 3-1/4" required
from sink hole center
to backsplash

Hot Side
Water Supply

Inl et Tube
Flexible

Outlet Tube
Flexible

Ven t Tube
1/4" Incoming

Water Supply

10-7/8"

6-3/4"

12 1/2

8-3/ 4"

"

2 1/4"

5-1/ 2"

NOTE: Max counter thickn ess is 3".

6-1/8"

F-GN1100

™

Our finest line of instant hot water dispensers
for use with our Hot Water Tank for filtered
near-boiling 200°F water

Tank with filter sold separately (HWT-F1000S)

Submittal Sheet

• Hot Only – Dispenses near-boiling
200°F water

• Graceful high-arching spout swivels for
greater convenience and stylish integrated
lever provides a dramatic look

• Hot lever automatically shuts off

• Durable all brass faucet construction

• 5-Year In-Home

We Come To You

Limited Warranty*

• For use with InSinkErator Hot Water
Tank and F-1000S Filtration System

• Available in these designer finishes:
white, biscuit, French gold, satin nickel,
polished nickel, chrome, brushed chrome,
mocha bronze, oil rubbed bronze, matte
black and gloss black

®

Specifications

Valve

Shipping Weight

Required
Hole Diameter

Sample Specification

Instant hot water dispenser(s) shall be
InSinkErator Model F-GN1100 with 2/3-gallon hot
water tank, adjustable temperature from 160°F
to 210°F and instant, self-closing hot valve.

Warranty:

5-year parts and in-home service.

* The complete InSinkErator warranty is included in the Care & Use
booklet packed with each unit.

Instant, self-closing

Approximately

4.0 lbs.

1 -1/4" – 1 -1/2"
standard sink hole

Job Specifications

HWD459-13G-45-10

USA
1-800-558-5700

www.insinkerator.com

Canada
1-800-558-5700

www.insinkerator.ca

Printed in USA

Complies with
California Lead
Plumbing Law

The Emerson logo is a trademark

and a service mark of Emerson Electric Co.

InSinkErator may make improvements and/or changes

in the specifications at any time, in its sole discretion,

without notice or obligation and further reserves the

right to change or discontinue models.

©2013 InSinkErator, a business unit of

Emerson Electric Co. All Rights Reserved.
