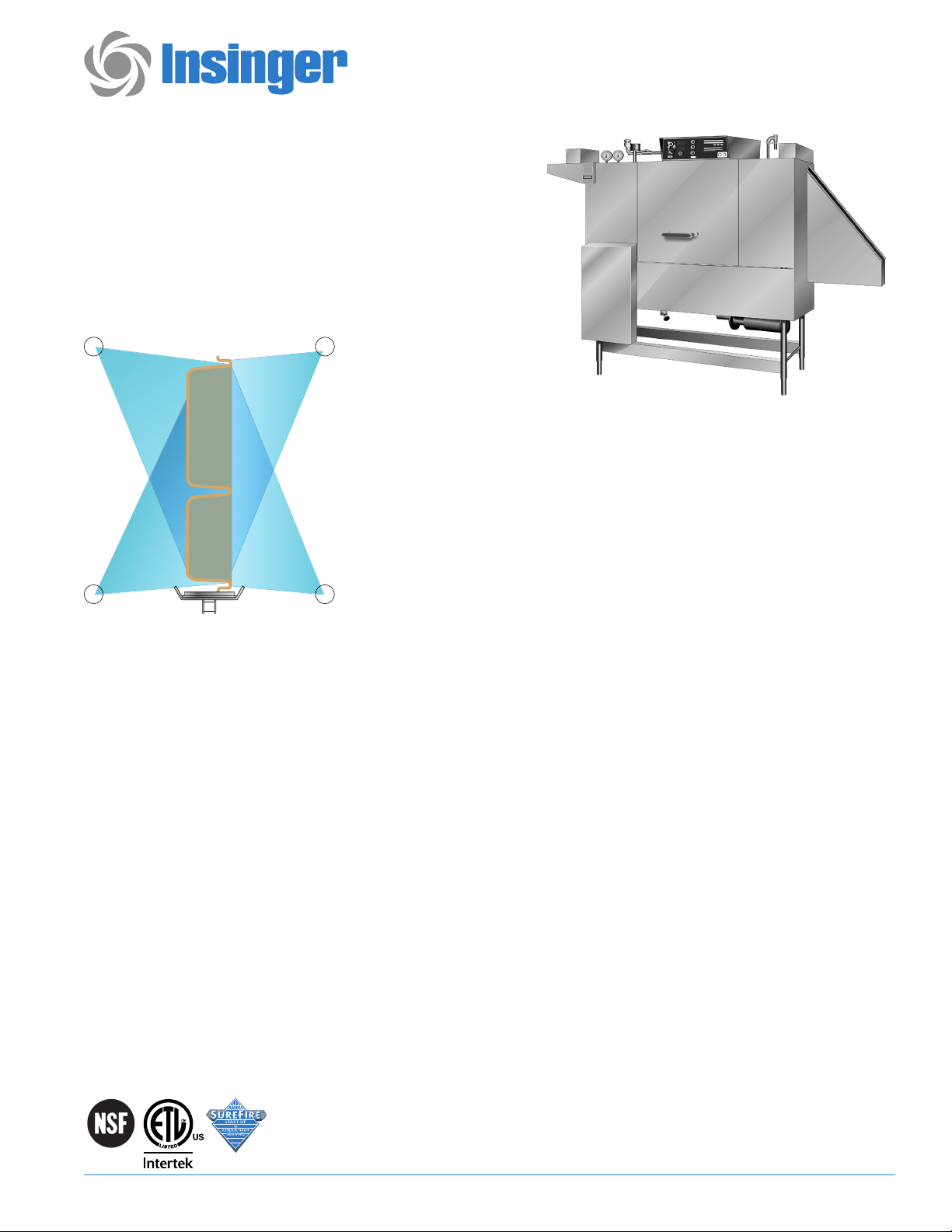

TRAC 321-2
Automatic Single Tank Tray Washer
Automatic conveyor, single tank tray washer with recirculating wash
and fresh water final rinse.
248 gallons/hour final rinse consumption
Capacity is 528 trays per hour (based on a 15” tray)
STANDARD FEATURES
Tank heat: 15 kW electric immersion heater or steam injector
Capillary thermometers for wash and rinse
In-line thermometer for final rinse
Vacuum breaker on all incoming water lines
Manifold clean-out brush
Vents with adjustable damper controls
SureFire® Start-Up & Check-Out Service
Single point electrical connection: motor, controls and tank heat (Booster
requires a separate connection)
Inspection door
S/S frame, legs and feet
S/S front enclosure panel
Automatic tank fill
Insinger’s traywashers were developed specifically
to optimally clean and sanitize ware by reaching all
corners and crevices with a vertical spray.
Low water protection
Detergent connection provision
Top mounted NEMA 12 control panel
Simplified scrap screen design
Door safety switch
Standard frame drip proof motors
Override switch for de-liming
End caps/pipe plugs secured to prevent loss
Tray unload table
Project ________________
Item __________________
Quantity _______________
CSI - 11400 _____________
Approval _______________
Date ___________________
OPTIONS
Stainless steel steam coil tank heat
Steam booster
Electric booster
Pressure reduction valve and line strainer
Security package
Insulated hood and door
Chemical sanitizer injector package for low temperature operations
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com

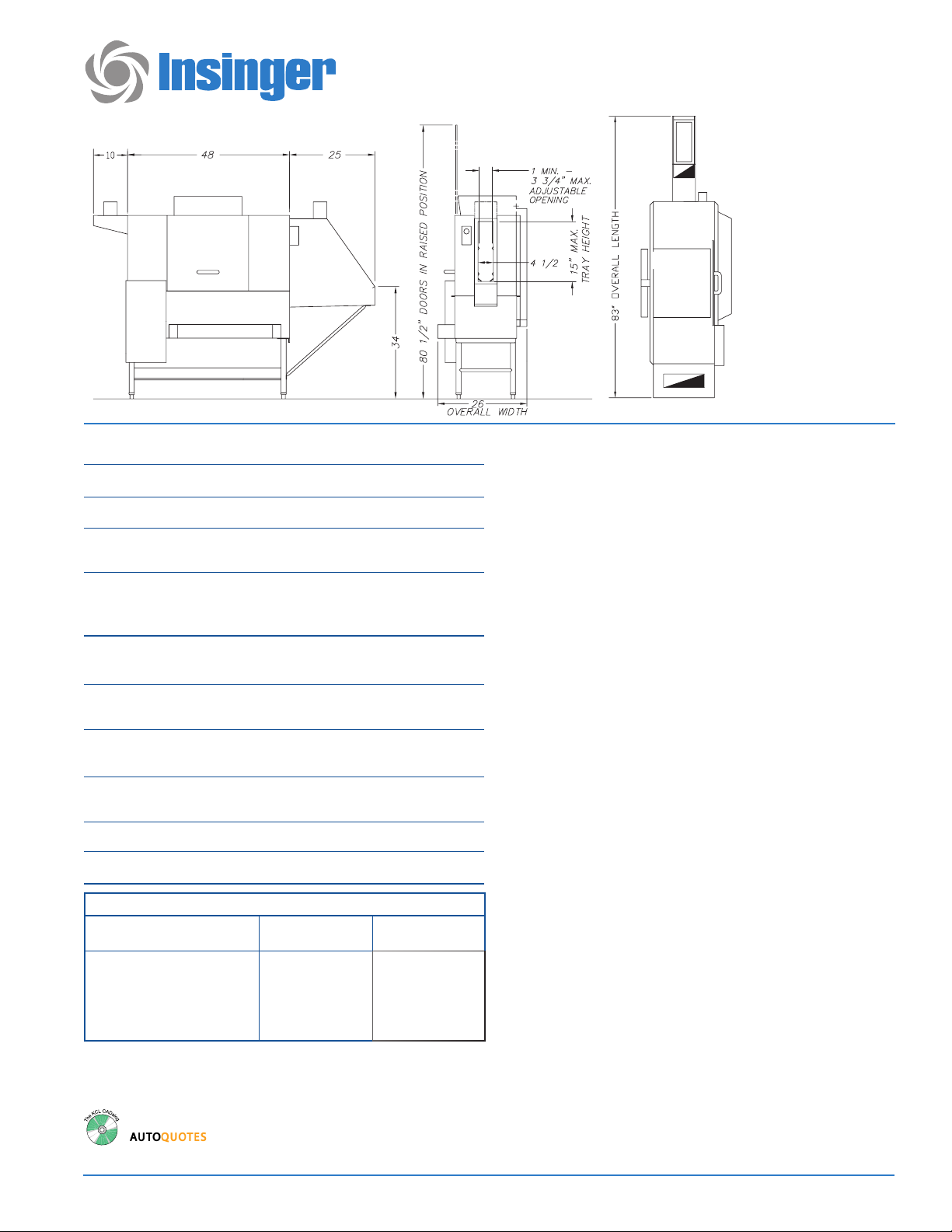

Note: For all rough in connections see installation and layout detail drawing.
TRAC 321-2
Automatic Single Tank Tray Washer
Capacity Per Hour 528 trays
Tank Capacity 24.1 gallons
Motor Size 2 hp (wash)
1/15 hp (conveyor)
Electric Usage 15 kW wash tank
27 kW booster 40° rise
45 kW booster 70° rise
Steam Consumption
54 lbs./hour tank
at 20 psi min.
Final Rinse Peak Flow
4.1 gallons/minute
at 20 psi min.
Final Rinse Consumption
248 gallons/hour
at 20 psi min.
Exhaust Hood Requirement 100 CFM Load
300 CFM unload
Peak Rate Drain Flow 9 gallons/minute
Shipping Weight 700 lbs.
Machine Electrical*
Motors, Controls, Tank Heat
208/3/60
240/1/60
240/3/60
480/3/60
380/3/50
*Booster heater wired separately. Machine load only listed above.
Steam
8.5
N/A
7.8
3.9
4.7
Electric
without booster
50.1
N/A
43.9
21.9
27.5
SPECIFICATIONS
CONSTRUCTION- Hood and tank constructed of 16 gauge type 304 S/S. Hood unit
of all welded seamless construction. S/S frame, legs and feet. All internal castings
are non-corrosive lead free nickel alloy, bronze or S/S.
DOORS- Extra large die formed 18-8 type 304 S/S front inspection door riding in all
S/S channels. A triple ply leading edge on the door channels made of S/S with no
plastic or nylon sleeves or liners used. Two intermediate S/S door-safety stops on the
door.
CONVEYORS- One S/S roller conveyor chain with tray cradles. Width between guide
rails is factory-adjustable from 1.5” to 3.7”. Conveyor accommodates trays up to
15” high. Conveyor drive system includes direct drive gear motor with frictionless,
trouble-free overload release system continuously running. Trays conveyed
automatically through washing and rinsing systems powered by independent
conveyor motor.
PUMP- Centrifugal type “packless” pump with a brass petcock drains. Construction
includes ceramic seal and a balanced cast impeller on a precision ground stainless
steel shaft, extension or sleeve. All working parts mounted as an assembly and
removable as a unit without disturbing pump housing. 2 hp wash motor standard
horizontal C-face frame, drip proof, internally cooled with ball-bearing construction.
CONTROLS- Top mounted control cabinet, NEMA 12 rated with heat insulation
provided between hood and control cabinet, housing motor controls and overload
protection, transformer, contactors and all dishwasher integral controls. All controls
safe low voltage 24 VAC.
ENERGY SAVER- Electric photo-eye automatically operates the final rinse solenoid
only when a tray passes, saving water and energy. The eye also activates an
adjustable timer control. If no tray passes during the set time, the machine shuts
down.
SPRAY SYSTEM- Wash and final rinse spray systems are made of 18-8 type 304
stainless steel pipe. Wash assemblies removable without the use of tools.
WASH- Four wash arms threaded into S/S manifold. (2 on each side of conveyor).
Each pipe designed with 8 high pressure action cleansing slots. The slots are
precision milled for water control producing a fan spray.
FINAL RINSE- Eight nozzle assemblies on either side of conveyor threaded into
S/S pipes. Nozzle assemblies produce a fan spray reducing water consumption,
maximizing heat retention.
DRAIN- Drain valve externally controlled. Overflow assembly with skimmer cap is
removable without the use of tools for drain line inspection. Heater is protected by
low water level control.
UNLOAD TABLE- a stainless steel tray unload table receives clean trays. Table
constructed with guide rails which ease the trays onto table.
Note: Due to product improvement we reserve the right to change information and specifications without notice.
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
