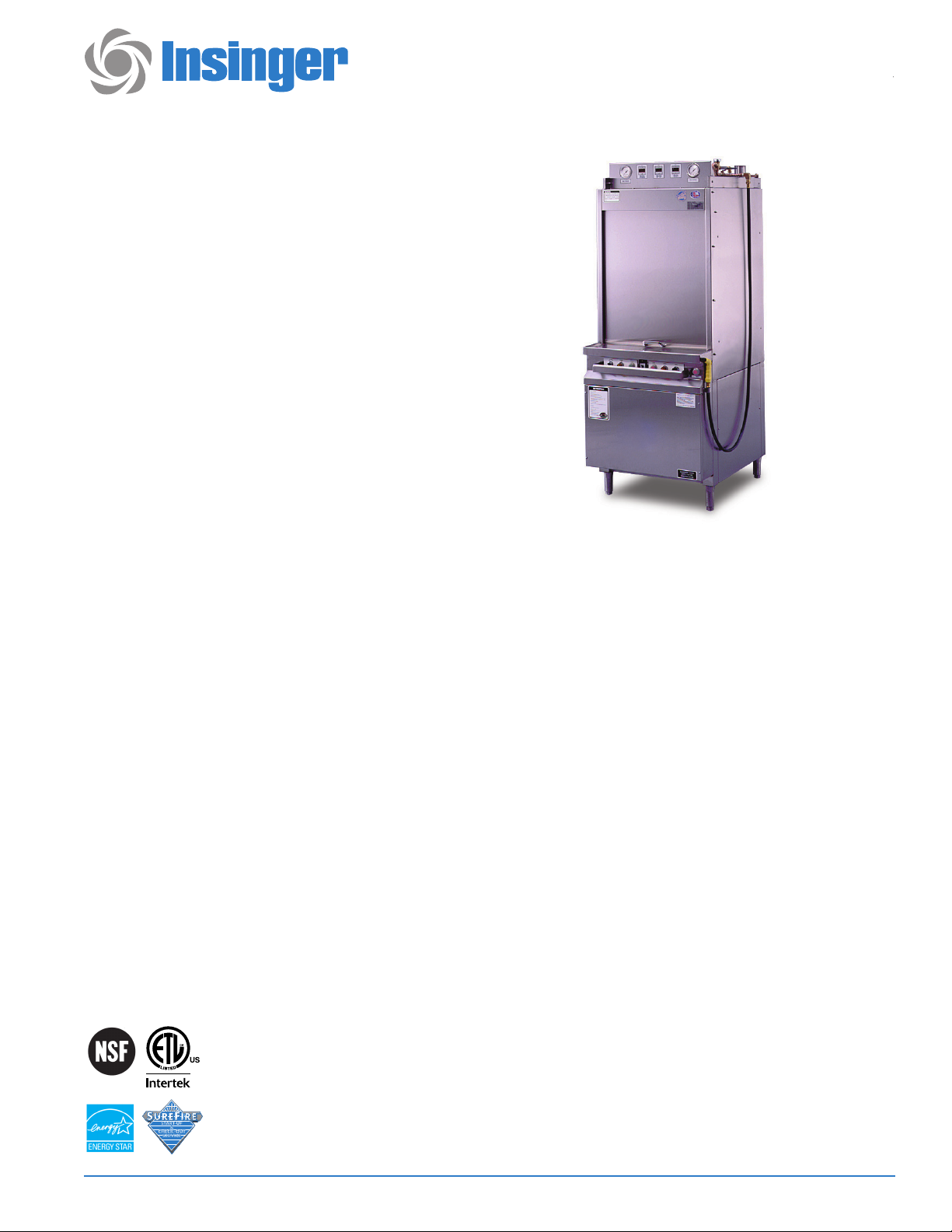

SW-14-F
Performer Series Front Load Pot and Pan Washer
Automatic door type utensil washer with timed wash and rinse cycle
12 racks per hour. 14 pans per rack
Timers are all adjustable
Fully automatic operation with power on/off button
Cycle starts when doors are closed
Hold down rack system for secure washing
Available in front load and pass-thru operations
Project ________________
Item __________________
Quantity _______________
CSI - 11400 _____________
Approval _______________
Date ___________________
STANDARD FEATURES
Wash tank heat: electric, gas, steam injection or steam coil
Pressure regulator
Single point electrical connection
Low water cut-off
Automatic fill
Three position wash selector (complete cycle times): Light (260 seconds),
Medium (380 seconds), Heavy (500 seconds)
Emergency cycle stop button
Wash pump pressure gauge
Rinse pressure gauge
Digital temperature controller for wash and rinse
Pan washer clean-up hose and spray gun
Lift-up door design
Detergent connection provisions
SureFire® Start-Up & Check-Out Service
OPTIONS
Stainless steel steam coil tank heat
Pressure reduction valve and line strainer
Steam booster
Electric booster
Security package
Totally enclosed motor
Recommended option: power vent fan
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
Note: For all rough in connections see installation and layout detail drawing.
SPECIFICATIONS
SW-14-F
Performer Series Front Load Pot and Pan Washer
Capacity Per Hour 12 racks/168 sheet pans
Tank Capacity 40 gallons
Motor Size 10 hp (wash)
Electric Usage Electric wash heat (1) 9kW element
Rinse booster (1) 9 Kw element
Steam Consumption
at 10-15 psi
Gas Consumption 48,000 BTUH
Final Rinse Peak Flow
at 20 psi min.
Final Rinse Consumption
at 20 psi min.
Exhaust Hood Requirement 6" steam exhaust vent
Peak Rate Drain Flow 5 gallons/minute
Shipping Weight 1175 lbs.
Current Draw
Amps
208/3/60
230/3/60
460/3/60
Electric
79.0
72.2
37.1
23 lbs./hr. injected (wash tank)
43 lbs./hr. coil (wash tank)
47 CFH natural gas 7" W.C. minute
19 CFH propane 11" W.C. minute
5.0 gallons/minute
65 gallons/hour
4.6 gallons/cycle
Gas
54.0
49.6
25.8
Steam
Injector
54.0
49.6
25.8
Steam Coil
29.0
27.0
14.5
CONSTRUCTION- Hood and tank constructed of 14 gauge series 300
S/S. Hood unit of all welded seamless construction. 12 gauge series
300 S/S frame, S/S legs and feet. All internal castings are non-corrosive
bronze.
DOORS- Single front opening door. Operating door has fingertip
control, balanced by an externally mounted counterweight. Extra large
die formed series 300 S/S doors ride in all S/S channels with easy-glide
liners.
PUMP- Centrifugal type “packless” pump with a drain plug.
Construction includes ceramic seal and a balanced cast impeller on a
precision ground stainless steel shaft, extension or sleeve. All working
parts mounted as an assembly and removable as a unit without
disturbing the unit piping. One 10hp motor, standard horizontal C-face
frame, drip proof, internally cooled with ball-bearing construction.
CONTROLS- Electro-mechanical controls, including motor controls and
overload protection, transformer, contactors and all dishwasher integral
controls.
SPRAY SYSTEM- Wash and rinse spray systems made of type 304
stainless steel tubing. The wash assembly arm is pined into hub
assembly. Upper and lower wash assemblies are removable without
the use of tools. Rinse spray assemblies are removable with the use of
simple tools.
WASH- 1 full width power spinning wash arm above and 1 full width
power spinning wash arm below.
FINAL RINSE- Top and Bottom stationary final rinse nozzles. The
nozzles produce a cone spray reducing water consumption, maximizing
heat retention.
DRAIN- Drain valve externally controlled. Overflow assembly with
skimmer cap is removable with the use of simple tools for drain line
inspection. Heater is protected by low water level control.
EXHAUST- A 6-inch diameter exhaust vent companion flange is
supplied on the top of the unit.
Note: Due to product improvement we reserve the right to change information and specifications without notice.
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
12_2009
