SMART-SCRUBBER SERIES
Pot and Pan Washing System
Patent pending
Automatic scrub sink that creates the same
turbulent whirlpool pattern as our Quadjet
Aqua-Scrubber at a SMART price point
Simplified design
SMART controls – pump on/off and heat on/off
1 hp pump motor and a heat source that
is not immersed in the water makes this sink a SMART value
16 gauge stainless steel construction with a rolled front edge and hemmed edge sides
11" backsplash
The SMART alternative to a standard 3 compartment sink at a very attractive price
Available in 96", 112" and 136" widths
CSI - 11400 _____________
Approval _______________
Date ___________________
Shown above with optional
scrapper station drainboard
and pre-rinse faucet.
STANDARD FEATURES
Six high velocity water jets to create the turbulent whirlpool action
120V 20.0A circuit is all that is required for the 1 hp pump motor and heat
source
Basket style high capacity lever action waste drain
Single point electrical connection
Welded support legs with stainless steel feet
300 series stainless construction
OPTIONS
Sink overflows
End splash
Scrapper drainboard with pre-rinse faucet (112" and 136" units only)
Clean side undershelf (112" and 136" units only)
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
SmartScrubber 96
32" Wash Bowl
16" Rinse Sink
16" Sanitize Sink
18" Soiled Drainboard
14" Clean Drainboard
SMART-SCRUBBER SERIES
Pot and Pan Washing System
SPECIFICATIONS
CONSTRUCTION- Entire unit constructed of 300 series polished
stainless steel.
TOP- constructed of 16 gauge stainless steel all welded with integral
back splash in rear, rolled front rim and hemmed edge sides.
WASH SINK BOWL- 16 gauge stainless steel all welded integral with
top. Bottom corners coved to ¾" radius. All vertical mitred corners
coved to ¼" radius. Crease bottom to drain opening. Stud bolt support
channels to bottom of sink bowls. Water pump assembly and hinged
intake cover on soiled drainboard side of sink bowl. Six (6) water
discharge openings. Heated mat applied to exterior of bowl and covered
with fiberglass insulation and 20 gauge stainless steel covering.
RINSE AND SANITIZE BOWLS- 16 gauge stainless steel all welded
integral with top. Bottom corners coved to ¾" radius. Crease bottom to
drain opening. Stud bolt support channels to bottom of sink bowls.
SUPPORT CHANNELS- 3 1/2" X 3/4" X 14 gauge stainless steel channels
with hemmed edges.
CROSSRAILS- 1 1/4" O.D. stainless steel tubing fastened to legs with
cross brace fittings. Welded front to back cross rails.
SmartScrubber 112
36" Wash Bowl
20" Rinse Sink
20" Sanitize Sink
18" Soiled Drainboard
18" Clean Drainboard
LEGS AND FEET- 1 5/8" O.D. stainless steel tubing fitted with stainless
steel adjustable feet. Held in conical leg holders with set screw.
APRON- 20 gauge stainless steel.
WASH TANK CONTROL PANEL- 14 gauge stainless steel with
gasketed, hinged door. Waterproof construction, mounted under soiled
drainboard.
SmartScrubber 136
36" Wash Bowl
20" Rinse Sink
20" Sanitize Sink
24" Soiled Drainboard
36" Clean Drainboard

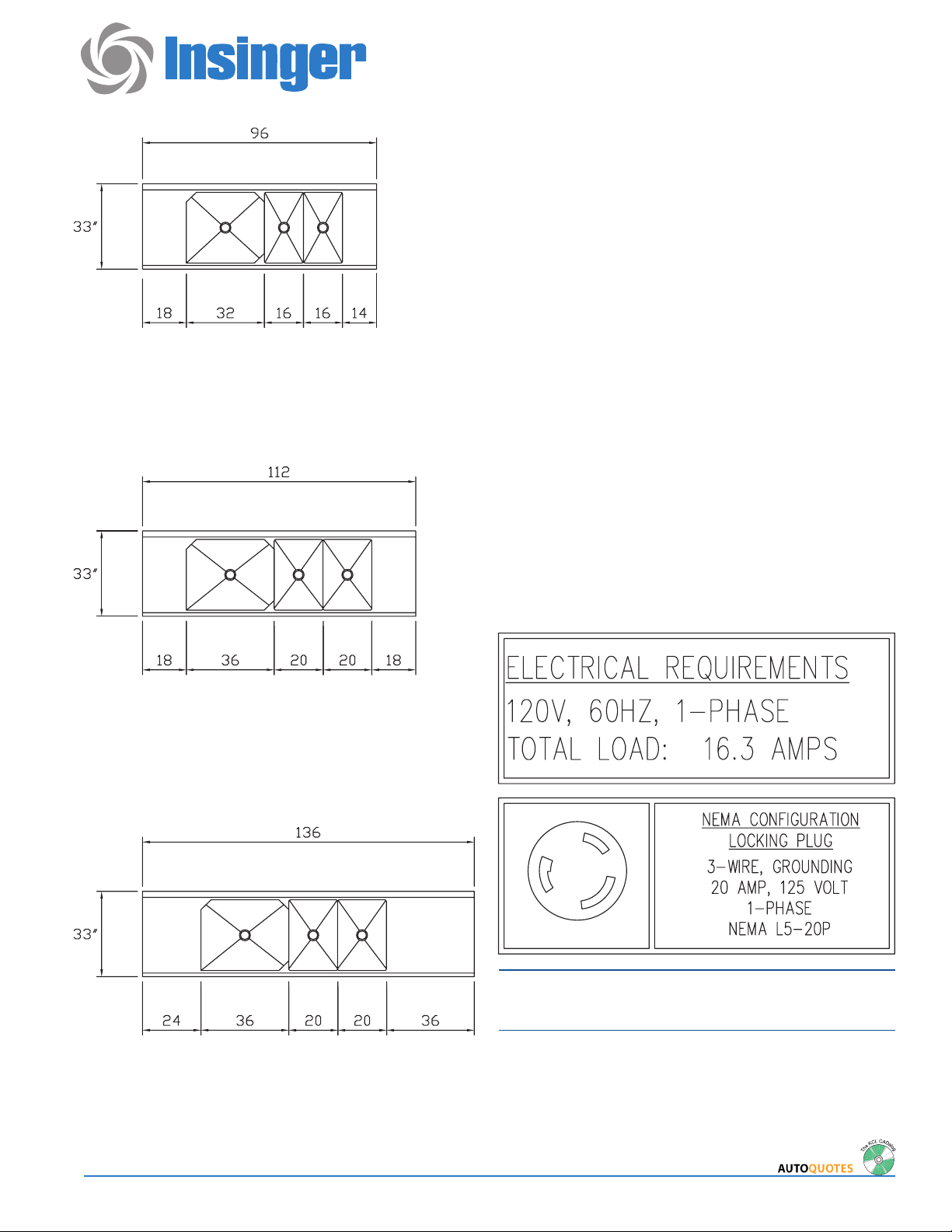

Note: For all rough in connections see installation and layout detail drawing.
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
SmartScrubber 96" 495 lbs.
Shipping Weight
SmartScrubber 112" 550 lbs.
SmartScrubber 136" 675 lbs.
Note: Due to product improvement we reserve the right to change information
and specifications without notice.
