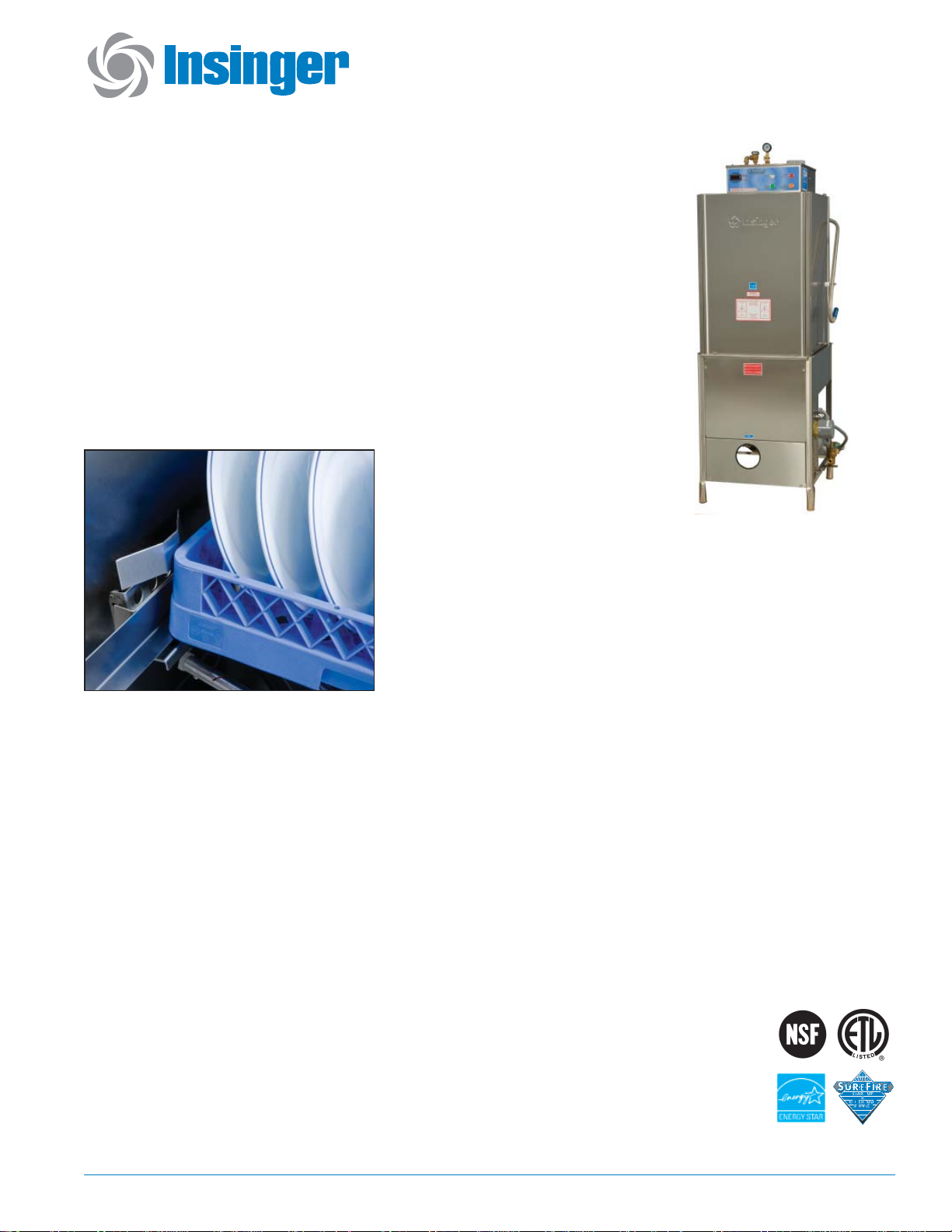

COMMANDER 18-6H
Automatic Extra High Single Tank Door Type Dishwasher
DESIGN
Automatic door type, single tank dishwasher with timed wash and rinse cycle
0.72 gallon/rack
Capacity is 65- 20” x 20” racks per hour or 1625 dishes per hour
Fully automatic operation
RackAwareTM Automatic Rack Sensing System* only runs a cycle when a rack is present
Selectable 2 minute extended wash cycle
Handles mixer agitators, 18” x 26” sheet pans, utensils & mixing bowls up to 60 quarts
Field convertible straight through to corner
Single digital temperature indicator for wash and rinse temperature
STANDARD FEATURES
Door safety switch
Detergent connection provision
Fully automatic operation
Single scrap screen design
Non-proprietary commercially available pump motor
Easily removable pump suction strainer
Tank heat: 5 Kw electric immersion heater or steam injector
SureFire® Start-Up & Check-Out Service
Easy-glide doors
Single point electrical connection: motor, controls, heater and optional built-in
booster (when selected)
RackAwareTM Automatic Rack Sensing System*
only runs a cycle when a rack is present
Top-mounted NEMA 12 control panel
“Easy Clean” front-mounted wash tank
Manifold clean-out brush
S/S frame, legs and feet
S/S front panel
Automatic tank fi ll
Low water protection
Override switch for de-liming or extended wash cycle on front control panel
Vent fan connection provision
End caps/pipe plugs secured to prevent loss
CSI - 11400 _____________
Approval _______________
Date ___________________
OPTIONS
VaporGuard™ Condensate Removal System*
Pressure reduction valve and line strainer
Stainless steel steam coil tank heat
Steam booster
Built-in electric booster
Remote electric booster
Security package
Totally enclosed motor
Door activated drain closer
Plastic 20” x 20” racks (plate or silver)
Drain quench system
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
*Patent Pending
Note: For all rough in connections see installation and layout detail drawing.
COMMANDER 18-6H
Automatic Extra High
Single Tank Door Type Dishwasher
Capacity Per Hour 65 racks
Tank Capacity 6.4 gallons
Motor Size 2 hp (wash)
Electric Usage 5.0 Kw
Steam Consumption
at 20 psi min.
Final Rinse Peak Flow
at 20 psi min.
Final Rinse Consumption
at 20 psi min.
Exhaust Hood Requirement 400 cfm
Peak Rate Drain Flow 9 gallons/minute
Shipping Weight 600 lbs.
Current Draw Amps
208/1/60
240/1/60
208/3/60
240/3/60
380/3/50
480/3/60
Note: Due to product improvement we reserve the right to change information
and specifi cations without notice.
1625 dishes
80-160 meals
Built-in booster 40° or 70° rise
10.1 Kw 208v
13.5 Kw 240v
13.5 Kw 380v
13.5 Kw 480v
6.0 Kw remote booster 40° rise
12.0 Kw remote booster 70° rise
18 lbs./hour tank
22 lbs./hour booster 40° rise
43 lbs./hour booster 70° rise
4.36 gallons/minute
47 gallons/hour
0.72 gallons/rack
Steam
13.7
11.9
8.0
7.2
4.4
3.6
Electric w/o
booster
37.7
32.7
21.9
19.2
12.0
9.6
Electric w/
built-in booster
86.5
89.0
50.0
51.7
32.6
25.8
SPECIFICATIONS
CONSTRUCTION- Hood and tank constructed of 16 gauge type 304 S/S.
Hood unit of all welded seamless construction. S/S frame, legs and feet.
All internal castings are non-corrosive lead free nickel alloy or bronze.
DOORS- Three (both sides and front) simultaneously opening doors.
Operating doors have fi ngertip control, balanced by externally mounted
springs. (Corner installations have two simultaneously opening doors
at right angles.) All doors have easy-glide strips. Extra large die formed
type 304 S/S doors ride in all S/S channels. A triple ply leading edge on
the door channels made of S/S.
PUMP- Centrifugal type “packless” pump with a brass petcock drain.
Construction includes ceramic seal and a balanced cast impeller on a
precision ground stainless steel shaft, extension or sleeve. All working
parts mounted as an assembly and removable as a unit without disturbing pump housing. One 2 hp motor, standard horizontal C-face frame,
drip proof, internally cooled with ball-bearing construction.
CONTROLS- Top mounted control cabinet, NEMA 12 rated, housing
motor controls and overload protection, transformer, contactors and all
dishwasher integral controls. Integrated rack sensing system.
SPRAY SYSTEM- Wash and rinse spray systems made of type 304
stainless steel pipe threaded into cast hub assemblies. Upper and lower
wash and rinse spray assemblies are removable without the use of
tools.
WASH- 2 power spinning wash arms above and 2 power spinning wash
arms below. On top, each wash arm is designed with 8 nozzles (16
total). On the bottom, each wash arm is designed with 4 slots (8 total).
The slots are precision milled for water control and produce a fan spray.
FINAL RINSE- 2 power spinning rinse arms above and 2 power spinning
wash arms below. On top, each rinse arm is designed with 2 nozzles
(4 total). On the bottom, each rinse arm is designed with 4 nozzles (8
total). The nozzles produce a fan spray reducing water consumption,
maximizing heat retention.
DRAIN- Drain valve externally controlled. Overfl ow assembly with skim-
mer cap is removable without the use of tools for drain line inspection.
Heater is protected by low water level control.
6245 State Road • Philadelphia, PA 19135 • PH: 800-344-4802 • FX: 215-624-6966 • www.insingermachine.com
5 2010
