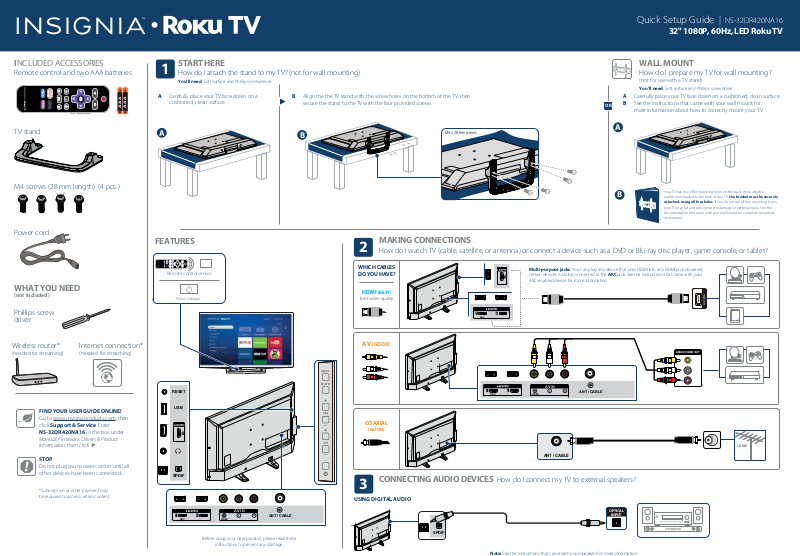

Quick Setup Guide | NS-32DR420NA16
SPDIF
32" 1080P, 60Hz, LED Roku TV
INCLUDED ACCESSORIES
Remote control and two AAA batteries
AAA+AAA
TV stand
M4 screws (28 mm length) (4 pcs.)
Power cord
WHAT YOU NEED
(not included)
Phillips screw
driver
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
+
You’ll need: Soft surface and Phillips screwdriver.
A
Carefully place your TV face-down on a
cushioned, clean surface.
A
FEATURES
Remote control sensor
Power indicator
B Align the the TV stand with the screw holes on the bottom of the TV, then
secure the stand to the TV with the four provided screws.
B
M4 × 28 mm screws
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player, game console, or tablet?
WHICH CABLES
DO YOU HAVE?
HDMI
(BEST)
Best video quality
OR
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
certain devices must be connected to the ARC jack. See the instructions that came with your
3
ARC-enabled device for more information.
1
2
ARC
WALL MOUNT
How do I prepare my TV for wall mounting?
(not for use with a TV stand)
You’ll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
B See the instructions that came with your wall mount for
more information about how to correctly mount your TV.
A
B
Your TV has four VESA mounting holes on the back. If you attach a
wall-mount bracket to the back of your TV, the bracket must be securely
attached, using all four holes. If you do not use all four mounting holes,
your TV may fall and cause property damage or personal injury. See the
documentation that came with your wall mount for complete mounting
instructions.
Wireless router*
(needed for streaming)
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-32DR420NA16
Manual, Firmware, Drivers & Product
Information, then click
STOP
Do not plug your power cord in until all
!
other devices have been connected.
*Subscription or other payment may
be required to access certain content.
Internet connection*
(needed for streaming)
in the box under
►
.
RESET
USB
SPDIF
1
3
2
ARC
Before using your new product, please read these
AV IN
L R
VIDEO
instructions to prevent any damage.
ANT / CABLE
AV
(GOOD)
TV
MUTE
1
2
ARC
AV IN
L R
VIDEO
ANT / CABLE
AUDIO/VIDEO OUT
COAXIAL
(GOOD)
CABLE
ANT / CABLE
CONNECTING AUDIO DEVICES How do I connect my TV to external speakers?
3
USING DIGITAL AUDIO
OPTICAL
INPUT
SOUNDBAR
Note: See the instructions that came with your speakers for more information.
Page 2
TURNING ON MY TV
4
When can I turn on my TV?
WHEN YOUR TV IS IN PLACE:
1 Plug the power cord into
the AC IN jack on the back of
your TV, then plug the other
end into a power outlet.
2 Remove the remote control
cover and install the batteries.
3 Press (power) on your
remote control.
AAA
+
AAA
+
4 Follow the on-screen
instructions.
TV
CONNECTING BRINGS OUT YOUR TV'S FULL POTENTIAL!
You'll have access to more than 2,000 streaming channels.
TV
Make any night a movie night
More than 35,000 movies to choose from, across all major
streaming movie channels like Netflix, Amazon Instant Video,
Google Play, VUDU, and more.*
Get in the groove
Stream music from one of 85 music channels like Pandora, VEVO
and Spotify. Access your entire MP3 collection instantly with
Amazon Cloud Player or the Roku Media Player.
Explore your passions
In addition to popular streaming channels like HBO GO, NFL Now,
PBSKids and FOXNOW, your Insignia • Roku TV also offer hundreds
of streaming channels to fuel your passions – including fitness,
cooking, religion, outdoors, International programming and
much more.
Enjoy FREE trials of popular channels
Your Insignia • Roku TV comes loaded with special offers, including
free trials from popular streaming channels like Amazon Instant
Video, Netflix, HuluPlus, Spotify, DailyBurn Fitness, and many more.
*Subscription or other payment may be required to access certain channels. Content may not be
available in all areas in which the Insignia Roku TVs are sold and channel availability is subject to change.
ROKU, ROKU TV and the ROKU logo are trademarks and the property of Roku, Inc.
Other channel logos, brand and product names are trademarks or registered trademarks
of their respective holders.
COMPLETE GUIDED SETUP (OPTIONAL)
5
Establish your network connection.
1 Your TV will automatically detect your wireless network, so have your network name and
password handy and follow the easy on-screen setup.
2 Once connected, your TV will automatically update with the latest software, and you can
immediately start streaming entertainment.
3 When connected to the Internet, your new Insignia • Roku TV automatically receives
regular software updates in the background, continually improving your experience.
4 If you aren't ready to connect your TV to a wireless network, you can still use it as a
regular TV.
And setup is done ... congratulations!
1 Continue using the remote to personalize your Home screen and channel line-up, stream
movies, and much more.
2 If you have an antenna or cable connected, just click the Tuner tile to watch broadcast TV
channels. The fun has just begun!
3 Your Roku account: During Guided Setup, you'll be prompted to create your Roku account
online at https://my.roku.com/link. Your TV will generate a unique code that links your TV
to your new account.
4 Roku accounts are free, and while a valid credit card number is not required to create your
account, providing your credit card information makes renting and purchasing
OPTIONAL
6
Watching local broadcast TV
How do I scan for channels?
If you connected a cable or
satellite box, skip this step
If you connected your TV to an
antenna or cable wall jack
(no box):
1 When the setup wizard is complete,
select the ANTENNA TV
icon from the Home screen.
2 Follow the on-screen instructions.
3 Whenever you want to
watch TV, select this
icon.
.
Antenna TV
entertainment from the Roku Channel Store fast and convenient.
USING YOUR REMOTE CONTROL
Turns your TV on or off.
Return to the previous screen.
Adjusts the picture for the
ultimate gaming experience.
Rewind streaming video,
scroll left one page at a time.
Play/pause
Roku: Pauses or resumes playback.
Using Your Cable Set-top Box or Satellite Receiver Remote as a Universal Remote.
If you prefer to use your cable set-top box or satellite receiver remote as a Universal Remote, please refer to the manual that your cable or satellite service
provided. It will include instructions on how to program their remote to your television. You can find codes that work with your Insignia•Roku TV and the
most common cable and satellite provider’s universal remote control at www.roku.com/universalremote.
Power
Back
Directional keypad
Game
Sleep
Sets the sleep timer
Rewind
Top view
Home
Displays your TV's Home screen.
If you are watching TV or streaming content,
playback stops.
Volume up
Increases the volume or
un-mutes the sound.
Volume down
Decreases the volume.
Mute
Mutes or un-mutes
the sound.
View more options
This button gives you easy access to picture
settings, display options, and more.
ress the
button on any screen to access options.
P
*
Fast forward
Fast forward stream
at a time.
Streaming channels shortcuts
When you press a button:
•
a sign up page.
• If you have added the channel, displays the
channel's home page.
• If your TV is off, turns on your TV and displays the
channel’s home page.
ing video, scroll right one page
If you have not added the channel, displays
Side view
TROUBLESHOOTING
Having trouble completing the
guided setup?
Don't worry, it's usually an easy fix.
If you cannot see a picture on your TV
• Make sure your TV and the device you
want to watch (cable box, Blu-ray player,
game console, etc.) are turned on and
plugged into a working wall outlet.
• Make sure your power cable is
connected.
If you cannot connect to your wireless
home network during guided setup
• Make sure the correct wireless network
name is selected.
• Make sure the wireless network
password is correctly entered
(password is case sensitive).
•
Improve wireless signal by rotating the
router slightly (even a few inches can help).
If you cannot hear sound
• Make sure TV volume is turned up and
not on mute.
• Try only the TV speakers by
disconnecting any connection to audio
devices (like headphones or audio video
receivers).
If the TV remote control isn't working
• Remove any obstruction and point the
remote at the TV's IR receiver (see Get to
know your TV ).
• Try a fresh set of batteries.
• If the status light on the front of your TV
flashes once each time you press a
remote button, the problem is not with
the remote.
•Unplug the TV and plug it back in
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
NEED ADDITIONAL HELP?
See your online User Guide! This
comprehensive guide includes everything
from basic how-to steps to more advanced
features. A copy of your User Guide is not
provided in the box but is available online.
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-32DR420NA16 in the box under
Manual, Firmware, Drivers & Product
Information, then click
Check out our Support Community
http://community.insigniaproducts.com/
for helpful information from other Insignia
TV owners.
WE’RE HERE FOR YOU
www.insigniaproducts.com
For customer service, call:
877-467-4289 (U.S.)
