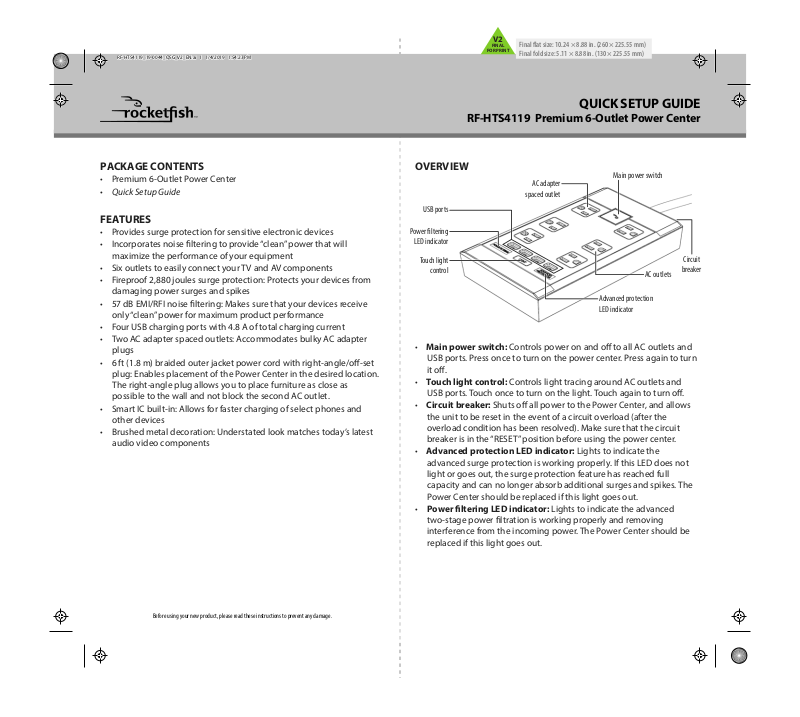

QUICK SETUP GUIDE

RF-HTS4119 Premium 6-Outlet Power Center

PACKAGE CONTENTS

• Premium 6-Outlet Power Center

• Quick Setup Guide

FEATURES

• Provides surge protection for sensitive electronic devices

• Incorporates noise ltering to provide “clean” power that will maximize the performance of your equipment

• Six outlets to easily connect your TV and AV components

• Fireproof 2,880 joules surge protection: Protects your devices from damaging power surges and spikes

• 57 dB EMI/RFI noise ltering: Makes sure that your devices receive only “clean” power for maximum product performance

• Four USB charging ports with 4.8 A of total charging current

• Two AC adapter spaced outlets: Accommodates bulky AC adapter plugs

• 6 ft (1.8 m) braided outer jacket power cord with right-angle/o-set plug: Enables placement of the Power Center in the desired location. The right-angle plug allows you to place furniture as close as possible to the wall and not block the second AC outlet.

• Smart IC built-in: Allows for faster charging of select phones and other devices

• Brushed metal decoration: Understated look matches today’s latest audio video components

OVERVIEW

Main power switch

AC adapter

spaced outlet

USB ports

Power ltering

LED indicator

Touch light

control

Advanced protection LED indicator

• Main power switch: Controls power on and o to all AC outlets and USB ports. Press once to turn on the power center. Press again to turn it o.

• Touch light control: Controls light tracing around AC outlets and USB ports. Touch once to turn on the light. Touch again to turn o.

• Circuit breaker: Shuts o all power to the Power Center, and allows the unit to be reset in the event of a circuit overload (after the overload condition has been resolved). Make sure that the circuit breaker is in the “RESET” position before using the power center.

• Advanced protection LED indicator: Lights to indicate the advanced surge protection is working properly. If this LED does not light or goes out, the surge protection feature has reached full capacity and can no longer absorb additional surges and spikes. The Power Center should be replaced if this light goes out.

• Power ltering LED indicator: Lights to indicate the advanced two-stage power ltration is working properly and removing interference from the incoming power. The Power Center should be replaced if this light goes out.

AC outlets

Circuit

breaker

Before using your new product, please read these instructions to prevent any damage.

RF-HTS4119_19-0044_QSG_V2_EN.ai 2 1/4/2019 1:54:29 PMRF-HTS4119_19-0044_QSG_V2_EN.ai 2 1/4/2019 1:54:29 PM

USING YOUR POWER CENTER

1 Plug the power cord of the Power Center into a standard, 3-prong,

120V AC outlet. If the LEDs do not light up, press the circuit breaker on the unit.

2 Plug the power cords from up to six devices into the AC outlets on the

Power Center. You may need to push rmly to insert the plug the rst few times. This is normal.

3 Plug your USB devices into the USB ports to power or charge them.

SPECIFICATIONS

• Dimensions without power cord (H×W×D):

8.81 × 4.96 × 1.49 in. (22.4 × 12.6 × 3.8 cm)

• Weight: 29.5 oz (837 g)

• Plug style: Right-angle oset

• Cord length: 6 ft. (1.8 m)

• Total outlets: Six (two wide-spaced)

• Total USB outlets: Four Electrical specications:

• Load rating: 15 amps

• Line voltage: 125V AC @ 60 Hz

• Surge protection: 3 lines (L-N / L-G / N-G)

• Maximum surge current: 90,000 amps

• Maximum energy dissipation: 2,880 joules

• Clamping voltage: L-N / L-G / N-G = 500 volts

• EMI/RFI noise ltering: Up to 57 dB

• UL1449, UL1363, UL1310 certied

• Connected equipment limited warranty: $600,000

FCC STATEMENT

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Warning: Changes or modications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

ICES-003

This Class B digital apparatus complies with Canadian ICES-003.

SAFETY INFORMATION

• RISK OF ELECTRIC SHOCK - Use only in dry locations and only indoors.

• DO NOT plug into another relocatable power tap.

• DO NOT “daisy chain” surge protectors.

• DO NOT use with any aquarium equipment.

• DO NOT use if correctly grounded outlets are not available.

• DO NOT install this device if there is not at least 30 feet (10 meters) or more of wire between the electrical outlet and electrical service panel.

• This device features internal protection that will disconnect the surge protective component at the end of its useful life, but will maintain power to the load – WHICH WILL BE UNPROTECTED. If you don’t want your equipment at risk, follow the manufacturer’s instructions for replacing the device.

• DO NOT use in any circumstance that would aect the operation or reliability of life support equipment, any medical applications, or patient care.

THREEYEAR LIMITED WARRANTY

Visit www.rocketshproducts.com for details.

CONTACT ROCKETFISH

For customer support, call 1-800-620-2790 www.rocketshproducts.com

Made in China

V2 ENGLISH 19-0044
