Please see www.insigniaproducts.com for the latest
Quick Start Guide and troubleshooting.

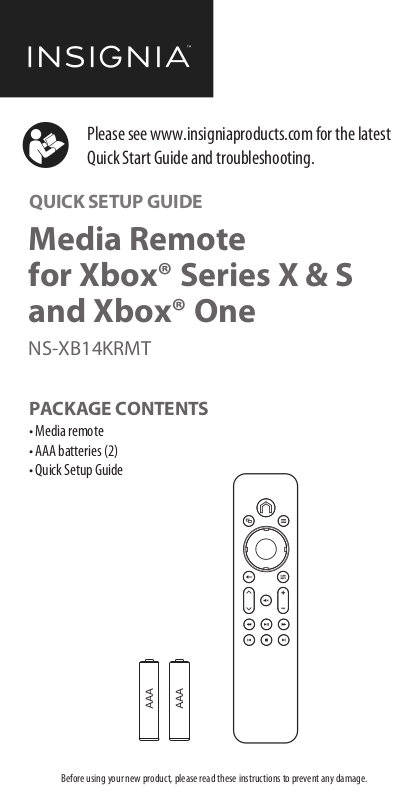

QUICK SETUP GUIDE
Media Remote
for Xbox® Series X & S
and Xbox® One
NS-XB14KRMT
PACKAGE CONTENTS
• Media remote
• AAA batteries (2)
• Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
FEATURES
• The media remote for Xbox Series X & S and Xbox One is designed to control
your Blu-ray movies, apps, videos, and more.
XBOX
Navigation
button
View Menu
D-Pad
OK/Confirm
Back
Mute
TV & XBOX ONE
navigation
Channel
up/down
Backward
Previous
Stop
Volume up/down
Play/pause
Forward
Next
SETTING UP YOUR MEDIA REMOTE
1 From the back of the remote, slide off the battery compartment door.
2 Place the two AAA batteries (included) into the battery compartment.
Make sure that the batteries are in the correct position as shown below.
SETTING UP THE MEDIA REMOTE
ON XBOX ONE
1 Press the top X navigation button on the remote to access the Xbox One
main menu.
2 Select Settings to access the Xbox One settings menu.
3 Select TV & OneGuide from the Xbox One settings menu,
then follow the screen prompts to complete all the button setting
functions.
Note: TV & OneGuide allows you to change channels on your
compatible cable or satellite box. To control your TV power and
volume, you’ll need to congure your console to control your TV.
4 Go back to the Xbox One main menu and you should be ready to
use the media remote.
SETTING UP THE MEDIA REMOTE
ON XBOX SERIES X & S
1 Press the top X navigation button on the remote to access the
Xbox Series X & S main menu.
2 Select Settings to access the Xbox Series X & S settings menu.
3 Follow the screen prompts to complete all the button setting
functions.
Notes: The Setup process for Xbox Series X & S may dier, please
refer to the instruction from
Xbox Series X & S system.
4 Go back to the Xbox Series X & S main menu and you should be
ready to use the media remote.
USING THE MEDIA REMOTE
• The media remote uses infrared (IR)
technology to communicate with the
console. For your remote control to
communicate with your console most
effectively, the media remote should
be within 30 feet (9 meters) and
should be pointed at the front of the
console as shown.
SAFETY INFORMATION/CAUTION
• Never dispose of batteries in a fire.
• Do not use batteries other than those specified, and always replace with the
same type of battery.
• Do not mix old and new batteries.
• Insert batteries with the plus and minus ends in the correct direction.
• Remove batteries when they have reached the end of their life, or if the
remote control is to be stored for an extended period of time.
SPECIFICATIONS
Power source
External dimensions
(W×H×D)
Wireless technology
Operating temperature
AAA batteries (2)
Approximately 2 × 6.9 × .9 inches
(50 × 175 × 22.5 mm)
Infrared radiation
41°F~95°F (5°C~35°C)
TROUBLESHOOTING
The media remote has no power or functionality.
If your remote does not perform any functions, replace the batteries with fresh
ones. Make sure that they are placed in the right position.
The media remote will not work with certain apps.
Make sure the Infrared transmitter is not blocked or in a cabinet.
The media remote is designed to work with most apps. However, some apps may
not be designed for use with the media remote. Use your Xbox One controller for
these apps.
LEGAL NOTICES
FCC information
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user’s authority to operate the
equipment.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ICES-003 statement
This Class B digital apparatus complies with Canadian ICES-003.
Cet apparel numérique de la classe B estconforme à la norme NMB-003 du Canada.
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and Canada)
www.insigniaproducts.com
Other parties’ marks are the property of their respective owners.
INSIGNIA is a trademark of Best Buy and its affiliated companies.
Registered in some countries. Distributed by Best Buy Purchasing, LLC,
7601 Penn Ave South, Richfield, MN 55423 U.S.A.,
©2020 Best Buy. All rights reserved.
Made in China
English V2-20-0826
