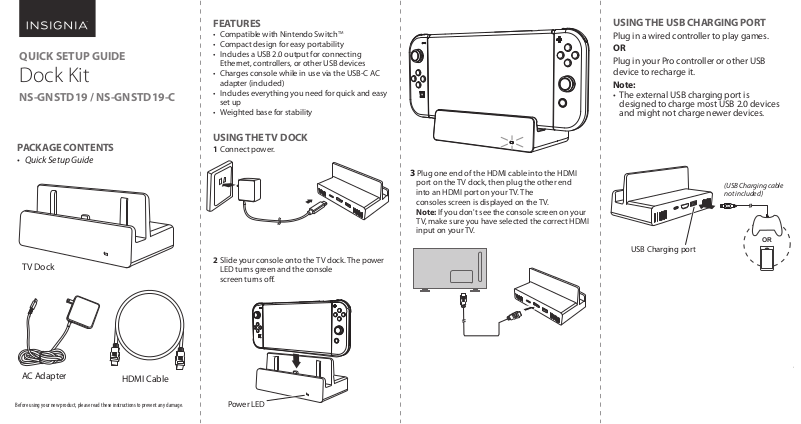

QUICK SETUP GUIDE

Dock Kit

NS-GNSTD19 / NS-GNSTD19-C

FEATURES

• Compatible with Nintendo Switch

• Compact design for easy portability

• Includes a USB 2.0 output for connecting
Ethernet, controllers, or other USB devices

• Charges console while in use via the USB-C AC
adapter (included)

• Includes everything you need for quick and easy
set up

• Weighted base for stability

TM

USING THE USB CHARGING PORT

Plug in a wired controller to play games.

OR

Plug in your Pro controller or other USB
device to recharge it.

Note:

• The external USB charging port is
designed to charge most USB 2.0 devices
and might not charge newer devices.

PACKAGE CONTENTS

• Quick Setup Guide

TV Dock

AC Adapter

Before using your new product, please read these instructions to prevent any damage.

HDMI Cable

USING THE TV DOCK

1 Connect power.

2 Slide your console onto the TV dock. The power

LED turns green and the console

screen turns o.

Power LED

3 Plug one end of the HDMI cable into the HDMI

port on the TV dock, then plug the other end
into an HDMI port on your TV. The
consoles screen is displayed on the TV.
Note: If you don't see the console screen on your

TV, make sure you have selected the correct HDMI

input on your TV.

USB Charging port

(USB Charging cable
not included)

OR

SPECIFICATIONS

TV Dock:

Input:
Output:

AC adapter:

Input:
Output:

External USB
charging port:

Output:

HDMI Cable
length:

Dimensions:

5V 3A / 15V 2.6A
5V 3A / 15V 2.6A

90- 264V, 50/60Hz 1A
5V 3A / 9V 3A / 15V 2.6A

5V 1A

59.0 in. (1500mm)

(L x W x H) 5.4 x 3.0 x 2.4 in.
(138 x 78 x 60mm)

SAFETY INFORMATION

• You must use the included AC adapter to
power the dock.

• Do not disassemble any of the
components. Refer all services to qualied
personnel only.

• Do not place or store the product in a
humid area and do not expose it to water
or rain.

• Use the product only as instructed. Read all
instructions before operating the product.

• Failure to follow these directions may void
the warranty.

• Do not use voltage transformers or plugs
that deliver reduced amounts of electricity.

• Do not expose devices to re,
microwaves,high temperatures or direct
sunlight.

LEGAL NOTICES

FCC Information

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two
conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.

Warning: Changes or modications to this unit not
expressly approved by the party responsible for
compliance could void the user’s authority to
operate the equipment.

Note: This equipment has been tested and found
to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation.

If this equipment does cause harmful interference
to radio or television reception, which can be
determined by turning the equipment o and on,
the user is encouraged to try to correct the
interference by one or more of the following
measures:

—Reorient or relocate the receiving antenna.
—Increase the separation between the equipment

and receiver.

—Connect the equipment into an outlet on a

circuit dierent from that to which the receiver is
connected.

—Consult the dealer or an experienced radio/TV

technician for help.

The terms HDMI and HDMI High-Denition multimedia
interface, and the HDMI logo are trademarks or
registered trademarks of HDMI licensing LLC in the
United States and other countries

ICES-003 statement

This Class B digital apparatus complies with
Canadian ICES-003.

Cet apparel numérique de la classe B est conforme
à la norme NMB-003 du Canada.)

ONEYEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA

For customer service, call 1-877-467-4289
(U.S. and Canada) or 01-800-926-3000
(Mexico)

www.insigniaproducts.com

INSIGNIA is a trademark of Best Buy and its aliated companies
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2017 Best Buy. All rights reserved.

Made in China

V2 ENGLISH 17-0764
