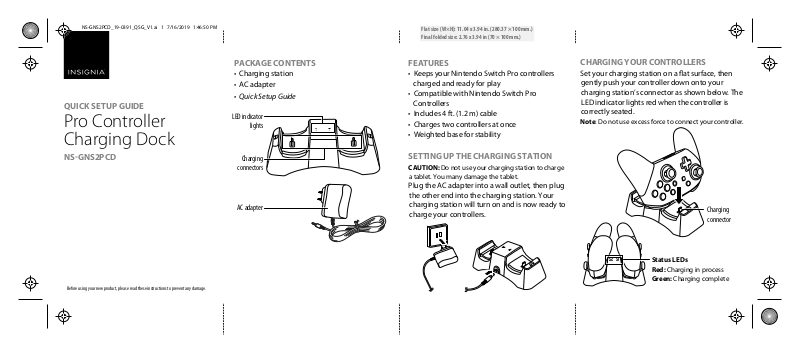

Insignia NS-GNS2PCD Quick Setup Guide

QUICK SETUP GUIDE

Pro Controller Charging Dock

NSGNS2PCD

Before using your new product, please read these instructions to prevent any damage.

PACKAGE CONTENTS

• Charging station

• AC adapter

• Quick Setup Guide

LED indicator

lights

Charging

connectors

AC adapter

FEATURES

• Keeps your Nintendo Switch Pro controllers charged and ready for play

• Compatible with Nintendo Switch Pro Controllers

• Includes 4 ft. (1.2 m) cable

• Charges two controllers at once

• Weighted base for stability

SETTING UP THE CHARGING STATION

CAUTION: Do not use your charging station to charge

a tablet. You many damage the tablet.

Plug the AC adapter into a wall outlet, then plug

the other end into the charging station. Your charging station will turn on and is now ready to charge your controllers.

CHARGING YOUR CONTROLLERS

Set your charging station on a at surface, then

gently push your controller down onto your charging station’s connector as shown below. The LED indicator lights red when the controller is correctly seated.

Note: Do not use excess force to connect your controller.

Charging connector

Status LEDs Red: Charging in process

Green: Charging complete

REMOVING YOUR CONTROLLERS

When the LED turns green, hold your charging

station down and lift your controller up and o.

SPECIFICATIONS

Dimensions (H×W×D):

6.1 × 2.8 × 2.2 in. (15.5 × 7.2 × 5.5 cm) Input:

Charging station: DC 5 V AC adapter: AC 100-240 V ~ 50/60 Hz 0.2 A

AC adapter output: DC 5 V 1.0 A Cable length: 4 ft. (1.2 m) Operating temperature:

41° F ~ 95° F (5° C ~ 35° C)

SAFETY INFORMATION

• You must use the included AC adapter to power the charging station.

• Do not disassemble any of the components. Refer all services to qualied personnel only.

• Do not place or store the product in a humid area and do not expose it to water or rain.

• Use the product only as instructed. Read all instructions before operating the product.

• Failure to follow these directions may void the warranty.

LEGAL NOTICES

FCC Information

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if it is not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

ICES-003 Statement

This Class B digital apparatus complies with Canadian ICES-003. Cet apparel numérique de la classe B est conforme à la norme NMB-003 du Canada.

ONE-YEAR LIMITED WARRANTY

Visit www.insigniaproducts.com for details.

CONTACT INSIGNIA:

For customer service, call 1-877-467-4289 (U.S. and Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com

Made in China

V1 ENGLISH 19-0391
