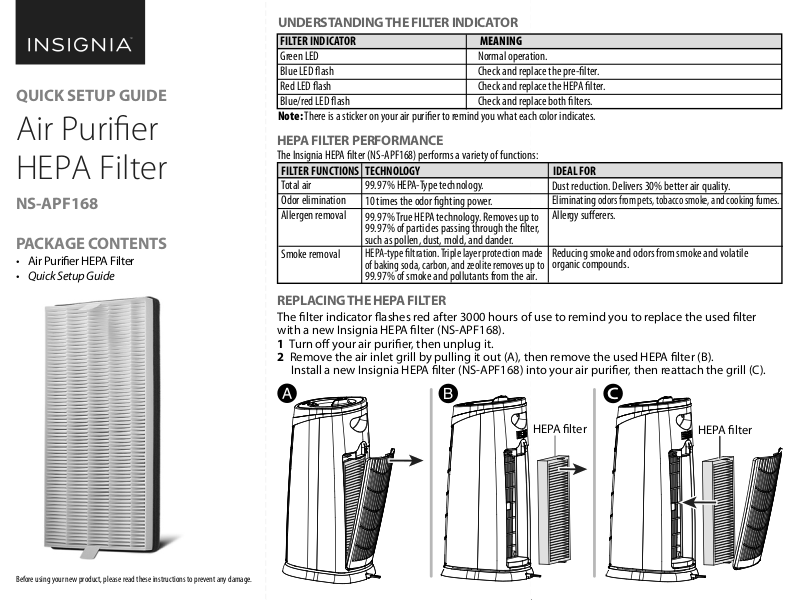

QUICK SETUP GUIDE
Air Purifier
HEPA Filter
NS-APF168
PACKAGE CONTENTS
•Air Purifier HEPA Filter
•Quick Setup Guide
Before using your new product, please read these instructions to prevent any damage.
UNDERSTANDINGTHE FILTER INDICATOR |
|||
FILTER INDICATOR |
MEANING |
||
Green LED |
Normal operation. |
|
|
Blue LED flash |
Check and replace the pre-filter. |
|
|
Red LED flash |
Check and replace the HEPA filter. |
|
|
Blue/red LED flash |
Check and replace both filters. |
|
Note: There is a sticker on your air purifier to remind you what each color indicates.
HEPA FILTER PERFORMANCE
The Insignia HEPA filter (NS-APF168) performs a variety of functions:
FILTER FUNCTIONS |
TECHNOLOGY |
IDEAL FOR |
|
Total air |
99.97% HEPA-Type technology. |
Dust reduction. Delivers 30% better air quality. |
|
Odor elimination |
10 times the odor fighting power. |
Eliminating odors from pets, tobacco smoke, and cooking fumes. |
|
Allergen removal |
99.97% True HEPA technology. Removes up to |
Allergy sufferers. |
|
|
99.97% of particles passing through the filter, |
|
|
|
such as pollen, dust, mold, and dander. |
|
|
Smoke removal |
HEPA-type filtration. Triple layer protection made |
Reducing smoke and odors from smoke and volatile |
|
|
of baking soda, carbon, and zeolite removes up to |
organic compounds. |
|
|
99.97% of smoke and pollutants from the air. |
|
|
REPLACINGTHE HEPA FILTER
The filter indicator flashes red after 3000 hours of use to remind you to replace the used filter with a new Insignia HEPA filter (NS-APF168).
1 Turn off your air purifier, then unplug it.
2Remove the air inlet grill by pulling it out (A), then remove the used HEPA filter (B).
Install a new Insignia HEPA filter (NS-APF168) into your air purifier, then reattach the grill (C).
C
HEPA filter |
HEPA filter |
TROUBLESHOOTING
PROBLEM |
SOLUTION |
|
My air purifier does not work. |
• Make sure that your air purifier is plugged in. |
|
|
• Make sure that the power outlet is working. |
|
|
• Make sure that your air purifier is turned on. |
|
|
• If your air purifier is plugged into a surge protector, make sure that it is turned on. |
|
|
|
|
My air purifier has poor air flow or is loud. |
• Make sure that nothing is blocking the air inlet and filtered air outlet. Position your air purifier |
|
|
at least one foot (.3 meters) away from walls or large objects. |
|
|
• Check the condition of the filters. Replace them if they are dirty. |
|
|
• Remove the plastic bag from the HEPA filter. |
|
|
• Make sure the filters are seated properly. |
|
My HEPA filter did not last the full 3000 hours. |
• Excessive amounts of pet dander, dust, or smoke may decrease the life expectancy of the filter. |
|
|
|
|
My filter indicator is flashing |
•When the filter indicator LED flashes blue, you need to check and replace your pre-filter. |
|
blue and/or red. |
•When the filter indicator LED flashes red, you need to check and replace your HEPA filter. |
|
|
•When the filter indicator LED flashes blue and red, you need to check and replace both filters. |
|
|
|
|
SPECIFICATIONS |
|
HEPA filter dimensions (H×W×D) |
10.0 × 4.7 × 1.1 in. (25.5 × 12.0 × 2.7 cm) |
|
|
Operating temperature |
40~110°F (4~43°C) |
Coverage area |
108.0 sq. ft. (10.0 m2) |
HEPA filter lifetime |
3000 hours |
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 877-467-4289 (U.S. and
Canada) or 01-800-926-3000 (Mexico) www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its affiliated companies. Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richfield, MN 55423 U.S.A. ©2017 Best Buy. All rights reserved.
Made in China
V1 ENGLISH 17-0788
