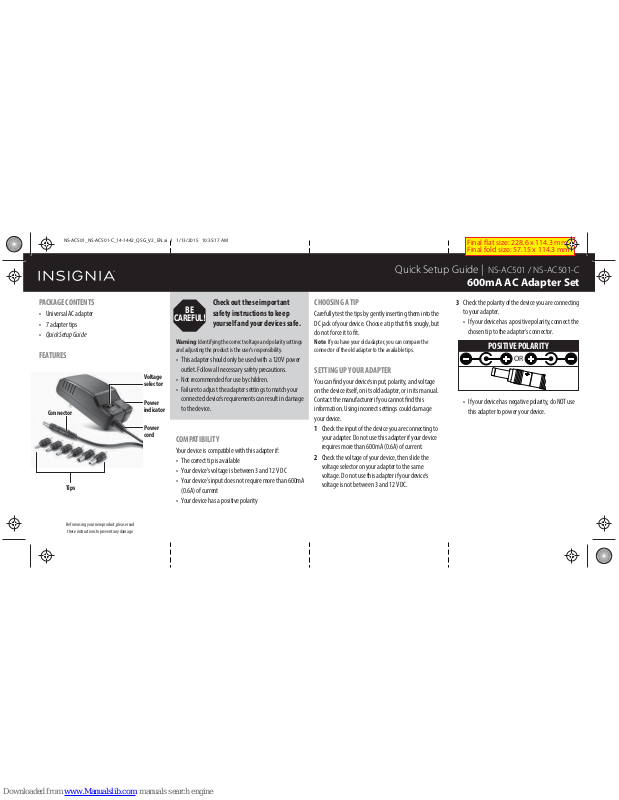

Insignia NS-AC501, NS-AC501-C Quick Setup Manual
Check out these important
safety instructions to keep
yourself and your devices safe.
Warning: Identifying the correct voltage and polarity settings
and adjusting the product is the user’s responsibility.
• This adapter should only be used with a 120V power
outlet. Follow all necessary safety precautions.
• Not recommended for use by children.
• Failure to adjust the adapter settings to match your
connected device’s requirements can result in damage
to the device.
COMPATIBILITY
Your device is compatible with this adapter if:
• The correct tip is available
• Your device’s voltage is between 3 and 12 V DC
• Your device’s input does not require more than 600mA
(0.6A) of current
• Your device has a positive polarity
Quick Setup Guide | NS-AC501 / NS-AC501-C
600mA AC Adapter Set
Before using your new product, please read
these instructions to prevent any damage.
PACKAGE CONTENTS
• Universal AC adapter
• 7 adapter tips
• Quick Setup Guide
FEATURES
Power
indicator
Power
cord
Voltage
selector
CHOOSING A TIP
Carefully test the tips by gently inserting them into the
DC jack of your device. Choose a tip that ts snugly, but
do not force it to t.
Note: If you have your old adapter, you can compare the
connector of the old adapter to the available tips.
SETTING UP YOUR ADAPTER
You can nd your device’s input, polarity, and voltage
on the device itself, on its old adapter, or in its manual.
Contact the manufacturer if you cannot nd this
information. Using incorrect settings could damage
your device.
1 Check the input of the device you are connecting to
your adapter. Do not use this adapter if your device
requires more than 600mA (0.6A) of current.
2 Check the voltage of your device, then slide the
voltage selector on your adapter to the same
voltage. Do not use this adapter if your device’s
voltage is not between 3 and 12 V DC.
BE
CAREFUL!
Connector
Tips
POSITIVE POLARITY
OR
3 Check the polarity of the device you are connecting
to your adapter.
• If your device has a positive polarity, connect the
chosen tip to the adapter’s connector.
• If your device has negative polarity, do NOT use
this adapter to power your device.
Final at size: 228.6 x 114.3 mm
Final fold size: 57.15 x 114.3 mm
NS-AC501_NS-AC501-C_14-1442_QSG_V2_EN.ai 1 1/13/2015 10:35:17 AMNS-AC501_NS-AC501-C_14-1442_QSG_V2_EN.ai 1 1/13/2015 10:35:17 AM
USING YOUR ADAPTER
Warning: If your device does not work, immediately unplug
the adapter.
• Connect the adapter to your device, then connect it
to a power outlet. Use or charge your device as usual.
TROUBLESHOOTING
My device isn’t working.
• Immediately unplug the adapter.
• Check the polarity of your adapter and make sure it
matches the polarity of the device you want to
charge.
• Make sure that your device requires less than 600mA
(.6A) of current.
• Make sure that the voltage selector is set to the
correct voltage.
• Make sure that you have selected the correct tip.
My adapter is hot.
• It is normal for an adapter to feel warm during use.
Make sure that it is placed in a well-ventilated area.
• If your adapter feels abnormally hot, check your
adapter’s settings and make sure that it is compatible
with your device.
SPECIFICATIONS
• Input: 120V AC
• Output: 3, 4.5, 6, 7.5, 9, or 12V DC 600mA
LEGAL NOTICES
FCC Statement
Caution: Changes or modications not expressly approved by
the part responsible for compliance could void the user's
authority to operate the equipment.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to
try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dierent
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
V2 ENGLISH 14-1442
This device complies with part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must
accept any interference received, including interference that
may cause undesired operation.
Canadian Notice
CAN ICES-3 B/NMB-3 B
ONE-YEAR LIMITED WARRANTY
Visit www.insigniaproducts.com for details.
CONTACT INSIGNIA:
For customer service, call 1-877-467-4289 (U.S. and
Canada) or 01-800-926-3000 (Mexico)
www.insigniaproducts.com
INSIGNIA is a trademark of Best Buy and its aliated companies.
Registered in some countries.
Distributed by Best Buy Purchasing, LLC
7601 Penn Ave South, Richeld, MN 55423 U.S.A.
©2015 Best Buy. All rights reserved.
Made in China
