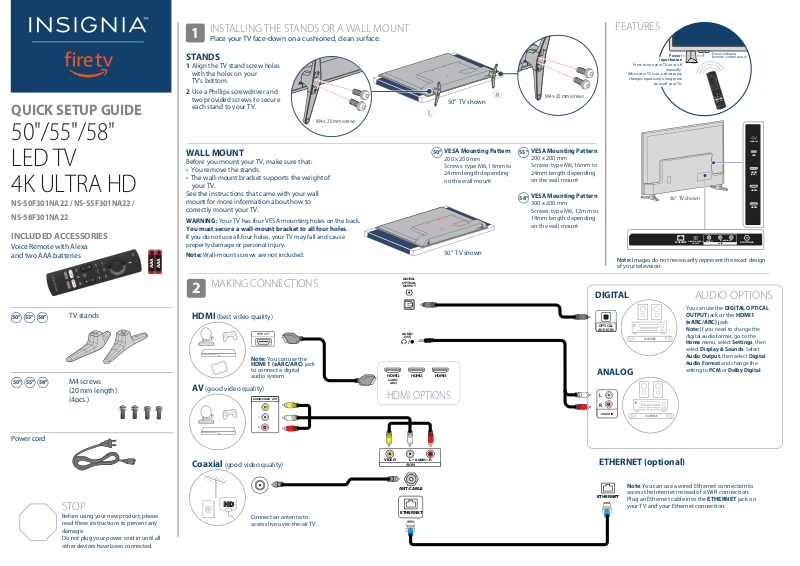

INSIGNIA NS-50F301NA22, NS-58F301NA22 Quick Setup Guide

INSTALLING THE STANDS OR A WALL MOUNT

Place your TV face-down on a cushioned, clean surface.

FEATURES

QUICK SETUP GUIDE

"/55"/58" LED TV 4K ULTRA HD

NS50F301NA22 / NS55F301NA22 /

NS58F301NA22

INCLUDED ACCESSORIES

Voice Remote with Alexa and two AAA batteries

A AA

STANDS

1 Align the TV stand screw holes

with the holes on your TV's bottom.

2 Use a Phillips screwdriver and two provided screws to secure each stand to your TV.

M4 × 20 mm screws

WALL MOUNT

Before you mount your TV, make sure that:

• You remove the stands.

• The wall-mount bracket supports the weight of your TV.

See the instructions that came with your wall mount for more information about how to correctly mount your TV.

WARNING: Your TV has four VESA mounting holes on the back. You must secure a wall-mount bracket to all four holes.

If you do not use all four holes, your TV may fall and cause property damage or personal injury.

Note: Wall-mount screws are not included.

50" TV shown

VESA Mounting Pattern

50"

200 x 200 mm Screws: type M6, 16mm to 24mm length depending on the wall mount

50" TV shown

M4 × 20 mm screws

VESA Mounting Pattern

55"

200 x 200 mm Screws: type M6,16mm to 24mm length depending on the wall mount

VESA Mounting Pattern

58"

300 x 200 mm Screws: type M6, 12mm to 14mm length depending on the wall mount

Power/

Press to turn your TV on or o

When your TV is on, a short press

changes inputs and a long press

Note: Images do not necessarily represent the exact design of your television.

Input button

manually.

turns o your TV.

50” TV shown

DIGIT

AL OPTICAL

OUTPUT

Power indicator Remote control sensor

AUDIO

VIDEO

V IN

AUDIO OUT

USB

HDMI1 (ARC)

HDMI2

HDMI3

ANT/CABLEETHERNET

50" 55" 58"

TV stands

M4 screws (20 mm length) (4pcs.)

MAKING CONNECTIONS

HDMI (best video quality)

Note: You can use the HDMI 1 (eARC/ARC) jack

to connect a digital audio system.

AV (good video quality)

AUDIO/VIDEO OUT

DIGITAL

OPTICAL

OUTPUT

AUDIO

OUT

HDMI1

(eARC/

ARC)

HDMI3HDMI2

HDMI OPTION

DIGITAL

OPTICAL

AUDIO IN

ANALOG

AUDIO IN

SOUNDBAR

AUDIO OPTION

You can use the DIGITAL OPTICAL OUTPUT (eARC/ARC) jack.

Note: If you need to change the

digital audio format, go to the Home menu, select Settings, then select Display & Sounds. Select

Audio Output, then select Digital Audio Format and change the

setting to PCM or Dolby Digital.

jack or the HDMI1

Power cord

STOP

Before using your new product, please read these instructions to prevent any damage. Do not plug your power cord in until all other devices have been connected.

Coaxial (good video quality)

Connect an antenna to access live over-the-air TV.

VIDEO

AUDIO

AV IN

ANT/CABLE

ETHERNET

ETHERNET (optional)

Note: You can use a wired Ethernet connection to

ETHERNET

access the internet instead of a WiFi connection. Plug an Ethernet cable into the ETHERNET jack on your TV and your Ethernet connection.

TURNING ON YOUR TV

1 Plug the power cord into the back

of your TV and a power outlet.

COMPLETE THE ONSCREEN SETUP

Your TV should automatically pair to your new Voice Remote with Alexa.

1 If your remote is not paired, press . If you continue to have issues, re-insert or replace the batteries and try again.

2 Select your Wi-Fi network from the displayed network list.

Note: If your Wi-Fi network is password protected, enter your network password using the on-screen keyboard.

AAA

If your network is hidden, select the Join Other Network tile.

4K Picture Quality, Fire TV Experience Built-in,

A Smarter TV Is Here

Voice Remote with Alexa

2 Remove the remote control

cover and install the batteries.

3 Press on your Voice Remote with Alexa.

4 Follow the on-screen instructions.

USING YOUR VOICE REMOTE WITH ALEXA

Power

Turns your TV on or o. When your TV is o,

the LED indicator on the front of your TV lights red.

Navigation

Navigate on-screen (up, down, left, and right).

Home

Takes you to the Home Screen. A long press

activates the Quick Settings Overlay.

Back

Returns you to the previous screen.

Rewind

Rewind (long press) and skip back (short press).

Behavior varies by app.

Volume Keys

Volume + increases the volume, and

Volume - decreases the volume.

Guide

Opens the live TV Channel Guide.

Mute

Mutes the sound.

Prime Video

Launches Prime Video from any screen

or when your TV is o.

App 1

Launches App 1 from any screen or when

your TV is o.

3 Select your experience: Full (recommended) or Basic.

• Select Full to access live TV, over tens of thousands of streaming movies and TV episodes, thousands of apps, and Alexa skills. To get started, sign into or sign up for a free Amazon account.

• Select Basic to access live TV and the six preset streaming apps. Alexa and the full Appstore are not included.

4 If you connected your TV to an antenna or cable wall jack:

A Go to Settings > Live TV > Channel Scan. B Follow the on-screen instructions to scan for channels.

Note: To browse and watch live TV, use the On Now row or press on your remote.

FIND YOUR USER GUIDE ONLINE

1 Go to www.insigniaproducts.com. 2 Use the search bar to nd NS-50F301NA22, NS-55F301NA22

Voice

Holding down the Voice button activates the Alexa-enabled microphone on the remote, and initiates voice input. Releasing the Voice button ends voice input. With Alexa, you can use your voice to search for content, control playback, and more. (Alexa Voice Service requires an Amazon account).

Select

Conrms a selection or action.

Activates contextual commands on the screen.

Play / Pause

Resumes or pauses playback.

Forward

Fast forward (long press) and skip ahead (short press). Behavior varies by app.

Channel

Channel channel  goes to the previous live TV channel.

goes to the next live TV channel, and



Settings (gear)

Activates quick settings overlay.

Recents

Opens a row of recently watched content so you can easily switch between content.

Netix

Launches Netix from any screen or when your TV is o.

App 2

Launches App 2 from any screen or when your TV is o.

or, NS-58F301NA22. 3 Select Support & Downloads. 4 Next to User Guide, select the language you want.

Access Your Favorite Content – All Through One Home Screen

Fire TV seamlessly integrates live over-the-air TV and streaming channels on a unied home screen.

Endless Entertainment – Netix, Prime Video, YouTube, Hulu, HBO Max, and more

Watch over 500,000 streaming movies and TV episodes with access to tens of thousands of channels, apps, and Alexa skills.

Voice Remote with Alexa

Just press and ask to easily nd, launch, and control movies and TV shows.

Full Experience required to access all features described.
