OPEL INSIGNIA

Owner's Manual

Contents

Introduction .................................... 2

In brief ............................................ 6

Keys, doors and windows ............ 21

Seats, restraints ........................... 42

Storage ........................................ 63

Instruments and controls ............. 79

Lighting ...................................... 118

Climate control ........................... 129

Driving and operating ................. 138

Vehicle care ............................... 191

Service and maintenance .......... 236

Technical data ........................... 239

Customer information ................ 312

Index .......................................... 314

2 Introduction

Introduction

Introduction 3

Vehicle specific data

Please enter your vehicle's data on the previous page to keep it easily accessible. This information is available in the sections "Service and maintenance" and "Technical data" as well as on the identification plate.

Introduction

Your vehicle is a designed combination of advanced technology, safety, environmental friendliness and economy.

This Owner's Manual provides you with all the necessary information to enable you to drive your vehicle safely and efficiently.

Make sure your passengers are aware of the possible risk of accident and injury which may result from improper use of the vehicle.

You must always comply with the specific laws and regulations of the country that you are in. These laws may differ from the information in this Owner's Manual.

When this Owner's Manual refers to a workshop visit, we recommend your Opel Service Partner. For gas vehicles we recommend an Opel Repairer authorised for servicing gas vehicles.

All Opel Service Partners provide first-class service at reasonable prices. Experienced mechanics trained by Opel work according to specific Opel instructions.

The customer literature pack should always be kept ready to hand in the vehicle.

Using this manual

■ This manual describes all options and features available for this model. Certain descriptions, including those for display and menu functions, may not apply to your vehicle due to model variant, country specifications, special equipment or accessories.

■ The "In brief" section will give you an initial overview.

■ The table of contents at the beginning of this manual and within each section shows where the information is located.

■ The index will enable you to search for specific information.

■ This Owner's Manual depicts lefthand drive vehicles. Operation is similar for right-hand drive vehicles.

■ The Owner's Manual uses the factory engine designations. The corresponding sales designations can be found in the section "Technical data".

■ Directional data, e.g. left or right, or front or back, always relate to the direction of travel.

■ The vehicle display screens may not support your specific language.

■ Display messages and interior labelling are written in bold letters.

4 Introduction

Danger, Warnings and Cautions

9 Danger

Text marked 9 Danger provides information on risk of fatal injury. Disregarding this information may endanger life.

9 Warning

Text marked 9 Warning provides information on risk of accident or injury. Disregarding this information may lead to injury.

Caution

Text marked Caution provides information on possible damage to the vehicle. Disregarding this information may lead to vehicle damage.

Symbols

Page references are indicated with 3. 3 means "see page".

We wish you many hours of pleasurable driving.

Adam Opel AG

Introduction 5

6 In brief

In brief

Initial drive information

Vehicle unlocking

Press button c to unlock the doors and load compartment. Open the doors by pulling the handles. To open the tailgate, pull the button under the tailgate moulding.

Press button x; only the load compartment is unlocked and opens.

Radio remote control 3 21, Central locking system 3 23, Load compartment 3 26.

Seat adjustment

Seat positioning

Pull handle, slide seat, release handle.

Seat position 3 44, Seat adjustment 3 44.

9 Danger

Do not sit nearer than 25 cm from the steering wheel, to permit safe airbag deployment.

In brief 7

Seat backrests

Pull lever, adjust inclination and release lever. Allow the seat to engage audibly.

Seat position 3 44, Seat adjustment 3 44.

Seat height

Press switch top = seat higher

bottom = seat lower

Seat position 3 44, Seat adjustment 3 44.

Seat inclination

Lever pumping motion up = front end higher

down = front end lower

Seat position 3 44, Seat adjustment 3 44.

8 In brief

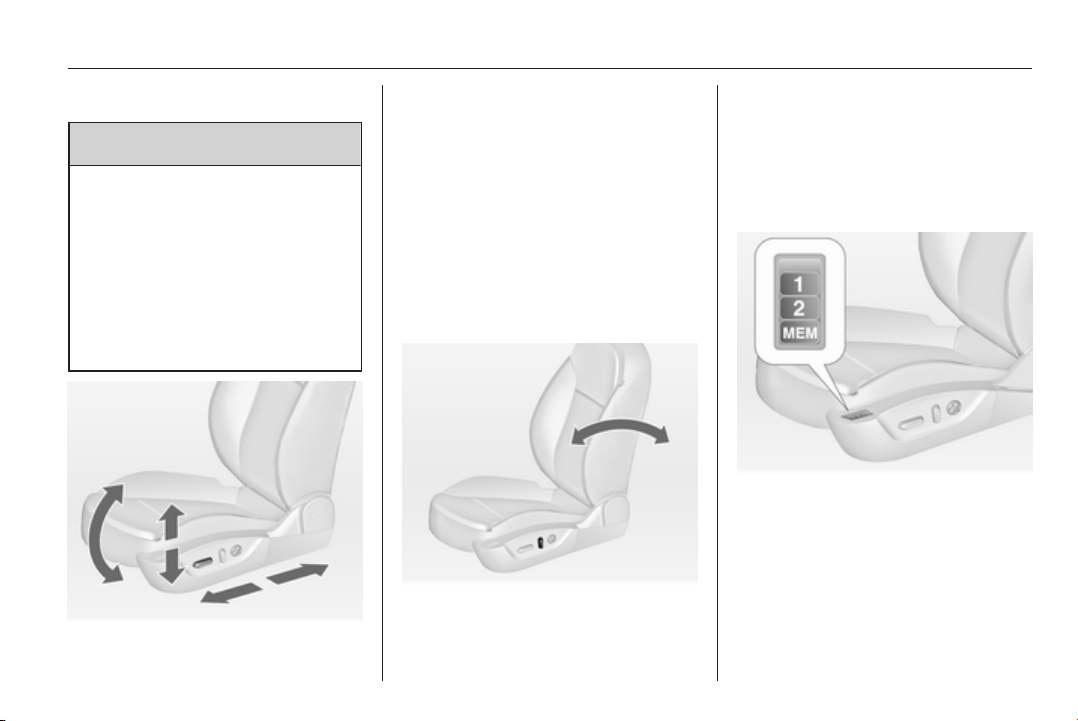

Power seat adjustment

Operate switches. positioning = move switch (1)

forwards/backwards

height = move switch (1)

upwards/downwards

inclination = move switch (1)

upwards/downwards at front

backrest = turn switch (2)

forwards/backwards

Head restraint adjustment

Press release button, adjust height, engage.

Head restraints 3 42.

Seat belt

Pull out the seat belt and engage in belt buckle. The seat belt must not be twisted and must fit close against the body. The backrest must not be tilted back too far (maximum approx. 25°).

To release belt, press red button on belt buckle.

Seat position 3 44, Seat belts 3 50, Airbag system 3 53.

In brief 9

Mirror adjustment

Interior mirror

Adjust the lever on the underside to reduce dazzle.

Interior mirror 3 35, Automatic antidazzle interior mirror 3 36.

Exterior mirrors

Select the relevant exterior mirror and adjust.

Convex exterior mirrors 3 33, Electric adjustment 3 33, Folding exterior mirrors 3 34, Heated exterior mirrors 3 35.

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked. Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Airbag system 3 53, Ignition positions 3 139.

10 In brief

Instrument panel overview

In brief 11

1 Power windows ..................... 36

2 Exterior mirrors ..................... 33

3 Cruise control ..................... 157

Adaptive cruise control .......158

Forward collision alert ......... 165

4 Side air vents ...................... 136

5 Turn and lane-change

signals, headlight flash,

low beam and high beam,

high beam assist ................. 123

Exit lighting ......................... 127

Parking lights ...................... 124

Buttons for Driver

Information Centre ................ 98

6 Instruments .......................... 87

7 Steering wheel controls ........79

8 Driver Information Centre ...... 98

9 Windscreen wiper,

windscreen washer

system, headlight washer

system, rear wiper, rear

washer system ..................... 81

10 Eco button for stop-start

system ................................. 140

Fuel selector button .............. 88

11 Central locking system .......... 23

Hazard warning flashers ....123

Control indicator for airbag

deactivation .......................... 93

Control indicator for front

passenger seat belt ............. 92

12 Info-Display ........................ 103

13 Anti-theft alarm system

status LED ........................... 31

14 Sport mode ........................ 154

Tour mode .......................... 154

Traction Control system ..... 153

Electronic Stability Control . 154

Parking assist ..................... 171

Advanced parking aid ........171

Lane departure warning ..... 179

Heated steering wheel .......... 80

15 Centre air vents .................. 136

16 Glovebox .............................. 63

17 Multifunction knob ............... 103

18 Climate control system ........ 129

19 Ashtray ................................. 86

20 Selector lever, manual

transmission ....................... 149

Automatic transmission ...... 145

21 Electrical parking brake ......151

22 Multifunction unit ................. 103

23 Ignition switch with

steering wheel lock ............ 139

24 Horn ..................................... 80

Driver airbag ........................ 54

25 Bonnet release lever .......... 193

26 Storage compartment ........... 64

Fuse box ............................ 212

27 Steering wheel adjustment ..79

28 Light switch ........................ 118

Headlight range

adjustment ......................... 120

Front fog lights ................... 124

12 In brief

Rear fog light ...................... 124

Instrument illumination ....... 125

In brief 13

14 In brief

Exterior lighting

Turn light switch AUTO = automatic light control:

Exterior lighting is switched on and off

8 9

Press light switch

> r

automatically

= activation or deactivation

of the automatic light

control = sidelights = low beam

= front fog lights = rear fog light

Lighting 3 118.

Headlight flash, high beam and low beam

headlight flash = pull lever high beam = push lever low beam = push or pull lever

Automatic light control 3 119, High beam 3 119, Headlight flash 3 119.

In brief 15

Turn and lane-change signals

lever up = right turn signal lever down = left turn signal

Turn and lane-change signals 3 123, Parking lights 3 124.

Hazard warning flashers

Operated with the ¨ button. Hazard warning flashers 3 123.

Horn

Press j.

16 In brief

Washer and wiper systems

Windscreen wiper

2 = fast 1 = slow

= interval wiping or automatic

wiping with rain sensor

= off

For a single wipe when the windscreen wiper is off, press the lever down.

Windscreen wiper 3 81, Wiper blade replacement 3 198.

Windscreen and headlight washer

Pull lever. Windscreen and headlight washer

system 3 81, Washer fluid 3 196.

Rear window wiper

Press the rocker switch to activate the rear window wiper:

upper switch = continuous

operation

lower switch = intermittent

operation middle position

= off

In brief 17

Rear window washer

Push lever. Washer fluid is sprayed on the rear

window and the wiper wipes for a few strokes.

Rear window wiper/washer 3 83.

Climate control

Heated rear window, heated exterior mirrors

Heating is operated by pressing the Ü button.

Heated rear window 3 38.

Demisting and defrosting the windows

Press button V. Set temperature control to warmest

level. Cooling n on. Heated rear window Ü on. Climate control system 3 129.

18 In brief

Transmission

Manual transmission

Reverse: with the vehicle stationary, depress clutch pedal, press the release button on the selector lever and engage the gear.

If the gear does not engage, set the lever to neutral, release the clutch pedal and depress again; then repeat gear selection.

Manual transmission 3 149.

Automatic transmission

P = park R = reverse N = neutral D = drive

Manual mode: move selector lever from D to the left.

= higher gear

= lower gear

]

The selector lever can only be moved out of P when the ignition is on and the brake pedal is applied. To engage P or R, press the release button.

Automatic transmission 3 145.

Starting off

Check before starting off

■ Tyre pressure and condition 3 216,

3 267.

■ Engine oil level and fluid levels

3 193.

■ All windows, mirrors, exterior

lighting and number plates are free from dirt, snow and ice and are operational.

■ Proper position of mirrors, seats,

and seat belts 3 33, 3 44, 3 51.

■ Brake function at low speed,

particularly if the brakes are wet.

In brief 19

Starting the engine

■ Turn key to position 1

■ move the steering wheel slightly to release the steering wheel lock

■ operate clutch and brake

■ automatic transmission in P or N

■ do not operate accelerator pedal

■ diesel engines: turn the key to position 2 for preheating and wait until control indicator ! extinguishes

■ turn key to position 3 and release

Starting the engine 3 139.

Stop-start system

If the vehicle is at a low speed or at a standstill and certain conditions are fulfilled, activate an Autostop as follows:

■ Depress the clutch pedal

■ set the lever in neutral

■ release the clutch pedal An Autostop is indicated by the

needle at the AUTOSTOP position in the tachometer.

To restart the engine, depress the clutch pedal again.

Stop-start system 3 140.

Parking

■ Always apply the parking brake. Activate the manual parking brake without pushing the release button. Apply as firmly as possible on a downhill slope or uphill slope. Depress foot brake at the same time to reduce operating force.

For vehicles with electrical parking brake, pull switch m for approx. one second.

■ Switch off the engine. Turn the ignition key to position 0 and remove it. Turn the steering wheel until the steering wheel lock is felt to engage.

For vehicles with automatic transmission, the key can only be removed when the selector lever is in position P.

■ If the vehicle is on a level surface or uphill slope, engage first gear or set the selector lever to position P before switching off the ignition. On an uphill slope, turn the front wheels away from the kerb.

20 In brief

If the vehicle is on a downhill slope, engage reverse gear or set the selector lever to position P before switching off the ignition. Turn the front wheels towards the kerb.

■

Lock the vehicle with button e on the radio remote control.

Activate the anti-theft alarm system 3 31.

■ Do not park the vehicle on an easily ignitable surface. The high temperature of the exhaust system could ignite the surface.

■ Close the windows and the sunroof.

■ The engine cooling fans may run after the engine has been switched off 3 192.

■ After running at high engine speeds or with high engine loads, operate the engine briefly at a low load or run in neutral for approx. 30 seconds before switching off, in order to protect the turbocharger.

Keys, locks 3 21, Laying the vehicle up for a long period of time 3 191.

Keys, doors and windows 21

Keys, doors and windows

Keys, locks ................................... 21

Doors ........................................... 26

Vehicle security ............................ 31

Exterior mirrors ............................ 33

Interior mirrors ............................. 35

Windows ...................................... 36

Roof ............................................. 39

Keys, locks

Keys

Replacement keys

The key number is specified in the Car Pass or on a detachable tag.

The key number must be quoted when ordering replacement keys as it is a component of the immobiliser system.

Locks 3 233.

Key with foldaway key section

Press button to extend. To fold the key, first press the button.

Car Pass

The Car Pass contains security related vehicle data and should therefore be kept in a safe place.

When the vehicle is taken to a workshop, this vehicle data is needed in order to perform certain operations.

Radio remote control

22 Keys, doors and windows

Used to operate:

■ Central locking system

■ Anti-theft locking system

■ Anti-theft alarm system

■ Load compartment tailgate

■ Power windows

■ Sunroof

The radio remote control has a range of up to 50 metres. It can be restricted by external influences. The hazard warning flashers confirm operation.

Handle with care, protect from moisture and high temperatures and avoid unnecessary operation.

Fault

If the central locking system cannot be operated with the radio remote control, it may be due to the following:

■ Range exceeded

■ Battery voltage too low

■ Frequent, repeated operation of the radio remote control while not in range, which will require resynchronisation

■ Overload of the central locking system by operating at frequent intervals, the power supply is interrupted for a short time

■ Interference from higher-power radio waves from other sources

Unlocking 3 23.

Basic settings

Some settings can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

Radio remote control battery replacement

Replace the battery as soon as the range reduces.

Batteries do not belong in household waste. They must be disposed of at an appropriate recycling collection point.

Key with foldaway key section

Extend the key and open the unit. Replace the battery (battery type CR 2032), paying attention to the installation position. Close the unit and synchronise.

Memorised settings

Whenever the key is removed from the ignition switch, the following settings are automatically memorised by the key:

■ Electronic climate control

■ Lighting

Keys, doors and windows 23

■ Infotainment system

■ Central locking system

■ Sport mode settings

■ Comfort settings The saved settings are automatically

used the next time the memorised key is inserted into the ignition switch and turned to position 1 3 139.

A precondition is that Personalization by driver is activated in the personal settings of the Graphic-Info-Display. This must be set for each key used. On vehicles equipped with Colour-Info-Display, the personalisation is permanently activated.

Also memorised are the adjustments of the driver's seat and exterior mirrors, independent of the memory positions 3 47.

Power seat automatically moves into the saved position when unlocking and opening the driver's door with the memorised key and Personalization by remote control in the Colour-Info-Display is activated.

Vehicle personalisation 3 112.

Central locking system

Unlocks and locks doors, load compartment and fuel filler flap.

A pull on an interior door handle unlocks the respective door. Pulling the handle once more opens the door.

Note In the event of an accident in which airbags or belt pretensioners are deployed, the vehicle is automatically unlocked.

Unlocking

Press button c.

Two settings are selectable:

■ To unlock only the driver's door, load compartment and fuel filler flap, press button c once. To unlock all doors, press button c twice

■

press button c once to unlock all doors, load compartment and fuel filler flap

The setting can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

The setting can be saved for the key being used. Memorised settings 3 22.

Locking

Close doors, load compartment and fuel filler flap.

24 Keys, doors and windows

Press button e. If the driver's door is not closed

properly, the central locking system will not work. Vehicle personalisation 3 112.

Unlocking and opening the tailgate

Press button c when the ignition is off. The tailgate is released to be unlocked and opened by pushing the touchpad switch under the tailgate moulding.

4-door Saloon, Sports Tourer with power tailgate

Press button x when the ignition is off until tailgate opens automatically. All other doors remain locked.

Power tailgate 3 26.

Central locking buttons

Locks or unlocks all doors, the load compartment and fuel filler flap from the passenger compartment.

Keys, doors and windows 25

Press the e button to lock. Press the c button to unlock.

Fault in radio remote control system

Unlocking

Manually unlock the driver's door by turning the key in the lock. Switch on the ignition and press the central locking button c to unlock all doors, load compartment and fuel filler flap. By switching on the ignition, the antitheft locking system is deactivated.

Locking Manually lock the driver's door by turning the key in the lock.

Fault in central locking system

Unlocking Manually unlock the driver's door by turning the key in the lock. The other doors can be opened by pulling the interior handle twice. The load compartment and fuel filler flap cannot be opened. To deactivate the anti-theft locking system, switch on the ignition 3 31.

Locking Push inside locking knob of all doors except driver's door. Then close the driver's door and lock it from the outside with the key. The fuel filler flap and tailgate cannot be locked.

Automatic locking

Automatic locking after driving off

This security feature can be configured to automatically lock all doors, load compartment and fuel filler flap after driving off and exceeding a certain speed.

26 Keys, doors and windows

When at a standstill after driving, the vehicle will be unlocked automatically as soon as the key is removed from the ignition switch.

Activation or deactivation of automatic locking can be set in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

The setting can be saved for the key being used 3 22.

Automatic relock after unlocking

This feature can be configured to automatically lock all doors, load compartment and fuel filler flap a short time after unlocking with the remote control, provided no door has been opened.

Activation or deactivation of automatic relock can be set in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

The setting can be saved for the key being used 3 22.

Child locks

9 Warning

Use the child locks whenever children are occupying the rear seats.

Using a key or suitable screwdriver, turn the child lock in the rear door to the horizontal position. The door cannot be opened from the inside. For deactivation turn the child lock to the vertical position.

Doors

Load compartment

Tailgate

Opening 5-door Hatchback, Sports Tourer

After unlocking, pull the button under the tailgate moulding and open the tailgate manually.

4-door Saloon

Keys, doors and windows 27

Press button x on radio remote control until the tailgate is opened automatically, or pull the button under the tailgate moulding after unlocking.

Central locking system 3 23.

Closing

Use the interior handle. Do not pull the button under the

moulding whilst closing as this will unlock the tailgate again.

Central locking system 3 23.

Power tailgate

9 Warning

Take care when operating the power tailgate. Risk of injury, particularly to children.

Keep a close watch on the movable tailgate when operating. Ensure that nothing becomes trapped during operating and no one is standing within the moving area.

The power tailgate is operated by:

■ Radio remote control button x

■ Switch G in the door panel of the driver's door

■ Touchpad switch and button G in the tailgate.

On vehicles with automatic transmission, the tailgate can only be operated when the vehicle is stationary with parking brake applied and automatic transmission in P.

The tail lights flash and a chime sounds when the power tailgate is operating.

Note Operating the power tailgate does not operate the central locking system. To open the tailgate with the remote control, it is not necessary to unlock the vehicle. Unlock the

28 Keys, doors and windows

vehicle first, when operating with the touchpad switch or the switch in the driver's door. Lock the vehicle after closing.

Central locking system 3 23.

Operation with radio remote control

Press and hold button x until the tailgate starts to open or close.

Operation with the switch in the driver's door

Press and hold button G until the tailgate starts to open or close.

Operation with switches in the tailgate

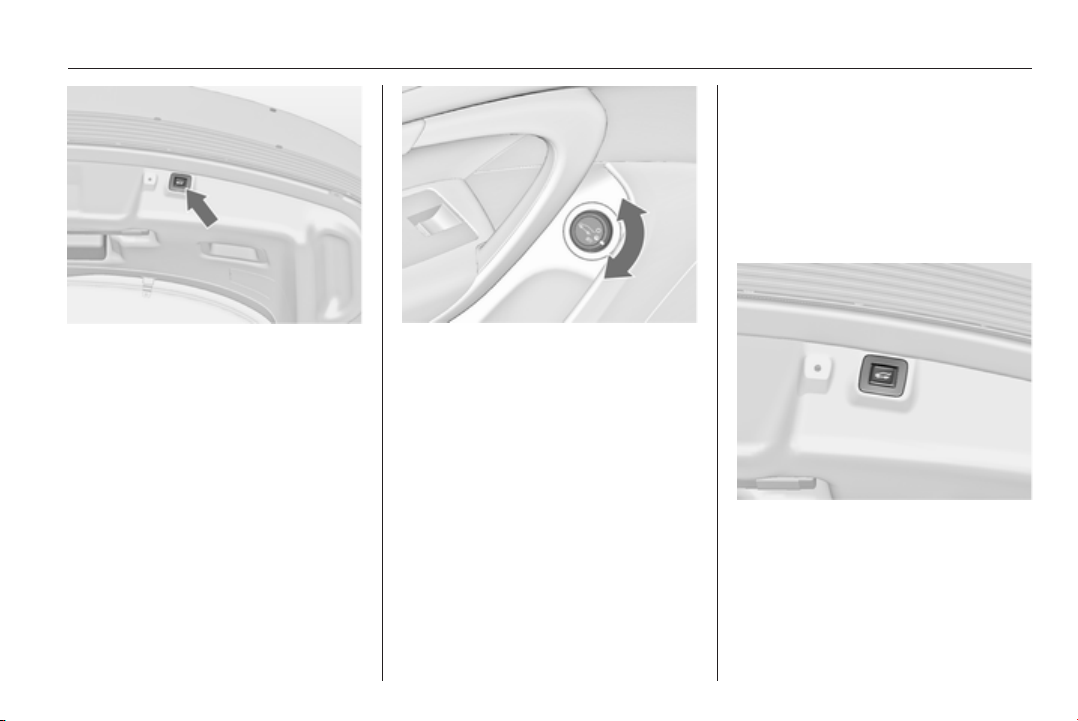

To open the tailgate, push and hold the touchpad switch under the tailgate moulding until the tailgate starts to move.

Keys, doors and windows 29

3. Stop movement at the desired height by pressing any operation switch. If required, manually move the stopped tailgate to the desired position

4. Press and hold the button on the inside of the open tailgate for 3 seconds.

To close, press the button G in the open tailgate until it starts to move.

Stop or change direction of movement

Pressing button x or G or the touchpad switch whilst the tailgate is moving will stop the tailgate in the current position. Pressing button x or G again will reverse the direction of movement.

Operation modes The power tailgate has three modes of operation, which are controlled by the switch in the driver's door. To change the mode turn the switch:

■ Normal mode о: power tailgate opens to full height

■ Intermediate mode $: power tailgate opens to a reduced height that can be adjusted

■ Mode Off: tailgate can only be operated manually.

Adjust reduced opening height in intermediate mode

1. Turn operation mode switch to о

or $

2. Open power tailgate with any operation switch

A chime sound indicates the new setting.

When turning the adjuster wheel in the driver's door to intermediate mode $, the power tailgate will stop opening at the newly set position.

30 Keys, doors and windows

The tailgate can only be held open if a minimum height is exceeded (minimum opening angle from 30°). The opening height cannot be programmed below that height.

Safety function If the power tailgate encounters an obstacle during opening or closing, the direction of movement will automatically be reversed slightly. Multiple obstacles in one power cycle will deactivate the function. In this case close or open the tailgate manually.

The power tailgate has pinch sensors on the side edges. If the sensors detect obstacles between tailgate and chassis, the tailgate will open, until it is activated again or closed manually.

The safety function is indicated by a warning chime.

Remove all obstacles before resuming normal power operation.

If the vehicle is equipped with factoryfitted towing equipment and a trailer is electrically connected, the power tailgate can only be opened with the

touchpad switch or closed with button G in the open tailgate. Ensure that there are no obstacles in the moving area.

General hints for operating tailgate

9 Warning

Do not drive with the tailgate open or ajar, e.g. when transporting bulky objects, since toxic exhaust gases, which can not be seen or smelled, could enter the vehicle. This can cause unconsciousness and even death.

Caution

Before opening the tailgate, check overhead obstructions, such as a garage door, to avoid damage to the tailgate. Always check the moving area above and behind the tailgate.

Note Power tailgate: If the hydraulic lifters of the open tailgate lose pressure, the tail lights will flash and a chime will sound. The tailgate will remain open for a while and then close slowly. Seek the assistance of a workshop.

Note The operation of the power tailgate is disabled under low battery condition. In this case the tailgate can be operated manually.

Note With the power tailgate disabled and all doors unlocked, the tailgate can be manually operated. In this case, manually closing the tailgate requires significantly greater force.

Note The installation of certain heavy accessories onto the tailgate may affect its ability to remain open.

Keys, doors and windows 31

Vehicle security

Anti-theft locking system

9 Warning

Do not use the system if there are people in the vehicle! The doors cannot be unlocked from the inside.

The system deadlocks all the doors. All doors must be closed or the system cannot be activated.

If the ignition was on, the driver's door must be opened and closed once so that the vehicle can be secured.

Unlocking the vehicle disables the mechanical anti-theft locking system. This is not possible with the central locking button.

Activating

Press e on the radio remote control twice within 5 seconds.

Anti-theft alarm system

The anti-theft alarm system incorporates and is operated in conjunction with the anti-theft locking system.

It monitors:

■ Doors, tailgate, bonnet

■ Passenger compartment including adjoining load compartment

■ Vehicle inclination, e.g. if it is raised

■ Ignition

Activation

■ Self-activated 30 seconds after

locking the vehicle by pressing e on the radio remote control (initialisation of the system)

■

Directly by pressing e on the radio remote control once more after locking

Note Changes to the vehicle interior such as the use of seat covers, and open windows or sunroof, could impair the function of passenger compartment monitoring.

32 Keys, doors and windows

Activation without monitoring of passenger compartment and vehicle inclination

Switch off the monitoring of passenger compartment and vehicle inclination when animals are being left in the vehicle, because of high volume ultrasonic signals or movements triggering the alarm. Also switch off when the vehicle is on a ferry or train.

1. Close tailgate, bonnet, windows and sunroof.

2. Press button o. LED in the button o illuminates for a maximum of 10 minutes.

3. Close doors.

4. Activate the anti-theft alarm system.

Status message is displayed in the Driver Information Centre.

Status LED

Status LED is integrated in the sensor on top of the instrument panel.

Status during the first 30 seconds of anti-theft alarm system activation:

LED illuminates LED flashes quickly

Status after system is armed: LED flashes

slowly

Seek the assistance of a workshop in the event of faults.

= test, arming delay.

= doors, tailgate or

bonnet not completely closed, or system fault.

= system is armed.

Deactivation

Unlocking the vehicle with the radio remote control deactivates the antitheft alarm system. The system is not deactivated when unlocking the driver's door with the key.

Alarm

When triggered, the alarm sounds via a separate battery-backed power sounder, and the hazard warning

Keys, doors and windows 33

lights flash simultaneously. The number and duration of alarm signals are stipulated by legislation.

The anti-theft alarm system can be deactivated only by pressing button c or by switching on the ignition.

A triggered alarm, which has not been interrupted by the driver, will be indicated by the hazard warning lights. They will flash quickly three times when the vehicle is unlocked next time with the radio remote control. Additionally a warning message or a warning code is displayed in the Driver Information Centre after switching on the ignition.

Vehicle messages 3 106.

Immobiliser

The system is part of the ignition switch and checks whether the vehicle is allowed to be started with the key being used.

The immobiliser is activated automatically after the key has been removed from the ignition switch.

If the control indicator d flashes when the ignition is on, there is a fault in the system; the engine cannot be started. Switch off the ignition and repeat the start attempt.

If the control indicator continues flashing, attempt to start the engine using the spare key and seek the assistance of a workshop.

Note The immobiliser does not lock the doors. You should always lock the vehicle after leaving it and switch on the anti-theft alarm system 3 23, 3 31.

Control indicator d 3 97.

Exterior mirrors

Convex shape

The convex exterior mirror contains an aspherical area and reduces blind spots. The shape of the mirror makes objects appear smaller, which will affect the ability to estimate distances.

Electric adjustment

Select the relevant exterior mirror by turning the control to left (L) or right (R). Then swivel the control to adjust the mirror.

34 Keys, doors and windows

In position 0 no mirror is selected.

Folding

For pedestrian safety, the exterior mirrors will swing out of their normal mounting position if they are struck with sufficient force. Reposition the mirror by applying slight pressure to the mirror housing.

Electric folding

Turn control to 7, then push the control down. Both exterior mirrors will fold.

Push the control down again - both exterior mirrors return to their original position.

If an electrically folded mirror is manually extended, pressing down the control will only electrically extend the other mirror.

Folding mirrors from outside

Press e briefly to fold in mirrors. Press c briefly to fold out mirrors. If the mirrors were folded in using the

control in the driver's door, they are not folded out by pressing c.

Activation or deactivation of this function can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

The settings are automatically stored for the key being used 3 22.

Power windows 3 36.

Keys, doors and windows 35

Heated

Operated by pressing the Ü button. Heating works with the engine

running and is switched off automatically after a short time.

Parking assist

For mirrors with position memory, the exterior mirror on the passenger side is automatically aimed at the rear tyres as a parking aid when reverse gear is selected, except during trailer operation.

Position memory 3 47.

Activation or deactivation of this function can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

Interior mirrors

Manual anti-dazzle

To reduce dazzle, adjust the lever on the underside of the mirror housing.

36 Keys, doors and windows

Automatic anti-dazzle

Dazzle from following vehicles at night is automatically reduced.

Windows

Windscreen

Heat-reflecting windscreen

The heat-reflecting windscreen has a coating which reflects solar radiation. Also data signals, e.g. from toll stations, might be reflected.

The marked areas on the windscreen are not covered with the coating. Devices for electronic data recording and fee payment must be attached in these areas. Otherwise data recording malfunctions may occur.

Windscreen stickers

Do not attach stickers such as toll road stickers or similar on the windscreen in the area of the interior mirror. Otherwise the detection zone of the sensor and the view area of the camera in the mirror housing could be restricted.

Manual windows

The door windows can be opened or closed with the window winders.

Power windows

9 Warning

Take care when operating the power windows. Risk of injury, particularly to children.

If there are children on the rear seats, switch on the child safety system for the power windows.

Keys, doors and windows 37

Keep a close watch on the windows when closing them. Ensure that nothing becomes trapped in them as they move.

Switch on ignition to operate power windows.

Retained power off 3 139.

Operate the switch for the respective window by pushing to open or pulling to close.

Pushing or pulling gently to the first detent: window moves up or down as long as the switch is operated.

Pushing or pulling firmly to the second detent and then releasing: window moves up or down automatically with safety function enabled. To stop movement, operate the switch once more in the same direction.

Power windows can work until the driver's door is opened or at the latest for 10 minutes after the ignition is switched off.

Safety function

If the window glass encounters resistance above the middle of the window during automatic closing, it is immediately stopped and opened again.

Override safety function

In the event of closing difficulties due to frost or the like, switch on the ignition, then pull the switch to the first detent and hold. The window moves up without safety function enabled. To stop movement, release the switch.

Child safety system for rear windows

Press switch z to deactivate rear door power windows; the LED illuminates. To activate, press z again.

Operating windows from outside

The windows can be operated remotely from outside the vehicle.

38 Keys, doors and windows

Press and hold c button to open windows.

Press and hold e button to close windows.

Release button to stop window movement.

If the windows are fully opened or closed, the hazard warning lights will flash two times.

Folding 3 34.

Overload

If the windows are repeatedly operated within short intervals, the window operation is disabled for some time.

Initialising the power windows

If the windows cannot be closed automatically (e.g. after disconnecting the vehicle battery), a warning message or a warning code is displayed in the Driver Information Centre.

Vehicle messages 3 106. Activate the window electronics as

follows:

1. Close doors.

2. Switch on ignition.

3. Pull switch until the window is closed and keep pulling for additional 2 seconds.

4. Repeat for each window.

Heated rear window

Operated by pressing the Ü button. Heating works with the engine

running and is switched off automatically after a short time.

Depending on the engine type, the heated rear window comes on automatically when the diesel particle filter is being cleaned.

Sun visors

The sun visors can be folded down or swivelled to the side to prevent dazzling.

Keys, doors and windows 39

If the sun visors have integral mirrors, the mirror covers should be closed when driving.

Roller blinds

To reduce sunlight at the rear seats, pull the blind upwards using the grip and engage it at the top of the door frame.

Roof

Sunroof

9 Warning

Take care when operating the sunroof. Risk of injury, particularly to children.

Keep a close watch on the movable parts when operating them. Ensure that nothing becomes trapped in them as they move.

Sunroof, 5-door Hatchback/4door Saloon

Open or close Press p or r gently to the first detent: sunroof is opened or closed with safety function enabled as long as the switch is operated.

Press p or r firmly to the second detent and then release: the sunroof is opened or closed automatically with safety function enabled. To stop movement, operate the switch once more.

40 Keys, doors and windows

Raise or close Press q or r: sunroof is raised or closed automatically with safety function enabled.

If the sunroof is raised, it can be opened in one step by pressing p.

Sunblind The sunblind is manually operated.

Close or open the sunblind by sliding. When the sunroof is open, the sunblind is always open.

Sunroof, Sports Tourer

Open Press p gently to the first detent: sunroof is opened to the spoiler position.

Press p firmly to the second detent and then release: the sunroof is opened automatically with safety function enabled. To stop movement, operate the switch once more.

Close Press r gently to the first detent: sunroof is closed from fully open or spoiler position with safety function enabled as long as the switch is operated.

Press r firmly to the second detent and then release: the sunroof is completely closed automatically with safety function enabled. To stop movement, operate the switch once more.

Sunblind The sunblind is power operated.

Close or open the sunblind by pressing switch H or G.

General hints

Function standby Switch on ignition to operate the sunroof.

Safety function If the sunroof or sunblind encounters resistance during automatic closing, it is immediately stopped and opened again.

Keys, doors and windows 41

Override safety function In the event of closing difficulties due to frost or the like, hold the switch r pressed to the second detent. The sunroof closes without safety function. To stop movement, release the switch.

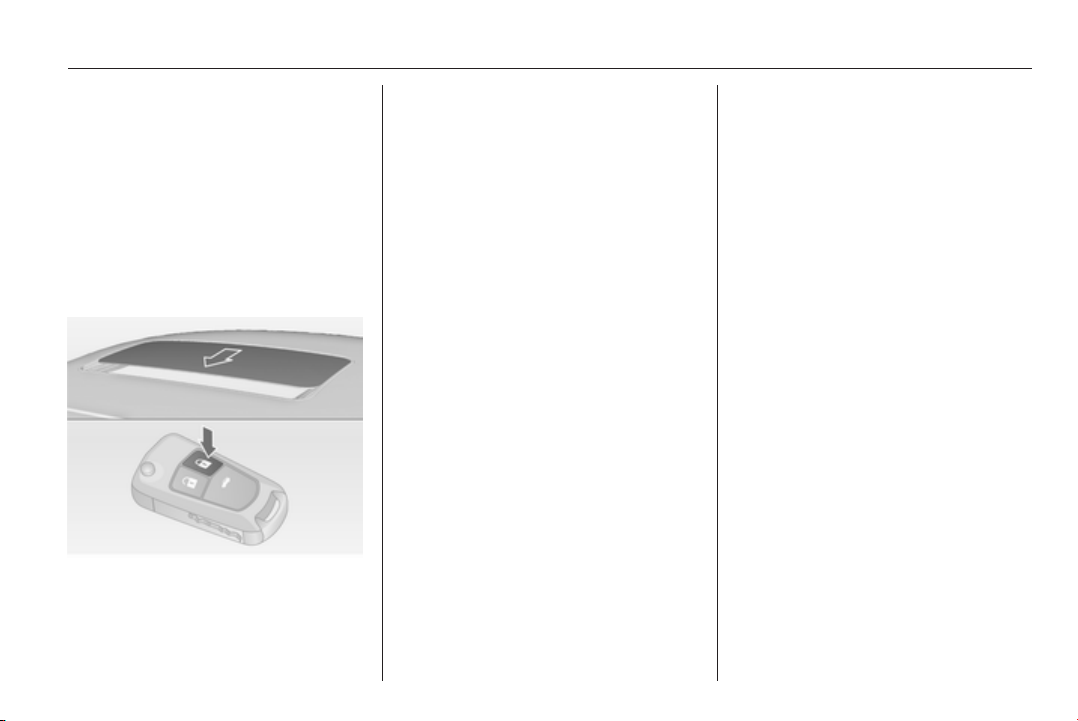

Closing sunroof from outside The sunroof can be closed remotely from outside the vehicle.

Press and hold e button to close the sunroof.

Release the button to stop the movement.

Initialising after a power failure After a power failure, it may only be possible to operate the sunroof to a limited extent. Have the system initialised by your workshop.

42 Seats, restraints

Seats, restraints

Head restraints ............................ 42

Front seats ................................... 44

Rear seats ................................... 50

Seat belts ..................................... 50

Airbag system .............................. 53

Child restraints ............................. 57

Head restraints

Position

9 Warning

Only drive with the head restraint set to the proper position.

The upper edge of the head restraint should be at upper head level. If this is not possible for extremely tall people, set to highest position, and set to lowest position for small people.

Adjustment

Head restraints on front seats

Height adjustment Press release button, adjust height, engage.

Seats, restraints 43

Inclination adjustment Move the bottom edge of the head restraint forward in required position. The headrest can be moved rearward after reaching of very forward position.

Head restraints on rear seats

Height adjustment Pull the head restraint upwards or press the catch to release and push the head restraint downwards.

Active head restraints

In the event of a rear-end impact, the front parts of the active head restraints are moved slightly forwards. Thus the head is supported so that the risk of whiplash injury is reduced.

Note Approved accessories may only be attached if the seat is not in use.

44 Seats, restraints

Front seats

Seat position

9 Warning

Only drive with the seat correctly adjusted.

Sit with buttocks as far back against

■ the backrest as possible. Adjust the distance between the seat and the pedals so that legs are slightly angled when pressing the pedals. Slide the front passenger seat as far back as possible.

■ Sit with shoulders as far back against the backrest as possible. Set the backrest rake so that it is possible to easily reach the steering wheel with arms slightly bent. Maintain contact between shoulders and the backrest when turning the steering wheel. Do not angle the backrest too far back. We recommend a maximum rake of approx. 25°.

■ Adjust the steering wheel 3 79.

■ Set seat height high enough to have a clear field of vision on all sides and of all display instruments. There should be at least one hand of clearance between head and the roof frame. Your thighs should rest lightly on the seat without pressing into it.

■ Adjust the head restraint 3 42.

■ Adjust the height of the seat belt 3 51.

■ Adjust the thigh support so that there is a space approx. two fingers wide between the edge of the seat and the hollow of the knee.

■ Adjust the lumbar support so that it supports the natural shape of the spine.

Seat adjustment

9 Danger

Do not sit nearer than 25 cm from the steering wheel, to permit safe airbag deployment.

9 Warning

Never adjust seats while driving as they could move uncontrollably.

Seats, restraints 45

Seat positioning

Pull handle, slide seat, release handle.

Seat backrests

Pull lever, adjust inclination and release lever. Allow the backrest to engage audibly.

Seat height

Press switch top = seat higher

bottom = seat lower

46 Seats, restraints

Seat inclination

Lever pumping motion up = front end higher

down = front end lower

Lumbar support

Adjust lumbar support using the fourway switch to suit personal requirements.

Moving support up and down: push switch up or down.

Increasing and decreasing support: push switch forwards or backwards.

Adjustable thigh support

Pull the lever and slide the thigh support.

Seats, restraints 47

Power seat adjustment

9 Warning

Care must be taken when operating the power seats. There is a risk of injury, particularly for children. Articles could become trapped.

Keep a close watch on the seats when adjusting them. Vehicle passengers should be informed accordingly.

Seat positioning

Move front of switch forwards/ backwards.

Seat height

Move switch upwards/downwards.

Seat inclination

Move front of switch upwards/ downwards.

Seat backrests

Turn switch forwards/backwards.

Memory function for power seat adjustment and exterior mirrors

Two different driver's seat and exterior mirror settings can be stored.

Memorised settings 3 22, Vehicle personalisation 3 112.

48 Seats, restraints

Storing memory positions by buttons 1 and 2

■ Adjust driver's seat and then adjust exterior mirrors to desired positions.

■ Press and hold button MEM and button 1 at the same time until a beep sounds.

■ Repat the steps for a second driver using button 2.

Recall of memory positions Keep position button 1 or 2 pressed until the stored seat and exterior mirror positions have been reached. Releasing the button during moving stops the recall.

Storing positions by remote control Actual driver's seat and exterior mirror positions are automatically stored by the radio remote control key each time the ignition is switched off. These stored positions are independent of the memory positions stored by the buttons 1 or 2, see above.

The stored positions are automatically recalled by unlocking and opening the driver's door with the memorised radio remote key. If the door is already open, press button c on remote control to activate the recall.

To stop recall movement, press one of the memory-, power mirror- or power seat controls.

Activation or deactivation of this function can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

Easy exit function For a convenient exit out of the vehicle, the power driver seat moves rearwards when vehicle is stationary. To activate, switch off ignition, remove key from the ignition switch and open the driver's door. If the door is already open, switch off ignition to activate the recall.

To stop recall movement, press one of the memory- or power seat controls.

Activation or deactivation of this function can be changed in the menu Settings in the Info-Display. Vehicle personalisation 3 112.

Safety function If the driver's seat encounters resistance during movement, the recall may stop. After removing the obstruction, operate and hold the appropriate power seat position button for the memory item manually for two seconds. Try recalling the memory position again. If the recall does not operate consult a workshop.

Overload If the seat setting is electrically overloaded, the power supply is automatically cut-off for a short time.

Note After an accident in which airbags have been deployed, the memorised settings for each position button will be deactivated.

Seats, restraints 49

Armrest

Push button and fold armrest upwards. Under the armrest there is a storage compartment.

Auxiliary devices, see Infotainment system manual.

Heating

Adjust heating to the desired setting by pressing the ß button for the respective seat one or more times. The control indicator in the button or in the display indicates the setting.

Prolonged use of the highest setting for people with sensitive skin is not recommended.

Seat heating is operational when engine is running and during an Autostop.

Stop-start system 3 140.

Ventilating

Adjust ventilation to the desired setting by pressing the A button for the respective seat one or more times.

The control indicator in the button or in the display indicates the setting.

Ventilated seats are operational when engine is running and during an Autostop.

Stop-start system 3 140.

50 Seats, restraints

Rear seats

Armrest

Fold armrest down. The armrest contains cupholders and a storage box.

Seat belts

The seat belts are locked during heavy acceleration or deceleration of the vehicle holding the occupants in the sitting position. Thereby the risk of injury is considerably reduced.

9 Warning

Fasten seat belt before each trip. In the event of an accident, people

not wearing seat belts endanger their fellow occupants and themselves.

Seat belts are designed to be used by only one person at a time. Child restraint system 3 57.

Periodically check all parts of the belt system for damage, pollution and proper functionality.

Have damaged components replaced. After an accident, have the belts and triggered belt pretensioners replaced by a workshop.

Note Make sure that the belts are not damaged by shoes or sharp-edged objects or trapped. Prevent dirt from getting into the belt retractors.

Seat belt reminder

Each seat is equipped with a seat belt reminder, indicated for front seats by control indicators X and k, or for rear seats by the symbol X in the Driver Information Centre 3 92.

Belt force limiters

Stress on the body is reduced by the gradual release of the belt during a collision.

Seats, restraints 51

Belt pretensioners

In the event of a head-on or rear-end collision of a certain severity, the front seat belts are tightened.

9 Warning

Incorrect handling (e.g. removal or fitting of belts) can trigger the belt pretensioners.

Deployment of the belt pretensioners is indicated by continuous illumination of control indicator v 3 92.

Triggered belt pretensioners must be replaced by a workshop. Belt pretensioners can only be triggered once.

Note Do not affix or install accessories or other objects that may interfere with the operation of the belt pretensioners. Do not make any modifications to belt pretensioner components as this will invalidate the vehicle type approval.

Three-point seat belt

Fastening

Withdraw the belt from the retractor, guide it untwisted across the body and insert the latch plate into the buckle. Tighten the lap belt regularly whilst driving by pulling the shoulder belt.

Loose or bulky clothing prevents the belt from fitting snugly. Do not place objects such as handbags or mobile phones between the belt and your body.

9 Warning

The belt must not rest against hard or fragile objects in the pockets of your clothing.

Seat belt reminder X, k 3 92.

52 Seats, restraints

Insignia OPC

Feed seat belt through belt mount on backrest when fastening seat belt.

Height adjustment

1. Pull belt out slightly.

2. Press button.

3. Adjust height and engage.

Adjust the height so that the belt lies across the shoulder. It must not lie across the throat or upper arm.

Do not adjust while driving.

Seats, restraints 53

Removing

To release belt, press red button on belt buckle.

Insignia OPC Feed seat belt through belt mount on backrest after releasing.

Seat belts on the rear seats

The seat belt for the rear centre seat can only be withdrawn from the retractor if the backrest is in the rear position.

Using the seat belt while pregnant

9 Warning

The lap belt must be positioned as low as possible across the pelvis to prevent pressure on the abdomen.

Airbag system

The airbag system consists of a number of individual systems depending on the scope of equipment.

When triggered the airbags inflate within milliseconds. They also deflate so quickly that it is often unnoticeable during the collision.

9 Warning

If handled improperly the airbag systems can be triggered in an explosive manner.

Note The airbag systems and belt pretensioner control electronics are located in the centre console area. Do not put any magnetic objects in this area.

Do not stick anything on the airbag covers and do not cover them with other materials.

54 Seats, restraints

Each airbag is triggered only once. Have deployed airbags replaced by a workshop. Furthermore, it might be necessary to have the steering wheel, the instrument panel, parts of the panelling, the door seals, handles and the seats replaced.

Do not make any modifications to the airbag system as this will invalidate the vehicle type approval.

When the airbags inflate, escaping hot gases may cause burns.

Control indicator v for airbag systems 3 92.

Front airbag system

The front airbag system consists of one airbag in the steering wheel and one in the instrument panel on the front passenger side. These can be identified by the word AIRBAG.

Additionally there is a warning label on the side of the instrument panel, visible when the front passenger door is open, or on the front passenger sun visor.

The front airbag system is triggered in the event of a front-end impact of a certain severity. The ignition must be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and head of the front seat occupants considerably.

9 Warning

Optimum protection is only provided when the seat is in the proper position 3 44.

Keep the area in which the airbag inflates clear of obstructions.

Seats, restraints 55

Fit the seat belt correctly and engage securely. Only then the airbag is able to protect.

Side airbag system

The side airbag system consists of an airbag in each front seat backrest and in the rear outboard seat backrests. This can be identified by the word AIRBAG.

The side airbag system is triggered in the event of a side impact of a certain severity. The ignition needs to be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the upper body and pelvis in the event of a side-on collision considerably.

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

Note Only use protective seat covers that have been approved for the vehicle. Be careful not to cover the airbags.

Curtain airbag system

The curtain airbag system consists of an airbag in the roof frame on each side. This can be identified by the word AIRBAG on the roof pillars.

The curtain airbag system is triggered in the event of a side-on impact of a certain severity. The ignition needs to be switched on.

The inflated airbags cushion the impact, thereby reducing the risk of injury to the head in the event of a side-on impact considerably.

56 Seats, restraints

9 Warning

Keep the area in which the airbag inflates clear of obstructions.

The hooks on the handles in the roof frame are only suitable for hanging up light articles of clothing, without coat hangers. Do not keep any items in these clothes.

Airbag deactivation

Front airbag and side airbag systems for the front passenger seat must be deactivated if a child restraint system is to be fitted on this seat. The curtain airbag system, the belt pretensioners and all driver airbag systems will remain active.

The front passenger airbag system can be deactivated via a keyoperated switch on the right side of the instrument panel.

Use the ignition key to choose the position:

= front passenger airbags are

deactivated and will not inflate in the event of a collision. Control indicator * illuminates continuously. A child restraint system can be installed in accordance with the chart Child restraint installation locations 3 59. No adult person is allowed to occupy the front passenger seat.

= front passenger airbags are

active. A child restraint system must not be installed.

9 Danger

Risk of fatal injury for a child using a child restraint system on a seat with activated front passenger airbag.

Risk of fatal injury for an adult person on a seat with deactivated front passenger airbag.

Seats, restraints 57

As long as the control indicator * is not illuminated, the airbag systems for the front passenger seat will inflate in the event of a collision.

If both control indicators are illuminated at the same time, there is a system failure. The status of the system is not discernible, therefore no person is allowed to occupy the front passenger seat. Contact a workshop immediately.

Consult a workshop immediately if neither of the two control indicators is illuminated.

Change status only when the vehicle is stopped with the ignition off.

Status remains until the next change. Control indicator for airbag

deactivation 3 93.

Child restraints

Child restraint systems

We recommend the Opel child restraint system which is tailored specifically to the vehicle.

When a child restraint system is being used, pay attention to the following usage and installation instructions and also those supplied with the child restraint system.

Always comply with local or national regulations. In some countries, the use of child restraint systems is forbidden on certain seats.

9 Danger

When using a child restraint system on the front passenger seat, the airbag systems for the front passenger seat must be

58 Seats, restraints

deactivated; if not, the triggering of the airbags poses a risk of fatal injury to the child.

This is especially the case if rearfacing child restraint systems are used on the front passenger seat.

Selecting the right system

The rear seats are the most convenient location to fasten a child restraint system.

Children should travel facing rearwards in the vehicle as long as possible. This makes sure that the child's backbone, which is still very weak, is under less strain in the event of an accident.

Suitable are restraint systems that comply with ECE 44-03 or ECE 44-04. Check local laws and regulations for mandatory use of child restraint systems.

Ensure that the child restraint system to be installed is compatible with the vehicle type.

Ensure that the mounting location of the child restraint system within the vehicle is correct.

Allow children to enter and exit the vehicle only on the side facing away from the traffic.

When the child restraint system is not in use, secure the seat with a seat belt or remove it from the vehicle.

Note Do not stick anything on the child restraint systems and do not cover them with any other materials.

A child restraint system which has been subjected to stress in an accident must be replaced.

Seats, restraints 59

Child restraint installation locations

Permissible options for fitting a child restraint system

On front passenger seat

Weight and age class

Group 0: up to 10 kg

or approx. 10 months

Group 0+: up to 13 kg

or approx. 2 years

Group I: 9 to 18 kg

or approx. 8 months to 4 years

Group II: 15 to 25 kg

X X U U

or approx. 3 to 7 years

Group III: 22 to 36 kg

X X U U

or approx. 6 to 12 years

= Only if front passenger seat airbag system is deactivated. If the child restraint system is being secured using a three-

point seat belt, move seat height adjustment to uppermost position and ensure that vehicle safety belt runs forwards from the upper anchorage point. Adjust seat backrest inclination as far as necessary to a vertical position to ensure that the belt is tight on the buckle side.

= Seat available with ISOFIX and Top-Tether mounting brackets. U = Universal suitability in conjunction with three-point seat belt. X = No child restraint system permitted in this weight class.

On rear outboard seats On rear centre seatactivated airbag deactivated airbag

60 Seats, restraints

Permissible options for fitting an ISOFIX child restraint system

Weight class Size class Fixture On front passenger seat On rear outboard seats On rear centre seat

Group 0: up to 10 kg E ISO/R1 X IL IL

Group 0+: up to 13 kg E ISO/R1 X IL IL

D ISO/R2 X IL IL

C ISO/R3 X IL IL

Group I: 9 to 18 kg D ISO/R2 X IL IL

C ISO/R3 X IL IL

B ISO/F2 X IL, IUF IL, IUF

B1 ISO/F2X X IL, IUF IL, IUF

A ISO/F3 X IL, IUF IL, IUF

IL = Suitable for particular ISOFIX restraint systems of the 'specific-vehicle', 'restricted' or 'semi-universal' categories.

The ISOFIX restraint system must be approved for the specific vehicle type. IUF = Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this weight class. X = No ISOFIX child restraint system approved in this weight class.

Seats, restraints 61

ISOFIX size class and seat device

A – ISO/F3 = Forward-facing child restraint system for children of maximum size in the weight class 9 to 18 kg. B – ISO/F2 = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. B1 – ISO/F2X = Forward-facing child restraint system for smaller children in the weight class 9 to 18 kg. C – ISO/R3 = Rear-facing child restraint system for children of maximum size in the weight class up to 13 kg. D – ISO/R2 = Rear-facing child restraint system for smaller children in the weight class up to 13 kg. E – ISO/R1 = Rear-facing child restraint system for young children in the weight class up to 13 kg.

62 Seats, restraints

ISOFIX child restraint systems

Fasten vehicle-approved ISOFIX child restraint systems to the ISOFIX mounting brackets. Specific vehicle ISOFIX child restraint system positions are marked in the table by IL.

No more than two ISOFIX child restraint systems can be installed on the rear seats at the same time, though not right next to each other.

ISOFIX mounting brackets are indicated by a label on the backrest.

Top-tether fastening eyes

Top-Tether fastening eyes are marked with the symbol : for a child seat.

Open the flap of the required fastening eye, marked by the child seat symbol.

In addition to the ISOFIX mounting, fasten the Top-Tether strap to the Top-Tether fastening eyes. The strap must run between the two guide rods of the head restraint.

ISOFIX child restraint systems of universal category positions are marked in the table by IUF.

Storage 63

Storage

Storage compartments ................ 63

Load compartment ....................... 65

Roof rack system ......................... 76

Loading information ..................... 77

Storage compartments

Glovebox

The glovebox features a pen holder and a coin holder.

The glovebox should be closed whilst driving.

Cupholders

Cupholders are located in the centre console.

64 Storage

Additional cupholders are located in the rear armrest. Fold down armrest.

Front storage

A storage compartment is located next to the steering wheel.

Sunglasses storage

Fold down and open. Do not use for storing heavy objects.

Armrest storage

Storage in the front armrest

Push button to fold up the armrest.

Storage 65

Storage in the rear armrest

Fold down armrest and open cover. Close cover before folding the

armrest up.

Load compartment

Folding down rear seat backrests

The rear seat backrest is divided into two parts. Both parts can be folded down.

Remove the load compartment cover if necessary.

Press and hold the catch, then push the head restraints down.

Fold up the rear armrest.

Put the seat belts of the outboard seats into the belt guides.

Pull the release lever on one or both sides and fold down the backrests onto the seat cushion.

To fold up, raise backrests and guide them into an upright position until they engage audibly.

Ensure that the seat belts of the outboard seats are placed in the corresponding belt guides.

66 Storage

The backrests are properly engaged when both red marks on the side near the release lever are no longer visible.

9 Warning

Only drive the vehicle if the backrests are securely locked into position. Otherwise there is a risk of personal injury or damage to the load or vehicle in the event of heavy braking or a collision.

The seat belt of the centre seat could be blocked when the backrest is folded up too quickly. To unlock the retractor, push in the seat belt or pull it out by approximately 20 mm and then let go.

Opening the pass-through in the rear centre backrest

Fold down rear armrest.

Pull grip and open the cover. Suitable for loading long, narrow

objects. Ensure the cover engages after

folding up.

Load compartment cover

Do not place any objects on the cover.

5-door Hatchback

Removing cover

Storage 67

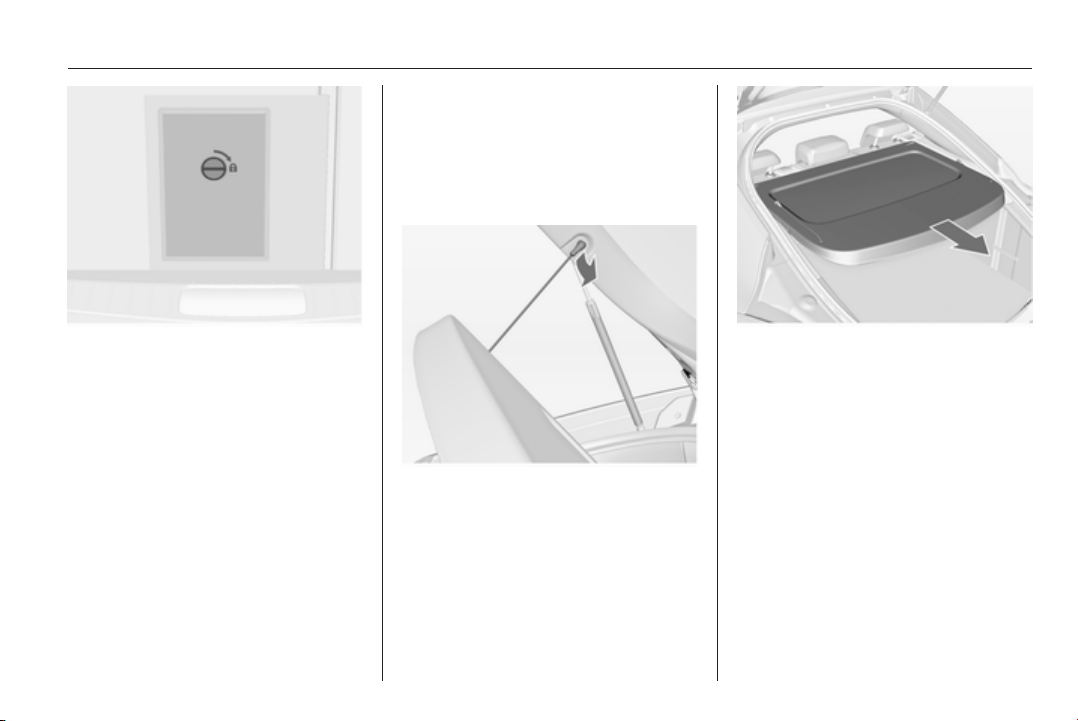

The closed cover can be secured from the side of the load compartment. Turn knob by 90°:

knob horizontal

knob vertical

= cover secured from

the side of the passenger compartment

= cover not secured

Storage in the load compartment

Depending on the equipment, there are storage boxes under the load compartment cover.

Unhook retaining straps from tailgate.

Pull cover from the side guides.

Fitting cover Engage cover in side guides and fold downwards. Attach the retaining straps to the tailgate.

Sports Tourer

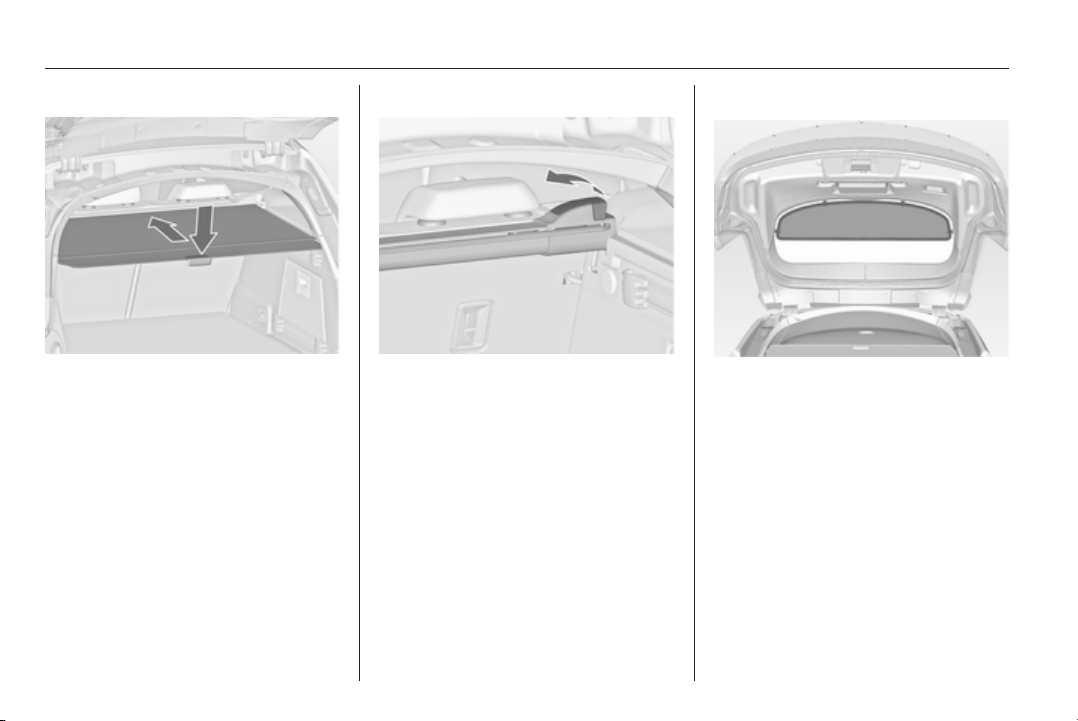

Closing cover Pull the cover towards the rear using the handle until it engages in the sideward retainers.

68 Storage

Opening cover

Push down the handle at the end of the cover. It rolls up automatically.

Removing cover

Open the load compartment cover. Pull the release lever on the right side

up and hold it. Lift the cover first on the right side and remove from retainers.

The removed cover can be stored under the load compartment floor 3 72.

Installing cover Insert the left side of the load compartment cover in the recess, pull the release lever up and hold it, insert the right side of the load compartment cover and engage.

Blind at the tailgate

To cover the load compartment completely, mount the blind at four fixing points on the inside of the tailgate.

Rear floor storage cover

Sliding floor cover (FlexFloor)

For a convenient setting of the load compartment, the floor cover can be pulled out.

Storage 69

Pulling out the floor cover

■ Lift up the floor at the handle slightly until the spring rolls pop-up on each side.

■ Press the button under the handle and pull out the floor cover until it engages.

Load the floor in this position.

Sliding back into load compartment

■ Press the button under the handle and slide in the floor cover until it engages at the end position.

Leave the floor cover in the raised position as long as it is loaded.

To return the floor cover to its original position after unloading

■ Raise the floor cover at the handle slightly and push down the spring rolls on each side manually. Both spring rolls must engage in position.

■ Lower the floor cover.

The pulled out floor cover can be loaded with max. 120 kg, a warning label is shown on the floor cover.

Secure objects with lashing straps attached to lashing eyes 3 70. Loading information 3 77.

9 Warning

Don't load or unload the compartment by using the sliding floor cover when the vehicle is parked on a sloped surface. The floor cover could run uncontrolled into the end positions.

Lift the floor cover up or down only unloaded.

Danger of injury.

70 Storage

For access to the spare wheel or tyre repair kit, lift up the floor cover and attach the retaining strap at the upper edge of the tailgate recess. Lift up and attach the cover only without loading.

Lashing eyes

The lashing eyes are designed to secure items against slippage, e.g. using lashing straps or luggage net.

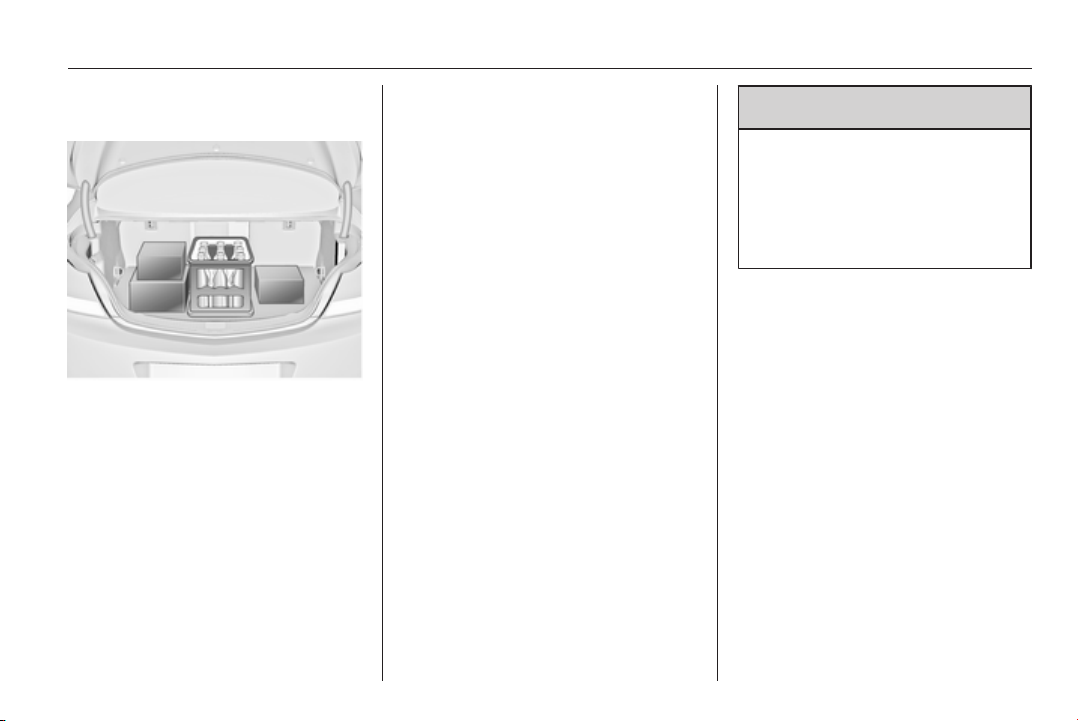

Cargo management system

The FlexOrganizer is a flexible system for dividing up the load compartment.

The system consists of

■ adapters,

■ mesh pockets,

■ hooks,

■ service box,

■ strap set. The components are fitted in rails on

both side panels using adapters and hooks.

Installation of adapters in the rails

Fold open the handle plate, insert the adapter into the upper and lower groove of the rail and move to the required position. Turn the handle plate upwards to lock the adapter. To remove, turn the handle plate down and move out of the rail.

Storage 71

Variable partition net

Insert adapters into the required position in the rails. Stick together the halves of the net rods.

To install, push rods together a little and insert into the relevant openings in the adapters.

To remove, press the net rods together and remove from the adapters.

Net pocket

Insert adapters into the required position in the rails. The net pocket can be suspended from the adapters.

Installation of hooks in the rails

Insert the hook in the desired position first in the upper groove of the rail and then press in the lower groove. To remove, first pull out of the upper groove.

72 Storage

Service box

Install two hooks in the upper rail. Insert the upper brackets of the box from above into the hooks.

Alternatively install both hooks in the lower rail. Plug in the lower brackets of the box from above into the lower hooks.

Strap set

Insert the adapters of the strap set in a rail. Make sure that the belt is not twisted.

The strap set has two locks to open. The belt can be tightened.

Safety net

Two different safety nets can be installed behind the front seats or rear seats.

Passengers must not be transported behind the safety net.

Storage 73

Safety net behind the front seats

Push head restraints of the rear seats down and fold down rear seat backrests 3 65.

Front installation openings in the roof frame: latch rod of the net at one side, compress rod and latch at the other side.

Fit the hooks of the small belts into the Top-Tether mounting loops on the back side of the folded rear seat backrests.

Fit the hooks of the wider belts into the locking devices of the rear seat backrests.

Safety net cassette behind the rear seats

Pull out the net from the cassette and latch the rod of the net at one side into the rear installation opening in the roof frame. Compress the rod and latch at the other side.

Removal of the cassette Roll up safety net.

Remove load compartment cover 3 67.

74 Storage

To unlock, turn cassette slightly backwards and remove it upwards from the retainers.

Installation of the cassette Remove load compartment cover.

Insert the cassette into the retainers on left and right side. Note the signs L (left side) and R (right side) on the cassette as an installation hint.

Turn cassette slightly forwards to lock.

Stowage of safety nets and load compartment cover

Rear safety net cassette can be placed, together with the load compartment cover and the coiled up safety net, under the load compartment floor.

Open the load compartment floor by pulling the handle. Fold and place the floor behind the rear seats.

Storage 75

Put the load compartment cover into the hollow with the upper side downwards and with the release lever in the front right edge.

Warning triangle

5-door Hatchback/4-door Saloon

Stow the warning triangle in the space behind the strap on the right side of the load compartment.

Sports Tourer

Stow the warning triangle in the space behind the straps on the inside of the tailgate.

First aid kit

5-door Hatchback/4-door Saloon

Stow the first aid kit in the space behind the mesh net on the left side of the load compartment.

76 Storage

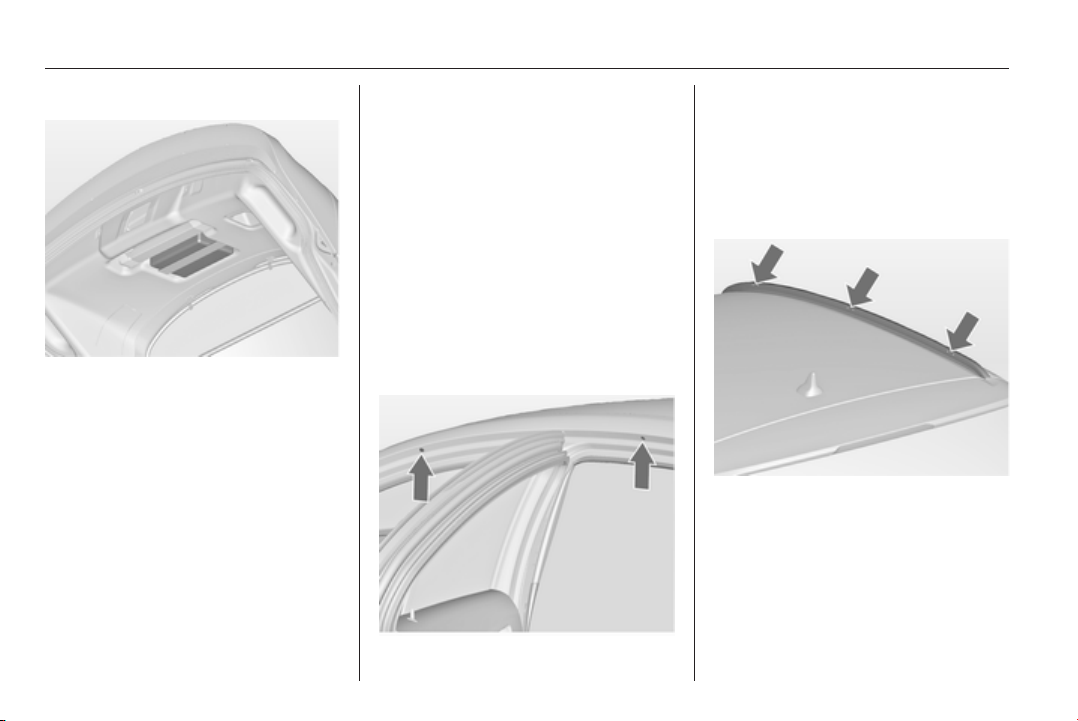

Sports Tourer

Stow the first aid kit in the space behind a strap on the inside of the tailgate.

Roof rack system

Roof rack

For safety reasons and to avoid damage to the roof, the vehicle approved roof rack system is recommended.

Follow the installation instructions and remove the roof rack when not in use.

Mounting roof rack

5-door Hatchback/4-door Saloon

Open all doors.

Mounting points are located in each door frame of the vehicle body.

Detach the cover from each mounting point and fasten the roof rack with the attached screws.

Sports Tourer with roof railing

To fasten the roof rack, insert the mounting bolts in the holes indicated in the figure.

Storage 77

Loading information

■ Heavy objects in the load compartment should be placed against the seat backrests. Make sure that the backrests are securely engaged, i.e. no longer showing the red markings on the side near the release lever. If objects can be stacked, heavier objects should be placed at the bottom.

■ Secure objects with lashing straps attached to lashing eyes 3 70.

■ Secure loose objects in the load compartment to prevent from sliding.

■ When transporting objects in the load compartment, the backrests of the rear seats must not be angled forward.

■ Do not allow the load to protrude above the upper edge of the backrests.

■ Do not place any objects on the load compartment cover or the instrument panel, and do not cover the sensor on top of the instrument panel.

■ The load must not obstruct the operation of the pedals, parking brake and gear selector, or hinder the freedom of movement of the driver. Do not place any unsecured objects in the interior.

■ Do not drive with an open load compartment.

9 Warning

Always make sure that the load in the vehicle is securely stowed. Otherwise objects can be thrown around inside the vehicle and cause personal injury or damage to the load or car.

■ The payload is the difference between the permitted gross vehicle weight (see identification plate 3 239) and the EC kerb weight.

To calculate the payload, enter the data for your vehicle in the Weights table at the front of this manual.

The EC kerb weight includes weights for the driver (68 kg), luggage (7 kg) and all fluids (tank 90 % full).

Optional equipment and accessories increase the kerb weight.

■ Driving with a roof load increases the sensitivity of the vehicle to cross-winds and has a detrimental effect on vehicle handling due to

78 Storage

the vehicle's higher centre of gravity. Distribute the load evenly and secure it properly with retaining straps. Adjust the tyre pressure and vehicle speed according to the load conditions. Check and retighten the straps frequently.

Do not drive faster than 120 km/h. The permissible roof load is

100 kg. The roof load is the combined weight of the roof rack and the load.

Instruments and controls 79

Instruments and controls

Controls ....................................... 79

Warning lights, gauges and

indicators ..................................... 87

Information displays ..................... 98

Vehicle messages ...................... 106

Trip computer ............................. 110

Vehicle personalisation .............. 112

Controls

Steering wheel adjustment

Unlock lever, adjust steering wheel, then engage lever and ensure it is fully locked.

Do not adjust steering wheel unless vehicle is stationary and steering wheel lock has been released.

Steering wheel controls

The Infotainment system, some driver assistance systems and a connected mobile phone can be operated via the controls on the steering wheel.

Further information is available in the Infotainment system manual.

Driver assistance systems 3 157.

80 Instruments and controls

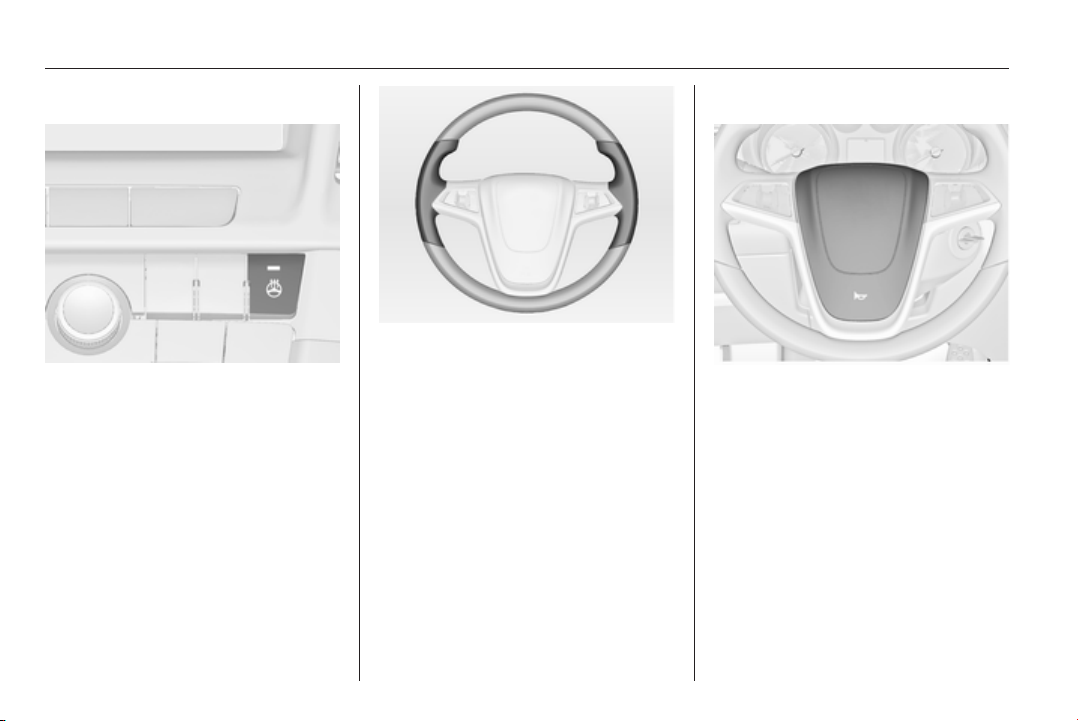

Heated steering wheel

Activate heating by pressing * button. Activation is indicated by the LED in the button.

The recommended grip areas of the steering wheel are heated quicker and to a higher temperature than the other areas.

Heating is operational when the engine is running and during an Autostop.

Stop-start system 3 140.

Horn

Press j.

Instruments and controls 81

Windscreen wiper/washer

Windscreen wiper

2 = fast 1 = slow

= interval wiping = off

For a single wipe when the windscreen wiper is off, press the lever down.

Do not use if the windscreen is frozen. Switch off in car washes.

Adjustable wiper interval

Wiper lever in position P. Turn the adjuster wheel to adjust the

desired wipe interval: short

interval long interval

= turn adjuster wheel

upwards

= turn adjuster wheel

downwards

Automatic wiping with rain sensor

= automatic wiping with rain

sensor

The rain sensor detects the amount of water on the windscreen and automatically regulates the frequency of the windscreen wiper.

82 Instruments and controls

Adjustable sensitivity of the rain sensor

Turn the adjuster wheel to adjust the sensitivity:

low sensitivity high sensitivity

= turn adjuster wheel

downwards

= turn adjuster wheel

upwards

Windscreen and headlight washer

Keep the sensor free from dust, dirt and ice.

Pull lever. Washer fluid is sprayed onto the windscreen and the wiper wipes a few times.

If the headlights are on, washer fluid is also sprayed onto the headlights, provided that the lever is pulled sufficiently long. Afterwards the headlight washer system is inoperable for 5 wash cycles or until engine or headlights have been switched off and on again.

Instruments and controls 83

Rear window wiper/washer

Push the rocker switch to activate the rear window wiper:

upper position lower position middle position

= continuous

operation

= intermittent

operation

= off

Push lever. Washer fluid is sprayed onto the rear window and the wiper wipes a few times.

Do not use if the rear window is frozen.

Switch off in car washes. The rear window wiper comes on

automatically when the windscreen wiper is switched on and reverse gear is engaged.

Activation or deactivation of this function can be changed in the menu Settings in the Info-Display.

Vehicle personalisation 3 112.

The rear window washer system is deactivated when the fluid level is low.

Outside temperature

A drop in temperature is indicated immediately and a rise in temperature after a time delay.

84 Instruments and controls

If outside temperature drops to 3 °C, a warning message is displayed in the Driver Information Centre with Uplevel-Display or Uplevel-CombiDisplay.

9 Warning

The road surface may already be icy even though the display indicates a few degrees above 0 °C.

Clock

Date and time are shown in the Info-Display.

Set date and time

Press the CONFIG button. The menu Settings is displayed.

Select Time & Date.

Selectable setting options:

■ Set time: Changes the time shown on the display.

■ Set date: Changes the date shown on the display.

■ Set time format: Changes indication of hours between 12 hours and 24 hours.

■ Set date format: Changes indication of date between MM/DD/ YYYY and DD.MM.YYYY.

■ Display digital clock: Switches on/ off indication of time on the display.

■ RDS clock synchronization: The RDS signal of most VHF transmitters automatically sets the time. RDS time synchronisation can take a few minutes. Some transmitters do not send a correct time signal. In such cases, it is recommended to switch off automatic time synchronisation.

Vehicle personalisation 3 112.

Instruments and controls 85

Power outlets

12 Volt power outlets are located in the front and rear centre console.

Do not exceed the maximum power consumption of 120 watts.

A 230 Volt power outlet is located in the rear centre console. If ignition is on and a device is plugged in, an LED in the outlet illuminates green.

Do not exceed the maximum power consumption of 150 watts.

9 Danger

Power outlet works under high electrical voltage!

With ignition off the power outlets are deactivated. Additionally the power outlets are deactivated in the event of low battery voltage.

Electrical accessories that are connected must comply with the electromagnetic compatibility requirements laid down in DIN VDE 40 839.

Do not connect any current-delivering accessories, e.g. electrical charging devices or batteries.

Do not damage the outlets by using unsuitable plugs.

Stop-start system 3 140.

86 Instruments and controls

Cigarette lighter

The cigarette lighter is located behind the ashtray cover.

Press ashtray cover to open.

Press in cigarette lighter. It switches off automatically once the element is glowing. Pull out lighter.

Ashtrays

Caution

To be used only for ash and not for combustible rubbish.

Press ashtray cover to open.

To empty, grip both sides of the ashtray insert and remove.

Instruments and controls 87

Warning lights, gauges and indicators

Speedometer

Indicates vehicle speed.

Odometer

The bottom line displays the recorded distance in km.

Trip odometer

The top line displays the recorded distance since the last reset.

To reset, press the SET/CLR button on the turn signal lever for a few seconds or press reset knob between speedometer and Driver Information Centre with the ignition on 3 98.

Trip odometer counts up to a distance of 2000 km then restarts at 0.

Tachometer

Displays the engine speed. Drive in a low engine speed range for

each gear as much as possible.

Caution

If the needle is in the red warning zone, the maximum permitted engine speed is exceeded. Engine at risk.

88 Instruments and controls

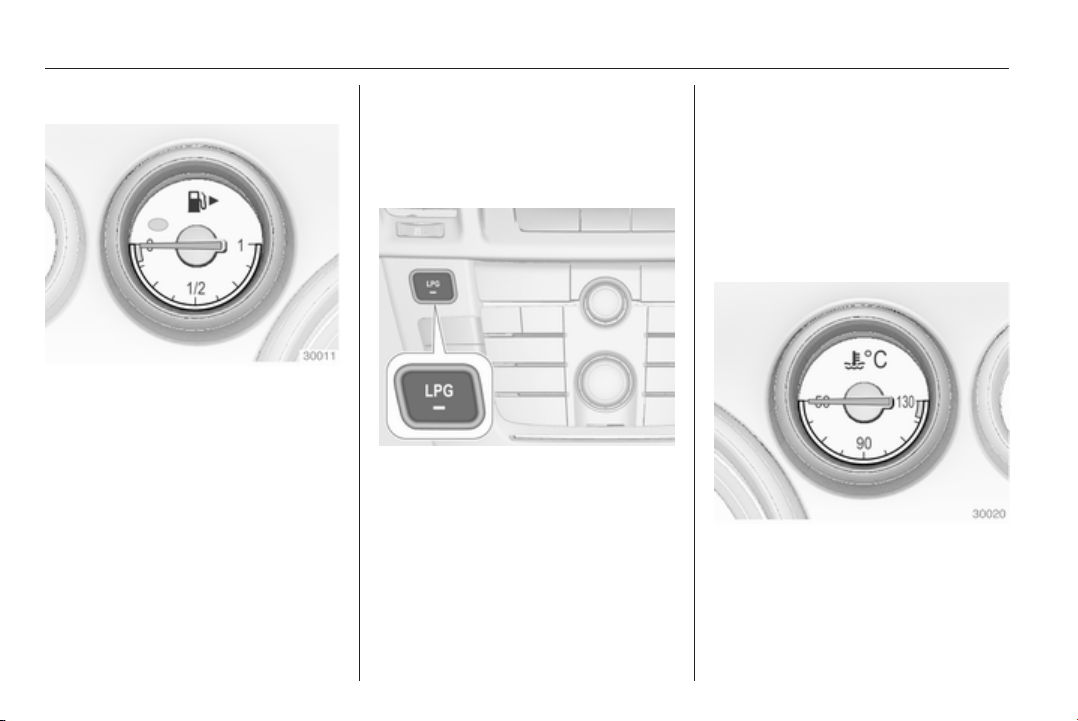

Fuel gauge

Displays the fuel level or gas level in the tank depending on the operation mode.

Control indicator i illuminates if the level in the tank is low. Refuel immediately if it flashes.

During liquid gas operation, the system automatically switches over to petrol operation when gas tanks are empty 3 88.

Never run the tank dry.

Because of the fuel remaining in the tank, the top-up quantity may be less than the specified tank capacity.

Fuel selector

Pressing button LPG switches between petrol and liquid gas operation. The LED 1 status shows the current operating mode.

1 off = petrol operation 1 illuminates = liquid gas

operation

1 flashes = no switching is

possible, one type of fuel is empty

As soon as the liquid gas tank is empty, petrol operation is automatically engaged until the ignition is switched off.

Fuel for liquid gas operation 3 181.

Engine coolant temperature gauge

Displays the coolant temperature.

left area = engine operating

temperature not yet

reached central area right area = temperature too high

= normal operating

temperature

Caution

If engine coolant temperature is too high, stop vehicle, switch off engine. Danger to engine. Check coolant level.

Service display

The engine oil life system lets you know when to change the engine oil and filter. Based on driving conditions, the interval at which an engine oil and filter change will be indicated can vary considerably.

In the Uplevel-Display or UplevelCombi-Display the remaining oil life duration is displayed in the Vehicle Information Menu.

In the Midlevel-Display the remaining engine oil life duration is displayed by the control indicator I. The ignition must be switched on, but engine not running.

The menu and function can be selected via the buttons on the turn signal lever.

To display the remaining engine oil life duration:

Instruments and controls 89

Press the MENU button to select the Vehicle Information Menu.

Turn the adjuster wheel to select Remaining Oil Life.

The system must be reset every time the engine oil is changed to allow proper functionality. Seek the assistance of a workshop.

Press the SET/CLR button to reset. The ignition must be switched on but engine not running.

When the system has calculated that engine oil life has been diminished, Change Engine Oil Soon or a warning code appears in the Driver

90 Instruments and controls

Information Centre. Have engine oil and filter changed by a workshop within one week or 500 km (whichever occurs first).

Driver Information Centre 3 98. Service information 3 236.

Control indicators

The control indicators described are not present in all vehicles. The description applies to all instrument versions. Depending on the equipment, the position of the control indicators may vary. When the ignition is switched on, most control indicators will illuminate briefly as a functionality test.

The control indicator colours mean: red = danger, important

reminder yellow = warning, information, fault green = confirmation of activation blue = confirmation of activation white = confirmation of activation

Control indicators in the instrument cluster

Instruments and controls 91

92 Instruments and controls

Control indicators in the centre console

Turn signal

O illuminates or flashes green.

Illuminates briefly

The parking lights are switched on.

Flashes

A turn signal or the hazard warning flashers are activated.

Rapid flashing: failure of a turn signal light or associated fuse, failure of turn signal light on trailer.

Bulb replacement 3 199, Fuses 3 209.

Turn signals 3 123.

Seat belt reminder

Seat belt reminder on front seats

X for driver's seat illuminates or flashes red in the tachometer.

k for front passenger seat illuminates or flashes red in the centre console, when seat is occupied.

Illuminates After the ignition has been switched on until the seat belt has been fastened.

Flashes After having started the engine for a maximum of 100 seconds until the seat belt has been fastened.

Seat belt status on rear seats

X flashes or illuminates on the Driver Information Centre.

Illuminates After the ignition has been switched on when the seat belt has been fastened.

Flashes After starting off when the seat belt is unfastened.

Fastening the seat belt 3 51.

Airbag and belt tensioners

v illuminates red. When the ignition is switched on, the

control indicator illuminates for approx. 4 seconds. If it does not illuminate, does not go out after 4 seconds or illuminates whilst driving, there is a fault in the airbag system. Seek the assistance of a workshop. The airbags and belt pretensioners may fail to trigger in the event of an accident.

Deployment of the belt pretensioners or airbags is indicated by continuous illumination of v.

Instruments and controls 93

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Belt pretensioners, airbag system 3 50, 3 53.

Airbag deactivation

V illuminates yellow. The front passenger airbag is

activated. * illuminates yellow. The front passenger airbag is

deactivated 3 56.

9 Danger

Risk of fatal injury for a child using a child restraint system together with activated front passenger airbag.

Risk of fatal injury for an adult person with deactivated front passenger airbag.

Charging system

p illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Illuminates when the engine is running

Stop, switch off engine. Battery is not charging. Engine cooling may be interrupted. The brake servo unit may cease to be effective. Seek the assistance of a workshop.

Malfunction indicator light

Z illuminates or flashes yellow. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Illuminates when the engine is running

Fault in the emission control system. The permitted emission limits may be exceeded. Seek the assistance of a workshop immediately.

Flashes when the engine is running

Fault that could lead to catalytic converter damage. Ease up on the accelerator until the flashing stops. Seek the assistance of a workshop immediately.

Service vehicle soon

g illuminates yellow. Additionally a warning message or a

warning code is displayed. The vehicle needs a service. Seek the assistance of a workshop. Vehicle messages 3 106.

Brake and clutch system

Brake and clutch fluid level

R illuminates red. The brake and clutch fluid level is too

low 3 196.

94 Instruments and controls

9 Warning

Stop. Do not continue your journey. Consult a workshop.

Illuminates after the ignition is switched on if the manual parking brake is applied 3 151.

Operate pedal

- illuminates or flashes yellow.

Illuminates Brake pedal needs to be operated to release the electrical parking brake 3 151.

Clutch pedal needs to be operated to start the engine. Stop-start system 3 140.

Flashes Clutch pedal needs to be operated to start the engine 3 139.

Electrical parking brake

m illuminates or flashes red.

Illuminates

Electrical parking brake is applied 3 151.

Flashes

Electrical parking brake is not fully applied or released. Depress the brake pedal and attempt to reset the system by first releasing and then applying the electrical parking brake. If m remains flashing, do not drive and seek the assistance of a workshop.

Electrical parking brake fault

j illuminates or flashes yellow.

Illuminates

Electrical parking brake is operating with degraded performance 3 151.

Flashes

Electrical parking brake is in service mode. Stop vehicle, apply and release the electrical parking brake to reset.

9 Warning

Have the cause of the fault remedied immediately by a workshop.

Antilock brake system (ABS)

u illuminates yellow. Illuminates for a few seconds after the

ignition is switched on. The system is ready for operation when the control indicator extinguishes.

If the control indicator does not go out after a few seconds, or if it illuminates while driving, there is a fault in the ABS. The brake system remains operational but without ABS regulation.

Antilock brake system 3 150.

Upshift

[ illuminates green as control indicator, or is shown as a symbol in the Driver Information Centre with Uplevel-Display or Uplevel-Combi-

Instruments and controls 95

Display, when upshifting is recommended for fuel saving reasons.

On some versions gear shift indication is popped up as full page in the Driver Information Centre.

EcoFlex drive assistant 3 110.

Variable effort steering

c illuminates yellow. Fault in variable effort steering

system. This may lead to a higher or lower steering effort. Consult a workshop.

Lane departure warning

) illuminates green or flashes yellow.

Illuminates green

The system is switched on and ready to operate.

Flashes yellow

The system recognizes an unintended lane change.

Ultrasonic parking assist

r illuminates yellow. Fault in system or Fault due to sensors that are dirty or

covered by ice or snow or Interference due to external sources

of ultrasound. Once the source of interference is removed, the system will operate normally.

Have the cause of the fault in the system remedied by a workshop.

Ultrasonic parking assist 3 171.

Electronic Stability Control off

n illuminates yellow. The system is deactivated.

Electronic Stability Control and Traction Control system

b illuminates or flashes yellow.

Illuminates

A fault in the system is present. Continued driving is possible. Driving stability, however, may deteriorate depending on road surface conditions.

Have the cause of the fault remedied by a workshop.

Flashes

The system is actively engaged. Engine output may be reduced and the vehicle may be braked automatically to a small degree.

Electronic Stability Control 3 154, Traction Control system 3 153.

Traction Control system off

k illuminates yellow. The system is deactivated.

96 Instruments and controls

Preheating

! illuminates yellow. Preheating is activated. Only

activates when outside temperature is low.

Diesel particle filter

% illuminates or flashes yellow. The diesel particle filter requires

cleaning. Continue driving until %

extinguishes. If possible do not allow engine speed to drop below 2000 rpm.

Illuminates

The diesel particle filter is full. Start cleaning process as soon as possible.

Flashes

The maximum filling level of the filter is reached. Start cleaning process immediately to avoid damage to the engine.

Diesel particle filter 3 143.

Stop-Start system 3 140.

Tyre pressure monitoring system

w illuminates or flashes yellow.

Illuminates

Tyre pressure loss. Stop immediately and check tyre pressure.

Flashes

Fault in system or tyre without pressure sensor mounted (e.g. spare wheel). After 60-90 seconds the control indicator illuminates continuously. Consult a workshop.

Engine oil pressure

I illuminates red. Illuminates when the ignition is

switched on and extinguishes shortly after the engine starts.

Illuminates when the engine is running

Caution

Engine lubrication may be interrupted. This may result in damage to the engine and/or locking of the drive wheels.

1. Depress clutch.

2. Select neutral gear, set selector lever to N.

3. Move out of the flow of traffic as quickly as possible without impeding other vehicles.

4. Switch off ignition.

Instruments and controls 97

9 Warning

When the engine is off, considerably more force is needed to brake and steer. During an Autostop the brake servo unit will still be operational.

Do not remove key until vehicle is stationary, otherwise the steering wheel lock could engage unexpectedly.

Check oil level before seeking assistance of a workshop 3 193.

Low fuel

i illuminates or flashes yellow.

Illuminates

Level in fuel tank is too low.

Flashes

Fuel used up. Refuel immediately. Never run the tank dry.

Catalytic converter 3 144. Bleeding the diesel fuel system

3 198.

Immobiliser

d flashes yellow. Fault in the immobiliser system. The

engine cannot be started.

Exterior light

8 illuminates green. The exterior lights are on 3 118.

High beam

C illuminates blue. Illuminated when high beam is on or

during headlight flash 3 119.

High beam assist

l illuminates green. The high beam assist is activated,

see adaptive forward lighting 3 121.

Adaptive forward lighting

f illuminates or flashes yellow.

Illuminates

Fault in system.

Seek the assistance of a workshop.

Flashes

System switched to symmetrical low beam.

Control indicator f flashes for approx. 4 seconds after the ignition is switched on as a reminder that the system has been activated 3 120.

Automatic light control 3 119.

Fog light

> illuminates green. The front fog lights are on 3 124.

Rear fog light

r illuminates yellow. The rear fog light is on 3 124.

Low washer fluid

G illuminates yellow. The washer fluid level is low. Washer fluid 3 196.

98 Instruments and controls

Cruise control

m illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Cruise control is active. Cruise control 3 157.

Adaptive cruise control

m illuminates white or green.

Illuminates white

The system is on.

Illuminates green

Adaptive cruise control is active. Adaptive cruise control 3 158.

Vehicle detected ahead

A illuminates green. A vehicle ahead is detected in the

same lane.

Adaptive cruise control 3 158, Forward collision alert 3 165.

Door open

h illuminates red. A door or the tailgate is open.

Information displays

Driver Information Centre

The Driver Information Centre (DIC) is located in the instrument cluster between speedometer and tachometer. It is available as Midlevel-Display, Uplevel-Display or Uplevel-Combi-Display.

Midlevel-Display indicates:

■ overall odometer

■ trip odometer

■ some control indicators

■ vehicle information

Insignia 2013 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Introduction

In brief

Initial drive information

Vehicle unlocking

Seat adjustment

Seat positioning

Seat backrests

Seat height

Seat inclination

Power seat adjustment

Head restraint adjustment

Seat belt

Mirror adjustment

Interior mirror

Exterior mirrors

Steering wheel adjustment

Instrument panel overview

Exterior lighting

Headlight flash, high beam and low beam

Turn and lane-change signals

Hazard warning flashers

Horn

Washer and wiper systems

Windscreen wiper

Windscreen and headlight washer

Rear window wiper

Rear window washer

Climate control

Heated rear window, heated exterior mirrors

Demisting and defrosting the windows

Transmission

Manual transmission

Automatic transmission

Starting off

Check before starting off

Starting the engine

Stop-start system

Parking

Keys, doors and windows

Keys, locks

Keys

Replacement keys

Key with foldaway key section

Car Pass

Radio remote control

Fault

Basic settings

Radio remote control battery replacement

Key with foldaway key section

Memorised settings

Central locking system

Unlocking

Locking

Unlocking and opening the tailgate

4-door Saloon, Sports Tourer with power tailgate

Central locking buttons

Fault in radio remote control system

Unlocking

Fault in central locking system

Automatic locking

Automatic locking after driving off

Automatic relock after unlocking

Child locks

Doors

Load compartment

Tailgate

Closing

Power tailgate

Operation with radio remote control

Operation with the switch in the driver's door

Operation with switches in the tailgate

Stop or change direction of movement

Adjust reduced opening height in intermediate mode

General hints for operating tailgate

Vehicle security

Anti-theft locking system
